Toyota Lexus rx450h/350(nap GYL25 CYLINDER BLOCK

GYL25L-CWXGBA (2015)

Toyota Lexus Rx450h/350(Nap

Production Oct 2015 - Sep 2019

Engine 2GRFXS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

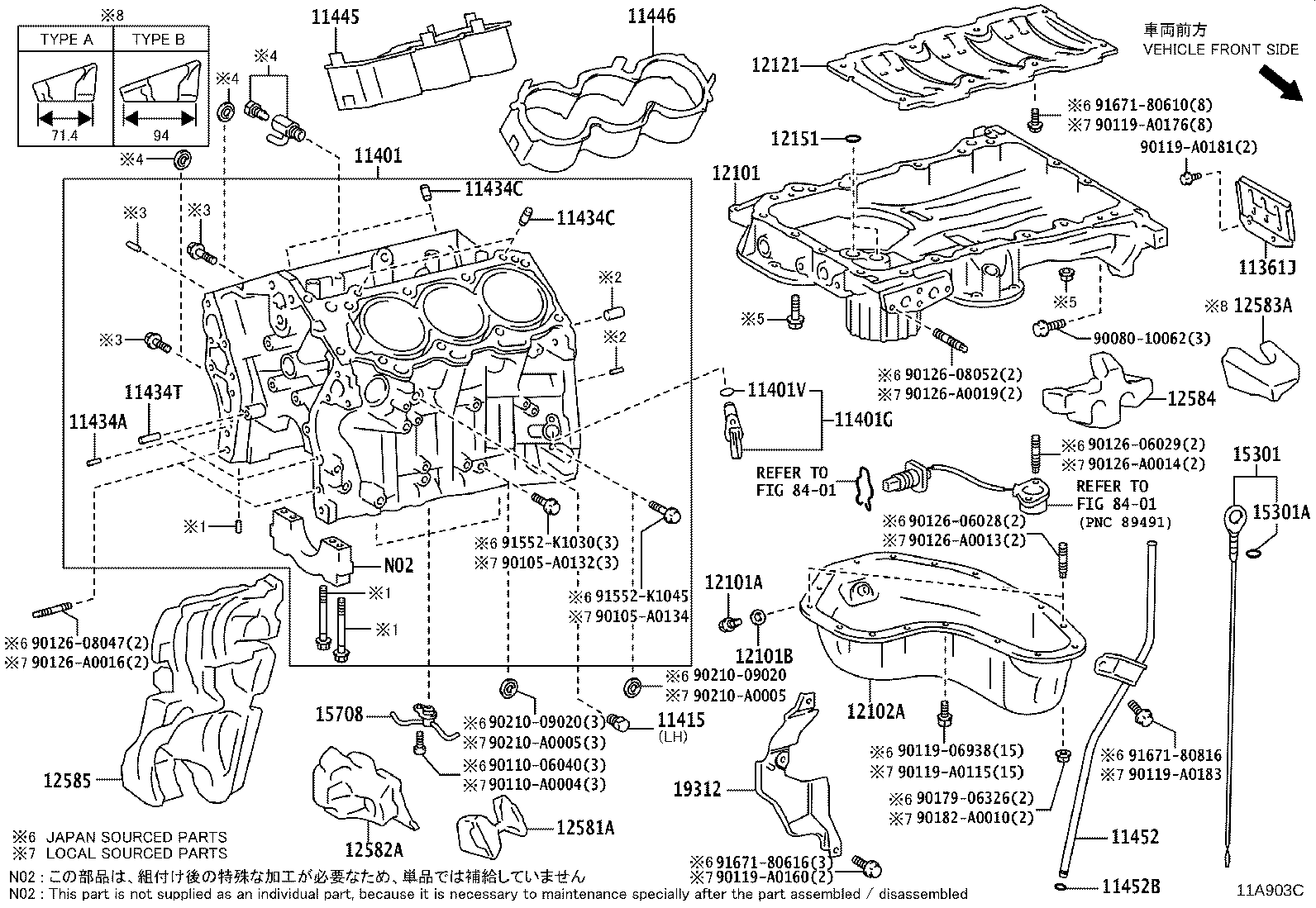

ILLUST NO. 1 OF 2(1510- )

Click highlighted areas on diagram

W/OIL COOLER

Part #	Description	Period	Qty
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-0P020	2GR#..GGL2#,GYL25	10/2015 - 11/2016	1
11361-0P030	2GR#..GGL2#,GYL25	12/2016 - 09/2019	1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-80037	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
11401G - SENSOR, CRANK POSITION
90919-05090	2GR#..GGL2#,GYL25	10/2015 - 09/2019	1
11401V - O-RING, CRANK POSITION SENSOR
90301-14016	2GR#..GGL2#,GYL25	10/2015 - 09/2019	1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129	2GR#..GGL2#,GYL25 RH	10/2015 - 09/2019	1
90345-52001	2GR#..GGL2#,GYL25 (J),LH	10/2015 - 09/2019	1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-04097	2GR#..GGL2#,GYL25 L=12,OD=4.0	10/2015 - 09/2019	2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120	2GR#..GGL2#,GYL25 L=18,OD=8	10/2015 - 09/2019	4
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120	2GR#..GGL2#,GYL25 L=18,OD=8	10/2015 - 09/2019	4
11434T - PIN, RING(FOR TIMING BELT IDLER BRACKET SET)
90250-10030	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-31050	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
11446 - SPACER, CYLINDER BLOCK WATER JACKET, LH
11446-31050	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
11452 - GUIDE, OIL LEVEL GAGE
11452-31140	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
12101 - PAN SUB-ASSY, OIL
12100-31051	2GR#..GGL2#,GYL25 (J)	11/2017 - 09/2019	1
12100-31040	2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS,(J)	10/2015 - 09/2019	1
12100-31050	2GR#..GGL2#,GYL25 (J)	10/2015 - 10/2017	1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-31100	2GR#..GGL2#,GYL2# (J)	10/2015 - 12/2015	1
12102-31101	2GR#..GGL2#,GYL25 (J)	01/2016 - 09/2019	1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-31120	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
12151 - GASKET, OIL PAN
12151-31010	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	2
12581A - INSULATOR, CYLINDER BLOCK, NO.1
12581-31010	2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS,(J)	10/2015 - 09/2019	1
12582A - INSULATOR, CYLINDER BLOCK, NO.2
12582-31010	2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS,(J)	10/2015 - 09/2019	1
12583A - INSULATOR, CYLINDER BLOCK, NO.3
12583-31011	2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS,(J),TYPE B:REF ILL.	06/2019 - 09/2019	1
12583-31010	2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS,(J),TYPE A:REF ILL.	10/2015 - 06/2019	1
12584 - INSULATOR, CYLINDER BROCK, NO.4
12584-0P010	2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS	10/2015 - 09/2019	1
12585 - INSULATOR, CYLINDER BROCK, NO.5
12585-31020	2GRFXS..GYL25 TOWING PACKAGE-3500LBS,(J)	10/2015 - 09/2019	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-31070	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005	2GR#..GGL2#,GYL25	10/2015 - 09/2019	1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-31050	2GR#..GGL2#,GYL25	10/2015 - 09/2019	3
19312 - PROTECTOR, CRANK POSITION SENSOR
19312-31010	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
Common parts
90080-10062
90105-A0132
90105-A0134
90110-06040
90110-A0004
90119-06938
90119-A0115
90119-A0160
90119-A0176
90119-A0181
90119-A0183
90126-06028
90126-06029
90126-08047
90126-08052
90126-A0013
90126-A0014
90126-A0016
90126-A0019
90179-06326
90182-A0010
90210-09020
90210-A0005
91552-K1030
91552-K1045
91671-80610
91671-80616
91671-80816
Linked diagrams
8401

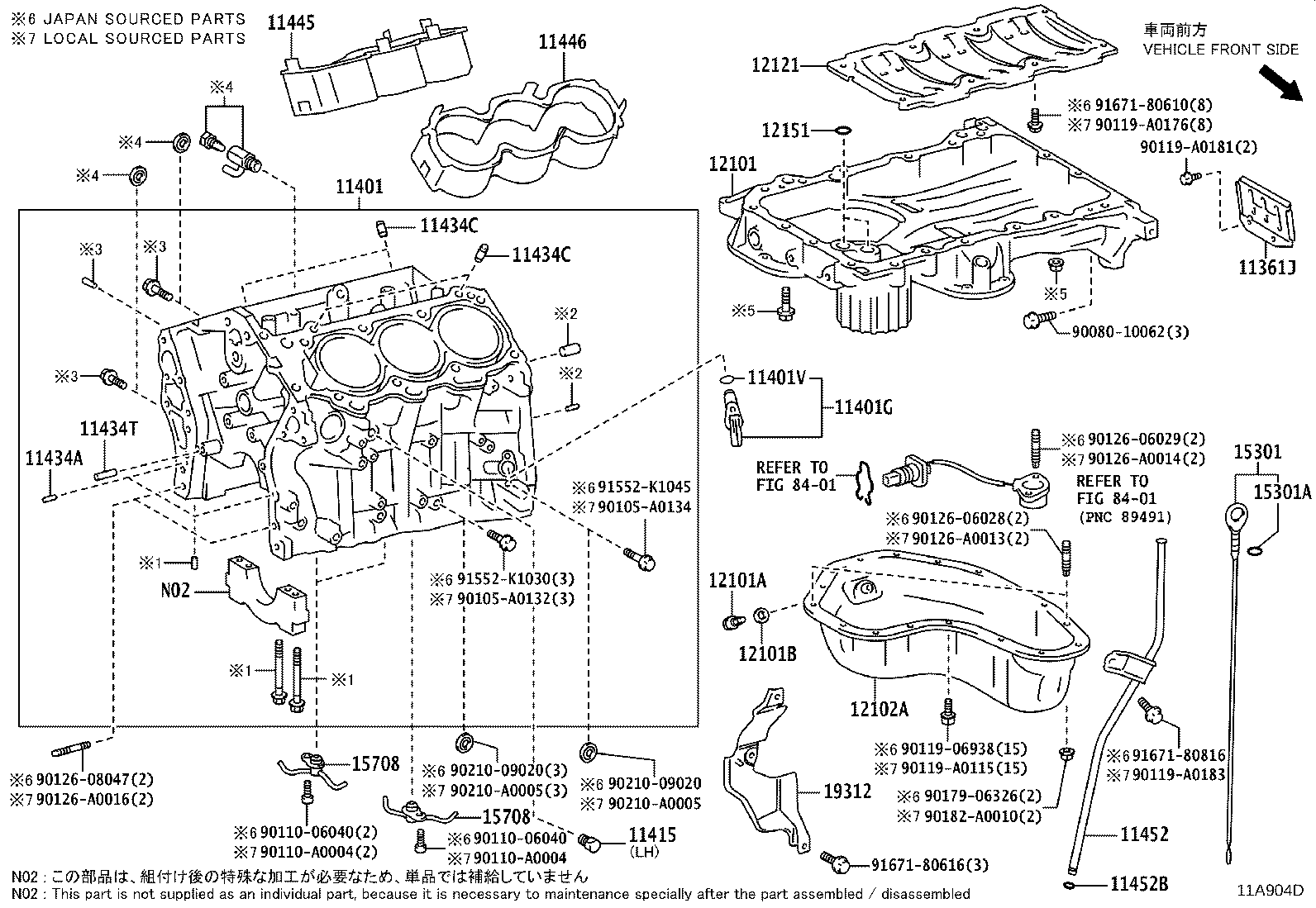

ILLUST NO. 1 OF 2(1510- )

Click highlighted areas on diagram

W/O OIL COOLER

Part #	Description	Period	Qty
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-0P020	2GR#..GGL2#,GYL25	10/2015 - 11/2016	1
11361-0P030	2GR#..GGL2#,GYL25	12/2016 - 09/2019	1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-80037	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
11401G - SENSOR, CRANK POSITION
90919-05090	2GR#..GGL2#,GYL25	10/2015 - 09/2019	1
11401V - O-RING, CRANK POSITION SENSOR
90301-14016	2GR#..GGL2#,GYL25	10/2015 - 09/2019	1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129	2GR#..GGL2#,GYL25 RH	10/2015 - 09/2019	1
90345-52001	2GR#..GGL2#,GYL25 (J),LH	10/2015 - 09/2019	1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-04097	2GR#..GGL2#,GYL25 L=12,OD=4.0	10/2015 - 09/2019	2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120	2GR#..GGL2#,GYL25 L=18,OD=8	10/2015 - 09/2019	4
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120	2GR#..GGL2#,GYL25 L=18,OD=8	10/2015 - 09/2019	4
11434T - PIN, RING(FOR TIMING BELT IDLER BRACKET SET)
90250-10030	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-31050	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
11446 - SPACER, CYLINDER BLOCK WATER JACKET, LH
11446-31050	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
11452 - GUIDE, OIL LEVEL GAGE
11452-31140	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
12101 - PAN SUB-ASSY, OIL
12100-31051	2GR#..GGL2#,GYL25 (J)	11/2017 - 09/2019	1
12100-31040	2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS,(J)	10/2015 - 09/2019	1
12100-31050	2GR#..GGL2#,GYL25 (J)	10/2015 - 10/2017	1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-31100	2GR#..GGL2#,GYL2# (J)	10/2015 - 12/2015	1
12102-31101	2GR#..GGL2#,GYL25 (J)	01/2016 - 09/2019	1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-31120	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
12151 - GASKET, OIL PAN
12151-31010	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	2
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-31070	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005	2GR#..GGL2#,GYL25	10/2015 - 09/2019	1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-31050	2GR#..GGL2#,GYL25	10/2015 - 09/2019	3
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-31050	2GR#..GGL2#,GYL25	10/2015 - 09/2019	3
19312 - PROTECTOR, CRANK POSITION SENSOR
19312-31010	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
Common parts
90080-10062
90105-A0132
90105-A0134
90110-06040
90110-A0004
90119-06938
90119-A0115
90119-A0176
90119-A0181
90119-A0183
90126-06028
90126-06029
90126-08047
90126-A0013
90126-A0014
90126-A0016
90179-06326
90182-A0010
90210-09020
90210-A0005
91552-K1030
91552-K1045
91671-80610
91671-80616
91671-80816
Linked diagrams
8401

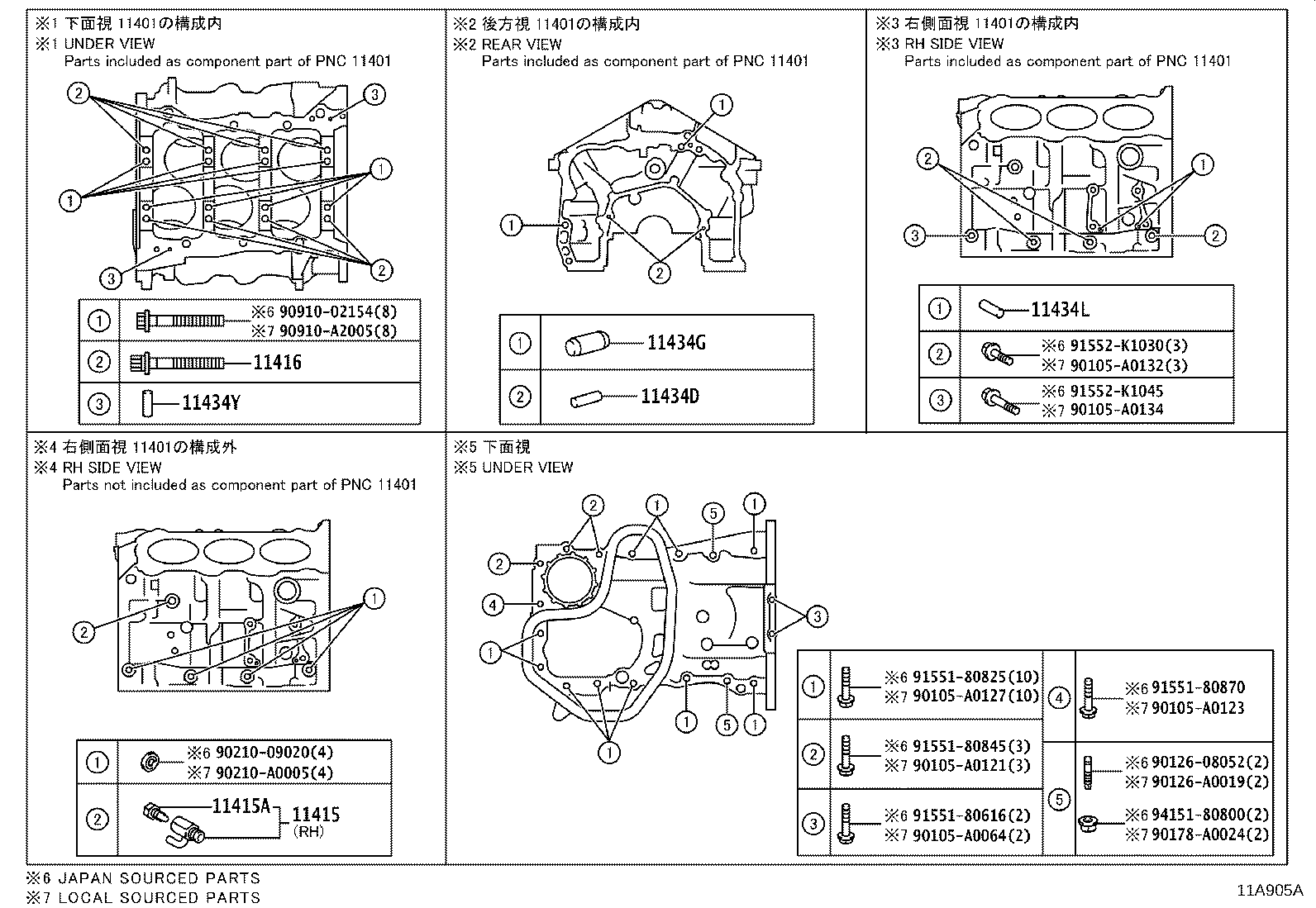

ILLUST NO. 2 OF 2(1510- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129	2GR#..GGL2#,GYL25 RH	10/2015 - 09/2019	1
90345-52001	2GR#..GGL2#,GYL25 (J),LH	10/2015 - 09/2019	1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087	2GR#..GGL2#,GYL25	10/2015 - 09/2019	1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02153	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	8
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-04097	2GR#..GGL2#,GYL25 L=12,OD=4.0	10/2015 - 09/2019	2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10113	2GR#..GGL2#,GYL25	10/2015 - 09/2019	2
11434L - PIN, STRAIGHT(FOR ENGINE MOUNTING)
90250-04097	2GR#..GGL2#,GYL25	10/2015 - 09/2019	2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-04097	2GR#..GGL2#,GYL25	10/2015 - 09/2019	2
Common parts
90105-A0064
90105-A0121
90105-A0123
90105-A0127
90105-A0132
90105-A0134
90126-08052
90126-A0019
90178-A0024
90210-09020
90210-A0005
90910-02154
90910-A2005
91551-80616
91551-80825
91551-80845
91551-80870
91552-K1030
91552-K1045
94151-80800
