GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap

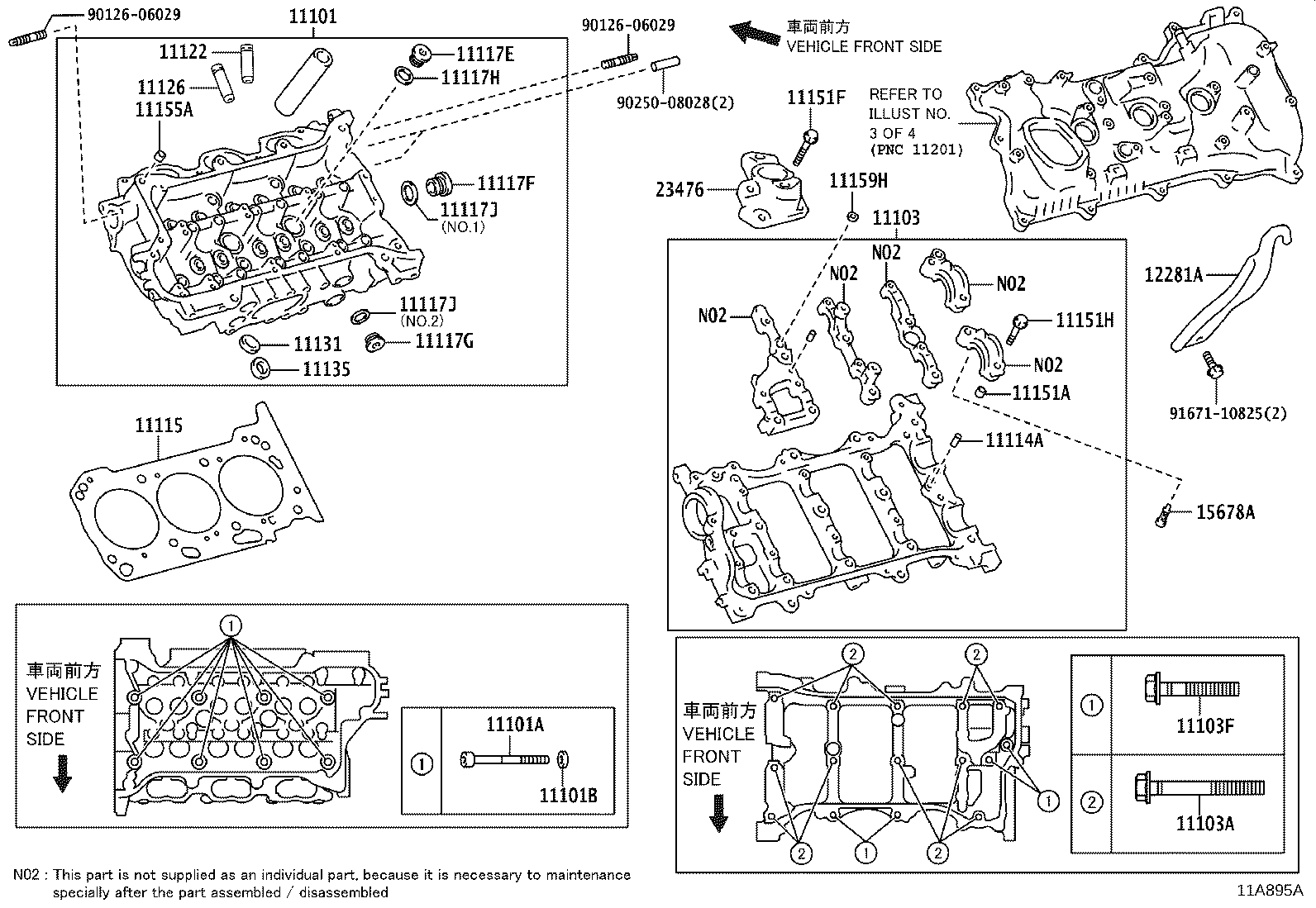

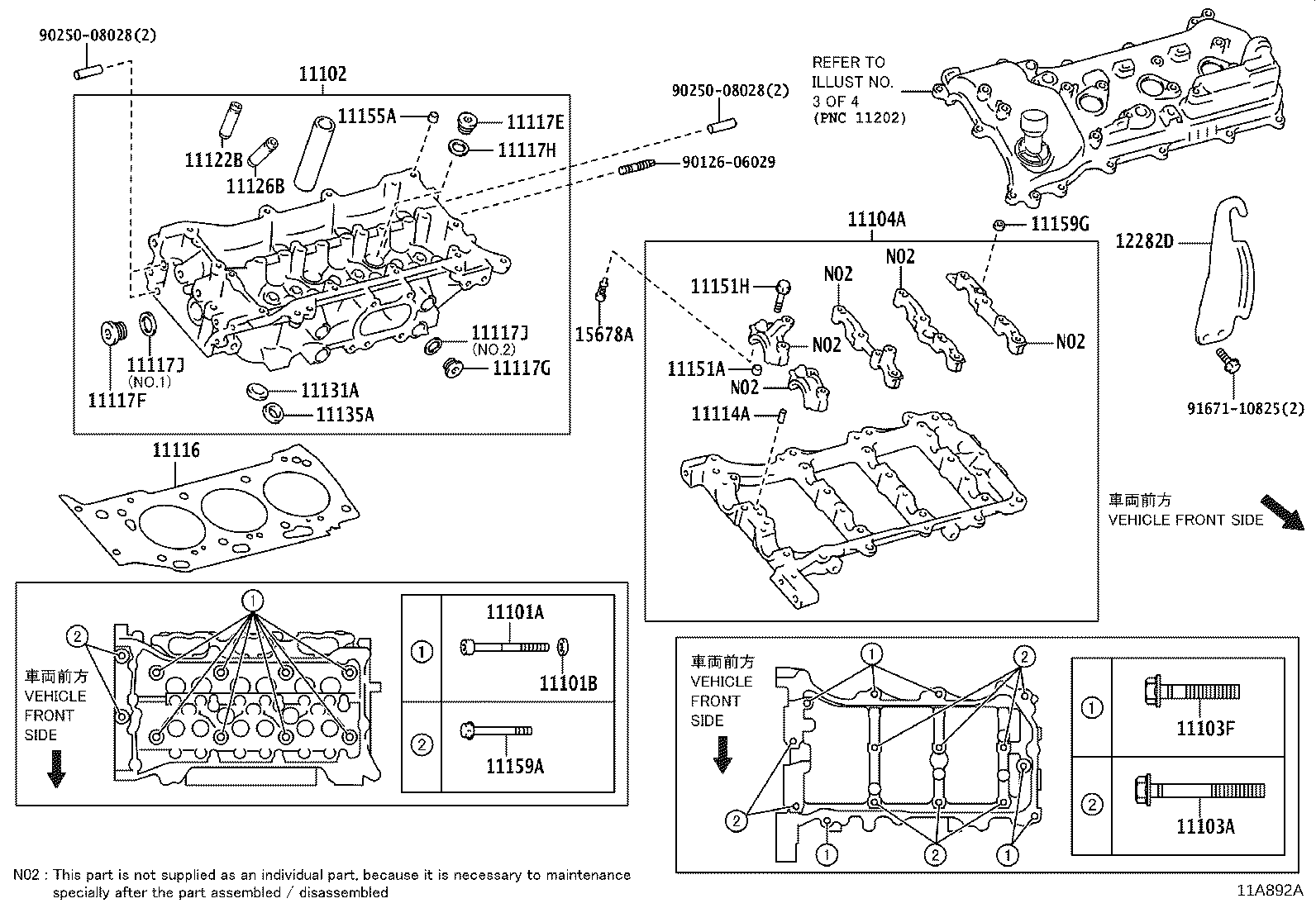

ILLUST NO. 1 OF 4(1510- )2GRFXS
CYLINDER HEAD(LH BANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02164 |
2GR#..GGL2#,GYL25 (J) |
16 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11034 |
2GR#..GGL2#,GYL25 (J) |
16 | ||
| 11102 - HEAD, CYLINDER, LH | ||||
| 11102-39295 |
2GRFXS..GYL2# |
1 | ||
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-08464 |
2GRFXS..GYL25 |
11 | ||
| 90105-08464 |
2GRFXS..GYL25 (J) |
9 | ||
| 11103F - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-08465 |
2GRFXS..GYL25 |
4 | ||
| 90105-08465 |
2GR#..GGL2#,GYL25 (J) |
6 | ||
| 11104A - HOUSING SUB-ASSY, CAMSHAFT, LH | ||||
| 11104-31060 |
2GR#..GGL2#,GYL25 (J) |
1 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-05021 |
2GRFXS..GYL25 L=13.8,OD=5.0 |
1 | ||
| 90250-05021 |
2GR#..GGL2#,GYL25 L=13.8,OD=5.0,(J) |
1 | ||
| 11116 - GASKET, CYLINDER HEAD, NO.2 | ||||
| 11116-31100 |
2GR#..GGL2#,GYL25 (J) |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-20012 |
2GR#..GGL2#,GYL2# |
2 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-27006 |
2GR#..GGL2#,GYL2# |
1 | ||
| 11117G - PLUG, W/HEAD STRAIGHT SCREW, NO.3 | ||||
| 90341-20002 |
2GR#..GGL2#,GYL2# |
4 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
2GR#..GGL2#,GYL2# |
2 | ||
| 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-27005 |
2GR#..GGL2#,GYL2# NO.1 |
1 | ||
| 16258-31020 |
2GR#..GGL2#,GYL2# NO.2 |
4 | ||
| 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-27005 |
2GR#..GGL2#,GYL2# NO.1 |
1 | ||
| 16258-31020 |
2GR#..GGL2#,GYL2# NO.2 |
4 | ||
| 11122B - BUSH, INTAKE VALVE GUIDE, NO.2 | ||||
| 11122-31070 |
2GR#..GGL2#,GYL25 STD |
6 | ||
| 11123-31070 |
2GR#..GGL2#,GYL25 O/S 0.05 |
6 | ||
| 11126B - BUSH, EXHAUST VALVE GUIDE, NO.2 | ||||
| 11127-31030 |
2GR#..GGL2#,GYL25 O/S 0.05 |
6 | ||
| 11126-31030 |
2GR#..GGL2#,GYL25 STD |
6 | ||
| 11131A - SEAT, INTAKE VALVE, NO.2 | ||||
| 11131-31050 |
2GR#..GGL2#,GYL2# STD,(J) |
6 | ||
| 11132-31050 |
2GR#..GGL2#,GYL2# O/S 0.03,(J) |
6 | ||
| 11135A - SEAT, EXHAUST VALVE, NO.2 | ||||
| 11135-31100 |
2GR#..GGL2#,GYL2# STD,(J) |
6 | ||
| 11136-31110 |
2GR#..GGL2#,GYL2# O/S 0.03,(J) |
6 | ||
| 11135-31110 |
2GR#..GGL2#,GYL2# STD,(J) |
6 | ||
| 11136-31100 |
2GR#..GGL2#,GYL2# O/S 0.03,(J) |
6 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-11021 |
2GR#..GGL2#,GYL25 L=8,OD=11 |
10 | ||
| 11151H - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING) | ||||
| 90119-07009 |
2GRFXS..GYL25 |
7 | ||
| 90119-07009 |
2GR#..GGL2#,GYL25 (J) |
8 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
2GR#..GGL2#,GYL2# |
4 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-10521 |
2GR#..GGL2#,GYL25 (J) |
2 | ||
| 11159G - GASKET, CAMSHAFT BEARING CAP OIL HOLE, LH | ||||
| 11159-31040 |
2GR#..GGL2#,GYL25 (J) |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-31100 |
2GR#..GGL2#,GYL25 |
1 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-31020 |
2GR#..GGL2#,GYL25 |
2 | ||
| Common parts | ||||
| 90126-06029 | ||||
| 90250-08028 | ||||
| 91671-10825 | ||||
ILLUST NO. 2 OF 4(1510- )2GRFXS
CYLINDER HEAD(RH BANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-39865 |
2GRFXS..GYL2# |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02164 |
2GR#..GGL2#,GYL25 (J) |
16 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11034 |
2GR#..GGL2#,GYL25 (J) |
16 | ||
| 11103 - HOUSING SUB-ASSY, CAMSHAFT | ||||
| 11103-31060 |
2GRFXS..GYL25 |
1 | ||
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-08464 |
2GRFXS..GYL25 |
11 | ||
| 90105-08464 |
2GRFXS..GYL25 (J) |
9 | ||
| 11103F - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-08465 |
2GRFXS..GYL25 |
4 | ||
| 90105-08465 |
2GR#..GGL2#,GYL25 (J) |
6 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-05021 |
2GRFXS..GYL25 L=13.8,OD=5.0 |
1 | ||
| 90250-05021 |
2GR#..GGL2#,GYL25 L=13.8,OD=5.0,(J) |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-31120 |
2GR#..GGL2#,GYL25 (J) |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-20012 |
2GR#..GGL2#,GYL2# |
2 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-27006 |
2GR#..GGL2#,GYL2# |
1 | ||
| 11117G - PLUG, W/HEAD STRAIGHT SCREW, NO.3 | ||||
| 90341-20002 |
2GR#..GGL2#,GYL2# |
4 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
2GR#..GGL2#,GYL2# |
2 | ||
| 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-27005 |
2GR#..GGL2#,GYL2# NO.1 |
1 | ||
| 16258-31020 |
2GR#..GGL2#,GYL2# NO.2 |
4 | ||
| 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-27005 |
2GR#..GGL2#,GYL2# NO.1 |
1 | ||
| 16258-31020 |
2GR#..GGL2#,GYL2# NO.2 |
4 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-31070 |
2GR#..GGL2#,GYL25 STD |
6 | ||
| 11123-31070 |
2GR#..GGL2#,GYL25 O/S 0.05 |
6 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-31030 |
2GR#..GGL2#,GYL25 STD |
6 | ||
| 11127-31030 |
2GR#..GGL2#,GYL25 O/S 0.05 |
6 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-31050 |
2GR#..GGL2#,GYL2# STD,(J) |
6 | ||
| 11132-31050 |
2GR#..GGL2#,GYL2# O/S 0.03,(J) |
6 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-31100 |
2GR#..GGL2#,GYL2# STD,(J) |
6 | ||
| 11136-31110 |
2GR#..GGL2#,GYL2# O/S 0.03,(J) |
6 | ||
| 11135-31110 |
2GR#..GGL2#,GYL2# STD,(J) |
6 | ||
| 11136-31100 |
2GR#..GGL2#,GYL2# O/S 0.03,(J) |
6 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-11021 |
2GR#..GGL2#,GYL25 L=8,OD=11 |
10 | ||
| 11151F - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2) | ||||
| 90119-07008 |
2GRFXS..GYL25 |
2 | ||
| 11151H - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING) | ||||
| 90119-07009 |
2GRFXS..GYL25 |
7 | ||
| 90119-07009 |
2GR#..GGL2#,GYL25 (J) |
8 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
2GR#..GGL2#,GYL2# |
4 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 11159-31040 |
2GR#..GGL2#,GYL25 (J) |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-31121 |
2GR#..GGL2#,GYL2# |
1 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-31020 |
2GR#..GGL2#,GYL25 |
2 | ||
| 23476 - HOUSING, FUEL PUMP LIFTER | ||||
| 23476-31020 |
2GR#..GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 90126-06029 | ||||
| 90250-08028 | ||||
| 91671-10825 | ||||
ILLUST NO. 3 OF 4(1510-1903)
CYLINDER HEAD COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-31010 |
2GR#..GGL2#,GYL2# (J) |
3 | ||
| 11193A - GASKET, SPARK PLUG TUBE, LH | ||||
| 11193-31010 |
2GR#..GGL2#,GYL2# (J) |
3 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-31301 |
2GR#..GGL2#,GYL25 (J) |
1 | ||
| 11201-31300 |
2GR#..GGL2#,GYL2# (J) |
1 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 90109-06384 |
2GR#..GGL2#,GYL25 (J) |
13 | ||
| 11202 - COVER SUB-ASSY, CYLINDER HEAD, LH | ||||
| 11202-31080 |
2GR#..GGL2#,GYL2# (J) |
1 | ||
| 11202-31081 |
2GR#..GGL2#,GYL25 (J) |
1 | ||
| 11202C - BOLT(FOR CYLINDER HEAD COVER LH) | ||||
| 90109-06384 |
2GR#..GGL2#,GYL25 (J) |
14 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-31070 |
2GR#..GGL2#,GYL2# (J) |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-31050 |
2GR#..GGL2#,GYL2# (J) |
1 | ||
| 11401M - SENSOR, CRANK POSITION, NO.2 | ||||
| 90919-05060 |
2GR#..GGL2#,GYL25 |
3 | ||
| 11401M - SENSOR, CRANK POSITION, NO.2 | ||||
| 90919-05060 |
2GR#..GGL2#,GYL25 |
3 | ||
| 11401Q - SENSOR, CRANK POSITION | ||||
| 90919-05061 |
2GR#..GGL2#,GYL25 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-38010 |
2GR#..GGL2#,GYL25 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
2GR#..GGL2#,GYL25 |
1 | ||
| 12601B - COVER SUB-ASSY, ENGINE, NO.1 | ||||
| 12601-31050 |
2GR#..GGL2#,GYL25 (J) |
1 | ||
| 12611 - COVER, ENGINE, NO.1 | ||||
| 12611-31030 |
2GRFXS..GYL25 |
1 | ||
| Common parts | ||||
| 11213-31080 | ||||
| 90105-A0103 | ||||
| 90467-06200 | ||||
| 91551-80625 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 2211 | ||||

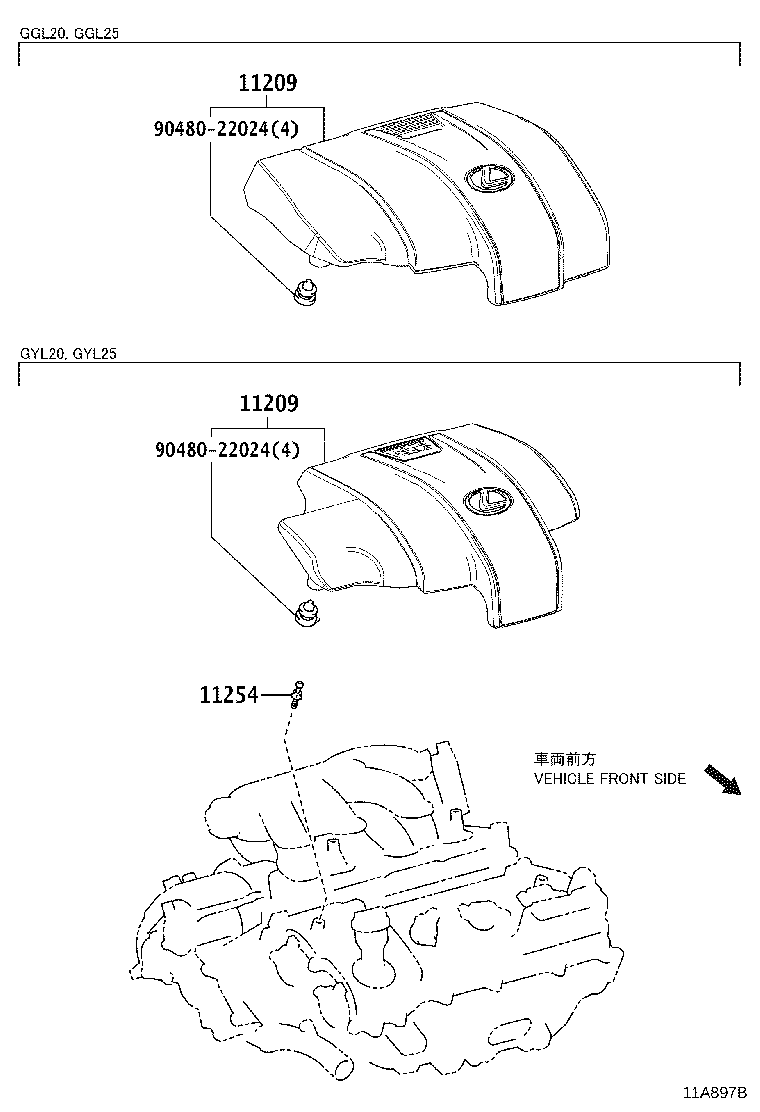

ILLUST NO. 4 OF 4(1510- )
ENGINE COVER & V BANK COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11209 - COVER SUB-ASSY, V-BANK | ||||
| 11209-31390 |
2GRFXS..GYL25 |
1 | ||
| 11209 - COVER SUB-ASSY, V-BANK | ||||
| 11209-31390 |
2GRFXS..GYL25 |
1 | ||
| 11254 - BRACKET, V-BANK COVER, NO.1 | ||||
| 11254-31020 |
2GR#..GGL2#,GYL25 |
2 | ||
| Common parts | ||||
| 90480-22024 | ||||
ILLUST NO. 3 OF 4(1903- )
CYLINDER HEAD COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-31010 |
2GR#..GGL2#,GYL2# (J) |
3 | ||
| 11193A - GASKET, SPARK PLUG TUBE, LH | ||||
| 11193-31010 |
2GR#..GGL2#,GYL2# (J) |
3 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-31301 |
2GR#..GGL2#,GYL25 (J) |
1 | ||
| 11201-31300 |
2GR#..GGL2#,GYL2# (J) |
1 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 90109-06384 |
2GR#..GGL2#,GYL25 (J) |
13 | ||
| 11202 - COVER SUB-ASSY, CYLINDER HEAD, LH | ||||
| 11202-31080 |
2GR#..GGL2#,GYL2# (J) |
1 | ||
| 11202-31081 |
2GR#..GGL2#,GYL25 (J) |
1 | ||
| 11202C - BOLT(FOR CYLINDER HEAD COVER LH) | ||||
| 90109-06384 |
2GR#..GGL2#,GYL25 (J) |
14 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-31070 |
2GR#..GGL2#,GYL2# (J) |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-31050 |
2GR#..GGL2#,GYL2# (J) |
1 | ||
| 11401M - SENSOR, CRANK POSITION, NO.2 | ||||
| 90919-05060 |
2GR#..GGL2#,GYL25 |
3 | ||
| 11401M - SENSOR, CRANK POSITION, NO.2 | ||||
| 90919-05060 |
2GR#..GGL2#,GYL25 |
3 | ||
| 11401Q - SENSOR, CRANK POSITION | ||||
| 90919-05061 |
2GR#..GGL2#,GYL25 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-38010 |
2GR#..GGL2#,GYL25 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
2GR#..GGL2#,GYL25 |
1 | ||
| 12601B - COVER SUB-ASSY, ENGINE, NO.1 | ||||
| 12601-31050 |
2GR#..GGL2#,GYL25 (J) |
1 | ||
| 12611 - COVER, ENGINE, NO.1 | ||||
| 12611-31030 |
2GRFXS..GYL25 |
1 | ||
| Common parts | ||||
| 11213-31080 | ||||
| 90105-A0103 | ||||
| 90467-06200 | ||||
| 91551-80625 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 2211 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
