GYL25L-CWXGBA (2015)

Toyota Lexus Rx450h/350(Nap

Production Oct 2015 - Sep 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

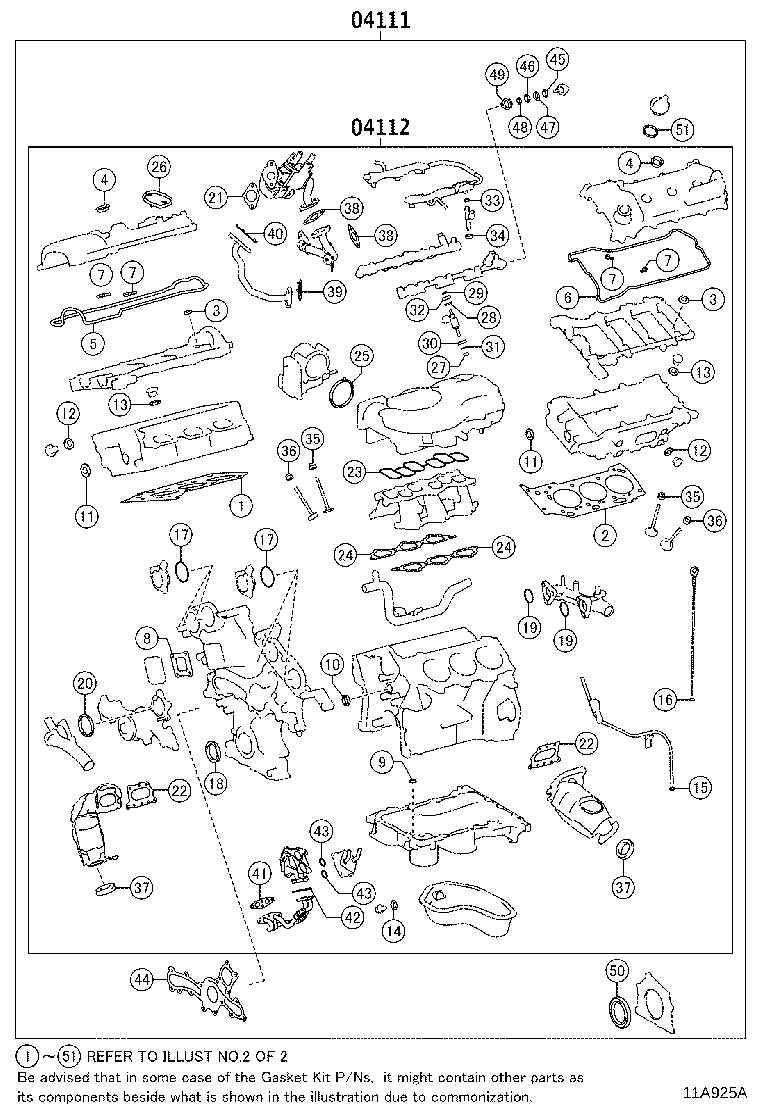

ILLUST NO. 1 OF 2(1510- )2GRFXS

Click highlighted areas on diagram

W(OIL COOLER)

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-31C71

2GRFXS..GYL25

 1
04111-31C80

2GRFXS..GYL25

TOWING PACKAGE-3500LBS

 1
04111-31C81

2GRFXS..GYL25

TOWING PACKAGE-3500LBS

 1
04111-31C82

2GRFXS..GYL25

TOWING PACKAGE-3500LBS

 1
04111-31C70

2GRFXS..GYL25

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-31A10

2GRFXS..GYL25

 1
04112-31A20

2GRFXS..GYL25

TOWING PACKAGE-3500LBS

 1
04112-31A21

2GRFXS..GYL25

TOWING PACKAGE-3500LBS

 1
04112-31A22

2GRFXS..GYL25

TOWING PACKAGE-3500LBS

 1
04112-31A11

2GRFXS..GYL25

 1

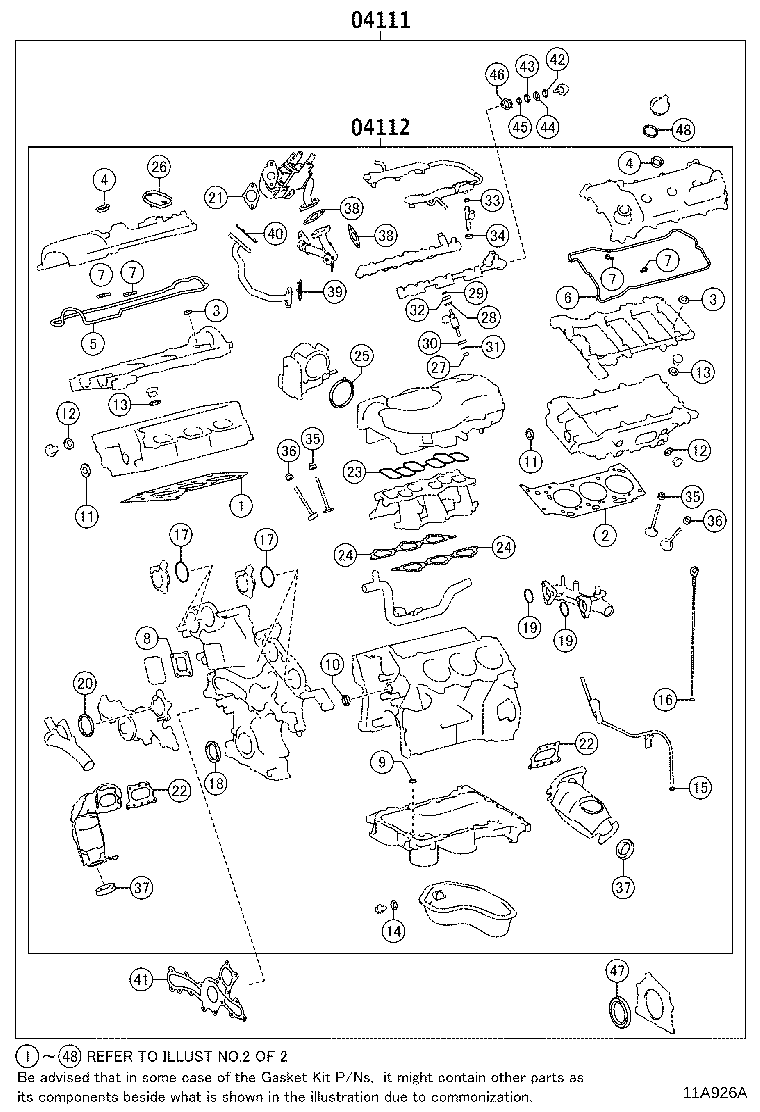

ILLUST NO. 1 OF 2(1510- )2GRFXS

Click highlighted areas on diagram

W/O(OIL COOLER)

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-31C71

2GRFXS..GYL25

 1
04111-31C80

2GRFXS..GYL25

TOWING PACKAGE-3500LBS

 1
04111-31C81

2GRFXS..GYL25

TOWING PACKAGE-3500LBS

 1
04111-31C82

2GRFXS..GYL25

TOWING PACKAGE-3500LBS

 1
04111-31C70

2GRFXS..GYL25

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-31A10

2GRFXS..GYL25

 1
04112-31A20

2GRFXS..GYL25

TOWING PACKAGE-3500LBS

 1
04112-31A21

2GRFXS..GYL25

TOWING PACKAGE-3500LBS

 1
04112-31A22

2GRFXS..GYL25

TOWING PACKAGE-3500LBS

 1
04112-31A11

2GRFXS..GYL25

 1

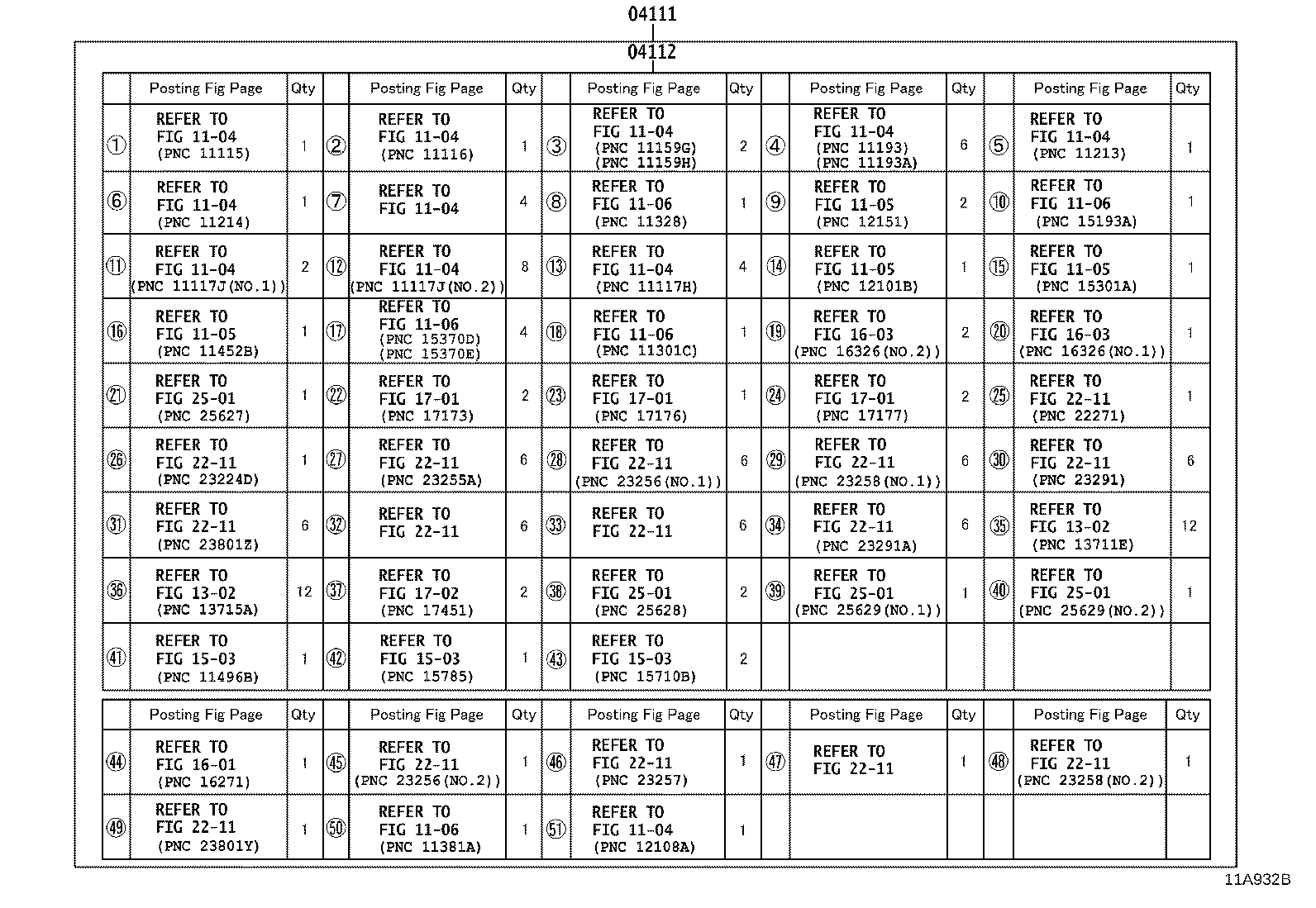

ILLUST NO. 2 OF 2(1510- )2GRFXS

Click highlighted areas on diagram

W(OIL COOLER)

diagram 04111 04112 1104 1104 1104 1104 1104 1104 1104 1104 1104 1104 1104 1105 1105 1105 1105 1106 1106 1106 1106 1106 1302 1302 1503 1503 1503 1601 1603 1603 1701 1701 1701 1702 2211 2211 2211 2211 2211 2211 2211 2211 2211 2211 2211 2211 2211 2211 2211 2501 2501 2501 2501
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-31C71

2GRFXS..GYL25

 1
04111-31C80

2GRFXS..GYL25

TOWING PACKAGE-3500LBS

 1
04111-31C81

2GRFXS..GYL25

TOWING PACKAGE-3500LBS

 1
04111-31C82

2GRFXS..GYL25

TOWING PACKAGE-3500LBS

 1
04111-31C70

2GRFXS..GYL25

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-31A10

2GRFXS..GYL25

 1
04112-31A20

2GRFXS..GYL25

TOWING PACKAGE-3500LBS

 1
04112-31A21

2GRFXS..GYL25

TOWING PACKAGE-3500LBS

 1
04112-31A22

2GRFXS..GYL25

TOWING PACKAGE-3500LBS

 1
04112-31A11

2GRFXS..GYL25

 1
Linked diagrams
1104
1105
1106
1302
1503
1601
1603
1701
1702
2211
2501

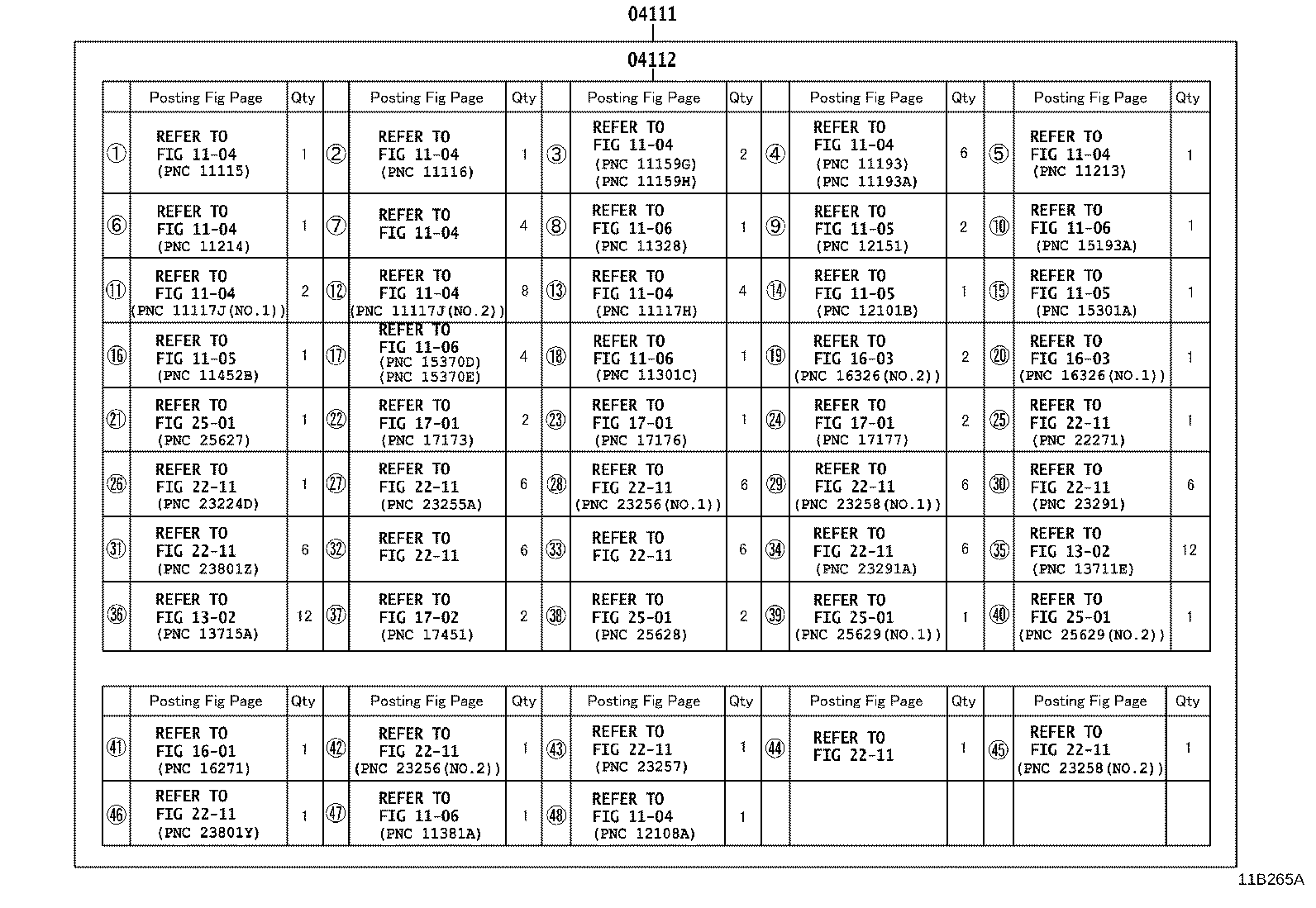

ILLUST NO. 2 OF 2(1510- )2GRFXS

Click highlighted areas on diagram

W/O(OIL COOLER)

diagram 04111 04112 1104 1104 1104 1104 1104 1104 1104 1104 1104 1104 1104 1105 1105 1105 1105 1106 1106 1106 1106 1106 1302 1302 1601 1603 1603 1701 1701 1701 1702 2211 2211 2211 2211 2211 2211 2211 2211 2211 2211 2211 2211 2211 2211 2211 2501 2501 2501 2501
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-31C71

2GRFXS..GYL25

 1
04111-31C80

2GRFXS..GYL25

TOWING PACKAGE-3500LBS

 1
04111-31C81

2GRFXS..GYL25

TOWING PACKAGE-3500LBS

 1
04111-31C82

2GRFXS..GYL25

TOWING PACKAGE-3500LBS

 1
04111-31C70

2GRFXS..GYL25

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-31A10

2GRFXS..GYL25

 1
04112-31A20

2GRFXS..GYL25

TOWING PACKAGE-3500LBS

 1
04112-31A21

2GRFXS..GYL25

TOWING PACKAGE-3500LBS

 1
04112-31A22

2GRFXS..GYL25

TOWING PACKAGE-3500LBS

 1
04112-31A11

2GRFXS..GYL25

 1
Linked diagrams
1104
1105
1106
1302
1601
1603
1701
1702
2211
2501
