GYL20L-CWXGBA (2015)

Toyota Lexus Rx450h/350(Nap

Production Oct 2015 - Aug 2016
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1510-1909)

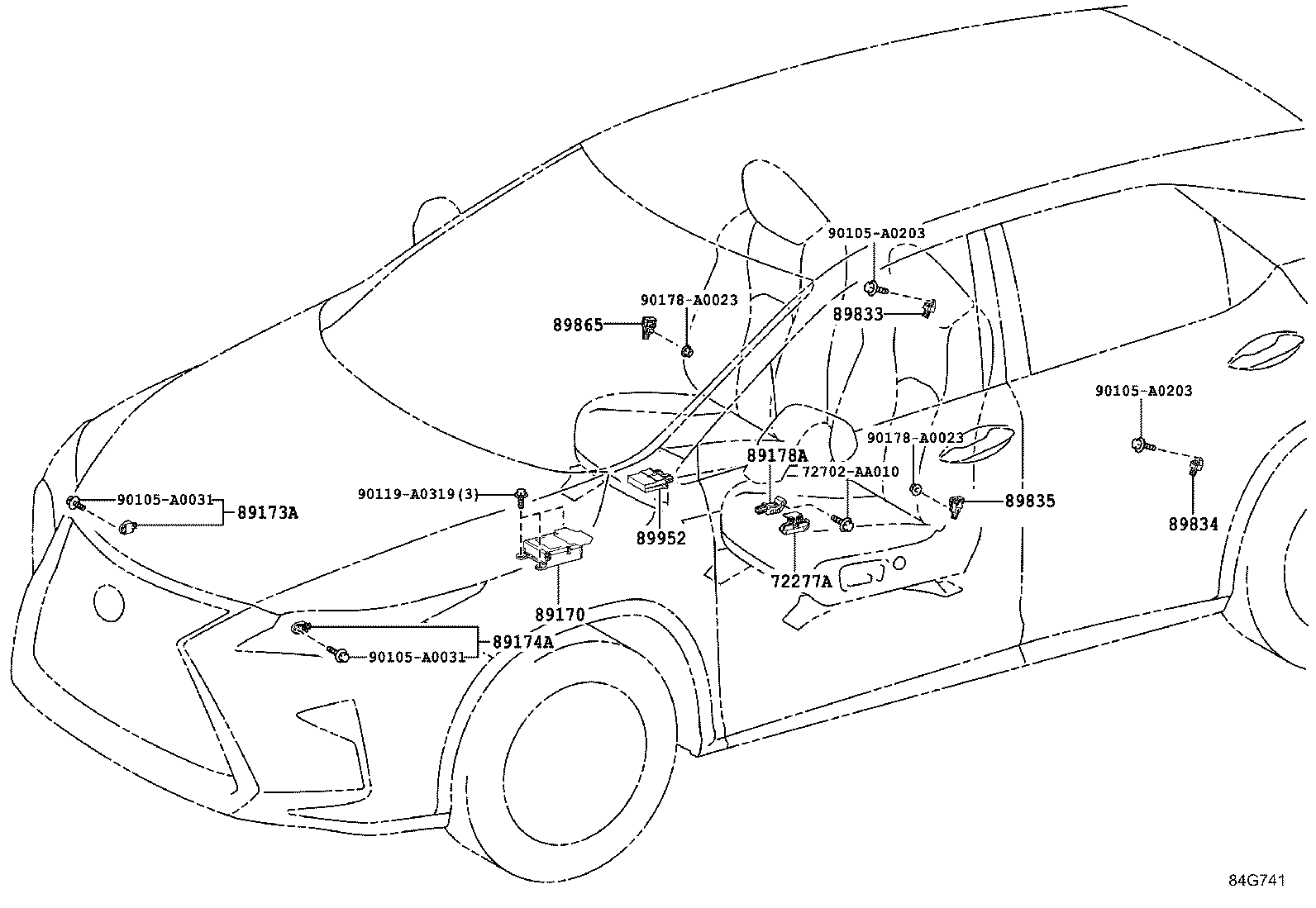

Click highlighted areas on diagram

diagram 72277A 72702AA010 89170 89173A 89174A 89178A 89833 89834 89835 89865 89952 90105A0031 90105A0031 90105A0203 90105A0203 90119A0319 90178A0023 90178A0023
Part # Description Qty Price
72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR
72277-08010

GYL20

 1
89170 - SENSOR ASSY, AIR BAG
89170-0E200

GYL2#

 1
89170-0E201

GYL20

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-09640

GYL20

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-09640

GYL20

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-06040

GYL20

 1
89833 - SENSOR, AIR BAG, REAR RH
89831-0E130

GYL20

 1
89834 - SENSOR, AIR BAG, REAR LH
89831-0E130

GYL20

 1
89835 - SENSOR, DOOR SIDE AIR BAG, LH
8983A-0E010

GYL20

 1
89865 - SENSOR, DOOR SIDE AIR BAG, RH
8983A-0E010

GYL20

 1
89952 - COMPUTER, OCCUPANT DETECTION
89952-0E020

GYL20

 1
Common parts
72702-AA010
90105-A0031
90105-A0203
90119-A0319
90178-A0023
