GYL20L-CWXGBA (2015)

Toyota Lexus Rx450h/350(Nap

Production Oct 2015 - Aug 2016
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1510- )

Click highlighted areas on diagram

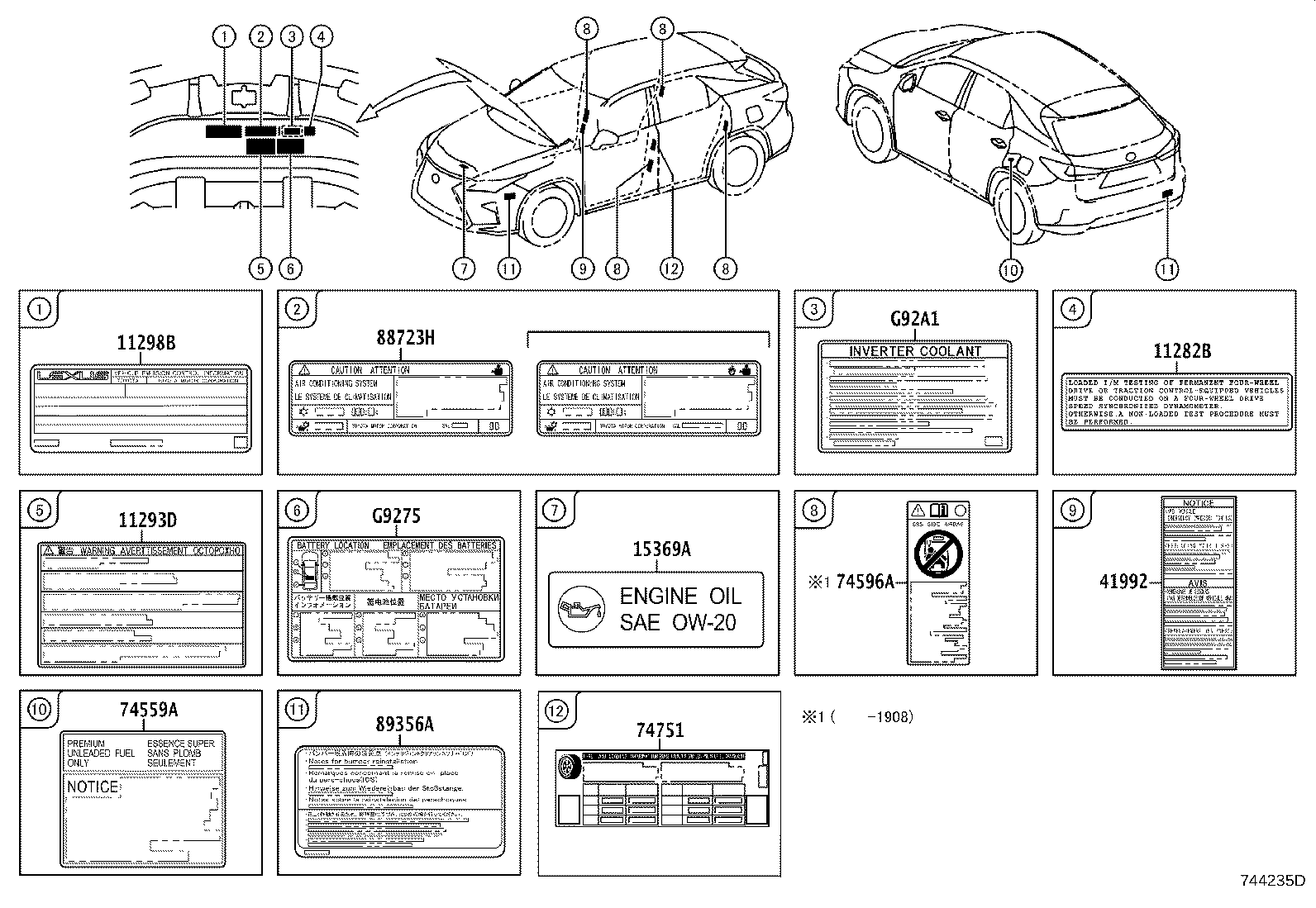

ENGINE ROOM & EXTERIOR

diagram 11282B 11293D 11298B 15369A 41992 74559A 74596A 74751 88723H 89356A G9275 G92A1
Part # Description Qty Price
11293D - LABEL, ENGINE CAUTION
11293-36070

2GRFXS..GYL20

 1
11298B - LABEL, EMISSION CONTROL INFORMATION
11298-0P270

2GRFXS..GYL2#

 1
15369A - LABEL, ENGINE OIL INFORMATION
15369-0P010

2GRFXS..GYL20

 1
74559A - PLATE, FUEL CAUTION
74559-30060

GYL20

 1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-78010

GGL2#,GYL2#

 4
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-0E472

GGL2#,GYL2#

TIRE & DISK WHEEL-235/55R20 MUD&SNOW TIRE MACHINING

 1
42661-0E472

GGL2#,GYL2#

TIRE & DISK WHEEL-235/55R20 MUD&SNOW TIRE

 1
42661-0E472

GGL2#,GYL2#

TIRE & DISK WHEEL-235/55R20 M&S TIRE SELECTOR BULL

 1
42661-0E462

GGL2#,GYL2#

 1
88723H - LABEL, COOLER SERVICE CAUTION
88723-07060

GYL20

 1
G9275 - LABEL, BATTERY CAUTION, NO.1
G9275-48040

GYL20

 1
G92A1 - LABEL, HYBRID COOLANT SYSTEM INFORMATION
G92A1-0E010

GYL20

 1

ILLUST NO. 2 OF 2(1510- )

Click highlighted areas on diagram

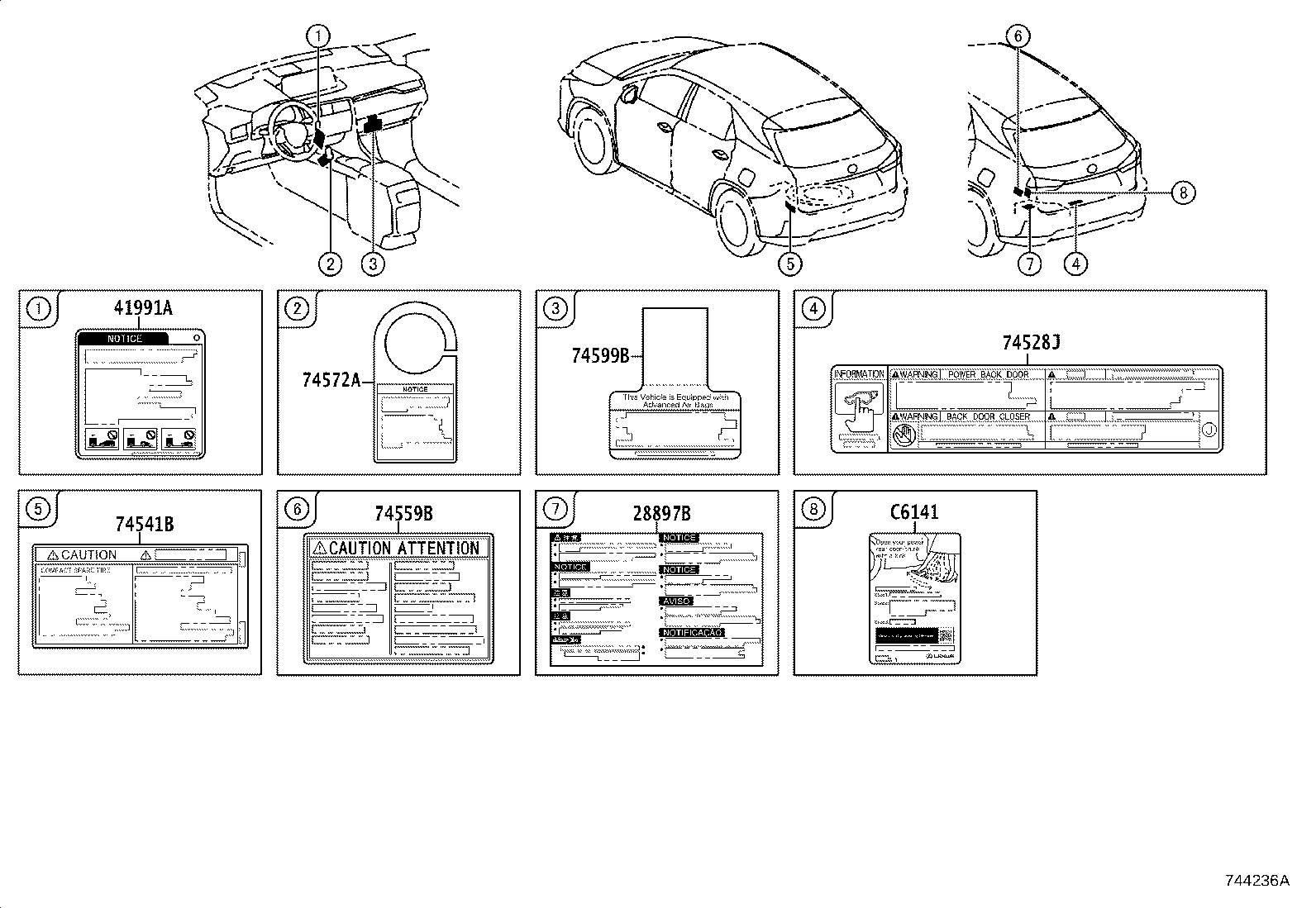

INTERIOR

diagram 28897B 41991A 74528J 74541B 74559B 74572A 74599B C6141
Part # Description Qty Price
28897B - LABEL, BATTERY CAUTION, NO.1
28897-0P030

2GRFXS..GYL20

 1
74528J - LABEL, POWER BACK DOOR CAUTION
74528-0E020

GYL20

 1
74541B - PLATE, COMPACT SPARE TIRE CAUTION
42668-0E010

GYL20

 1
42668-58070

GYL20

USA DEPENDANCY SPEC

 1
74559B - LABEL, FUEL INFORMATION
74559-30070

GYL20

 1
74572A - LABEL, FUEL INLET OPERATIONAL INFORMATION
74572-48010

GYL20

 1
74599B - LABEL, DRIVER & PASSENGER AIR BAG INFORMATION
74599-0E020

GYL20

 1
