GYL20L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap
ILLUST NO. 1 OF 2(1510- )
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74221 - COVER, DOOR ARMREST, RH | ||||
| 74221-0E030C0 |
GYL20 BLACK,TRIM1#,2#,4# |
1 | ||
| 74221-0E030E0 |
GYL20 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 74222 - COVER, DOOR ARMREST, LH | ||||
| 74222-0E030C0 |
GYL20 BLACK,TRIM1#,2#,4# |
1 | ||
| 74222-0E030E0 |
GYL20 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 74231C - PANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE | ||||
| 74232-0E100 |
GYL20 |
1 | ||
| 74232C - PANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE | ||||
| 74231-0E090 |
GYL20 |
1 | ||
| 74261 - COVER, REAR DOOR ARMREST, RH | ||||
| 74261-0E030E0 |
GYL20 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 74261-0E030C0 |
GYL20 BLACK,TRIM1#,2#,4# |
1 | ||
| 74262 - COVER, REAR DOOR ARMREST, LH | ||||
| 74262-0E030E0 |
GYL20 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 74262-0E030C0 |
GYL20 BLACK,TRIM1#,2#,4# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-0E070 |
GYL20 |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74271-0E070 |
GYL20 |
1 | ||
| Common parts | ||||
| 90468-08048 | ||||

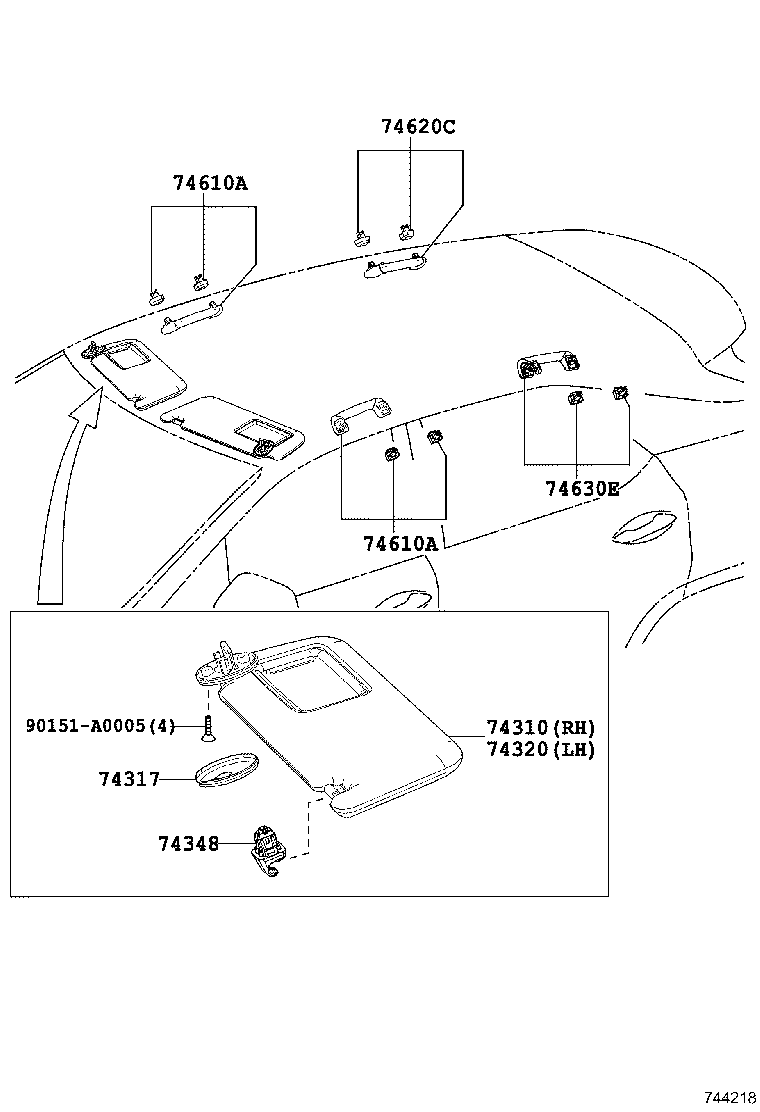

ILLUST NO. 2 OF 2(1510-1909)
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-0E130B2 |
GYL20 MOON STONE,TRIM1#,2#,4# |
1 | ||
| 74310-0E130A0 |
GYL20 ECRU,TRIM0#,5# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-60020A5 |
GYL20 ECRU,TRIM0#,5# |
2 | ||
| 74317-60020B4 |
GYL20 MOON STONE,TRIM1#,2#,4# |
2 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-0E130B2 |
GYL20 MOON STONE,TRIM1#,2#,4# |
1 | ||
| 74320-0E130A0 |
GYL20 ECRU,TRIM0#,5# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-33040B6 |
GYL20 MOON STONE,TRIM1#,2#,4# |
2 | ||
| 74348-33040A6 |
GYL20 ECRU,TRIM0#,5# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-48070B0 |
GYL20 MOON STONE,TRIM1#,2#,4# |
2 | ||
| 74610-48070A0 |
GYL20 ECRU,TRIM0#,5# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-48070B0 |
GYL20 MOON STONE,TRIM1#,2#,4# |
2 | ||
| 74610-48070A0 |
GYL20 ECRU,TRIM0#,5# |
2 | ||
| 74620C - GRIP ASSY, ASSIST, REAR RH | ||||
| 74610-48080B0 |
GYL20 MOON STONE,TRIM1#,2#,4# |
1 | ||
| 74610-48080A0 |
GYL20 ECRU,TRIM0#,5# |
1 | ||
| 74630E - GRIP ASSY, ASSIST, REAR LH | ||||
| 74610-48090B0 |
GYL20 MOON STONE,TRIM1#,2#,4# |
1 | ||
| 74610-48090A0 |
GYL20 ECRU,TRIM0#,5# |
1 | ||
| Common parts | ||||
| 90151-A0005 | ||||
