GYL20L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap
Production
Oct 2015
-
Aug 2016
Engine
2GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1510- )GYL2#

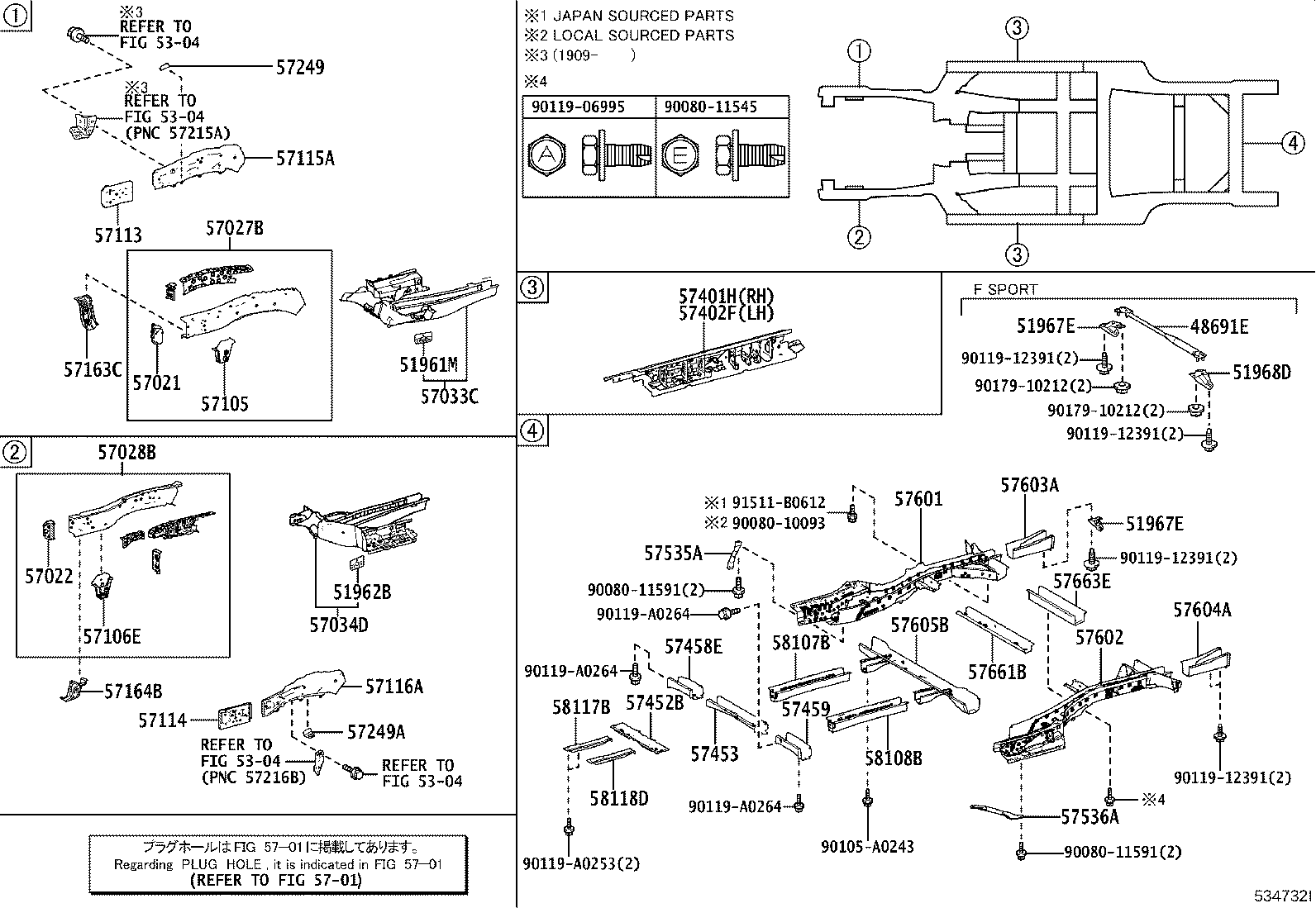

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51961M - HOOK, FRONT RH | ||||
| 51961-0E090 |
GYL20 |
1 | ||
| 51962B - HOOK, FRONT LH | ||||
| 51961-0E090 |
GYL20 |
1 | ||
| 51967E - HOOK, TRANSPORT, REAR RH | ||||
| 51967-0E020 |
GGL2#,GYL2# |
1 | ||
| 51967E - HOOK, TRANSPORT, REAR RH | ||||
| 51967-0E020 |
GGL2#,GYL2# |
1 | ||
| 57021 - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH | ||||
| 57021-0E011 |
GYL20 |
1 | ||
| 57022 - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH | ||||
| 57022-0E011 |
GGL2#,GYL2# |
1 | ||
| 57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH | ||||
| 57027-0E050 |
GYL20 |
1 | ||
| 57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH | ||||
| 57028-0E070 |
GGL2#,GYL2# |
1 | ||
| 57033C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH | ||||
| 57033-0E070 |
GYL20 |
1 | ||
| 57034D - REINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH | ||||
| 57034-0E070 |
GYL20 |
1 | ||
| 57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57105-06010 |
GYL20 |
1 | ||
| 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57106-0E010 |
GGL2#,GYL2# |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-0E010 |
GYL20 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-0E010 |
GYL20 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-0E020 |
GYL20 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-0E021 |
GYL20 |
1 | ||
| 57163C - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH | ||||
| 57163-0E040 |
GYL20 |
1 | ||
| 57164B - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH | ||||
| 57164-0E040 |
GYL20 |
1 | ||
| 57249 - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 57249-0E010 |
GYL20 |
1 | ||
| 57249A - BRACKET, FREXIBLE HOUSE, NO.1, LH | ||||
| 57249-0E010 |
GYL20 |
1 | ||
| 57401H - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57401-0E071 |
GYL20 |
1 | ||
| 57402F - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57402-0E071 |
GYL20 |
1 | ||
| 57452B - MEMBER, FRONT FLOOR CROSS, NO.2 | ||||
| 57452-0E014 |
GYL20 |
1 | ||
| 57453 - MEMBER, FRONT FLOOR CROSS, NO.3 | ||||
| 57453-0E050 |
GYL20 |
1 | ||
| 57458E - MEMBER, FRONT FLOOR CROSS, NO.1 | ||||
| 57458-0E040 |
GYL20 |
1 | ||
| 57459 - MEMBER, FRONT FLOOR CROSS, NO.2 | ||||
| 57459-0E040 |
GYL20 |
1 | ||
| 57535A - BRACE, FRONT FLOOR, RH | ||||
| 57535-48070 |
GYL20 |
1 | ||
| 57536A - BRACE, FRONT FLOOR, LH | ||||
| 57536-48050 |
GYL20 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-0E908 |
GGL2#,GYL2# |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-0E908 |
GGL2#,GYL2# |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57606-0E021 |
GYL20 |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| 57607-0E021 |
GYL20 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-0E061 |
GYL20 |
1 | ||
| 57661B - MEMBER, REAR FLOOR CROSS, FRONT | ||||
| 57661-0E011 |
GYL20 |
1 | ||
| 57663E - MEMBER, REAR FLOOR CROSS, CENTER | ||||
| 57663-0E021 |
GYL20 |
1 | ||
| 58107B - REINFORCEMENT SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH | ||||
| 58107-0E050 |
GYL20 |
1 | ||
| 58108B - REINFORCEMENT SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH | ||||
| 58108-0E050 |
GYL20 |
1 | ||
| 58117B - REINFORCEMENT, FRONT FLOOR SIDE, RH | ||||
| 58117-0E010 |
GYL20 |
1 | ||
| 58118D - REINFORCEMENT, FRONT FLOOR SIDE, LH | ||||
| 58118-0E010 |
GGL2#,GYL2# |
1 | ||
| Common parts | ||||
| 90080-10093 | ||||
| 90080-11545 | ||||
| 90080-11591 | ||||
| 90105-A0243 | ||||
| 90119-06995 | ||||
| 90119-12391 | ||||
| 90119-A0253 | ||||
| 90119-A0264 | ||||
| 90179-10212 | ||||
| 91511-B0612 | ||||
| Linked diagrams | ||||
| 5304 | ||||
| 5701 | ||||
