GYL20L-CWXGBA (2015)

Toyota Lexus Rx450h/350(Nap

Production Oct 2015 - Aug 2016
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )

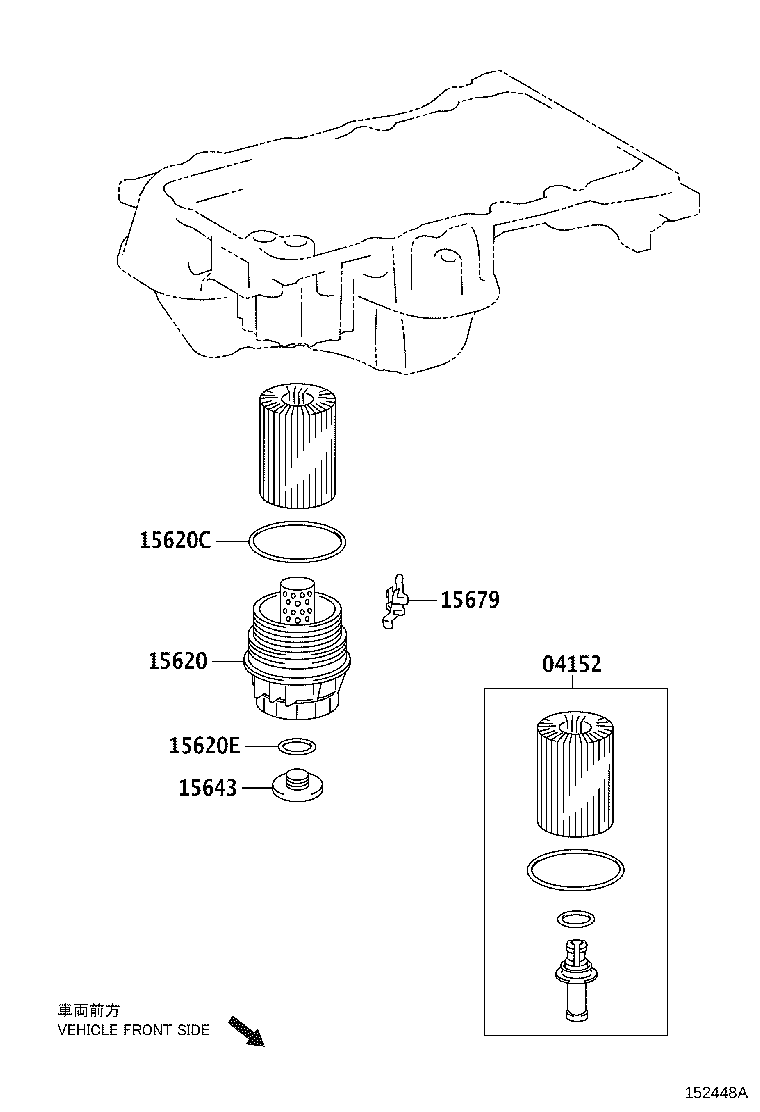

Click highlighted areas on diagram

diagram 04152 15620 15620C 15620E 15643 15679
Part # Description Qty Price
04152 - ELEMENT KIT, OIL FILTER
04152-31090

2GRFXS..GYL20

 1
15620 - CAP ASSY, OIL FILTER
15620-36020

2GRFXS..GYL20

 1
15620C - GASKET(FOR OIL FILTER CAP)
90301-79006

2GRFXS..GYL20

 1
15620E - PLUG(FOR OIL FILTER CAP)
96723-35028

2GRFXS..GYL20

 1
15643 - PLUG, OIL FILTER DRAIN
15643-31050

2GRFXS..GYL20

 1
15679 - CLIP, OIL FILTER BRACKET
15679-31050

2GRFXS..GYL20

 1
