Toyota Lexus rx450h/350(nap GGL20 NAVIGATION & FRONT MONITOR DISPLAY

GGL20L-CWZGBA (2019)

Toyota Lexus Rx450h/350(Nap

Production Sep 2019 - Sep 9999

Engine 2GRFKS

Transmission 8FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

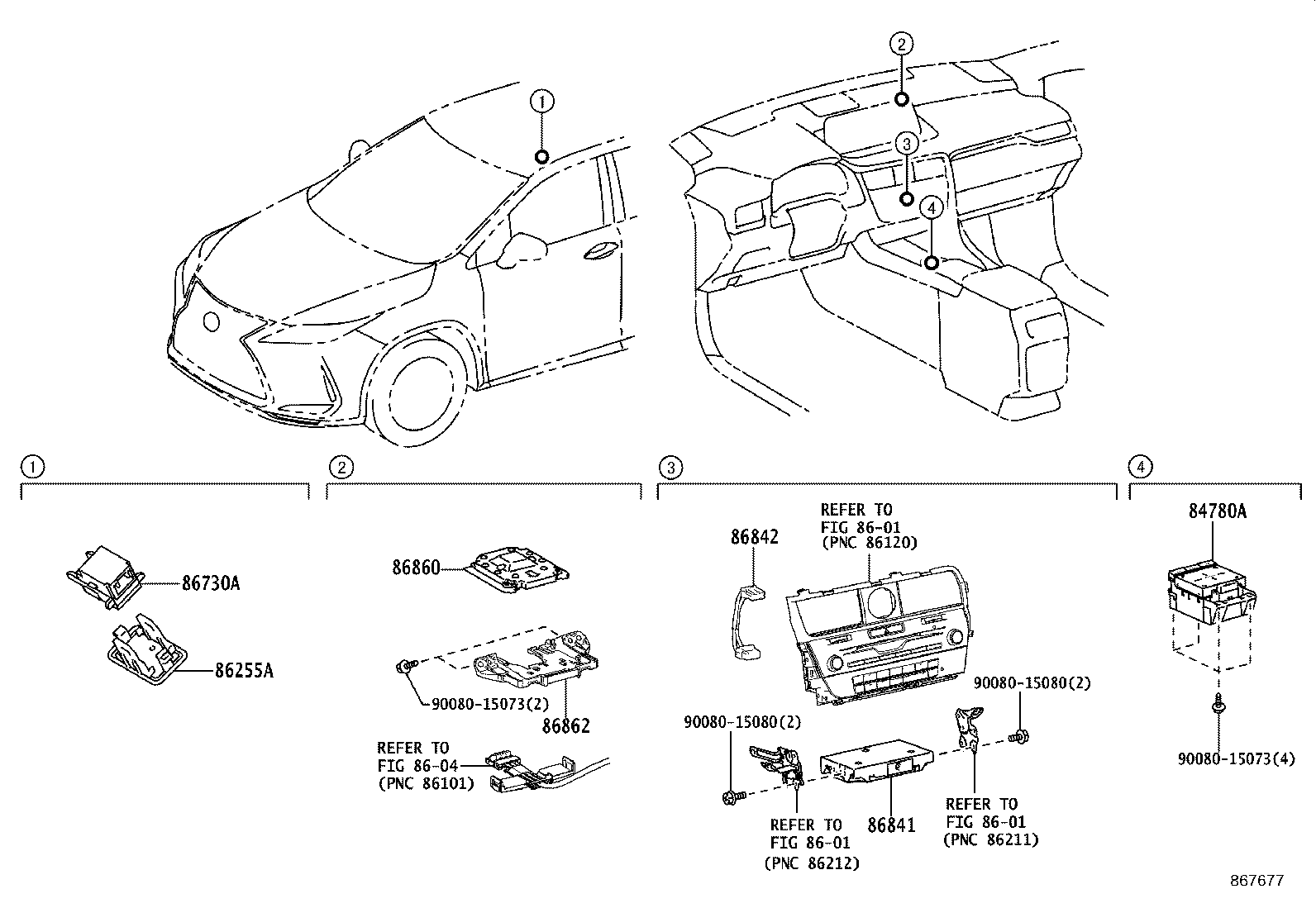

Click highlighted areas on diagram

Part #	Description	Period	Qty
84780A - CONTROLLER ASSY, REMOTE OPERATION
84780-48240	GGL2#,GYL25 AUDIO-L2/DVD	09/2019 - 08/2021	1
84780-48250	GGL2#,GYL25	09/2019 - 08/2021	1
86255A - CASE, MICROPHONE, NO.1
86255-78010A0	GGL2#,GYL25 ECRU,TRIM0#,5#	09/2019 - 12/2999	1
86255-78010B0	GGL2#,GYL25 MOON STONE,TRIM1#,20,23,24,29,4#	09/2019 - 12/2999	1
86255-78010C1	GGL2#,GYL25 BLACK,TRIM25,26,27,28,3#,7#	09/2019 - 12/2999	1
86730A - MICROPHONE ASSY, TELEPHONE
86730-45030	GGL2#,GYL25	03/2021 - 12/2999	1
86730-48100	GGL2#,GYL25	09/2019 - 02/2021	1
86841 - COMPUTER, NAVIGATION
86840-0E133	GGL2#,GYL25 AUDIO-L2/DVD	03/2021 - 12/2999	1
86840-0E130	GGL2#,GYL25 AUDIO-L2/DVD	09/2019 - 01/2020	1
86840-0E131	GGL2#,GYL25 AUDIO-L2/DVD	02/2020 - 08/2020	1
86840-0E132	GGL2#,GYL25 AUDIO-L2/DVD	09/2020 - 02/2021	1
86842 - WIRE, NAVIGATION, NO.1
86842-78151	GGL2#,GYL25 AUDIO-L2/DVD	09/2019 - 12/2999	1
86860 - ANTENNA ASSY, NAVIGATION
86880-0E010	GGL2#,GYL25	09/2019 - 12/2999	1
86880-0E010	GGL2#,GYL25 USA DEPENDANCY SPEC	09/2019 - 12/2999	1
86860-0E070	GGL2#,GYL25 USA DEPENDANCY SPEC	09/2019 - 12/2999	1
86862 - BRACKET, NAVIGATION ANTENNA
86862-42010	GGL2#,GYL25	09/2019 - 12/2999	1
Common parts
90080-15073
90080-15080
Linked diagrams
8601
8604

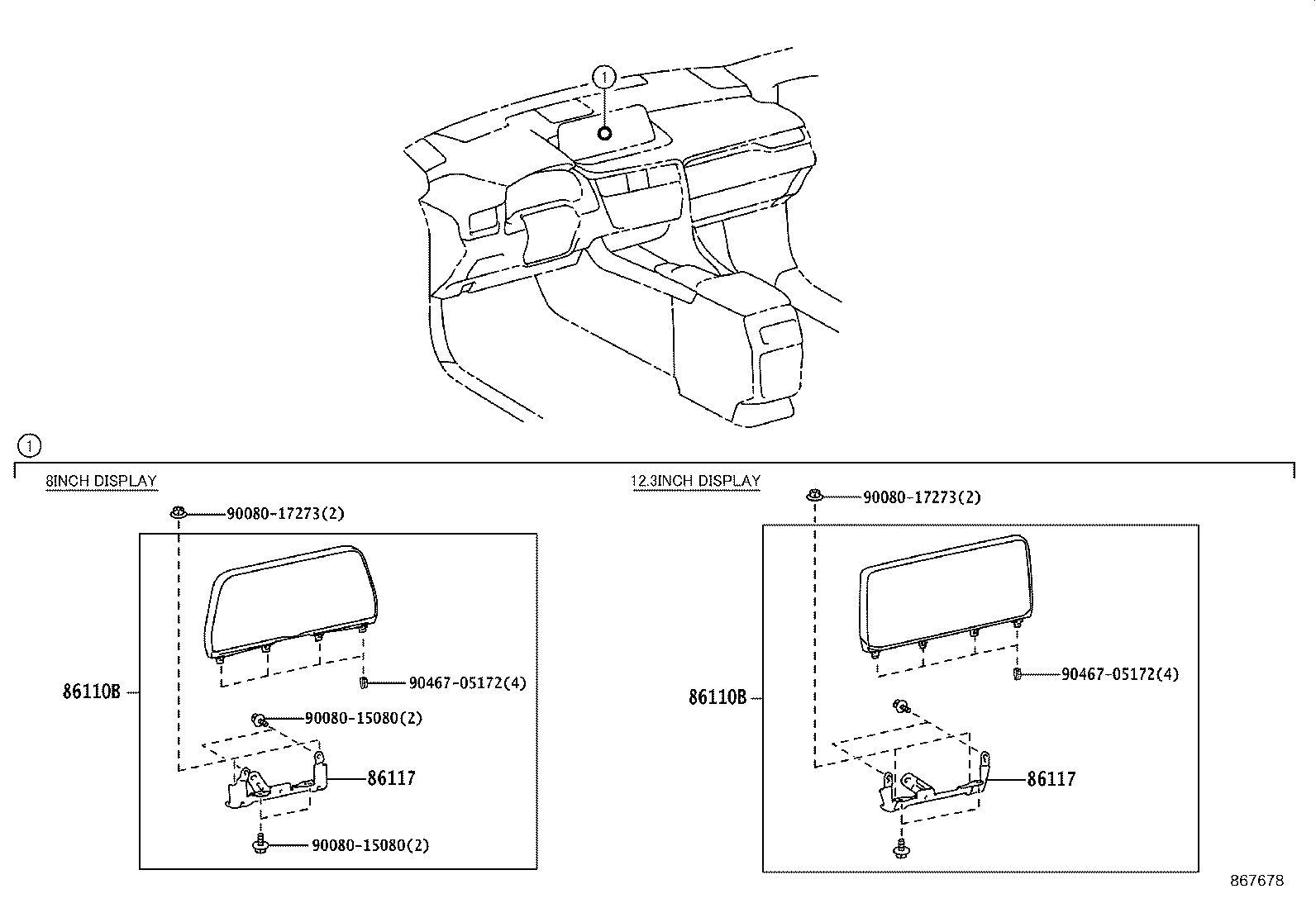

Click highlighted areas on diagram

DISPLAY

Part #	Description	Period	Qty
86110B - MULTI-DISPLAY ASSY
86110-0E040E0	GGL2#,GYL25 PANASONIC,NOBLE BROWN,TRIM00,02,04,4#	09/2019 - 08/2020	1
86110-0E040C0	GGL2#,GYL25 PANASONIC,BLACK,TRIM00,02,04,1#,2#,3#,5#,7#	09/2019 - 08/2020	1
86110-0E050E0	GGL2#,GYL25 DENSO,AUDIO-L2/DVD,NOBLE BROWN,TRIM00,02,04,4#	09/2019 - 08/2020	1
86110-0E050C0	GGL2#,GYL25 DENSO,AUDIO-L2/DVD,BLACK,TRIM00,02,04,1#,2#,3#,5#,7#	09/2019 - 08/2020	1
86110-0E050C0	GGL2#,GYL25 DENSO,AUDIO-L2/DVD,BLACK,TRIM0#,1#,2#,3#,5#,7#	08/2020 - 12/2999	1
86110-0E040C0	GGL2#,GYL25 PANASONIC,BLACK,TRIM0#,1#,2#,3#,5#,7#	08/2020 - 12/2999	1
86110B - MULTI-DISPLAY ASSY
86110-0E040E0	GGL2#,GYL25 PANASONIC,NOBLE BROWN,TRIM00,02,04,4#	09/2019 - 08/2020	1
86110-0E040C0	GGL2#,GYL25 PANASONIC,BLACK,TRIM00,02,04,1#,2#,3#,5#,7#	09/2019 - 08/2020	1
86110-0E050E0	GGL2#,GYL25 DENSO,AUDIO-L2/DVD,NOBLE BROWN,TRIM00,02,04,4#	09/2019 - 08/2020	1
86110-0E050C0	GGL2#,GYL25 DENSO,AUDIO-L2/DVD,BLACK,TRIM00,02,04,1#,2#,3#,5#,7#	09/2019 - 08/2020	1
86110-0E050C0	GGL2#,GYL25 DENSO,AUDIO-L2/DVD,BLACK,TRIM0#,1#,2#,3#,5#,7#	08/2020 - 12/2999	1
86110-0E040C0	GGL2#,GYL25 PANASONIC,BLACK,TRIM0#,1#,2#,3#,5#,7#	08/2020 - 12/2999	1
86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A
86117-0E030	GGL2#,GYL25	09/2019 - 12/2999	1
86117-48260	GGL2#,GYL25 AUDIO-L2/DVD	09/2019 - 12/2999	1
86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A
86117-0E030	GGL2#,GYL25	09/2019 - 12/2999	1
86117-48260	GGL2#,GYL25 AUDIO-L2/DVD	09/2019 - 12/2999	1
Common parts
90080-15080
90080-17273
90467-05172
