Toyota Lexus rx450h/350(nap GGL20 HEADLAMP

GGL20L-CWZGBA (2019)

Toyota Lexus Rx450h/350(Nap

Production Sep 2019 - Sep 9999

Engine 2GRFKS

Transmission 8FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1909- )

Click highlighted areas on diagram

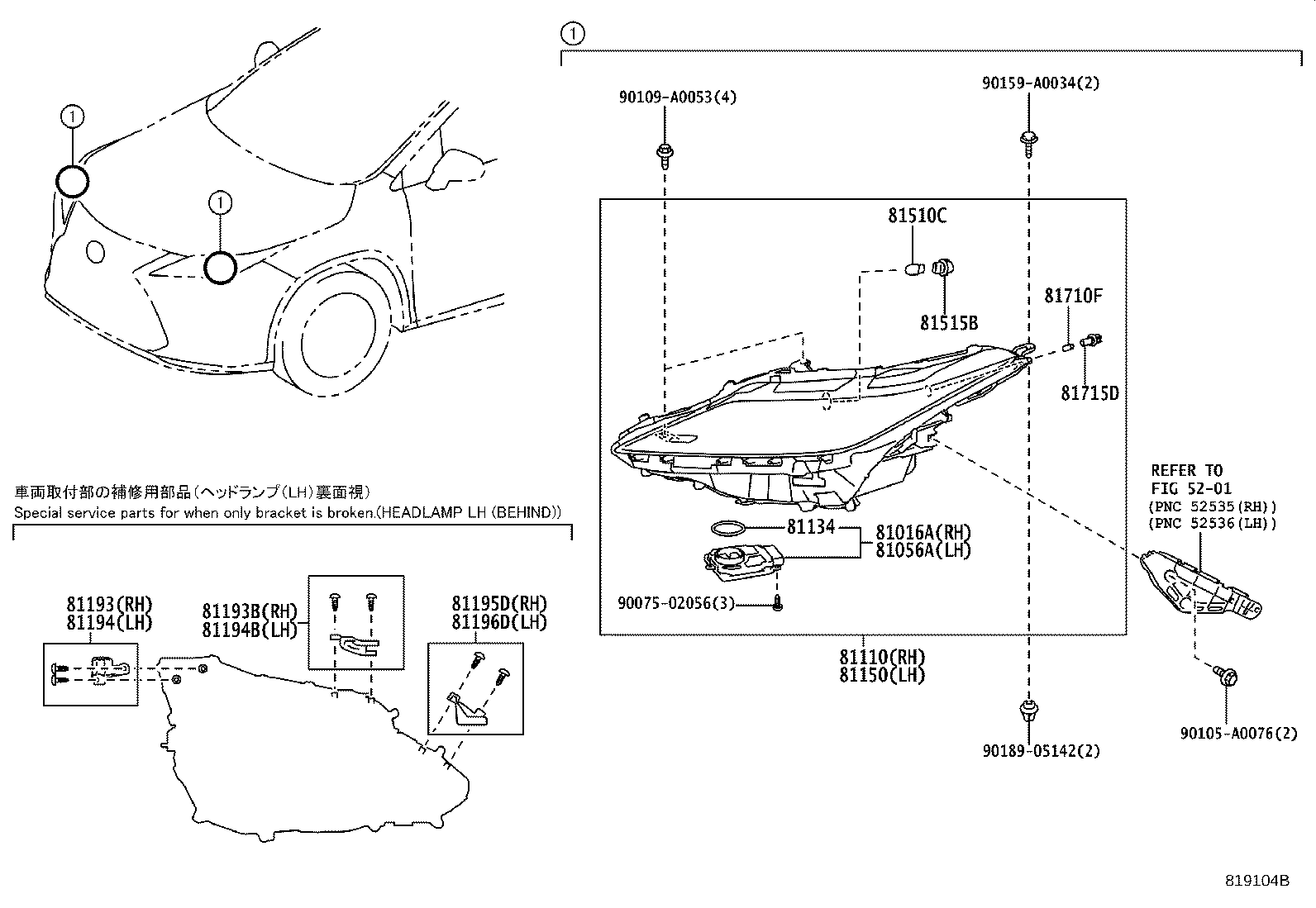

BULB TYPE TURN SIGNAL LAMP

Part #	Description	Period	Qty
81016A - COMPUTER SUB-ASSY, HEADLAMP, RH
81016-0E580	GGL2#,GYL25 REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81016-0E590	GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81016-0E590	GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UPLAMP & TURN LAMP)	09/2019 - 12/2999	1
81016-0E580	GGL2#,GYL25 COLD AREA SPEC&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81016-0E600	GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB&AFLS)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81016-0E600	GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB&AFLS)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81016-0E580	GGL2#,GYL25 COLD AREA SPEC	09/2019 - 12/2999	1
81056A - COMPUTER SUB-ASSY, HEADLAMP, LH
81056-0E580	GGL2#,GYL25 COLD AREA SPEC	09/2019 - 12/2999	1
81056-0E580	GGL2#,GYL25 COLD AREA SPEC&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81056-0E600	GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB&AFLS)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81056-0E590	GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UPLAMP & TURN LAMP)	09/2019 - 12/2999	1
81056-0E600	GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB&AFLS)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81056-0E590	GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81056-0E580	GGL2#,GYL25 REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81110 - HEADLAMP ASSY, RH
81110-0E580	GGL2#,GYL25 COLD AREA SPEC	09/2019 - 12/2999	1
81110-0E580	GGL2#,GYL25 COLD AREA SPEC&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81110-0E600	GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB&AFLS)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81110-0E580	GGL2#,GYL25 REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81110-0E590	GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UPLAMP & TURN LAMP)	09/2019 - 12/2999	1
81110-0E600	GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB&AFLS)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81110-0E570	GGL2#,GYL25	09/2019 - 12/2999	1
81110-0E590	GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81134 - GASKET, HEADLAMP
90075-23003	GGL2#,GYL25 COLD AREA SPEC&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
90075-23003	GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
90075-23003	GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB&AFLS)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
90075-23003	GGL2#,GYL25 COLD AREA SPEC	09/2019 - 12/2999	1
90075-23003	GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB&AFLS)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
90075-23003	GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UPLAMP & TURN LAMP)	09/2019 - 12/2999	1
90075-23003	GGL2#,GYL25 REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81150 - HEADLAMP ASSY, LH
81150-0E580	GGL2#,GYL25 COLD AREA SPEC	09/2019 - 12/2999	1
81150-0E590	GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UPLAMP & TURN LAMP)	09/2019 - 12/2999	1
81150-0E600	GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB&AFLS)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81150-0E580	GGL2#,GYL25 COLD AREA SPEC&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81150-0E590	GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81150-0E570	GGL2#,GYL25	09/2019 - 12/2999	1
81150-0E600	GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB&AFLS)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81150-0E580	GGL2#,GYL25 REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-48100	GGL2#,GYL25	09/2019 - 12/2999	1
81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193-48160	GGL2#,GYL25	09/2019 - 12/2999	1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-48100	GGL2#,GYL25	09/2019 - 12/2999	1
81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194-48160	GGL2#,GYL25	09/2019 - 12/2999	1
81195D - RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2
81193-48150	GGL2#,GYL25	09/2019 - 12/2999	1
81196D - RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2
81194-48150	GGL2#,GYL25	09/2019 - 12/2999	1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15024	GGL2#,GYL25 12V 28/8W	09/2019 - 12/2999	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60083	GGL2#,GYL25	09/2019 - 12/2999	2
81710F - BULB, FRONT SIDE MAKER LAMP
90981-11069	GGL2#,GYL25	09/2019 - 12/2999	2
81715D - SOCKET PLUG, FRONT MARKER LAMP
90075-60089	GGL2#,GYL25	09/2019 - 12/2999	2
Common parts
90075-02056
90105-A0076
90109-A0053
90159-A0034
90189-05142
Linked diagrams
5201

(1909- )

Click highlighted areas on diagram

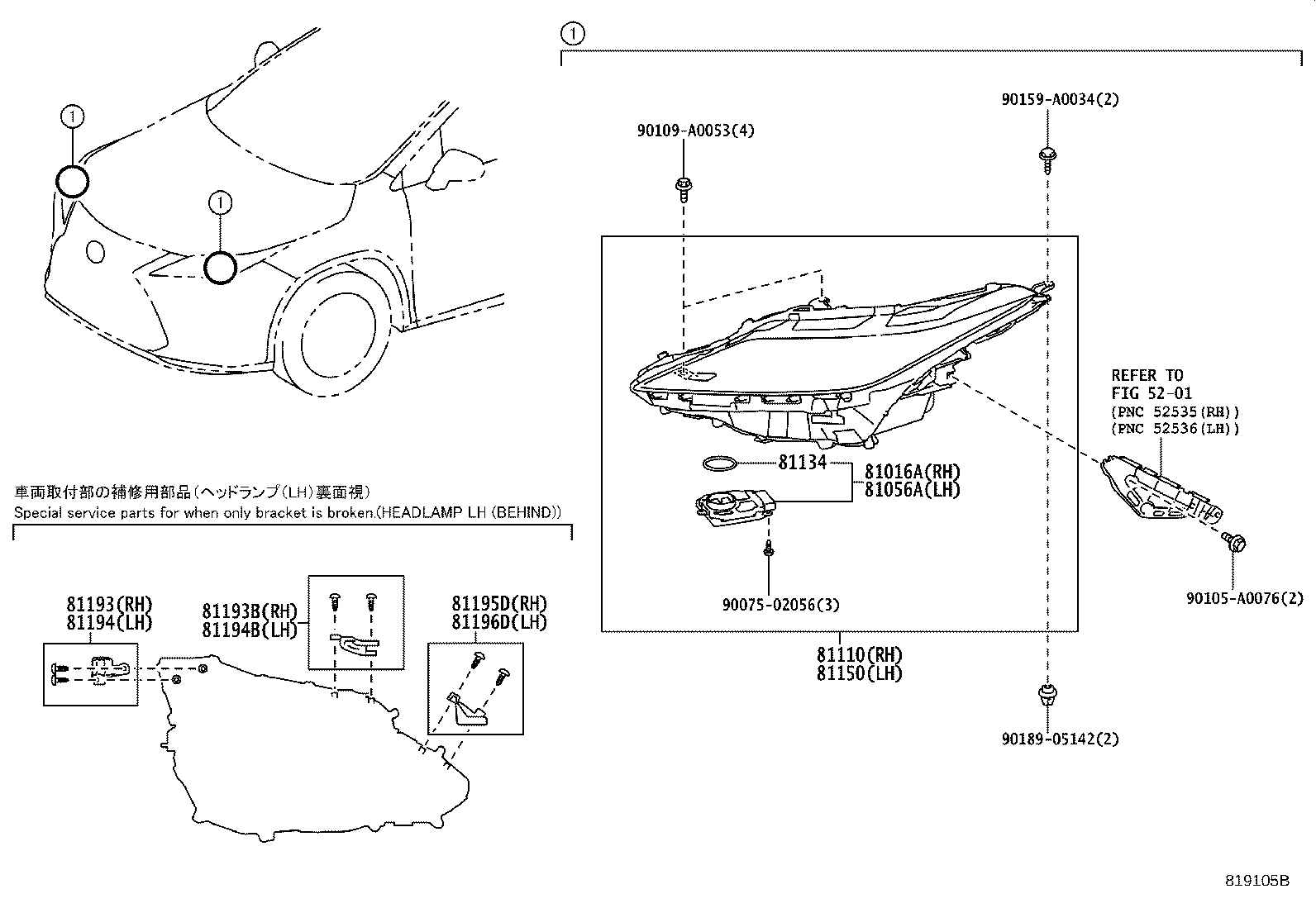

LED TYPE TURN SIGNAL LAMP

Part #	Description	Period	Qty
81016A - COMPUTER SUB-ASSY, HEADLAMP, RH
81016-0E580	GGL2#,GYL25 REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81016-0E590	GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81016-0E590	GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UPLAMP & TURN LAMP)	09/2019 - 12/2999	1
81016-0E580	GGL2#,GYL25 COLD AREA SPEC&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81016-0E600	GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB&AFLS)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81016-0E600	GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB&AFLS)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81016-0E580	GGL2#,GYL25 COLD AREA SPEC	09/2019 - 12/2999	1
81056A - COMPUTER SUB-ASSY, HEADLAMP, LH
81056-0E580	GGL2#,GYL25 COLD AREA SPEC	09/2019 - 12/2999	1
81056-0E580	GGL2#,GYL25 COLD AREA SPEC&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81056-0E600	GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB&AFLS)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81056-0E590	GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UPLAMP & TURN LAMP)	09/2019 - 12/2999	1
81056-0E600	GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB&AFLS)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81056-0E590	GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81056-0E580	GGL2#,GYL25 REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81110 - HEADLAMP ASSY, RH
81110-0E580	GGL2#,GYL25 COLD AREA SPEC	09/2019 - 12/2999	1
81110-0E580	GGL2#,GYL25 COLD AREA SPEC&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81110-0E600	GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB&AFLS)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81110-0E580	GGL2#,GYL25 REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81110-0E590	GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UPLAMP & TURN LAMP)	09/2019 - 12/2999	1
81110-0E600	GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB&AFLS)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81110-0E570	GGL2#,GYL25	09/2019 - 12/2999	1
81110-0E590	GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81134 - GASKET, HEADLAMP
90075-23003	GGL2#,GYL25 COLD AREA SPEC&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
90075-23003	GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
90075-23003	GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB&AFLS)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
90075-23003	GGL2#,GYL25 COLD AREA SPEC	09/2019 - 12/2999	1
90075-23003	GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB&AFLS)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
90075-23003	GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UPLAMP & TURN LAMP)	09/2019 - 12/2999	1
90075-23003	GGL2#,GYL25 REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81150 - HEADLAMP ASSY, LH
81150-0E580	GGL2#,GYL25 COLD AREA SPEC	09/2019 - 12/2999	1
81150-0E590	GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UPLAMP & TURN LAMP)	09/2019 - 12/2999	1
81150-0E600	GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB&AFLS)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81150-0E580	GGL2#,GYL25 COLD AREA SPEC&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81150-0E590	GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81150-0E570	GGL2#,GYL25	09/2019 - 12/2999	1
81150-0E600	GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB&AFLS)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81150-0E580	GGL2#,GYL25 REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)	09/2019 - 12/2999	1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-48100	GGL2#,GYL25	09/2019 - 12/2999	1
81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193-48160	GGL2#,GYL25	09/2019 - 12/2999	1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-48100	GGL2#,GYL25	09/2019 - 12/2999	1
81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194-48160	GGL2#,GYL25	09/2019 - 12/2999	1
81195D - RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2
81193-48150	GGL2#,GYL25	09/2019 - 12/2999	1
81196D - RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2
81194-48150	GGL2#,GYL25	09/2019 - 12/2999	1
Common parts
90075-02056
90105-A0076
90109-A0053
90159-A0034
90189-05142
Linked diagrams
5201
