GGL20L-CWZGBA (2019)
Toyota Lexus Rx450h/350(Nap
Production
Sep 2019
-
Sep 9999
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1909- )

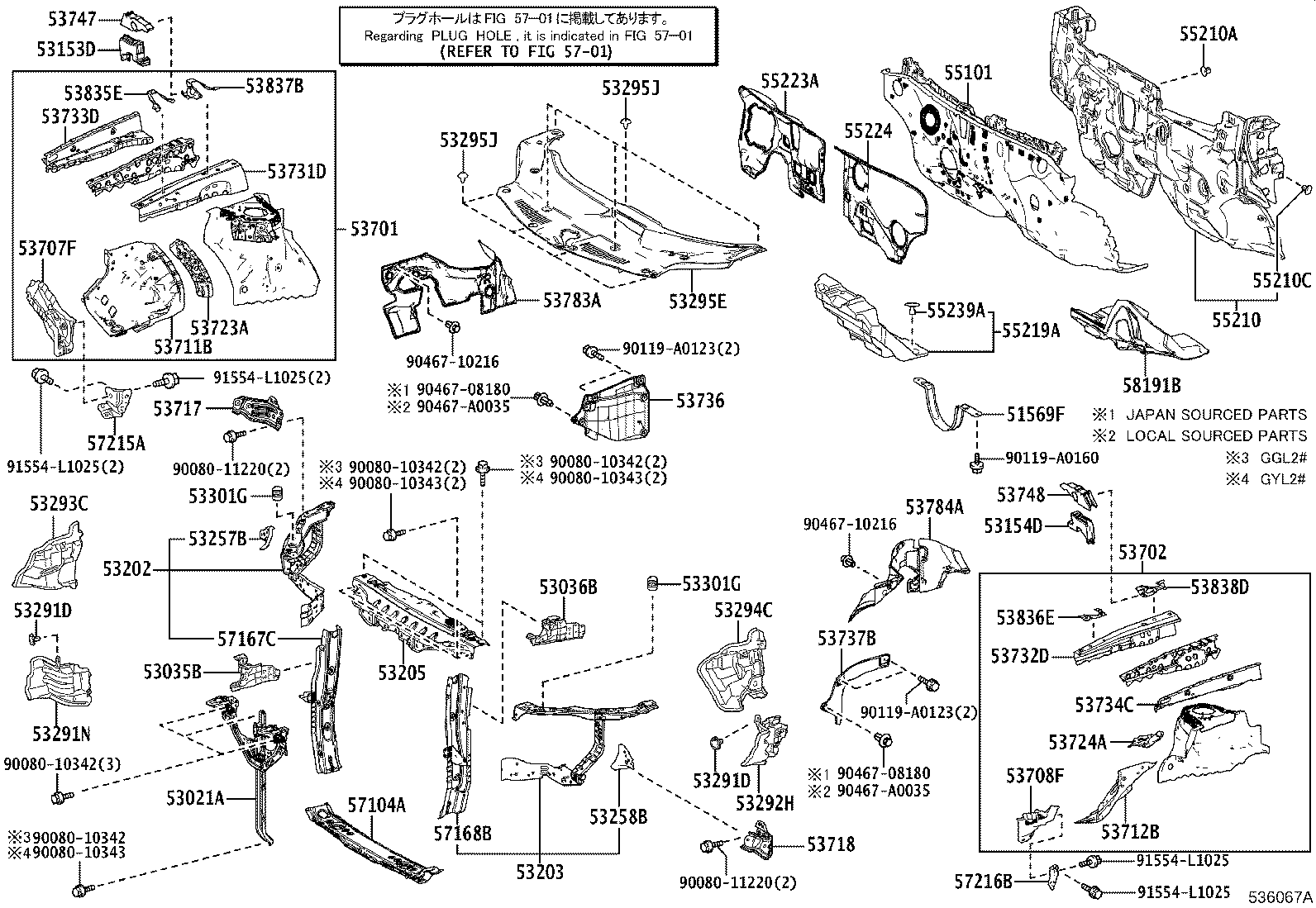

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53021A - MOULDING SUB-ASSY, RADIATOR GRILLE | ||||
| 53021-0E010 |
GGL2#,GYL25 |
1 | ||
| 53035B - BRACKET SUB-ASSY, HEADLAMP MOUNTING, RH | ||||
| 53035-0E020 |
GGL2#,GYL25 |
1 | ||
| 53036B - BRACKET SUB-ASSY, HEADLAMP MOUNTING, LH | ||||
| 53036-0E020 |
GGL2#,GYL25 |
1 | ||
| 53153D - GUIDE, RADIATOR GRILLE SIDE AIR, RH | ||||
| 53153-0E040 |
GGL2#,GYL25 |
1 | ||
| 53154D - GUIDE, RADIATOR GRILLE SIDE AIR, LH | ||||
| 53154-0E040 |
GGL2#,GYL25 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-0E090 |
GGL2#,GYL25 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-0E110 |
GGL2#,GYL25 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-0E030 |
GGL2#,GYL25 |
1 | ||
| 53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER | ||||
| 53257-0E050 |
GGL2#,GYL25 |
1 | ||
| 53258B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH | ||||
| 53258-0E050 |
GGL2#,GYL25 |
1 | ||
| 53291D - CLIP, RADIATOR SUPPORT TO FRAME | ||||
| 90467-07215 |
GGL2#,GYL25 |
2 | ||
| 53291D - CLIP, RADIATOR SUPPORT TO FRAME | ||||
| 90467-07215 |
GGL2#,GYL25 |
2 | ||
| 53291N - SEAL, RADIATOR SUPPORT TO FRAME, RH | ||||
| 53291-0E020 |
GGL2#,GYL25 |
1 | ||
| 53292H - SEAL, RADIATOR SUPPORT TO FRAME, LH | ||||
| 53292-0E020 |
GGL2#,GYL25 |
1 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-0E170 |
GGL2#,GYL25 |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-0E170 |
GGL2# |
1 | ||
| 53295E - SEAL, COOL AIR INTAKE DUCT | ||||
| 53295-0E130 |
GGL2#,GYL25 |
1 | ||
| 53295J - CLIP, COOL AIR INTAKE DUCT SEAL | ||||
| 90467-07217 |
GGL2#,GYL25 |
9 | ||
| 53295J - CLIP, COOL AIR INTAKE DUCT SEAL | ||||
| 90467-07217 |
GGL2#,GYL25 |
9 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15004 |
GGL2#,GYL25 |
2 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15004 |
GGL2#,GYL25 |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-0E110 |
GGL2#,GYL25 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-0E071 |
GGL2#,GYL25 |
1 | ||
| 53707F - GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH | ||||
| 53707-0E050 |
GGL2#,GYL25 |
1 | ||
| 53708F - GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH | ||||
| 53708-0E010 |
GGL2#,GYL25 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-0E050 |
GGL2#,GYL25 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-0E050 |
GGL2#,GYL25 |
1 | ||
| 53717 - PLATE, FENDER APRON, RH | ||||
| 53717-0E090 |
GGL2#,GYL25 |
1 | ||
| 53718 - PLATE, FENDER APRON, LH | ||||
| 53718-0E090 |
GGL2#,GYL25 |
1 | ||
| 53723A - REINFORCEMENT, FRONT SPRING SUPPORT, RH | ||||
| 53723-0E010 |
GGL2#,GYL25 |
1 | ||
| 53724A - REINFORCEMENT, FRONT SPRING SUPPORT, LH | ||||
| 53724-0E010 |
GGL2#,GYL25 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-0E050 |
GGL2#,GYL25 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-0E050 |
GGL2#,GYL25 |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-0E050 |
GGL2#,GYL25 |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-0E050 |
GGL2#,GYL25 |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-0E020 |
GGL2#,GYL25 |
1 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-06040 |
GGL2# |
1 | ||
| 53747 - PLATE, AIR SEALED, RH | ||||
| 53747-0E010 |
GGL2#,GYL25 |
1 | ||
| 53748 - PLATE, AIR SEALED, LH | ||||
| 53748-0E010 |
GGL2#,GYL25 |
1 | ||
| 53783A - INSULATOR, APRON FRONT FENDER, RH | ||||
| 53783-0E040 |
GGL2#,GYL25 |
1 | ||
| 53784A - INSULATOR, APRON FRONT FENDER, LH | ||||
| 53784-0E040 |
GGL2#,GYL25 |
1 | ||
| 53835E - BRACE, FRONT FENDER TO APRON, RH | ||||
| 53835-0E070 |
GGL2#,GYL25 |
1 | ||
| 53836E - BRACE, FRONT FENDER TO APRON, LH | ||||
| 53836-0E070 |
GGL2#,GYL25 |
1 | ||
| 53837B - BRACKET, FRONT SIDE PANEL, NO.2 | ||||
| 53837-0E070 |
GGL2#,GYL25 |
1 | ||
| 53838D - BRACKET, FRONT SIDE PANEL, NO.2 LH | ||||
| 53838-0E070 |
GGL2#,GYL25 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-0E100 |
GGL2# |
1 | ||
| 55101-0E101 |
GGL2# |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-0E090 |
GGL2#,GYL25 |
1 | ||
| 55210A - CLIP | ||||
| 90467-06197 |
GGL2#,GYL25 |
4 | ||
| 55210C - CLIP | ||||
| 90467-13079 |
GGL2#,GYL25 |
2 | ||
| 55219A - PACKING, DASH PANEL HOLE COVER | ||||
| 55219-0E080 |
GGL2#,GYL25 |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-0E090 |
GGL2#,GYL25 |
1 | ||
| 55224 - INSULATOR, DASH PANEL, OUTER LH | ||||
| 55224-0E010 |
GGL2#,GYL25 |
1 | ||
| 55239A - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-48020 |
GGL2#,GYL25 |
2 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-0E050 |
GGL2#,GYL25 |
1 | ||
| 57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH | ||||
| 57167-0E070 |
GGL2#,GYL25 |
1 | ||
| 57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH | ||||
| 57168-0E070 |
GGL2#,GYL25 |
1 | ||
| 57215A - BRACKET, BODY MOUNTING, NO.3 RH | ||||
| 57215-48010 |
GGL2#,GYL25 |
1 | ||
| 57216B - BRACKET, BODY MOUNTING, NO.3 LH | ||||
| 57216-0E030 |
GGL2#,GYL25 |
1 | ||
| 58191B - FOOTREST, FRONT FLOOR | ||||
| 58191-0E080 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 90080-10342 | ||||
| 90080-10343 | ||||
| 90080-11220 | ||||
| 90119-A0123 | ||||
| 90119-A0160 | ||||
| 90467-08180 | ||||
| 90467-10216 | ||||
| 90467-A0035 | ||||
| 91554-L1025 | ||||
| Linked diagrams | ||||
| 5701 | ||||
