GGL20L-CWZGBA (2019)
Toyota Lexus Rx450h/350(Nap

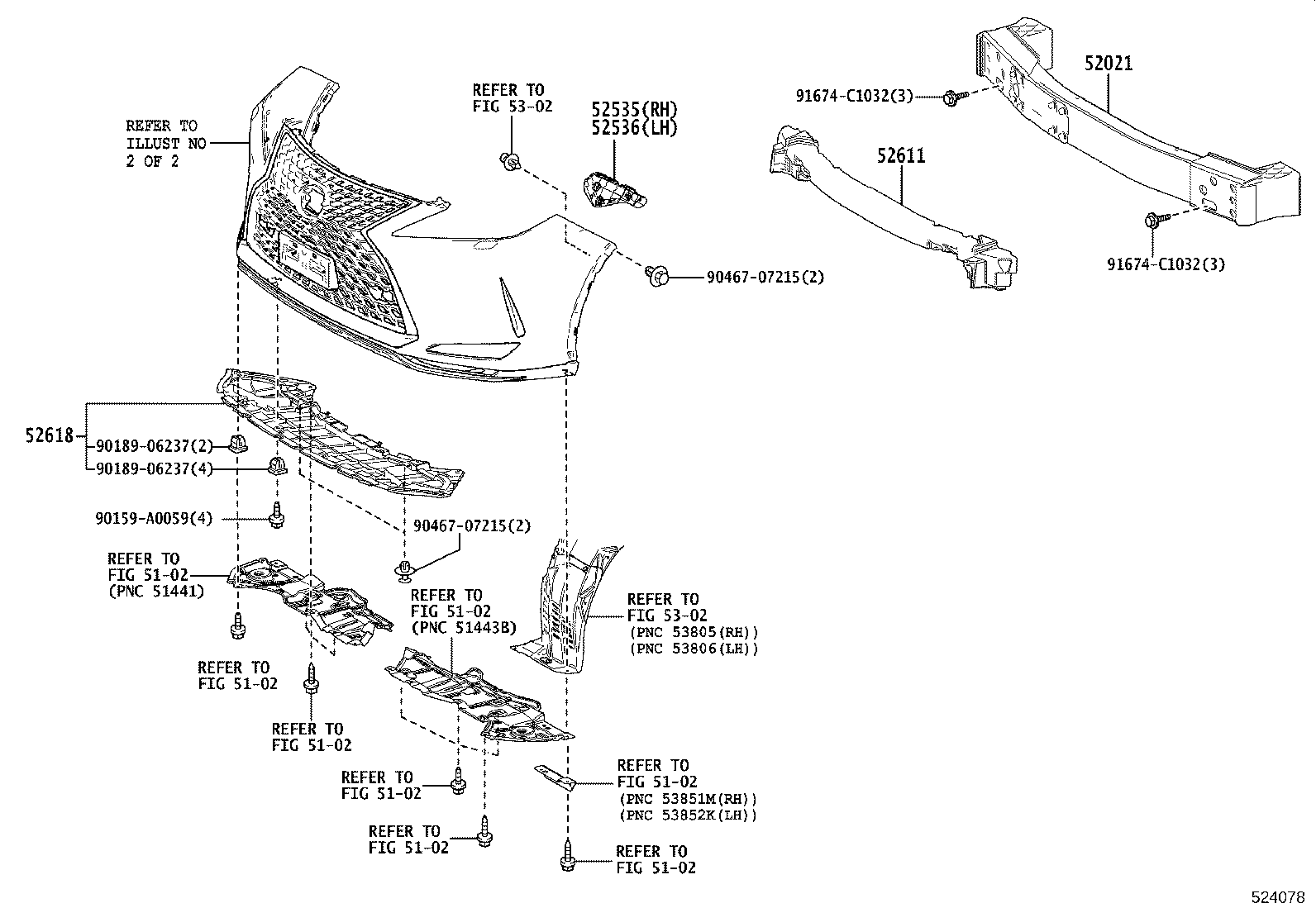

ILLUST NO. 1 OF 2(1909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-0E120 |
GGL2#,GYL25 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-0E070 |
GGL2#,GYL25 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-0E060 |
GGL2#,GYL25 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-0E151 |
GGL2#,GYL25 |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-0E040 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 90159-A0059 | ||||
| 90189-06237 | ||||
| 90467-07215 | ||||
| 91674-C1032 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||

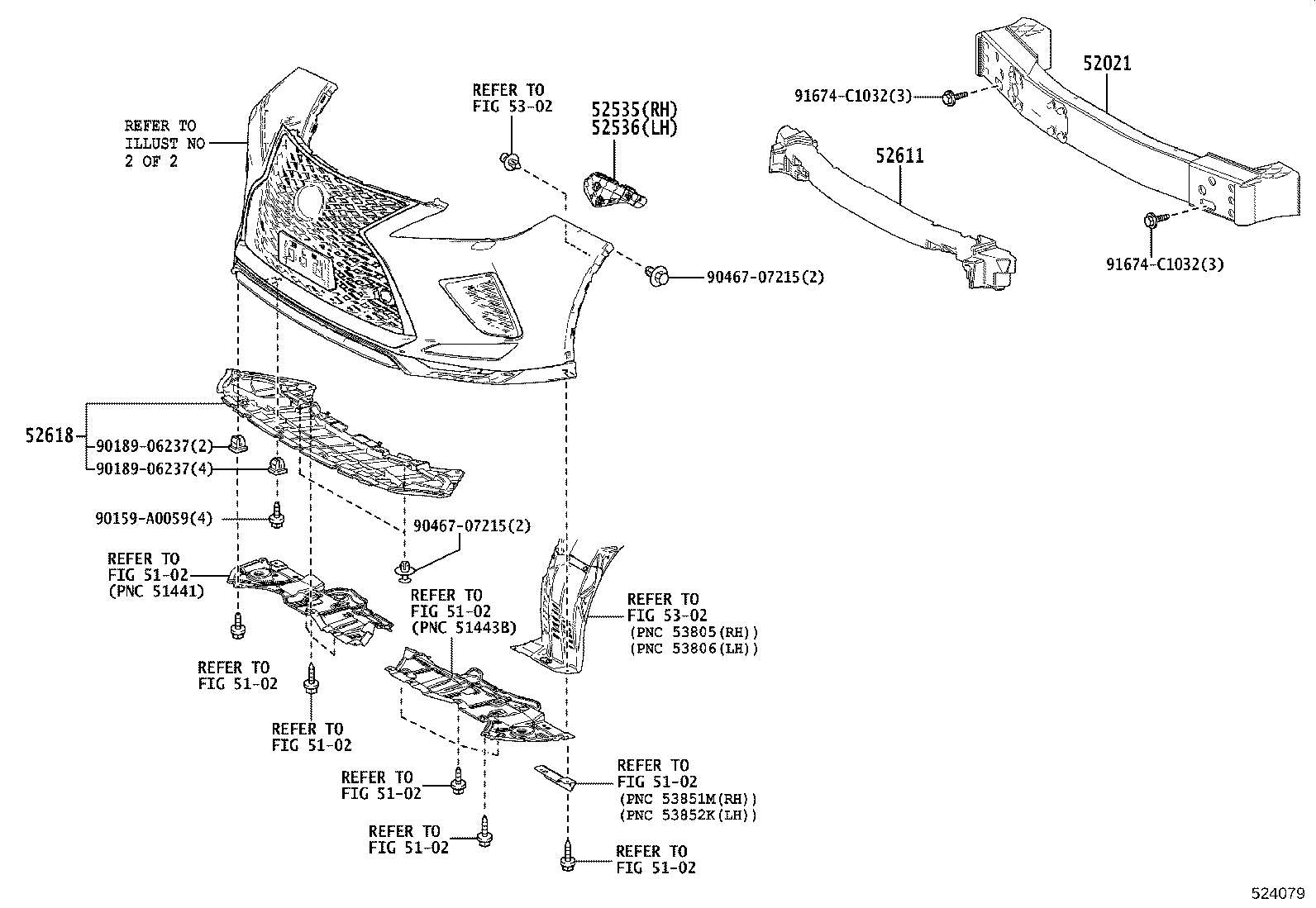

ILLUST NO. 1 OF 2(1909- )
F SPORT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-0E120 |
GGL2#,GYL25 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-0E070 |
GGL2#,GYL25 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-0E060 |
GGL2#,GYL25 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-0E151 |
GGL2#,GYL25 |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-0E040 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 90159-A0059 | ||||
| 90189-06237 | ||||
| 90467-07215 | ||||
| 91674-C1032 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||

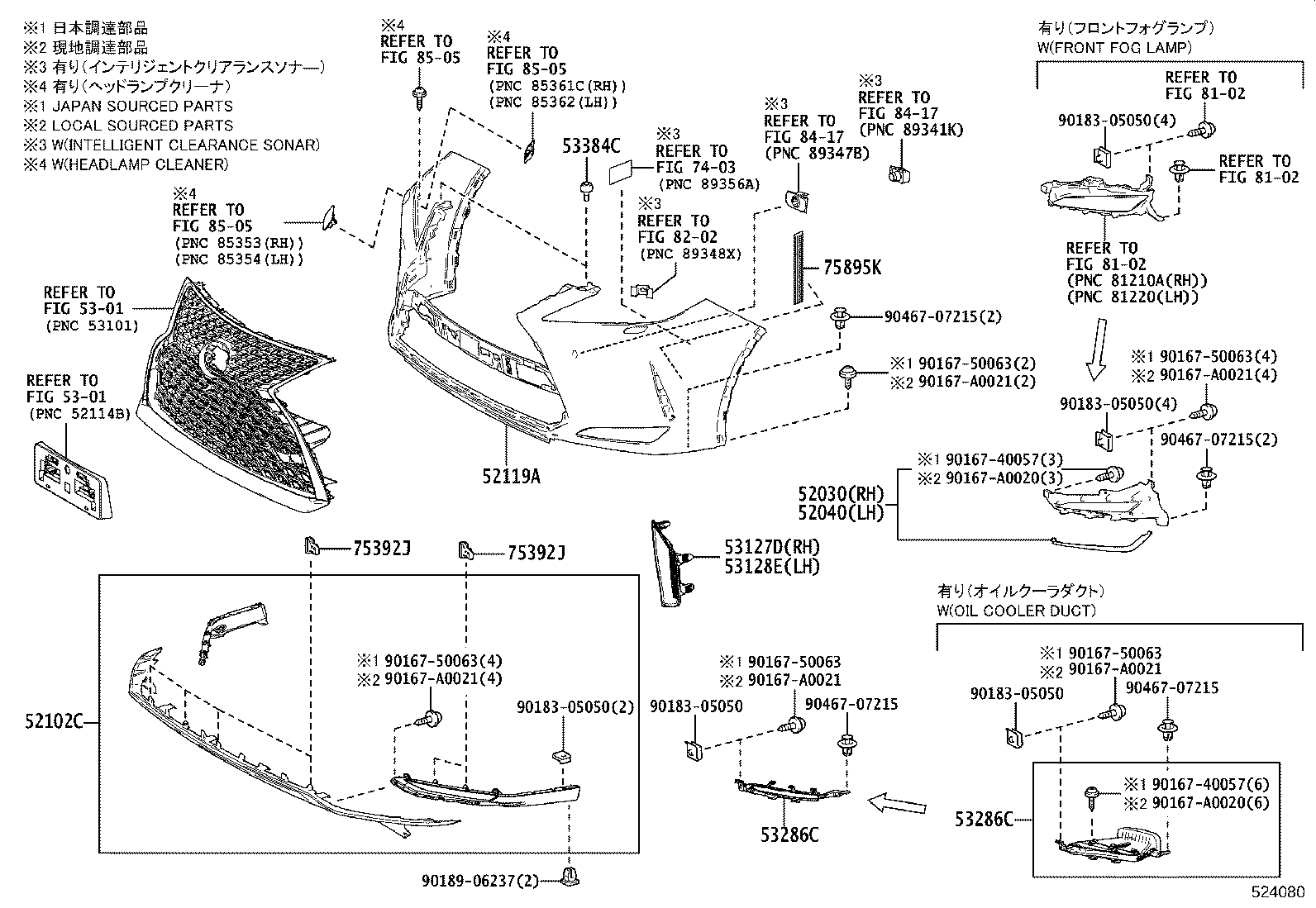

ILLUST NO. 2 OF 2(1909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 52030-0E150 |
GGL2#,GYL25 PLATED,F SPORT LO&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 52030-0E150 |
GGL2#,GYL25 PLATED,"F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52030-0E150 |
GGL2#,GYL25 PLATED,F SPORT LO&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52030-0E150 |
GGL2#,GYL25 PLATED,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52030-0E150 |
GGL2#,GYL25 PLATED,"F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 52030-0E150 |
GGL2#,GYL25 PLATED,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 52030-0E160 |
GGL2#,GYL25 NO PAINT REQ.,"F SPORT"*(F) |
1 | ||
| 52030-0E160 |
GGL2#,GYL25 NO PAINT REQ.,F SPORT LO |
1 | ||
| 52030-0E150 |
GGL2#,GYL25 PLATED |
1 | ||
| 52030-0E150 |
GGL2#,GYL25 PLATED,FRONT FOG & DRIVING LAMP-WITH(WHITE) |
1 | ||
| 52030-0E150 |
GGL2#,GYL25 PLATED,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&HEADLAMP LEVELING DEVICE-WITH(LED TRIPLE BEAM TYPE)&CORNERING LAMP-WITH |
1 | ||
| 52030-0E150 |
GGL2#,GYL25 PLATED,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB&*AFLS)&HEADLAMP LEVELING DEVICE-WITH(LED TRIPLE BEAM TYPE)&CORNERING LAMP-WITH |
1 | ||
| 52030-0E150 |
GGL2#,GYL25 PLATED,HEADLAMP LEVELING DEVICE-WITH(LED SINGLE BEAM TYPE)&CORNERING LAMP-WITH |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 52040-0E150 |
GGL2#,GYL25 PLATED,F SPORT LO&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52040-0E150 |
GGL2#,GYL25 PLATED,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52040-0E150 |
GGL2#,GYL25 PLATED,F SPORT LO&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 52040-0E150 |
GGL2#,GYL25 PLATED,"F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52040-0E150 |
GGL2#,GYL25 PLATED |
1 | ||
| 52040-0E160 |
GGL2#,GYL25 NO PAINT REQ.,"F SPORT"*(F) |
1 | ||
| 52040-0E150 |
GGL2#,GYL25 PLATED,"F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 52040-0E150 |
GGL2#,GYL25 PLATED,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB&*AFLS)&HEADLAMP LEVELING DEVICE-WITH(LED TRIPLE BEAM TYPE)&CORNERING LAMP-WITH |
1 | ||
| 52040-0E160 |
GGL2#,GYL25 NO PAINT REQ.,F SPORT LO |
1 | ||
| 52040-0E150 |
GGL2#,GYL25 PLATED,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&HEADLAMP LEVELING DEVICE-WITH(LED TRIPLE BEAM TYPE)&CORNERING LAMP-WITH |
1 | ||
| 52040-0E150 |
GGL2#,GYL25 PLATED,HEADLAMP LEVELING DEVICE-WITH(LED SINGLE BEAM TYPE)&CORNERING LAMP-WITH |
1 | ||
| 52040-0E150 |
GGL2#,GYL25 PLATED,FRONT FOG & DRIVING LAMP-WITH(WHITE) |
1 | ||
| 52040-0E150 |
GGL2#,GYL25 PLATED,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 52102C - EXTENSION SUB-ASSY, FRONT BUMPER | ||||
| 52102-0E030 |
GGL2#,GYL25 "F SPORT"*(F)&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52102-0E030 |
GGL2#,GYL25 F SPORT LO |
1 | ||
| 52102-0E030 |
GGL2#,GYL25 "F SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 52102-0E030 |
GGL2#,GYL25 F SPORT LO&COLD AREA SPEC |
1 | ||
| 52102-0E020 |
GGL2#,GYL25 |
1 | ||
| 52102-0E030 |
GGL2#,GYL25 "F SPORT"*(F) |
1 | ||
| 52102-0E030 |
GGL2#,GYL25 "F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 52102-0E030 |
GGL2#,GYL25 F SPORT LO&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 52102-0E030 |
GGL2#,GYL25 F SPORT LO&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 52102-0E030 |
GGL2#,GYL25 F SPORT LO&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52102-0E030 |
GGL2#,GYL25 "F SPORT"*(F)&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 52102-0E030 |
GGL2#,GYL25 "F SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52102-0E030 |
GGL2#,GYL25 F SPORT LO&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0E942 |
GGL2#,GYL25 PAINT REQ. |
1 | ||
| 52119-0E943 |
GGL2#,GYL25 PAINT REQ.,PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E946 |
GGL2#,GYL25 PAINT REQ.,"F SPORT"*(F) |
1 | ||
| 52119-0E945 |
GGL2#,GYL25 PAINT REQ.,COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 52119-0E947 |
GGL2#,GYL25 PAINT REQ.,F SPORT LO&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E948 |
GGL2#,GYL25 PAINT REQ.,F SPORT LO&COLD AREA SPEC |
1 | ||
| 52119-0E945 |
GGL2#,GYL25 PAINT REQ.,COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E949 |
GGL2#,GYL25 PAINT REQ.,"F SPORT"*(F)&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E949 |
GGL2#,GYL25 PAINT REQ.,"F SPORT"*(F)&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 52119-0E946 |
GGL2#,GYL25 PAINT REQ.,F SPORT LO |
1 | ||
| 52119-0E948 |
GGL2#,GYL25 PAINT REQ.,"F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 52119-0E947 |
GGL2#,GYL25 PAINT REQ.,F SPORT LO&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 52119-0E949 |
GGL2#,GYL25 PAINT REQ.,F SPORT LO&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENTCLEARANCE SONAR) |
1 | ||
| 52119-0E949 |
GGL2#,GYL25 PAINT REQ.,F SPORT LO&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 52119-0E944 |
GGL2#,GYL25 PAINT REQ.,COLD AREA SPEC |
1 | ||
| 52119-0E947 |
GGL2#,GYL25 PAINT REQ.,"F SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E947 |
GGL2#,GYL25 PAINT REQ.,"F SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 52119-0E943 |
GGL2#,GYL25 PAINT REQ.,PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 53127D - GRILLE, RADIATOR, LOWER SIDE RH | ||||
| 53127-0E060 |
GGL2#,GYL25 "F SPORT"*(F)&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53127-0E050 |
GGL2#,GYL25 |
1 | ||
| 53127-0E060 |
GGL2#,GYL25 "F SPORT"*(F) |
1 | ||
| 53127-0E060 |
GGL2#,GYL25 "F SPORT"*(F)&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 53127-0E060 |
GGL2#,GYL25 F SPORT LO&COLD AREA SPEC |
1 | ||
| 53127-0E060 |
GGL2#,GYL25 F SPORT LO&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 53127-0E060 |
GGL2#,GYL25 "F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 53127-0E060 |
GGL2#,GYL25 "F SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 53127-0E060 |
GGL2#,GYL25 F SPORT LO&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53127-0E060 |
GGL2#,GYL25 F SPORT LO&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 53127-0E060 |
GGL2#,GYL25 F SPORT LO |
1 | ||
| 53127-0E060 |
GGL2#,GYL25 "F SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53127-0E060 |
GGL2#,GYL25 F SPORT LO&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53128E - GRILLE, RADIATOR, LOWER SIDE LH | ||||
| 53128-0E050 |
GGL2#,GYL25 |
1 | ||
| 53128-0E060 |
GGL2#,GYL25 "F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 53128-0E060 |
GGL2#,GYL25 "F SPORT"*(F)&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53128-0E060 |
GGL2#,GYL25 "F SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 53128-0E060 |
GGL2#,GYL25 "F SPORT"*(F) |
1 | ||
| 53128-0E060 |
GGL2#,GYL25 F SPORT LO |
1 | ||
| 53128-0E060 |
GGL2#,GYL25 "F SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53128-0E060 |
GGL2#,GYL25 F SPORT LO&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53128-0E060 |
GGL2#,GYL25 "F SPORT"*(F)&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 53128-0E060 |
GGL2#,GYL25 F SPORT LO&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 53128-0E060 |
GGL2#,GYL25 F SPORT LO&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 53128-0E060 |
GGL2#,GYL25 F SPORT LO&COLD AREA SPEC |
1 | ||
| 53128-0E060 |
GGL2#,GYL25 F SPORT LO&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53286C - COVER, FRONT BUMPER ARM HOLE, LH | ||||
| 53286-0E050 |
GGL2# TOWING PACKAGE-3500LBS |
1 | ||
| 53286-0E080 |
GGL2# "F SPORT"*(F) |
1 | ||
| 53286-0E070 |
GGL2# "F SPORT"*(F)&TOWING PACKAGE-3500LBS |
1 | ||
| 53286-0E060 |
GGL2# |
1 | ||
| 53286-0E080 |
GGL2# F SPORT LO |
1 | ||
| 53286-0E070 |
GGL2# F SPORT LO&TOWING PACKAGE-3500LBS |
1 | ||
| 53286C - COVER, FRONT BUMPER ARM HOLE, LH | ||||
| 53286-0E050 |
GGL2# TOWING PACKAGE-3500LBS |
1 | ||
| 53286-0E080 |
GGL2# "F SPORT"*(F) |
1 | ||
| 53286-0E070 |
GGL2# "F SPORT"*(F)&TOWING PACKAGE-3500LBS |
1 | ||
| 53286-0E060 |
GGL2# |
1 | ||
| 53286-0E080 |
GGL2# F SPORT LO |
1 | ||
| 53286-0E070 |
GGL2# F SPORT LO&TOWING PACKAGE-3500LBS |
1 | ||
| 53384C - CUSHION, HOOD, CENTER | ||||
| 53384-22070 |
GGL2#,GYL25 |
2 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GGL2#,GYL25 |
8 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GGL2#,GYL25 |
8 | ||
| 75895K - TAPE, MOULDING, NO.1 | ||||
| 75895-53010 |
GGL2#,GYL25 |
2 | ||
| Common parts | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90167-A0020 | ||||
| 90167-A0021 | ||||
| 90183-05050 | ||||
| 90189-06237 | ||||
| 90467-07215 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 7403 | ||||
| 8102 | ||||
| 8202 | ||||
| 8417 | ||||
| 8505 | ||||

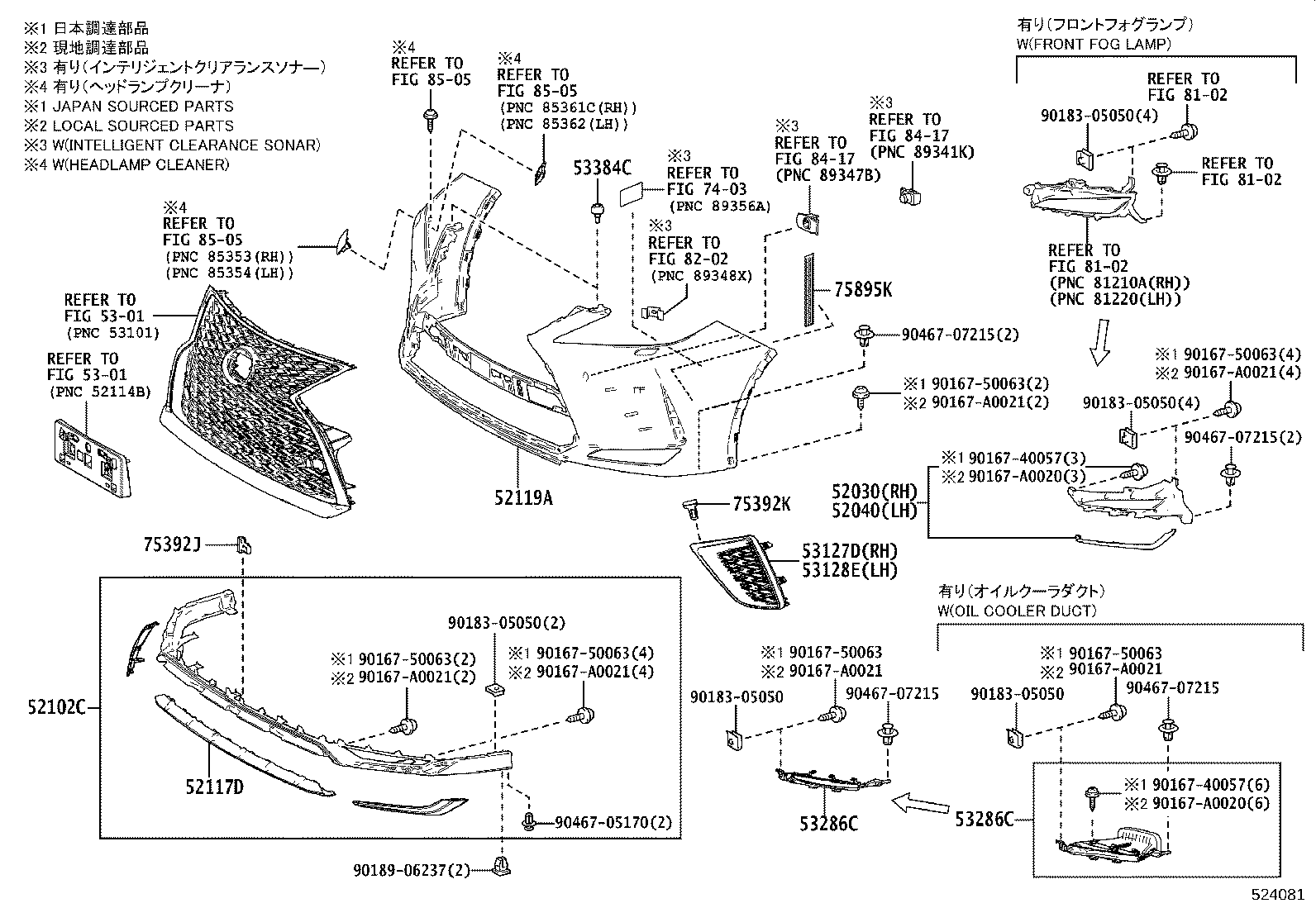

ILLUST NO. 2 OF 2(1909- )
F SPORT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 52030-0E150 |
GGL2#,GYL25 PLATED,F SPORT LO&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 52030-0E150 |
GGL2#,GYL25 PLATED,"F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52030-0E150 |
GGL2#,GYL25 PLATED,F SPORT LO&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52030-0E150 |
GGL2#,GYL25 PLATED,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52030-0E150 |
GGL2#,GYL25 PLATED,"F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 52030-0E150 |
GGL2#,GYL25 PLATED,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 52030-0E160 |
GGL2#,GYL25 NO PAINT REQ.,"F SPORT"*(F) |
1 | ||
| 52030-0E160 |
GGL2#,GYL25 NO PAINT REQ.,F SPORT LO |
1 | ||
| 52030-0E150 |
GGL2#,GYL25 PLATED |
1 | ||
| 52030-0E150 |
GGL2#,GYL25 PLATED,FRONT FOG & DRIVING LAMP-WITH(WHITE) |
1 | ||
| 52030-0E150 |
GGL2#,GYL25 PLATED,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&HEADLAMP LEVELING DEVICE-WITH(LED TRIPLE BEAM TYPE)&CORNERING LAMP-WITH |
1 | ||
| 52030-0E150 |
GGL2#,GYL25 PLATED,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB&*AFLS)&HEADLAMP LEVELING DEVICE-WITH(LED TRIPLE BEAM TYPE)&CORNERING LAMP-WITH |
1 | ||
| 52030-0E150 |
GGL2#,GYL25 PLATED,HEADLAMP LEVELING DEVICE-WITH(LED SINGLE BEAM TYPE)&CORNERING LAMP-WITH |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 52040-0E150 |
GGL2#,GYL25 PLATED,F SPORT LO&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52040-0E150 |
GGL2#,GYL25 PLATED,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52040-0E150 |
GGL2#,GYL25 PLATED,F SPORT LO&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 52040-0E150 |
GGL2#,GYL25 PLATED,"F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52040-0E150 |
GGL2#,GYL25 PLATED |
1 | ||
| 52040-0E160 |
GGL2#,GYL25 NO PAINT REQ.,"F SPORT"*(F) |
1 | ||
| 52040-0E150 |
GGL2#,GYL25 PLATED,"F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 52040-0E150 |
GGL2#,GYL25 PLATED,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB&*AFLS)&HEADLAMP LEVELING DEVICE-WITH(LED TRIPLE BEAM TYPE)&CORNERING LAMP-WITH |
1 | ||
| 52040-0E160 |
GGL2#,GYL25 NO PAINT REQ.,F SPORT LO |
1 | ||
| 52040-0E150 |
GGL2#,GYL25 PLATED,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&HEADLAMP LEVELING DEVICE-WITH(LED TRIPLE BEAM TYPE)&CORNERING LAMP-WITH |
1 | ||
| 52040-0E150 |
GGL2#,GYL25 PLATED,HEADLAMP LEVELING DEVICE-WITH(LED SINGLE BEAM TYPE)&CORNERING LAMP-WITH |
1 | ||
| 52040-0E150 |
GGL2#,GYL25 PLATED,FRONT FOG & DRIVING LAMP-WITH(WHITE) |
1 | ||
| 52040-0E150 |
GGL2#,GYL25 PLATED,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 52102C - EXTENSION SUB-ASSY, FRONT BUMPER | ||||
| 52102-0E030 |
GGL2#,GYL25 "F SPORT"*(F)&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52102-0E030 |
GGL2#,GYL25 F SPORT LO |
1 | ||
| 52102-0E030 |
GGL2#,GYL25 "F SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 52102-0E030 |
GGL2#,GYL25 F SPORT LO&COLD AREA SPEC |
1 | ||
| 52102-0E020 |
GGL2#,GYL25 |
1 | ||
| 52102-0E030 |
GGL2#,GYL25 "F SPORT"*(F) |
1 | ||
| 52102-0E030 |
GGL2#,GYL25 "F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 52102-0E030 |
GGL2#,GYL25 F SPORT LO&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 52102-0E030 |
GGL2#,GYL25 F SPORT LO&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 52102-0E030 |
GGL2#,GYL25 F SPORT LO&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52102-0E030 |
GGL2#,GYL25 "F SPORT"*(F)&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 52102-0E030 |
GGL2#,GYL25 "F SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52102-0E030 |
GGL2#,GYL25 F SPORT LO&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52117D - SUPPORT, FRONT BUMPER SIDE, LOWER | ||||
| 52117-0E020 |
GGL2#,GYL25 "F SPORT"*(F) |
1 | ||
| 52117-0E020 |
GGL2#,GYL25 "F SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 52117-0E020 |
GGL2#,GYL25 "F SPORT"*(F)&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52117-0E020 |
GGL2#,GYL25 "F SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52117-0E020 |
GGL2#,GYL25 "F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 52117-0E020 |
GGL2#,GYL25 F SPORT LO&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52117-0E020 |
GGL2#,GYL25 F SPORT LO |
1 | ||
| 52117-0E020 |
GGL2#,GYL25 "F SPORT"*(F)&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 52117-0E020 |
GGL2#,GYL25 F SPORT LO&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 52117-0E020 |
GGL2#,GYL25 F SPORT LO&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 52117-0E020 |
GGL2#,GYL25 F SPORT LO&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52117-0E020 |
GGL2#,GYL25 F SPORT LO&COLD AREA SPEC |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0E942 |
GGL2#,GYL25 PAINT REQ. |
1 | ||
| 52119-0E943 |
GGL2#,GYL25 PAINT REQ.,PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E946 |
GGL2#,GYL25 PAINT REQ.,"F SPORT"*(F) |
1 | ||
| 52119-0E945 |
GGL2#,GYL25 PAINT REQ.,COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 52119-0E947 |
GGL2#,GYL25 PAINT REQ.,F SPORT LO&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E948 |
GGL2#,GYL25 PAINT REQ.,F SPORT LO&COLD AREA SPEC |
1 | ||
| 52119-0E945 |
GGL2#,GYL25 PAINT REQ.,COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E949 |
GGL2#,GYL25 PAINT REQ.,"F SPORT"*(F)&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E949 |
GGL2#,GYL25 PAINT REQ.,"F SPORT"*(F)&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 52119-0E946 |
GGL2#,GYL25 PAINT REQ.,F SPORT LO |
1 | ||
| 52119-0E948 |
GGL2#,GYL25 PAINT REQ.,"F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 52119-0E947 |
GGL2#,GYL25 PAINT REQ.,F SPORT LO&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 52119-0E949 |
GGL2#,GYL25 PAINT REQ.,F SPORT LO&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENTCLEARANCE SONAR) |
1 | ||
| 52119-0E949 |
GGL2#,GYL25 PAINT REQ.,F SPORT LO&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 52119-0E944 |
GGL2#,GYL25 PAINT REQ.,COLD AREA SPEC |
1 | ||
| 52119-0E947 |
GGL2#,GYL25 PAINT REQ.,"F SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E947 |
GGL2#,GYL25 PAINT REQ.,"F SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 52119-0E943 |
GGL2#,GYL25 PAINT REQ.,PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 53127D - GRILLE, RADIATOR, LOWER SIDE RH | ||||
| 53127-0E060 |
GGL2#,GYL25 "F SPORT"*(F)&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53127-0E050 |
GGL2#,GYL25 |
1 | ||
| 53127-0E060 |
GGL2#,GYL25 "F SPORT"*(F) |
1 | ||
| 53127-0E060 |
GGL2#,GYL25 "F SPORT"*(F)&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 53127-0E060 |
GGL2#,GYL25 F SPORT LO&COLD AREA SPEC |
1 | ||
| 53127-0E060 |
GGL2#,GYL25 F SPORT LO&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 53127-0E060 |
GGL2#,GYL25 "F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 53127-0E060 |
GGL2#,GYL25 "F SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 53127-0E060 |
GGL2#,GYL25 F SPORT LO&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53127-0E060 |
GGL2#,GYL25 F SPORT LO&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 53127-0E060 |
GGL2#,GYL25 F SPORT LO |
1 | ||
| 53127-0E060 |
GGL2#,GYL25 "F SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53127-0E060 |
GGL2#,GYL25 F SPORT LO&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53128E - GRILLE, RADIATOR, LOWER SIDE LH | ||||
| 53128-0E050 |
GGL2#,GYL25 |
1 | ||
| 53128-0E060 |
GGL2#,GYL25 "F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 53128-0E060 |
GGL2#,GYL25 "F SPORT"*(F)&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53128-0E060 |
GGL2#,GYL25 "F SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 53128-0E060 |
GGL2#,GYL25 "F SPORT"*(F) |
1 | ||
| 53128-0E060 |
GGL2#,GYL25 F SPORT LO |
1 | ||
| 53128-0E060 |
GGL2#,GYL25 "F SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53128-0E060 |
GGL2#,GYL25 F SPORT LO&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53128-0E060 |
GGL2#,GYL25 "F SPORT"*(F)&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 53128-0E060 |
GGL2#,GYL25 F SPORT LO&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 53128-0E060 |
GGL2#,GYL25 F SPORT LO&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
1 | ||
| 53128-0E060 |
GGL2#,GYL25 F SPORT LO&COLD AREA SPEC |
1 | ||
| 53128-0E060 |
GGL2#,GYL25 F SPORT LO&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53286C - COVER, FRONT BUMPER ARM HOLE, LH | ||||
| 53286-0E050 |
GGL2# TOWING PACKAGE-3500LBS |
1 | ||
| 53286-0E080 |
GGL2# "F SPORT"*(F) |
1 | ||
| 53286-0E070 |
GGL2# "F SPORT"*(F)&TOWING PACKAGE-3500LBS |
1 | ||
| 53286-0E060 |
GGL2# |
1 | ||
| 53286-0E080 |
GGL2# F SPORT LO |
1 | ||
| 53286-0E070 |
GGL2# F SPORT LO&TOWING PACKAGE-3500LBS |
1 | ||
| 53286C - COVER, FRONT BUMPER ARM HOLE, LH | ||||
| 53286-0E050 |
GGL2# TOWING PACKAGE-3500LBS |
1 | ||
| 53286-0E080 |
GGL2# "F SPORT"*(F) |
1 | ||
| 53286-0E070 |
GGL2# "F SPORT"*(F)&TOWING PACKAGE-3500LBS |
1 | ||
| 53286-0E060 |
GGL2# |
1 | ||
| 53286-0E080 |
GGL2# F SPORT LO |
1 | ||
| 53286-0E070 |
GGL2# F SPORT LO&TOWING PACKAGE-3500LBS |
1 | ||
| 53384C - CUSHION, HOOD, CENTER | ||||
| 53384-22070 |
GGL2#,GYL25 |
2 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GGL2#,GYL25 |
8 | ||
| 75392K - RETAINER, OUTSIDE MOULDING, NO.2 | ||||
| 75392-35220 |
GGL2#,GYL25 F SPORT LO&COLD AREA SPEC |
8 | ||
| 75392-35220 |
GGL2#,GYL25 "F SPORT"*(F)&COLD AREA SPEC |
8 | ||
| 75392-35220 |
GGL2#,GYL25 F SPORT LO&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
8 | ||
| 75392-35220 |
GGL2#,GYL25 F SPORT LO&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
8 | ||
| 75392-35220 |
GGL2#,GYL25 "F SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
8 | ||
| 75392-35220 |
GGL2#,GYL25 "F SPORT"*(F)&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
8 | ||
| 75392-35220 |
GGL2#,GYL25 F SPORT LO&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB) |
8 | ||
| 75392-35220 |
GGL2#,GYL25 "F SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
8 | ||
| 75392-35220 |
GGL2#,GYL25 F SPORT LO |
8 | ||
| 75392-35220 |
GGL2#,GYL25 "F SPORT"*(F)&COLD AREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
8 | ||
| 75392-35220 |
GGL2#,GYL25 "F SPORT"*(F) |
8 | ||
| 75392-35220 |
GGL2#,GYL25 F SPORT LO&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR) |
8 | ||
| 75895K - TAPE, MOULDING, NO.1 | ||||
| 75895-53010 |
GGL2#,GYL25 |
2 | ||
| Common parts | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90167-A0020 | ||||
| 90167-A0021 | ||||
| 90183-05050 | ||||
| 90189-06237 | ||||
| 90467-05170 | ||||
| 90467-07215 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 7403 | ||||
| 8102 | ||||
| 8202 | ||||
| 8417 | ||||
| 8505 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
