GGL20L-CWZGBA (2015)
Toyota Lexus Rx450h/350(Nap

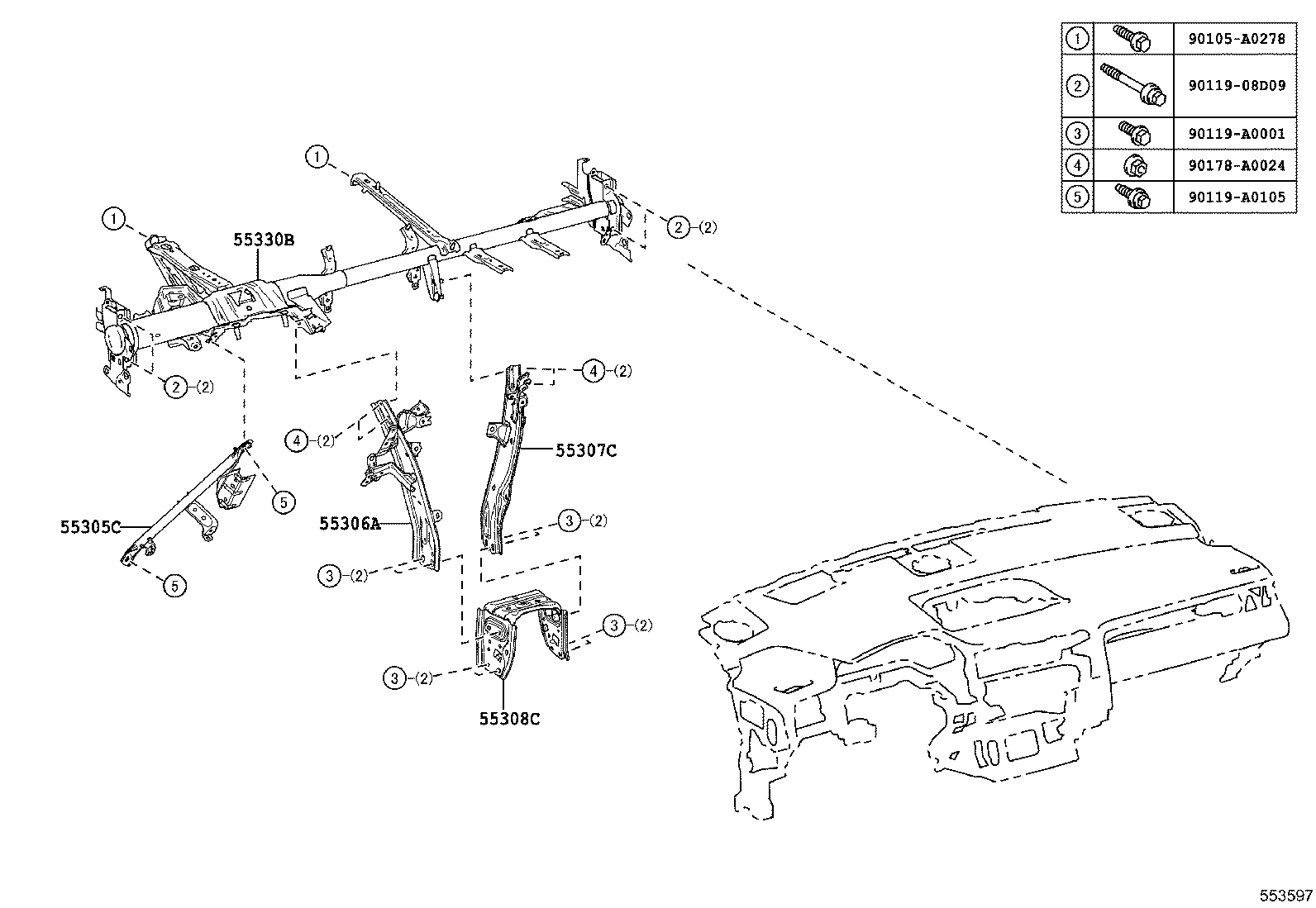

ILLUST NO. 1 OF 3(1510-1909)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55305C - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL | ||||
| 55305-0E010 |
GGL2#,GYL25 |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-0E090 |
GGL2#,GYL25 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-0E090 |
GGL2#,GYL25 |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-0E070 |
GGL2#,GYL25 |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-0E090 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 90105-A0278 | ||||
| 90119-08D09 | ||||
| 90119-A0001 | ||||
| 90119-A0105 | ||||
| 90178-A0024 | ||||

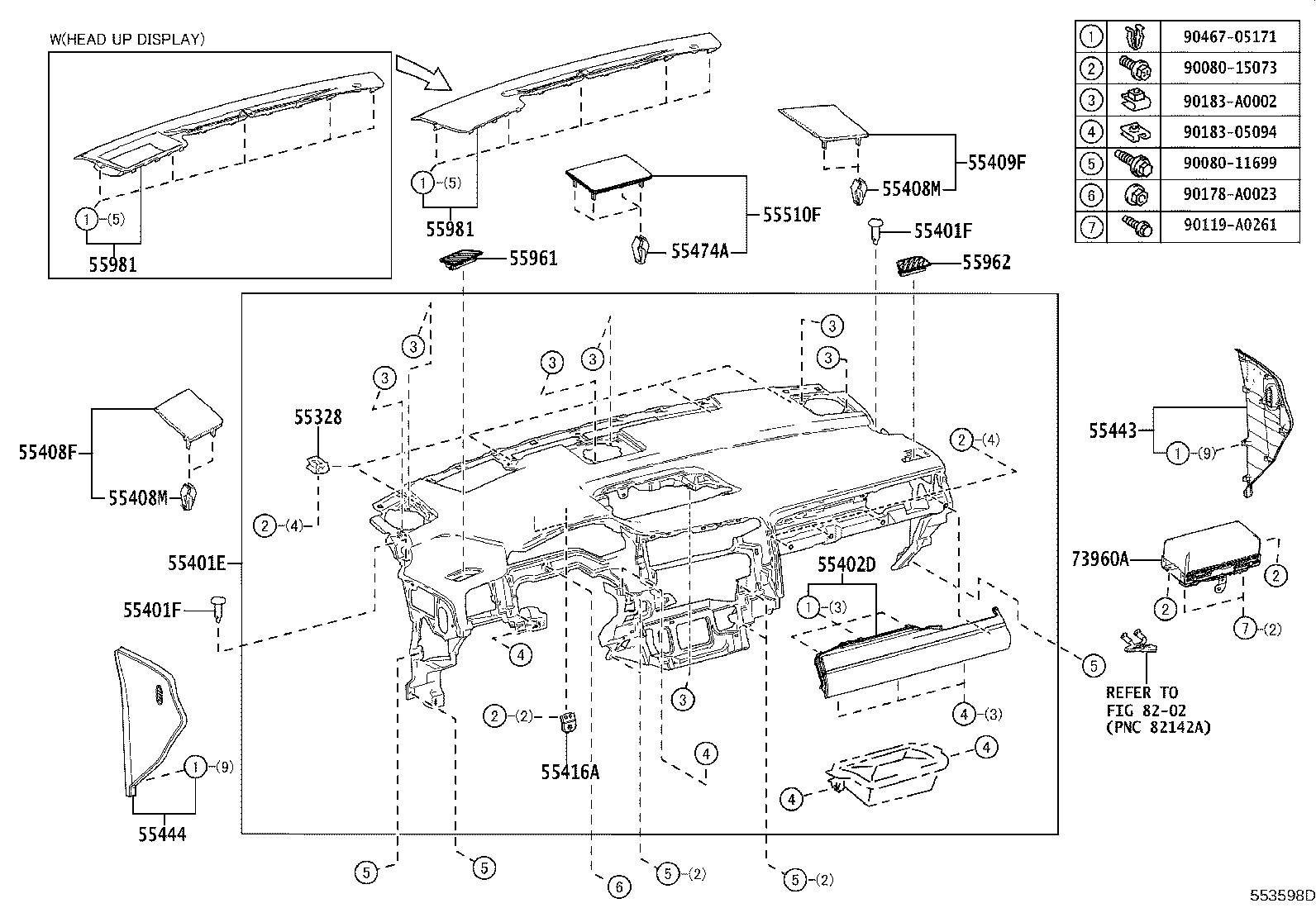

ILLUST NO. 2 OF 3(1510-1909)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
GGL2#,GYL25 |
4 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-0E090E0 |
GGL2# NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55401-0E090C0 |
GGL2# BLACK,TRIM1#,2#,3# |
1 | ||
| 55401-0E100C1 |
GGL2# INSTRUMENT PANEL-TWOTONE,BLACK / NOBLE BROWN,TRIM4# |
1 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 52161-02020 |
GGL2#,GYL25 |
2 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 52161-02020 |
GGL2#,GYL25 |
2 | ||
| 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55402-0E010C1 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3# |
1 | ||
| 55402-0E010C0 |
GGL2#,GYL25 INSTRUMENT PANEL-TWOTONE,BLACK,TRIM4# |
1 | ||
| 55402-0E010E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-0E070E0 |
GGL2#,GYL25 SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55408-0E050C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55408-0E070C0 |
GGL2#,GYL25 SPEAKER-15SPEAKER & *MAR,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55408-0E080E0 |
GGL2#,GYL25 SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55408-0E080C0 |
GGL2#,GYL25 SPEAKER-12SPEAKER,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55408-0E050E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55408M - CLIP(FOR INSTRUMENT PANEL SPEAKER PANEL) | ||||
| 90467-13082A0 |
GGL2#,GYL25 MELLOW WHITE |
4 | ||
| 55408M - CLIP(FOR INSTRUMENT PANEL SPEAKER PANEL) | ||||
| 90467-13082A0 |
GGL2#,GYL25 MELLOW WHITE |
4 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-0E060C0 |
GGL2#,GYL25 SPEAKER-15SPEAKER & *MAR,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55409-0E070C0 |
GGL2#,GYL25 SPEAKER-12SPEAKER,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55409-0E070E0 |
GGL2#,GYL25 SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55409-0E050E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55409-0E060E0 |
GGL2#,GYL25 SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55409-0E050C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-0E080 |
GGL2#,GYL25 |
2 | ||
| 55443 - GARNISH, INSTRUMENT PANEL, RH | ||||
| 55443-0E110E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55443-0E110C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55444 - GARNISH, INSTRUMENT PANEL, LH | ||||
| 55444-0E040C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55444-0E040E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55474A - CLIP(FOR INSTRUMENT PANEL SPEAKER PANEL) | ||||
| 90467-13082A0 |
GGL2#,GYL25 MELLOW WHITE |
4 | ||
| 55510F - COVER ASSY, SPEAKER OPENING, NO.1 | ||||
| 55510-0E050C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55510-0E060E0 |
GGL2#,GYL25 SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55510-0E050E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55510-0E060C0 |
GGL2#,GYL25 SPEAKER-12SPEAKER,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55510-0E060E0 |
GGL2#,GYL25 SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55510-0E060C0 |
GGL2#,GYL25 SPEAKER-15SPEAKER & *MAR,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-0E060 |
GGL2#,GYL25 |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-0E060 |
GGL2#,GYL25 |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-0E060E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55981-0E060C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55981-0E070E0 |
GGL2#,GYL25 HEAD UP DISPLAY-WITH,NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55981-0E070C0 |
GGL2#,GYL25 HEAD UP DISPLAY-WITH,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-0E060E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55981-0E060C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55981-0E070E0 |
GGL2#,GYL25 HEAD UP DISPLAY-WITH,NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55981-0E070C0 |
GGL2#,GYL25 HEAD UP DISPLAY-WITH,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-0E090 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90080-15073 | ||||
| 90119-A0261 | ||||
| 90178-A0023 | ||||
| 90183-05094 | ||||
| 90183-A0002 | ||||
| 90467-05171 | ||||
| Linked diagrams | ||||
| 8202 | ||||

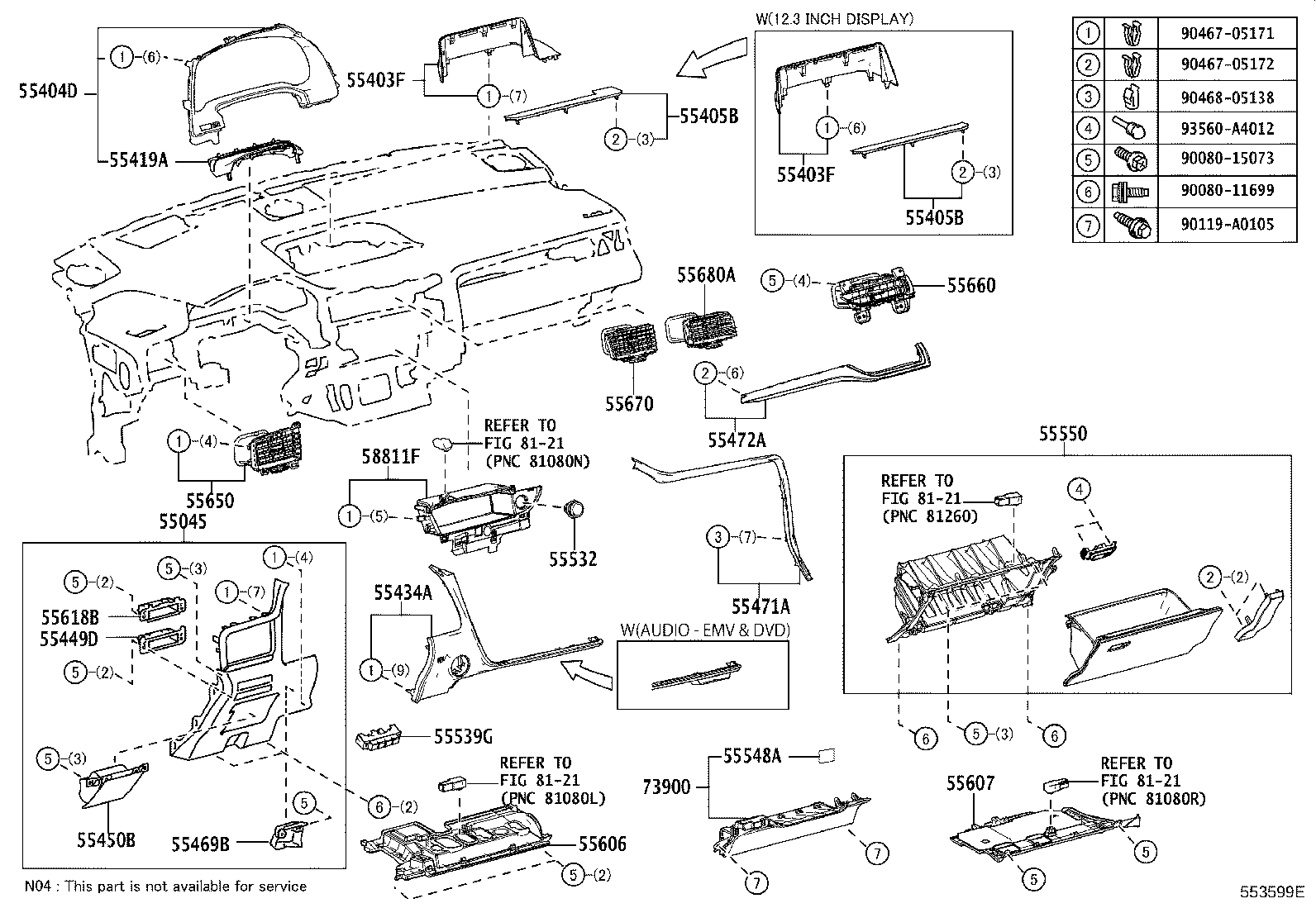

ILLUST NO. 3 OF 3(1510-1909)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-0E140C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55045-0E141C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55045-0E140E0 |
GGL2#,GYL2# NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55045-0E141E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-0E040E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,4#,5# |
1 | ||
| 55403-0E040C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3# |
1 | ||
| 55403-0E050E0 |
GGL2# AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),NOBLE BROWN,TRIM0#,4#,5# |
1 | ||
| 55403-0E050C0 |
GGL2# AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),BLACK,TRIM1#,2#,3# |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-0E040E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,4#,5# |
1 | ||
| 55403-0E040C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3# |
1 | ||
| 55403-0E050E0 |
GGL2# AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),NOBLE BROWN,TRIM0#,4#,5# |
1 | ||
| 55403-0E050C0 |
GGL2# AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),BLACK,TRIM1#,2#,3# |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-0E030 |
GGL2#,GYL25 |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-0E040E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,4#,5# |
1 | ||
| 55405-0E040C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3# |
1 | ||
| 55405-0E050E0 |
GGL2# AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),NOBLE BROWN,TRIM0#,4#,5# |
1 | ||
| 55405-0E050C0 |
GGL2# AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),BLACK,TRIM1#,2#,3# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-0E040E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,4#,5# |
1 | ||
| 55405-0E040C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3# |
1 | ||
| 55405-0E050E0 |
GGL2# AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),NOBLE BROWN,TRIM0#,4#,5# |
1 | ||
| 55405-0E050C0 |
GGL2# AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),BLACK,TRIM1#,2#,3# |
1 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-0E020 |
GGL2#,GYL25 |
1 | ||
| 55434A - PANEL, INSTRUMENT FINISH, LOWER SUB | ||||
| 55434-0E050C0 |
GGL2# AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55434-0E050E0 |
GGL2# AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55434-0E050C0 |
GGL2# AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55434-0E060E0 |
GGL2# NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55434-0E060C0 |
GGL2# BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55434-0E050E0 |
GGL2# AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55449D - BASE, SWITCH | ||||
| 55449-0E190 |
GGL2#,GYL2# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-0E060C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55450-0E060E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55450-0E060 |
GGL2#,GYL25 |
1 | ||
| 55450-0E060E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55450-0E060C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55469B - INSERT, INSTRUMENT PANEL LOWER PAD SUB | ||||
| 55469-0E050 |
GGL2#,GYL2# |
1 | ||
| 55471A - ORNAMENT, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55471-0E050 |
GGL2#,GYL25 |
1 | ||
| 55472A - MOULDING, INSTRUMENT CLUSTER, NO.2 | ||||
| 55472-0E070 |
GGL2#,GYL25 |
1 | ||
| 55472-0E080 |
GGL20 "F SPORT"*(F) |
1 | ||
| 55472-0E080 |
GGL2#,GYL25 "VERSION L"*(L) |
1 | ||
| 55532 - COVER, CIGAR LIGHTER HOLE | ||||
| 55532-48010 |
GGL2# WIRELESS CHARGER-WITH |
1 | ||
| 55532-48010 |
GGL2#,GYL25 |
1 | ||
| 55539G - COVER, SPARE SWITCH HOLE | ||||
| 55539-0E120 |
GGL2#,GYL2# STEERING WHEEL-LEATHER,WITH(STEERING HEATER)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 55539-0E120 |
GGL2#,GYL2# STEERING WHEEL-WOOD,WITH(STEERING HEATER)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 55539-0E120 |
GGL2#,GYL25 STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER) |
1 | ||
| 55539-0E120 |
GGL2#,GYL2# |
1 | ||
| 55539-0E120 |
GGL2# STEERING WHEEL-LEATHER,WITH(STEERING HEATER)&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
1 | ||
| 55539-0E120 |
GGL2# AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
1 | ||
| 55539-0E120 |
GGL2#,GYL2# STEERING WHEEL-ENGINEERED WOOD,WITH(STEERING HEATER)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 55539-0E120 |
GGL2#,GYL2# STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 55539-0E120 |
GGL2#,GYL2# BACK MONITOR-WITH(*PVM) |
1 | ||
| 55539-0E120 |
GGL2#,GYL2# STEERING WHEEL-LEATHER,WITH(STEERING HEATER) |
1 | ||
| 55539-0E120 |
GGL2#,GYL2# STEERING WHEEL-BAMBOO,WITH(STEERING HEATER)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 55539-0E120 |
GGL2#,GYL2# STEERING WHEEL-BAMBOO,WITH(STEERING HEATER) |
1 | ||
| 55539-0E120 |
GGL2#,GYL2# STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER) |
1 | ||
| 55539-0E120 |
GGL2#,GYL2# STEERING WHEEL-WOOD,WITH(STEERING HEATER) |
1 | ||
| 55539-0E120 |
GGL2#,GYL2# STEERING WHEEL-ENGINEERED WOOD,WITH(STEERING HEATER) |
1 | ||
| 55539-0E120 |
GGL2#,GYL25 STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-0E070 |
GGL2#,GYL25 |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-0E040E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55550-0E040C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-0E050 |
GGL2#,GYL25 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-0E110E0 |
GGL2# NOBLE BROWN,TRIM0#,5# |
1 | ||
| 55607-0E110C0 |
GGL2# BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55618B - BASE, SWITCH HOLE, NO.3 | ||||
| 55618-0E180 |
GGL2#,GYL2# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0E100 |
GGL2#,GYL25 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-0E080 |
GGL2#,GYL25 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-0E100 |
GGL2#,GYL25 |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-0E070 |
GGL2#,GYL25 |
1 | ||
| 58811F - BOX, CONSOL | ||||
| 58813-0E040 |
GGL2# AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 58813-0E020 |
GGL2# |
1 | ||
| 58813-0E020 |
GGL2# WIRELESS CHARGER-WITH |
1 | ||
| 58813-0E040 |
GGL2# AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-0E080C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 73900-0E080E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90080-15073 | ||||
| 90119-A0105 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-05138 | ||||
| 93560-A4012 | ||||
| Linked diagrams | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
