GGL20L-CWZGBA (2015)
Toyota Lexus Rx450h/350(Nap
(1510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

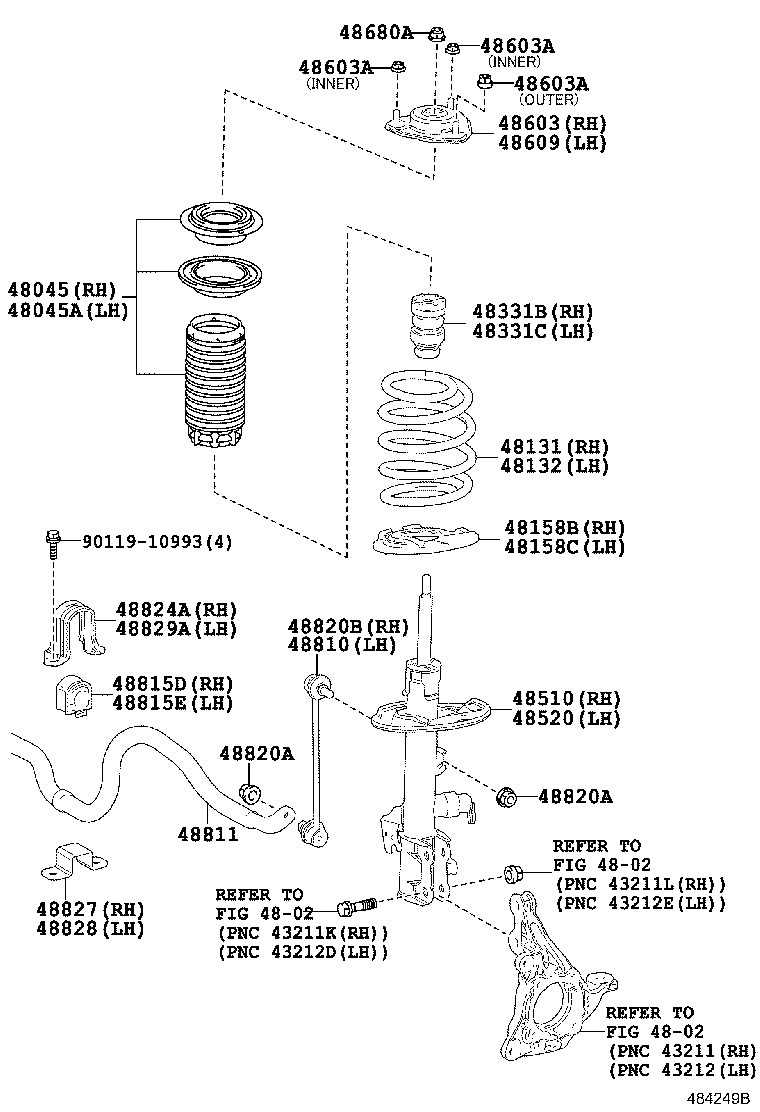

| 48045 - SEAT SUB-ASSY, FRONT SPRING RH, W/INSULATOR | ||||
| 48045-0E020 |
GGL2#,GYL25 |
1 | ||
| 48045A - SEAT SUB-ASSY, FRONT SPRING LH, W/INSULATOR | ||||
| 48045-0E020 |
GGL2#,GYL25 |
1 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-0E270 |
GGL2# |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48132-0E160 |
GGL2# |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-0E100 |
GGL2#,GYL25 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-0E110 |
GGL2#,GYL25 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-0E040 |
GGL2#,GYL2# |
1 | ||
| 48331-0E040 |
GGL20 "F SPORT"*(F) |
1 | ||
| 48331-0E070 |
GGL2#,GYL25 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-0E040 |
GGL2#,GYL2# |
1 | ||
| 48331-0E070 |
GGL2#,GYL25 |
1 | ||
| 48331-0E040 |
GGL20 "F SPORT"*(F) |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-8Z262 |
GGL2#,GYL25 MARK 48510-0E260 |
1 | ||
| 48510-80786 |
GGL20 MARK 48510-48440,"F SPORT"*(F) |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-80462 |
GGL20 MARK 48520-48440,"F SPORT"*(F) |
1 | ||
| 48520-8Z122 |
GGL2#,GYL25 MARK 48520-0E250 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-0E060 |
GGL2#,GYL25 |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90080-17215 |
GGL2#,GYL25 OUTER |
2 | ||
| 90178-A0060 |
GGL2#,GYL25 INNER |
4 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90080-17215 |
GGL2#,GYL25 OUTER |
2 | ||
| 90178-A0060 |
GGL2#,GYL25 INNER |
4 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90080-17215 |
GGL2#,GYL25 OUTER |
2 | ||
| 90178-A0060 |
GGL2#,GYL25 INNER |
4 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-0E060 |
GGL2#,GYL25 |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 90080-17217 |
GGL2#,GYL25 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-06040 |
GGL2#,GYL25 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-0E110 |
GGL2#,GYL25 |
1 | ||
| 48815D - BUSH, FRONT STABILIZER BAR, RH | ||||
| 48815-0E040 |
GGL2#,GYL25 |
1 | ||
| 48815E - BUSH, FRONT STABILIZER BAR, LH | ||||
| 48815-0E040 |
GGL2#,GYL25 |
1 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90080-17224 |
GGL2#,GYL25 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90080-17224 |
GGL2#,GYL25 |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-06040 |
GGL2#,GYL25 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-0E050 |
GGL2#,GYL25 |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48827-0E050 |
GGL2#,GYL25 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48827-0E050 |
GGL2#,GYL25 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-0E050 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 90119-10993 | ||||
| Linked diagrams | ||||
| 4802 | ||||
(1510- )
F SPORT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

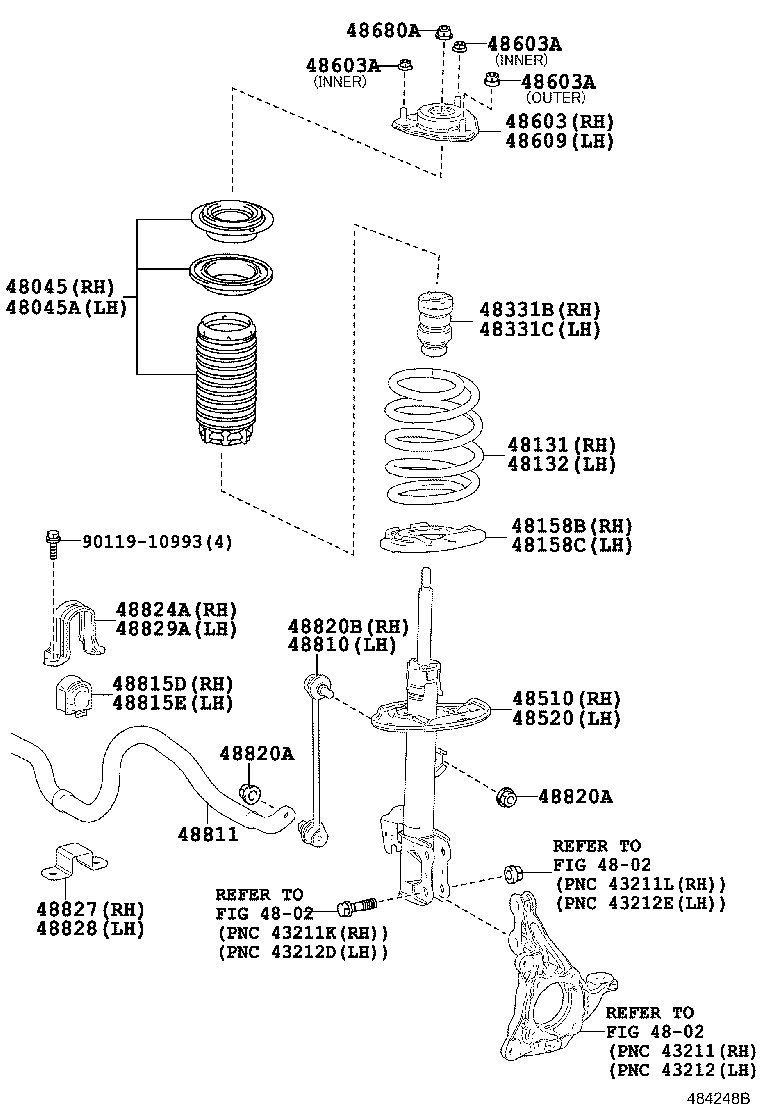

| 48045 - SEAT SUB-ASSY, FRONT SPRING RH, W/INSULATOR | ||||
| 48045-0E020 |
GGL2#,GYL25 |
1 | ||
| 48045A - SEAT SUB-ASSY, FRONT SPRING LH, W/INSULATOR | ||||
| 48045-0E020 |
GGL2#,GYL25 |
1 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-0E270 |
GGL2# |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48132-0E160 |
GGL2# |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-0E100 |
GGL2#,GYL25 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-0E110 |
GGL2#,GYL25 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-0E040 |
GGL2#,GYL2# |
1 | ||
| 48331-0E040 |
GGL20 "F SPORT"*(F) |
1 | ||
| 48331-0E070 |
GGL2#,GYL25 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-0E040 |
GGL2#,GYL2# |
1 | ||
| 48331-0E070 |
GGL2#,GYL25 |
1 | ||
| 48331-0E040 |
GGL20 "F SPORT"*(F) |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-8Z262 |
GGL2#,GYL25 MARK 48510-0E260 |
1 | ||
| 48510-80786 |
GGL20 MARK 48510-48440,"F SPORT"*(F) |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-80462 |
GGL20 MARK 48520-48440,"F SPORT"*(F) |
1 | ||
| 48520-8Z122 |
GGL2#,GYL25 MARK 48520-0E250 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-0E060 |
GGL2#,GYL25 |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90080-17215 |
GGL2#,GYL25 OUTER |
2 | ||
| 90178-A0060 |
GGL2#,GYL25 INNER |
4 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90080-17215 |
GGL2#,GYL25 OUTER |
2 | ||
| 90178-A0060 |
GGL2#,GYL25 INNER |
4 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90080-17215 |
GGL2#,GYL25 OUTER |
2 | ||
| 90178-A0060 |
GGL2#,GYL25 INNER |
4 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-0E060 |
GGL2#,GYL25 |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 90080-17217 |
GGL2#,GYL25 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-06040 |
GGL2#,GYL25 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-0E110 |
GGL2#,GYL25 |
1 | ||
| 48815D - BUSH, FRONT STABILIZER BAR, RH | ||||
| 48815-0E040 |
GGL2#,GYL25 |
1 | ||
| 48815E - BUSH, FRONT STABILIZER BAR, LH | ||||
| 48815-0E040 |
GGL2#,GYL25 |
1 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90080-17224 |
GGL2#,GYL25 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90080-17224 |
GGL2#,GYL25 |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-06040 |
GGL2#,GYL25 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-0E050 |
GGL2#,GYL25 |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48827-0E050 |
GGL2#,GYL25 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48827-0E050 |
GGL2#,GYL25 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-0E050 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 90119-10993 | ||||
| Linked diagrams | ||||
| 4802 | ||||
