GGL20L-CWZGBA (2015)

Toyota Lexus Rx450h/350(Nap

Production Oct 2015 - Sep 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )2GRFKS

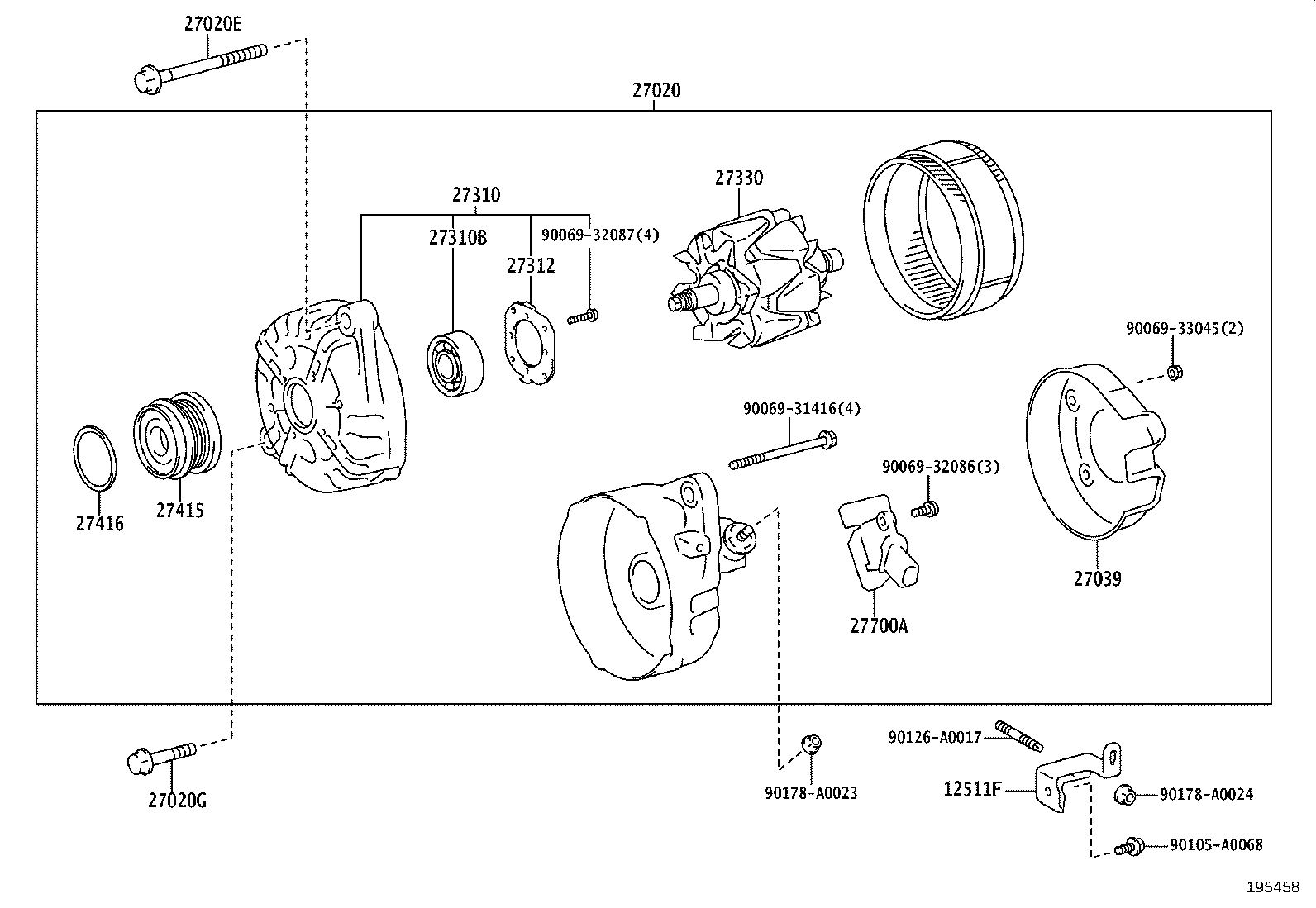

Click highlighted areas on diagram

diagram 12511F 27020 27020E 27020G 27039 27310 27310B 27312 27330 27415 27416 27700A 9006931416 9006932086 9006932087 9006933045 90105A0068 90126A0017 90178A0023 90178A0024
Part # Description Qty Price
12511F - BRACKET, ALTERNATOR, NO.1
12511-0P070

2GRFKS..GGL2#

 1
27020 - ALTERNATOR ASSY
27060-0P370

2GRFKS..GGL2#

12V 150A

 1
27020E - BOLT(FOR ALTERNATOR)
91552-81095

2GRFKS..GGL2#

 1
27020G - BOLT, NO.2(FOR ALTERNATOR)
90105-A0107

2GRFKS..GGL2#

 1
27039 - COVER, ALTERNATOR REAR END
27039-0P420

2GRFKS..GGL2#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0P420

2GRFKS..GGL2#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90069-40012

2GRFKS..GGL2#

 1
27312 - PLATE, RETAINER
27312-0P420

2GRFKS..GGL2#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0P420

2GRFKS..GGL2#

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0P010

2GRFKS..GGL2#

 1
27416 - CAP, ALTERNATOR PULLEY
27416-0W050

2GRFKS..GGL2#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-0P150

2GRFKS..GGL2#

 1
Common parts
90069-31416
90069-32086
90069-32087
90069-33045
90105-A0068
90126-A0017
90178-A0023
90178-A0024
