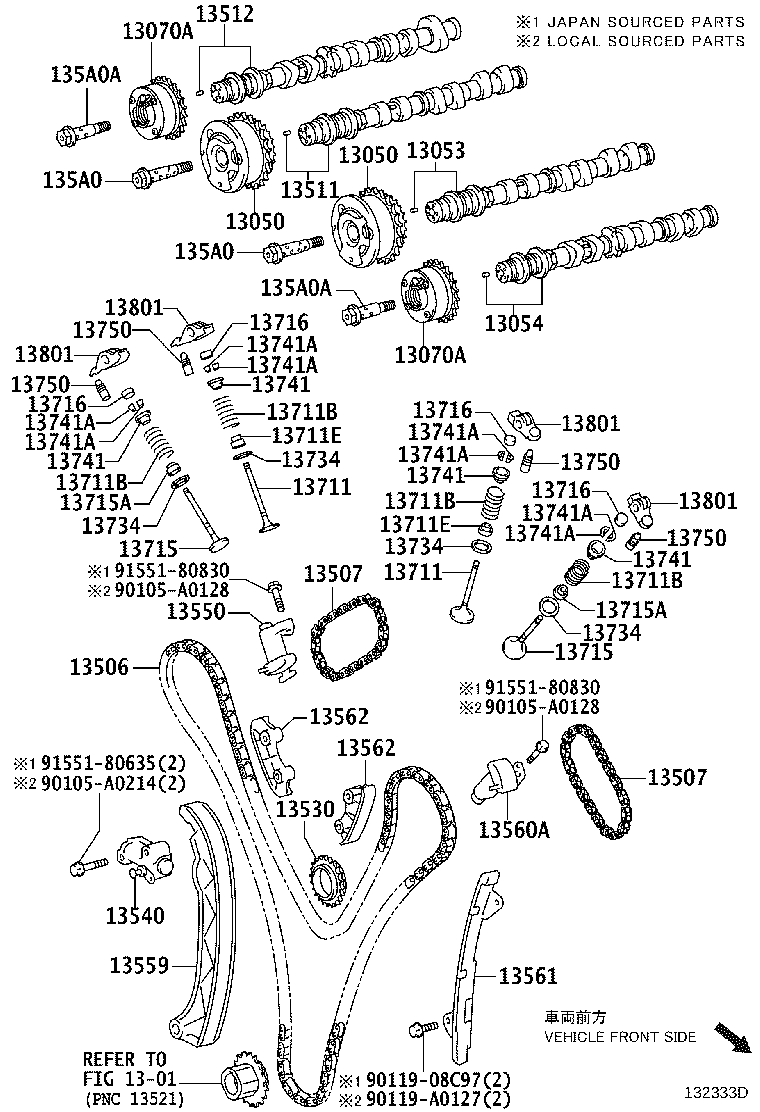

GGL20L-CWZGBA (2015)
Toyota Lexus Rx450h/350(Nap
(1510- )2GRFKS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-0P080 |
2GRFKS..GGL2# (L) |
2 | ||
| 13050-0P081 |
2GRFKS..GGL2# (L) |
2 | ||
| 13050-31200 |
2GRFKS..GGL2# (J) |
2 | ||
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-0P080 |
2GRFKS..GGL2# (L) |
2 | ||
| 13050-0P081 |
2GRFKS..GGL2# (L) |
2 | ||
| 13050-31200 |
2GRFKS..GGL2# (J) |
2 | ||
| 13053 - CAMSHAFT SUB-ASSY, NO.3 | ||||
| 13053-0P030 |
2GRFKS..GGL2# *371 |
1 | ||
| 13053-0P030 |
2GRFKS..GGL2# |
1 | ||
| 13053-31110 |
2GRFKS..GGL2# *251 OR *252 |
1 | ||
| 13054 - CAMSHAFT SUB-ASSY, NO.4 | ||||
| 13054-0P030 |
2GRFKS..GGL2# *371 |
1 | ||
| 13054-0P030 |
2GRFKS..GGL2# |
1 | ||
| 13054-31110 |
2GRFKS..GGL2# *251 OR *252 |
1 | ||
| 13070A - GEAR ASSY, CAMSHAFT TIMING EXHAUST | ||||
| 13070-0P010 |
2GRFKS..GGL2# (L) |
2 | ||
| 13070-31070 |
2GRFKS..GGL2# (J) |
2 | ||
| 13070-0P011 |
2GRFKS..GGL2# (L) |
2 | ||
| 13070A - GEAR ASSY, CAMSHAFT TIMING EXHAUST | ||||
| 13070-0P010 |
2GRFKS..GGL2# (L) |
2 | ||
| 13070-31070 |
2GRFKS..GGL2# (J) |
2 | ||
| 13070-0P011 |
2GRFKS..GGL2# (L) |
2 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-31060 |
2GR#..GGL2#,GYL25 (J) |
1 | ||
| 13506-0P030 |
2GRFKS..GGL2# (L) |
1 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-0P010 |
2GRFKS..GGL2# (L) |
2 | ||
| 13507-31020 |
2GR#..GGL2#,GYL25 (J) |
2 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-0P010 |
2GRFKS..GGL2# (L) |
2 | ||
| 13507-31020 |
2GR#..GGL2#,GYL25 (J) |
2 | ||
| 13511 - CAMSHAFT | ||||
| 13501-0P030 |
2GRFKS..GGL2# *371 |
1 | ||
| 13501-0P030 |
2GRFKS..GGL2# |
1 | ||
| 13501-31140 |
2GRFKS..GGL2# *251 OR *252 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-31110 |
2GRFKS..GGL2# *251 OR *252 |
1 | ||
| 13502-0P030 |
2GRFKS..GGL2# *371 |
1 | ||
| 13502-0P030 |
2GRFKS..GGL2# |
1 | ||
| 13530 - SPROCKET ASSY, IDLE | ||||
| 13530-31040 |
2GR#..GGL2#,GYL2# |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-0P030 |
2GRFKS..GGL2# (L) |
1 | ||
| 13540-31050 |
2GR#..GGL2#,GYL25 (J) |
1 | ||
| 13550 - TENSIONER ASSY, CHAIN, NO.2 | ||||
| 13550-31040 |
2GR#..GGL2#,GYL25 (J) |
1 | ||
| 13550-0P030 |
2GRFKS..GGL2# (L) |
1 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-31040 |
2GR#..GGL2#,GYL25 (J) |
1 | ||
| 13559-0P030 |
2GRFKS..GGL2# (L) |
1 | ||
| 13560A - TENSIONER ASSY, CHAIN, NO.3 | ||||
| 13560-0P030 |
2GRFKS..GGL2# (L) |
1 | ||
| 13560-31040 |
2GR#..GGL2#,GYL25 (J) |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-0P030 |
2GRFKS..GGL2# (L) |
1 | ||
| 13561-31040 |
2GR#..GGL2#,GYL25 (J) |
1 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-0P030 |
2GRFKS..GGL2# (L) |
2 | ||
| 13562-31040 |
2GR#..GGL2#,GYL25 (J) |
2 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-0P030 |
2GRFKS..GGL2# (L) |
2 | ||
| 13562-31040 |
2GR#..GGL2#,GYL25 (J) |
2 | ||
| 135A0 - BOLT ASSY, CAMSHAFT TIMING GEAR, CENTER(FOR INTAKE) | ||||
| 135A0-0P010 |
2GRFKS..GGL2# (L) |
2 | ||
| 135A0-31020 |
2GRFKS..GGL2# (J) |
2 | ||
| 135A0-0P030 |
2GRFKS..GGL2# (L) |
2 | ||
| 135A0-0P031 |
2GRFKS..GGL2# (L) |
2 | ||
| 135A0 - BOLT ASSY, CAMSHAFT TIMING GEAR, CENTER(FOR INTAKE) | ||||
| 135A0-0P010 |
2GRFKS..GGL2# (L) |
2 | ||
| 135A0-31020 |
2GRFKS..GGL2# (J) |
2 | ||
| 135A0-0P030 |
2GRFKS..GGL2# (L) |
2 | ||
| 135A0-0P031 |
2GRFKS..GGL2# (L) |
2 | ||
| 135A0A - BOLT ASSY, CAMSHAFT TIMING GEAR, CENTER(FOR EXHAUST) | ||||
| 135A0-0P020 |
2GRFKS..GGL2# (L) |
2 | ||
| 135A0-0P041 |
2GRFKS..GGL2# (L) |
2 | ||
| 135A0-47020 |
2GRFKS..GGL2# (J) |
2 | ||
| 135A0-0P040 |
2GRFKS..GGL2# (L) |
2 | ||
| 135A0A - BOLT ASSY, CAMSHAFT TIMING GEAR, CENTER(FOR EXHAUST) | ||||
| 135A0-0P020 |
2GRFKS..GGL2# (L) |
2 | ||
| 135A0-0P041 |
2GRFKS..GGL2# (L) |
2 | ||
| 135A0-47020 |
2GRFKS..GGL2# (J) |
2 | ||
| 135A0-0P040 |
2GRFKS..GGL2# (L) |
2 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-31101 |
2GR#..GGL2#,GYL25 (J) |
12 | ||
| 13711-0P030 |
2GRFKS..GGL2# (L) |
12 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-31101 |
2GR#..GGL2#,GYL25 (J) |
12 | ||
| 13711-0P030 |
2GRFKS..GGL2# (L) |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-34023 |
2GR#..GGL2#,GYL25 (J) |
24 | ||
| 90501-A0138 |
2GRFKS..GGL2# (L) |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-34023 |
2GR#..GGL2#,GYL25 (J) |
24 | ||
| 90501-A0138 |
2GRFKS..GGL2# (L) |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-34023 |
2GR#..GGL2#,GYL25 (J) |
24 | ||
| 90501-A0138 |
2GRFKS..GGL2# (L) |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-34023 |
2GR#..GGL2#,GYL25 (J) |
24 | ||
| 90501-A0138 |
2GRFKS..GGL2# (L) |
24 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90080-31043 |
2GRFKS..GGL2# (L) |
12 | ||
| 90913-02101 |
2GR#..GGL2#,GYL25 (J) |
12 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90080-31043 |
2GRFKS..GGL2# (L) |
12 | ||
| 90913-02101 |
2GR#..GGL2#,GYL25 (J) |
12 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-0P030 |
2GRFKS..GGL2# (L) |
12 | ||
| 13715-31150 |
2GR#..GGL2#,GYL25 |
12 | ||
| 13715-31150 |
2GRFKS..GGL2# (J) |
12 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-0P030 |
2GRFKS..GGL2# (L) |
12 | ||
| 13715-31150 |
2GR#..GGL2#,GYL25 |
12 | ||
| 13715-31150 |
2GRFKS..GGL2# (J) |
12 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90913-02112 |
2GR#..GGL2#,GYL25 (J) |
12 | ||
| 90080-31101 |
2GRFKS..GGL2# (L) |
12 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90913-02112 |
2GR#..GGL2#,GYL25 (J) |
12 | ||
| 90080-31101 |
2GRFKS..GGL2# (L) |
12 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-75020 |
2GR#..GGL2#,GYL25 |
24 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-75020 |
2GR#..GGL2#,GYL25 |
24 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-75020 |
2GR#..GGL2#,GYL25 |
24 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-75020 |
2GR#..GGL2#,GYL25 |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2GR#..GGL2#,GYL25 (J) |
24 | ||
| 13734-0P010 |
2GRFKS..GGL2# (L) |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2GR#..GGL2#,GYL25 (J) |
24 | ||
| 13734-0P010 |
2GRFKS..GGL2# (L) |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2GR#..GGL2#,GYL25 (J) |
24 | ||
| 13734-0P010 |
2GRFKS..GGL2# (L) |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2GR#..GGL2#,GYL25 (J) |
24 | ||
| 13734-0P010 |
2GRFKS..GGL2# (L) |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-0P020 |
2GRFKS..GGL2# (L) |
24 | ||
| 13741-36010 |
2GR#..GGL2#,GYL25 (J) |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-0P020 |
2GRFKS..GGL2# (L) |
24 | ||
| 13741-36010 |
2GR#..GGL2#,GYL25 (J) |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-0P020 |
2GRFKS..GGL2# (L) |
24 | ||
| 13741-36010 |
2GR#..GGL2#,GYL25 (J) |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-0P020 |
2GRFKS..GGL2# (L) |
24 | ||
| 13741-36010 |
2GR#..GGL2#,GYL25 (J) |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GGL2#,GYL25 (J) |
48 | ||
| 90913-A3001 |
2GRFKS..GGL2# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GGL2#,GYL25 (J) |
48 | ||
| 90913-A3001 |
2GRFKS..GGL2# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GGL2#,GYL25 (J) |
48 | ||
| 90913-A3001 |
2GRFKS..GGL2# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GGL2#,GYL25 (J) |
48 | ||
| 90913-A3001 |
2GRFKS..GGL2# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GGL2#,GYL25 (J) |
48 | ||
| 90913-A3001 |
2GRFKS..GGL2# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GGL2#,GYL25 (J) |
48 | ||
| 90913-A3001 |
2GRFKS..GGL2# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GGL2#,GYL25 (J) |
48 | ||
| 90913-A3001 |
2GRFKS..GGL2# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GGL2#,GYL25 (J) |
48 | ||
| 90913-A3001 |
2GRFKS..GGL2# (L) |
48 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-0P020 |
2GRFKS..GGL2# (L) |
24 | ||
| 13750-31030 |
2GR#..GGL2#,GYL25 (J) |
24 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-0P020 |
2GRFKS..GGL2# (L) |
24 | ||
| 13750-31030 |
2GR#..GGL2#,GYL25 (J) |
24 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-0P020 |
2GRFKS..GGL2# (L) |
24 | ||
| 13750-31030 |
2GR#..GGL2#,GYL25 (J) |
24 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-0P020 |
2GRFKS..GGL2# (L) |
24 | ||
| 13750-31030 |
2GR#..GGL2#,GYL25 (J) |
24 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-0P030 |
2GRFKS..GGL2# (L) |
24 | ||
| 13801-36020 |
2GR#..GGL2#,GYL25 (J) |
24 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-0P030 |
2GRFKS..GGL2# (L) |
24 | ||
| 13801-36020 |
2GR#..GGL2#,GYL25 (J) |
24 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-0P030 |
2GRFKS..GGL2# (L) |
24 | ||
| 13801-36020 |
2GR#..GGL2#,GYL25 (J) |
24 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-0P030 |
2GRFKS..GGL2# (L) |
24 | ||
| 13801-36020 |
2GR#..GGL2#,GYL25 (J) |
24 | ||
| Common parts | ||||
| 90105-A0128 | ||||
| 90105-A0214 | ||||
| 90119-08C97 | ||||
| 90119-A0127 | ||||
| 91551-80635 | ||||
| 91551-80830 | ||||
| Linked diagrams | ||||
| 1301 | ||||
