GYL25L-AWXGBA (2015)
Toyota Lexus Rx450h/350(Jpp
Production
Oct 2015
-
Aug 2019
Engine
2GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

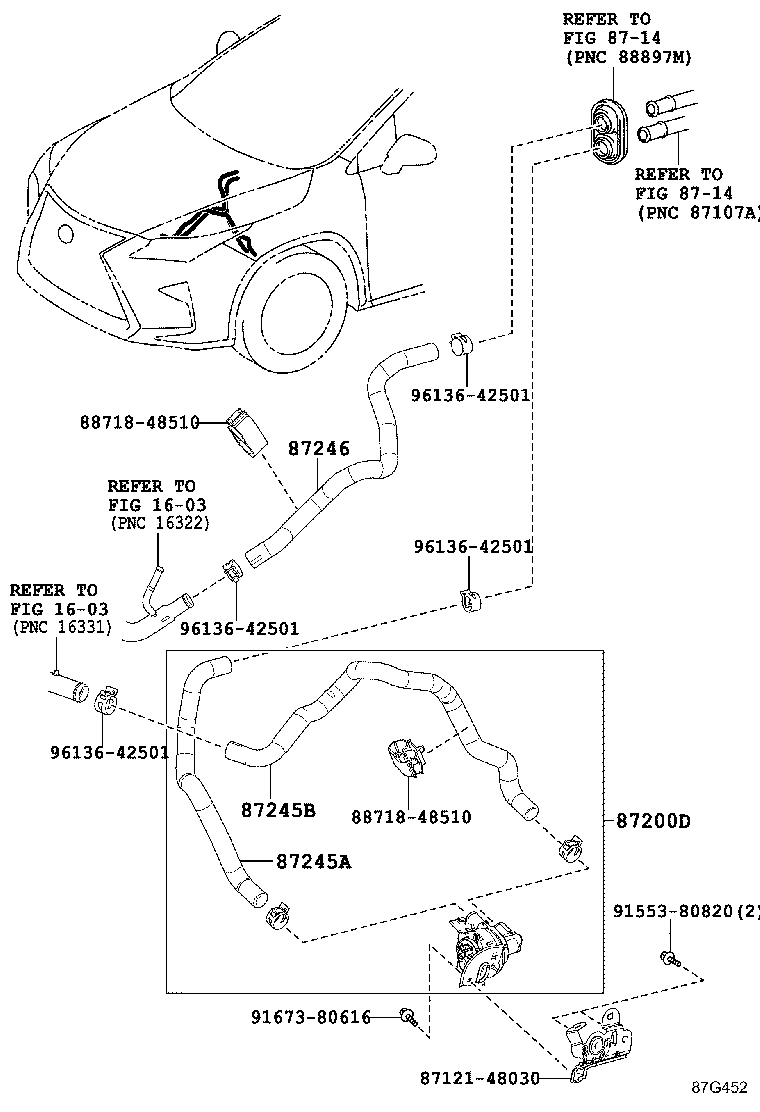

(1510-1712)GYL25
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87200D - ACCESSORY ASSY, HEATER | ||||
| 87200-48120 |
GYL25 |
1 | ||
| 87200-48150 |
GYL25 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-48F60 |
GYL25 |
1 | ||
| 87245-48G70 |
GYL25 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-48G60 |
GYL25 |
1 | ||
| 87245-48F50 |
GYL25 |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-48F10 |
GYL25 |
1 | ||
| 87245-48G30 |
GYL25 |
1 | ||
| Common parts | ||||
| 87121-48030 | ||||
| 88718-48510 | ||||
| 91553-80820 | ||||
| 91673-80616 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||

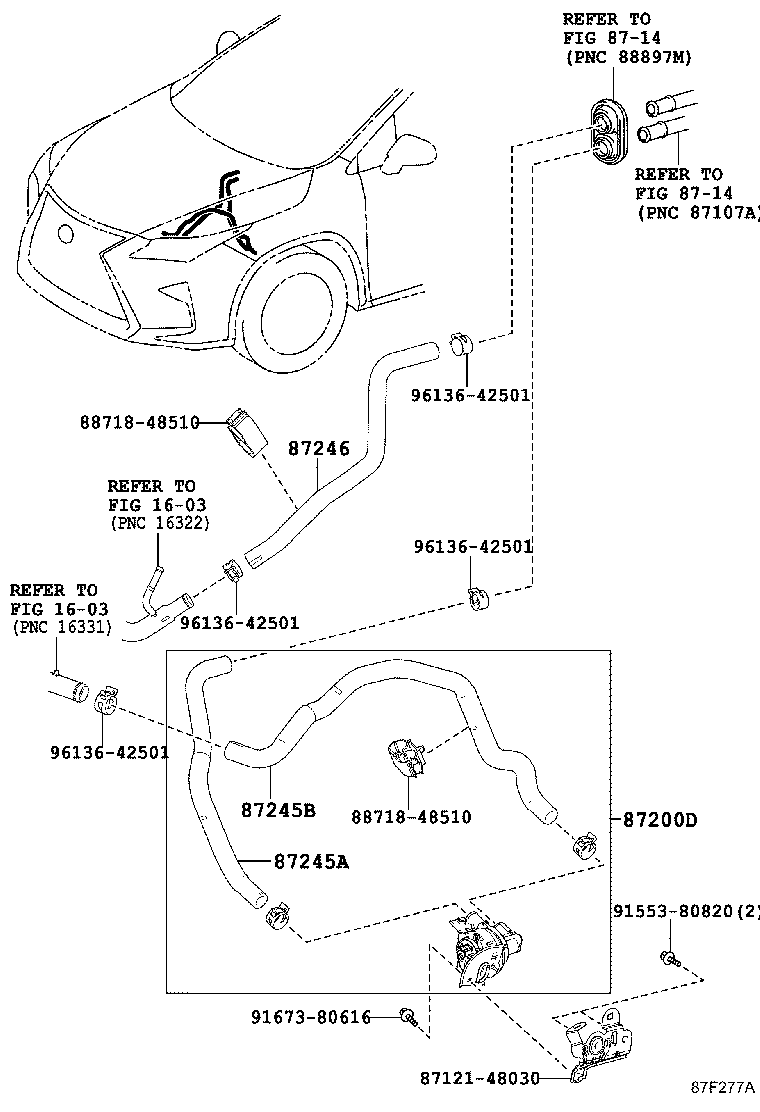

(1712-1908)GYL25
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87200D - ACCESSORY ASSY, HEATER | ||||
| 87200-48120 |
GYL25 |
1 | ||
| 87200-48150 |
GYL25 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-48F60 |
GYL25 |
1 | ||
| 87245-48G70 |
GYL25 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-48G60 |
GYL25 |
1 | ||
| 87245-48F50 |
GYL25 |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-48F10 |
GYL25 |
1 | ||
| 87245-48G30 |
GYL25 |
1 | ||
| Common parts | ||||
| 87121-48030 | ||||
| 88718-48510 | ||||
| 91553-80820 | ||||
| 91673-80616 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||
