GYL25L-AWXGBA (2015)

Toyota Lexus Rx450h/350(Jpp

Production Oct 2015 - Aug 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )GYL25

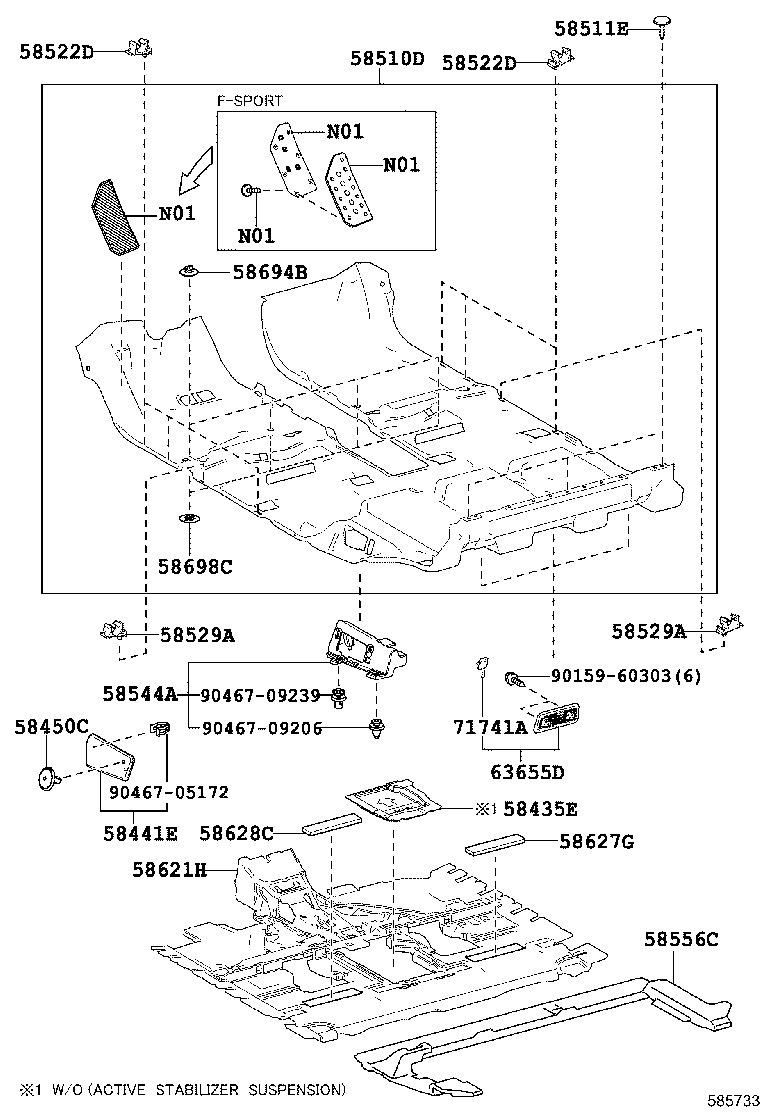

Click highlighted areas on diagram

diagram 58435E 58441E 58450C 58510D 58511E 58522D 58522D 58529A 58529A 58544A 58556C 58621H 58627G 58628C 58694B 58698C 63655D 71741A 9015960303 9046705172 9046709206 9046709239
Part # Description Qty Price
58435E - SILENCER, FRONT FLOOR, CENTER
58435-48020

GGL25,GYL25

 1
58441E - COVER, BATTERY SERVICE HOLE
58441-48060E1

GYL25

NOBLE BROWN,TRIM00,01,02,03,04,5#,6#

 1
58441-48060C2

GYL25

BLACK,TRIM05,06,2#,3#,4#

 1
58450C - CLIP
90467-07206C0

GYL25

BLACK,TRIM2#,3#,4#

 1
90467-07206E0

GYL25

NOBLE BROWN,TRIM0#,5#

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-48560C0

GYL25

"F-SPORT"*(F),BLACK,TRIM0#,2#,3#

 1
58510-48550E1

GYL25

NOBLE BROWN,TRIM0#,5#

 1
58510-48550C1

GYL25

BLACK,TRIM2#,4#

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-0704923

GGL25,GYL25

BLACK

 3
90467-07049C0

GGL25,GYL25..A

BLACK,TRIM0#,2#,3#,4#

 3
58522D - HOOK, FLOOR CARPET, NO.2
58522-48010

GGL25,GYL25

 6
58522D - HOOK, FLOOR CARPET, NO.2
58522-48010

GGL25,GYL25

 6
58529A - HOOK, FLOOR CARPET, NO.3
58524-48010

GGL25,GYL25

 2
58529A - HOOK, FLOOR CARPET, NO.3
58524-48010

GGL25,GYL25

 2
58544A - BRACKET, FLOOR CARPET, LH
58544-48010

GYL25

 1
58556C - SILENCER, REAR FLOOR
58556-48030

GYL25

 1
58621H - PAD, FRONT FLOOR SILENCER
58621-48010

GGL25,GYL25

 1
58627G - PAD, CENTER FLOOR SILENCER, REAR RH
58627-48010

GGL25,GYL25

 1
58628C - PAD, CENTER FLOOR SILENCER, REAR LH
58627-48010

GGL25,GYL25

 1
58694B - PLATE, MAT SET, UPPER
58694-78010

GGL25,GYL25

 4
58698C - PLATE, MAT SET, LOWER
58698-78010

GGL25,GYL25

 4
63655D - COVER, AIR INTAKE
63655-48050C0

GYL25

BLACK,TRIM05,06,2#,3#,4#

 3
63655-48050E0

GYL25

NOBLE BROWN,TRIM00,01,02,03,04,5#,6#

 3
71741A - COVER, AIR HOLE
71741-48010E1

GYL25

NOBLE BROWN,TRIM00,01,02,03,04,5#,6#

 6
71741-48010C0

GYL25

BLACK,TRIM05,06,2#,3#,4#

 6
Common parts
90159-60303
90467-05172
90467-09206
90467-09239
