GGL25L-BWZGBA (2019)
Toyota Lexus Rx450h/350(Jpp

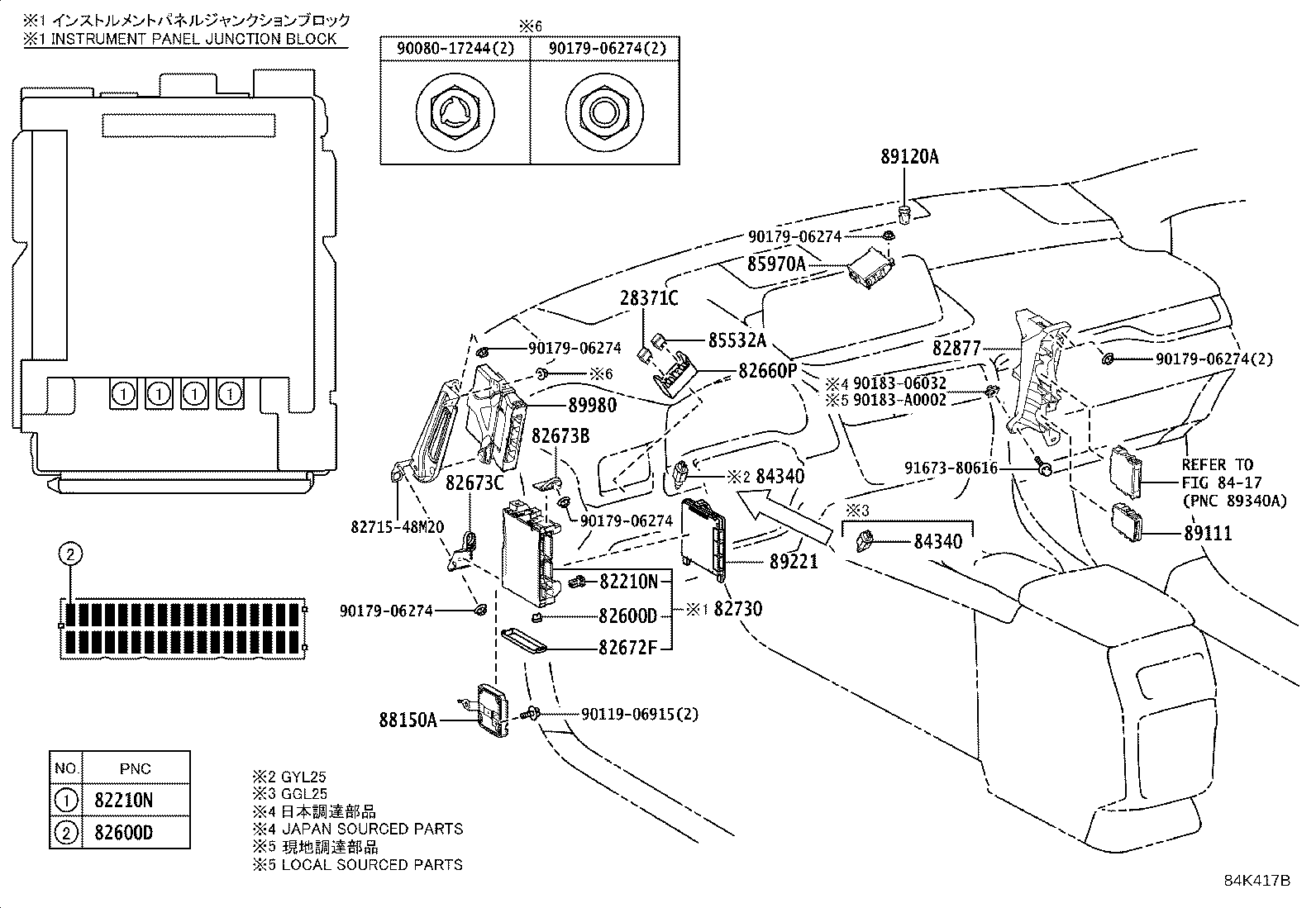

ILLUST NO. 4 OF10(1908- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2GR#..GGL25,GYL25 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
GGL25,GYL25 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
GGL25,GYL25 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09025 |
GGL25,GYL25 30A,MINI FUSE,GRN |
1 | ||
| 90982-09019 |
GGL25,GYL25 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
GGL25,GYL25 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
GGL25,GYL25 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
GGL25,GYL25 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
GGL25,GYL25 20A,MINI FUSE,YELLOW |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09025 |
GGL25,GYL25 30A,MINI FUSE,GRN |
1 | ||
| 90982-09019 |
GGL25,GYL25 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
GGL25,GYL25 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
GGL25,GYL25 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
GGL25,GYL25 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
GGL25,GYL25 20A,MINI FUSE,YELLOW |
1 | ||
| 82660P - BLOCK ASSY, RELAY | ||||
| 82660-48050 |
GGL25,GYL25 |
1 | ||
| 82672F - COVER, JUNCTION BLOCK | ||||
| 82672-48410 |
GGL25,GYL25 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-48110 |
GGL25,GYL25 |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-48120 |
GGL25,GYL25 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-48Z40 |
GGL25 |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-48030 |
GGL25,GYL25 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30130 |
GGL25,GYL25 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30130 |
GGL25,GYL25 |
1 | ||
| 85532A - RELAY, USB | ||||
| 90987-02027 |
GGL25,GYL25 |
1 | ||
| 85970A - RELAY ASSY, DOUBLE LOCK DOOR CONTROL | ||||
| 85970-48040 |
GGL25,GYL25..A |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-48132 |
GGL25 |
1 | ||
| 89111-48131 |
GGL25 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
GGL25,GYL25 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-4D670 |
GGL25,GYL25..A |
1 | ||
| 89220-48Q00 |
GGL25,GYL25..A |
1 | ||
| 89220-4DD50 |
GGL25..B |
1 | ||
| 89220-4D720 |
GGL25..B |
1 | ||
| Common parts | ||||
| 82715-48M20 | ||||
| 90080-17244 | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 90183-A0002 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8417 | ||||

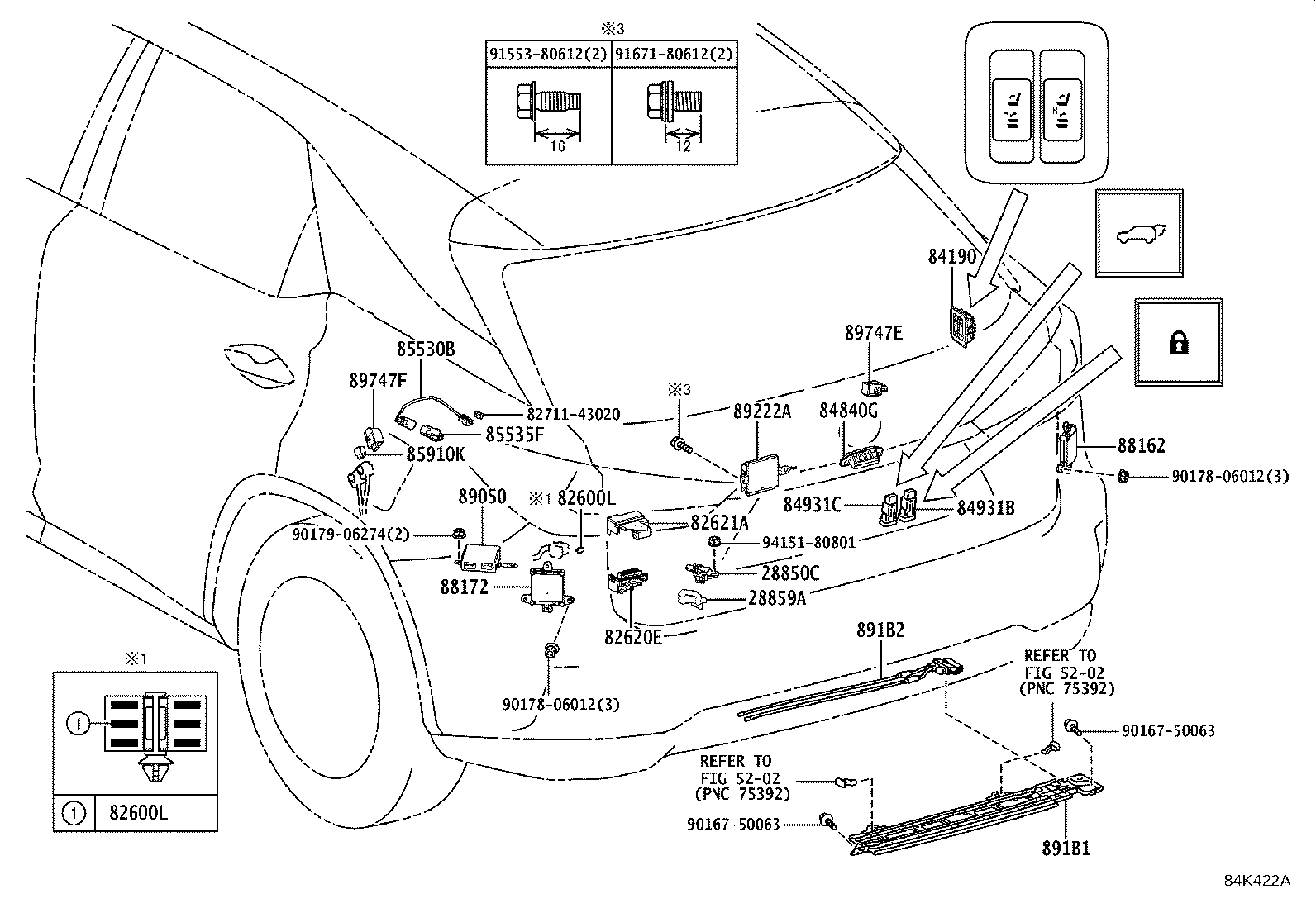

ILLUST NO.10 OF10(1908- )
LUGGAGE & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84190 - SWITCH ASSY, FOLD SEAT | ||||
| 84190-48010C0 |
GGL25,GYL25..A "VERSION L"*(L)&SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM0#,2#,4#,5# |
1 | ||
| 84190-48010C0 |
GGL25,GYL25..A "VERSION L"*(L)&SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM00,2#,4#,5# |
1 | ||
| 84190-48010E0 |
GGL25,GYL25..A "VERSION L"*(L)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM00 |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28050 |
GGL25,GYL25 |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84930-78030 |
GGL25,GYL25 |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-78020 |
GGL25,GYL25 |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-48110 |
GGL25,GYL25 |
1 | ||
| 85535F - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-44050C1 |
GGL25..B BLACK,TRIM0#,1#,2#,4#,5# |
1 | ||
| 85535-44050C1 |
GGL25..B BLACK,TRIM02,1#,2#,4#,5# |
1 | ||
| 85535-44050E1 |
GGL25,GYL25..A NOBLE BROWN,TRIM00,04 |
1 | ||
| 85535-44050C1 |
GGL25,GYL25..A BLACK,TRIM0#,2#,3#,4#,5#,6#,9# |
1 | ||
| 85535-44050E1 |
GGL25..B NOBLE BROWN,TRIM02 |
1 | ||
| 85535-44050C1 |
GGL25,GYL25..A BLACK,TRIM00,04,2#,3#,4#,5#,6#,9# |
1 | ||
| 85910K - RELAY, REAR SEAT HEATER | ||||
| 90987-02027 |
GGL25,GYL25..A "VERSION L"*(L) |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-48060 |
GGL25,GYL25 |
1 | ||
| 88162-48010 |
GGL25,GYL25 |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-48060 |
GGL25,GYL25 |
1 | ||
| 88162-48010 |
GGL25,GYL25 |
1 | ||
| 891B1 - BRACKET, KICK DOOR CONTROL | ||||
| 891B1-48020 |
GGL25 AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR) |
1 | ||
| 891B1-48030 |
GGL25..A "F-SPORT"*(F)&AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR) |
1 | ||
| 891B2 - SENSOR, KICK DOOR CONTROL | ||||
| 891B2-0W130 |
GGL25 AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR) |
1 | ||
| 891B2-0W140 |
GGL25..A "F-SPORT"*(F)&AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR) |
1 | ||
| 891B2-0W141 |
GGL25..A "F-SPORT"*(F)&AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR) |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-48210 |
GGL25,GYL25 |
1 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-30040 |
GGL25,GYL25 |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
GGL25,GYL25 |
1 | ||
| Common parts | ||||
| 82711-43020 | ||||
| 90167-50063 | ||||
| 90178-06012 | ||||
| 90179-06274 | ||||
| 91553-80612 | ||||
| 91671-80612 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 5202 | ||||

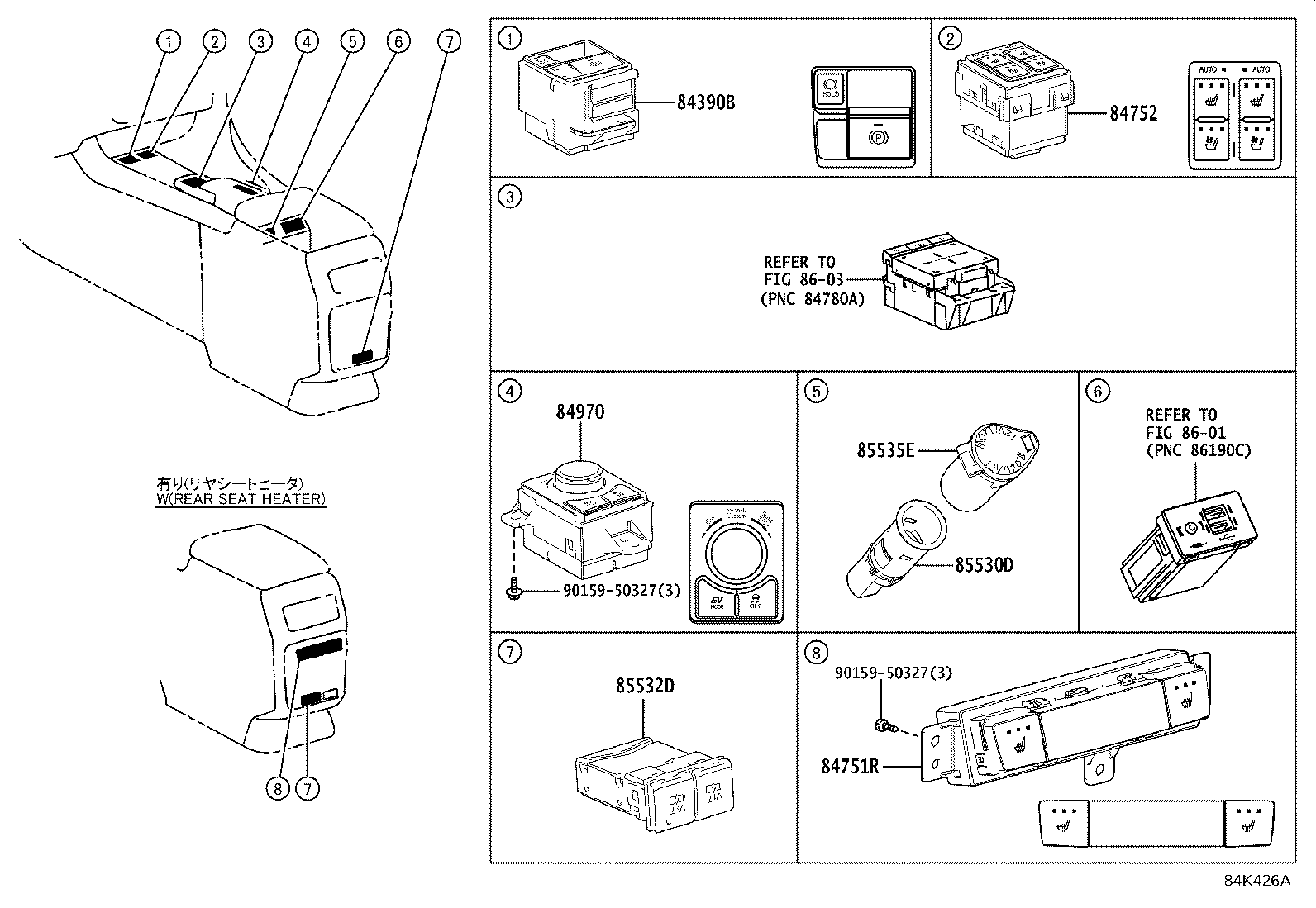

ILLUST NO. 6 OF10(1908- )
INSTRUMENT PANEL(2/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-48040 |
GGL25 |
1 | ||
| 84751R - SWITCH, SEAT HEATER(REAR) | ||||
| 84752-48040 |
GGL25,GYL25..A "VERSION L"*(L) |
1 | ||
| 84752 - SWITCH, REFRESHING SEAT | ||||
| 84752-48010 |
GGL25,GYL25 |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-48310 |
GGL25 |
1 | ||
| 84970-48320 |
GGL25..A *AVS-WITH |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-42010 |
GGL25,GYL25 |
1 | ||
| 85532D - SOCKET, USB CHARGER, NO.3 | ||||
| 85532-48010 |
GGL25,GYL25 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-44050C1 |
GGL25,GYL25 BLACK |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| Linked diagrams | ||||
| 8601 | ||||
| 8603 | ||||
