GGL25L-BWZGBA (2015)

Toyota Lexus Rx450h/350(Jpp

Production Sep 2015 - Aug 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1509- )GGL25

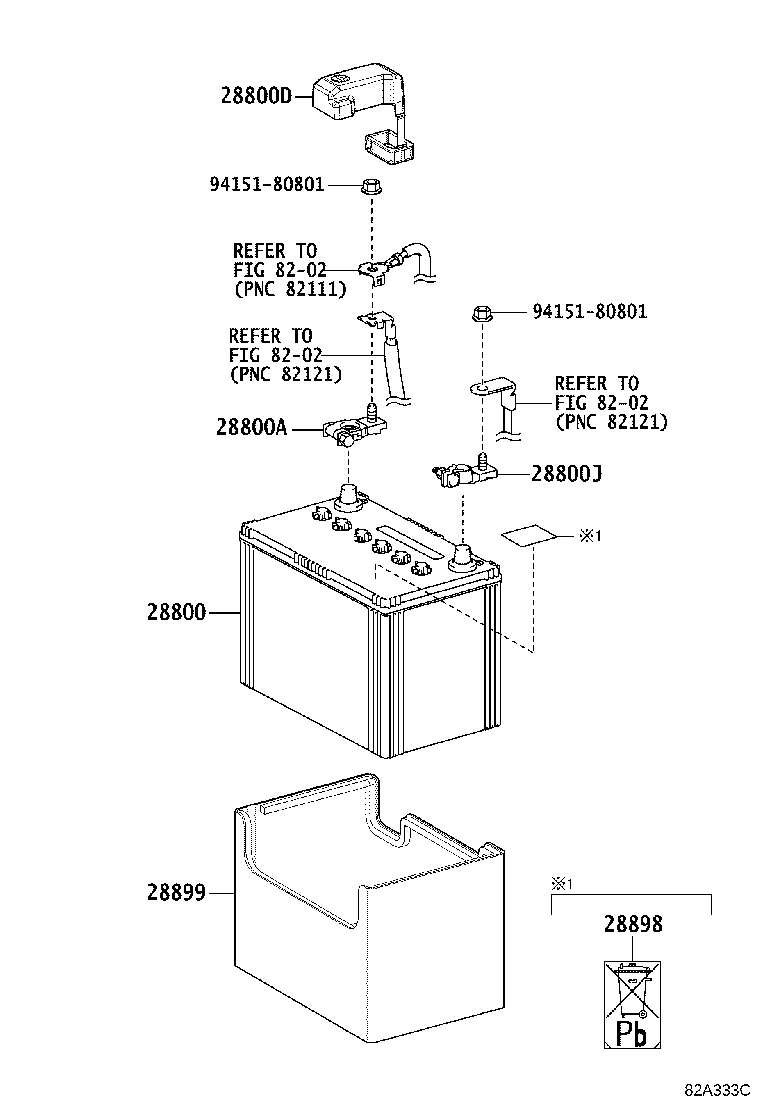

Click highlighted areas on diagram

diagram 28800 28800A 28800D 28800J 28898 28899 8202 8202 8202 9415180801 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-38080

2GRFKS..GGL25

80D26L

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05056

2GRFKS..GGL25

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-48250

2GRFKS..GGL25

 1
82821-33360

2GRFKS..GGL25

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06070

2GRFKS..GGL25

 1
28898 - PLATE, BATTERY
28898-46020

2GRFKS..GGL25..A

 1
28899 - INSULATOR, BATTERY
28899-31220

2GRFKS..GGL25

 1
Common parts
94151-80801
Linked diagrams
8202
