LEXUS RX450H/350(JPP
GGL25L-BWZGBA (2015)
6402 - ROOF HEADLINING & SILENCER PAD

GGL25L-BWZGBA (2015)

Toyota Lexus Rx450h/350(Jpp

Production Sep 2015 - Aug 2019

Engine 2GRFKS

Transmission 8FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1509- )

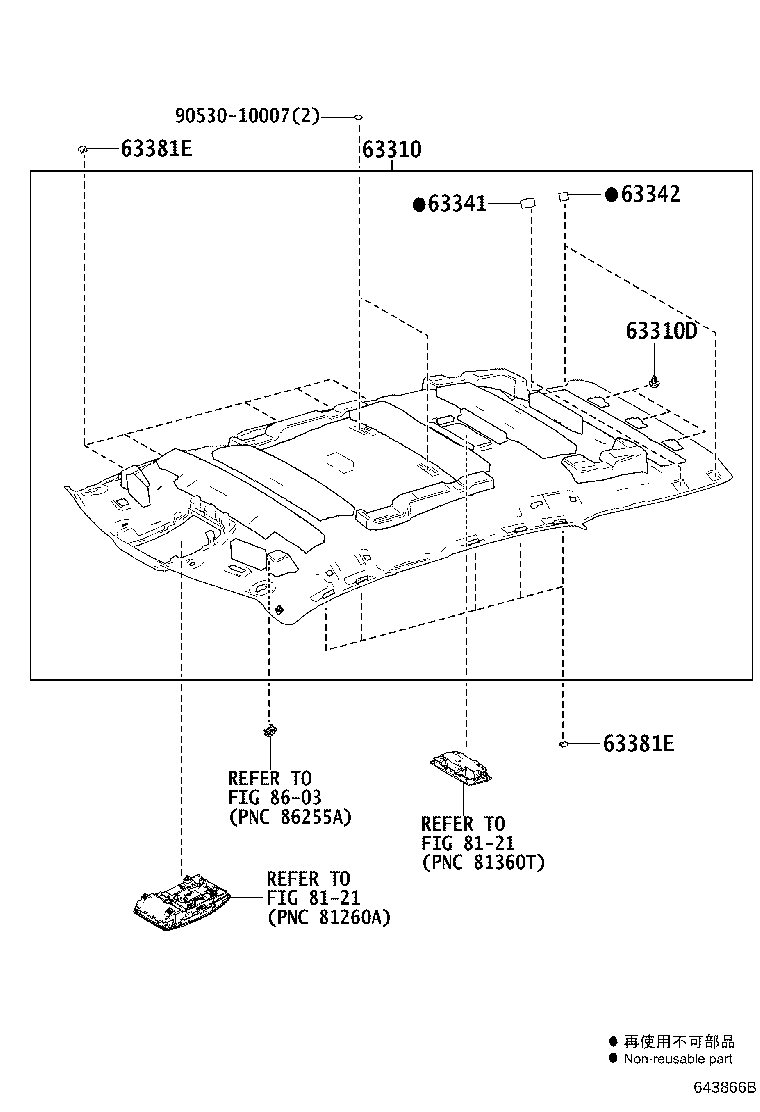

Click highlighted areas on diagram

Part #	Description	Period	Qty
63310 - HEADLINING ASSY, ROOF
63310-48570A0	GGL25,GYL25..A ECRU,TRIM00,01,02,03,04,5#,6#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48580B1	GGL25,GYL25..A MOON ROOF-WITH,MOON STONE,TRIM20,21,22,23,24,4#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48580A0	GGL25,GYL25..A MOON ROOF-WITH,ECRU,TRIM00,01,02,03,04,5#,6#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48570C0	GGL25,GYL25..A BLACK,TRIM05,06,25,26,3#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48580C0	GGL25,GYL25..A MOON ROOF-WITH,BLACK,TRIM05,06,25,26,3#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48570B1	GGL25,GYL25..A MOON STONE,TRIM20,21,22,23,24,4#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48571A0	GGL25,GYL25..A ECRU,TRIM0#,5#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48590A0	GGL25,GYL25..A MOON ROOF-WITH(PANORAMA ROOF),ECRU,TRIM00,01,02,03,04,5#,6#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48580A0	GGL25..B ECRU,TRIM0#,5#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48591A0	GGL25,GYL25..A MOON ROOF-WITH(PANORAMA ROOF),ECRU,TRIM0#,5#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48581A0	GGL25,GYL25..A MOON ROOF-WITH,ECRU,TRIM0#,5#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48590C0	GGL25,GYL25..A MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM05,06,25,26,3#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48581B1	GGL25,GYL25..A MOON ROOF-WITH,MOON STONE,TRIM20,24,4#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48581C0	GGL25,GYL25..A MOON ROOF-WITH,BLACK,TRIM25,26,3#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48581A0	GGL25..B ECRU,TRIM0#,5#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48581B1	GGL25..B MOON STONE,TRIM2#,4#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48571B1	GGL25,GYL25..A MOON STONE,TRIM20,24,4#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48591C0	GGL25,GYL25..A MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM25,26,3#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48590B1	GGL25,GYL25..A MOON ROOF-WITH(PANORAMA ROOF),MOON STONE,TRIM20,21,22,23,24,4#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48591B1	GGL25,GYL25..A MOON ROOF-WITH(PANORAMA ROOF),MOON STONE,TRIM20,24,4#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48580B1	GGL25..B MOON STONE,TRIM2#,4#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48571C0	GGL25,GYL25..A BLACK,TRIM25,26,3#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310D - CLIP, ROOF HEADLINING
90467-09240	GGL25,GYL25	09/2015 - 08/2019	3
63341 - PAD, ROOF SILENCER, NO.1
62641-48010	GGL25,GYL25	09/2015 - 08/2019	2
63342 - PAD, ROOF SILENCER, NO.2
62642-48010	GGL25,GYL25	09/2015 - 08/2019	2
63381E - RETAINER, ROOF HEADLINING TRIM, FRONT
63381-30120	GGL25,GYL25	09/2015 - 08/2019	10
63381E - RETAINER, ROOF HEADLINING TRIM, FRONT
63381-30120	GGL25,GYL25	09/2015 - 08/2019	10
Common parts
90530-10007
Linked diagrams
8121
8603

(1509- )

Click highlighted areas on diagram

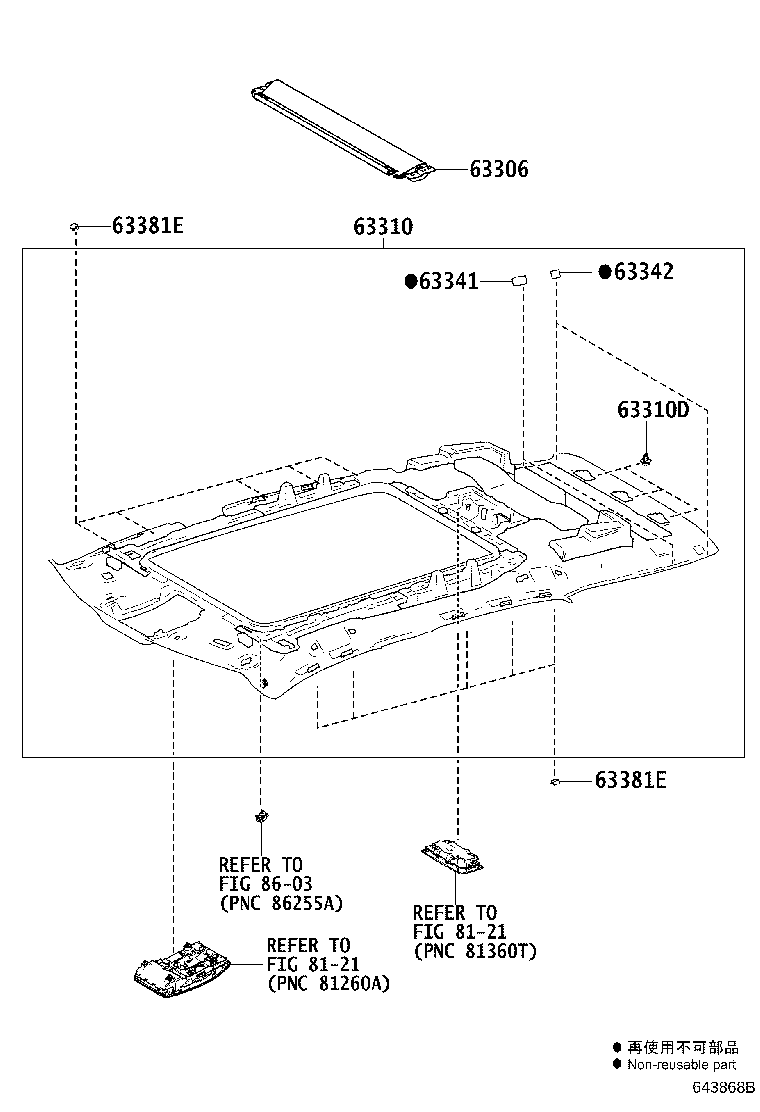

MOON ROOF

Part #	Description	Period	Qty
63306 - TRIM SUB-ASSY, SUNSHADE
63306-48200B1	GGL25..B MOON STONE,TRIM2#,4#	09/2015 - 08/2019	1
63306-48190B1	GGL25,GYL25..A MOON ROOF-WITH(PANORAMA ROOF),MOON STONE,TRIM20,24,4#	09/2015 - 08/2019	1
63306-48200A0	GGL25,GYL25..A MOON ROOF-WITH,ECRU,TRIM00,01,02,03,04,5#,6#	09/2015 - 08/2019	1
63306-48200C0	GGL25,GYL25..A MOON ROOF-WITH,BLACK,TRIM05,06,25,26,3#	09/2015 - 08/2019	1
63306-48190A0	GGL25,GYL25..A MOON ROOF-WITH(PANORAMA ROOF),ECRU,TRIM0#,5#	09/2015 - 08/2019	1
63306-48200B1	GGL25,GYL25..A MOON ROOF-WITH,MOON STONE,TRIM20,21,22,23,24,4#	09/2015 - 08/2019	1
63306-48200A0	GGL25..B ECRU,TRIM0#,5#	09/2015 - 08/2019	1
63306-48190C0	GGL25,GYL25..A MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM25,26,3#	09/2015 - 08/2019	1
63310 - HEADLINING ASSY, ROOF
63310-48570A0	GGL25,GYL25..A ECRU,TRIM00,01,02,03,04,5#,6#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48580B1	GGL25,GYL25..A MOON ROOF-WITH,MOON STONE,TRIM20,21,22,23,24,4#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48580A0	GGL25,GYL25..A MOON ROOF-WITH,ECRU,TRIM00,01,02,03,04,5#,6#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48570C0	GGL25,GYL25..A BLACK,TRIM05,06,25,26,3#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48580C0	GGL25,GYL25..A MOON ROOF-WITH,BLACK,TRIM05,06,25,26,3#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48570B1	GGL25,GYL25..A MOON STONE,TRIM20,21,22,23,24,4#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48571A0	GGL25,GYL25..A ECRU,TRIM0#,5#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48590A0	GGL25,GYL25..A MOON ROOF-WITH(PANORAMA ROOF),ECRU,TRIM00,01,02,03,04,5#,6#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48580A0	GGL25..B ECRU,TRIM0#,5#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48591A0	GGL25,GYL25..A MOON ROOF-WITH(PANORAMA ROOF),ECRU,TRIM0#,5#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48581A0	GGL25,GYL25..A MOON ROOF-WITH,ECRU,TRIM0#,5#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48590C0	GGL25,GYL25..A MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM05,06,25,26,3#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48581B1	GGL25,GYL25..A MOON ROOF-WITH,MOON STONE,TRIM20,24,4#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48581C0	GGL25,GYL25..A MOON ROOF-WITH,BLACK,TRIM25,26,3#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48581A0	GGL25..B ECRU,TRIM0#,5#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48581B1	GGL25..B MOON STONE,TRIM2#,4#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48571B1	GGL25,GYL25..A MOON STONE,TRIM20,24,4#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48591C0	GGL25,GYL25..A MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM25,26,3#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48590B1	GGL25,GYL25..A MOON ROOF-WITH(PANORAMA ROOF),MOON STONE,TRIM20,21,22,23,24,4#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48591B1	GGL25,GYL25..A MOON ROOF-WITH(PANORAMA ROOF),MOON STONE,TRIM20,24,4#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48580B1	GGL25..B MOON STONE,TRIM2#,4#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48571C0	GGL25,GYL25..A BLACK,TRIM25,26,3#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310D - CLIP, ROOF HEADLINING
90467-09240	GGL25,GYL25	09/2015 - 08/2019	3
63341 - PAD, ROOF SILENCER, NO.1
62641-48010	GGL25,GYL25	09/2015 - 08/2019	2
63342 - PAD, ROOF SILENCER, NO.2
62642-48010	GGL25,GYL25	09/2015 - 08/2019	2
63381E - RETAINER, ROOF HEADLINING TRIM, FRONT
63381-30120	GGL25,GYL25	09/2015 - 08/2019	10
63381E - RETAINER, ROOF HEADLINING TRIM, FRONT
63381-30120	GGL25,GYL25	09/2015 - 08/2019	10
Linked diagrams
8121
8603

(1509- )

Click highlighted areas on diagram

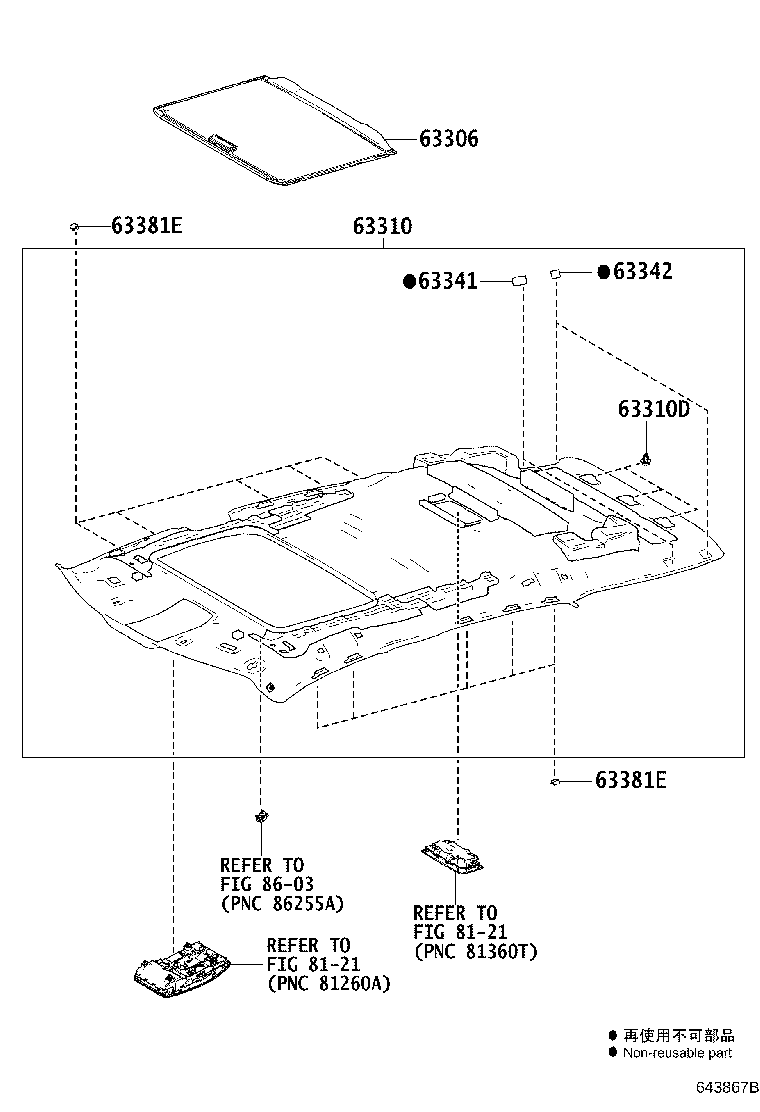

PANORAMA ROOF

Part #	Description	Period	Qty
63306 - TRIM SUB-ASSY, SUNSHADE
63306-48200B1	GGL25..B MOON STONE,TRIM2#,4#	09/2015 - 08/2019	1
63306-48190B1	GGL25,GYL25..A MOON ROOF-WITH(PANORAMA ROOF),MOON STONE,TRIM20,24,4#	09/2015 - 08/2019	1
63306-48200A0	GGL25,GYL25..A MOON ROOF-WITH,ECRU,TRIM00,01,02,03,04,5#,6#	09/2015 - 08/2019	1
63306-48200C0	GGL25,GYL25..A MOON ROOF-WITH,BLACK,TRIM05,06,25,26,3#	09/2015 - 08/2019	1
63306-48190A0	GGL25,GYL25..A MOON ROOF-WITH(PANORAMA ROOF),ECRU,TRIM0#,5#	09/2015 - 08/2019	1
63306-48200B1	GGL25,GYL25..A MOON ROOF-WITH,MOON STONE,TRIM20,21,22,23,24,4#	09/2015 - 08/2019	1
63306-48200A0	GGL25..B ECRU,TRIM0#,5#	09/2015 - 08/2019	1
63306-48190C0	GGL25,GYL25..A MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM25,26,3#	09/2015 - 08/2019	1
63310 - HEADLINING ASSY, ROOF
63310-48570A0	GGL25,GYL25..A ECRU,TRIM00,01,02,03,04,5#,6#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48580B1	GGL25,GYL25..A MOON ROOF-WITH,MOON STONE,TRIM20,21,22,23,24,4#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48580A0	GGL25,GYL25..A MOON ROOF-WITH,ECRU,TRIM00,01,02,03,04,5#,6#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48570C0	GGL25,GYL25..A BLACK,TRIM05,06,25,26,3#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48580C0	GGL25,GYL25..A MOON ROOF-WITH,BLACK,TRIM05,06,25,26,3#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48570B1	GGL25,GYL25..A MOON STONE,TRIM20,21,22,23,24,4#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48571A0	GGL25,GYL25..A ECRU,TRIM0#,5#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48590A0	GGL25,GYL25..A MOON ROOF-WITH(PANORAMA ROOF),ECRU,TRIM00,01,02,03,04,5#,6#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48580A0	GGL25..B ECRU,TRIM0#,5#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48591A0	GGL25,GYL25..A MOON ROOF-WITH(PANORAMA ROOF),ECRU,TRIM0#,5#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48581A0	GGL25,GYL25..A MOON ROOF-WITH,ECRU,TRIM0#,5#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48590C0	GGL25,GYL25..A MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM05,06,25,26,3#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48581B1	GGL25,GYL25..A MOON ROOF-WITH,MOON STONE,TRIM20,24,4#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48581C0	GGL25,GYL25..A MOON ROOF-WITH,BLACK,TRIM25,26,3#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48581A0	GGL25..B ECRU,TRIM0#,5#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48581B1	GGL25..B MOON STONE,TRIM2#,4#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48571B1	GGL25,GYL25..A MOON STONE,TRIM20,24,4#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48591C0	GGL25,GYL25..A MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM25,26,3#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48590B1	GGL25,GYL25..A MOON ROOF-WITH(PANORAMA ROOF),MOON STONE,TRIM20,21,22,23,24,4#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48591B1	GGL25,GYL25..A MOON ROOF-WITH(PANORAMA ROOF),MOON STONE,TRIM20,24,4#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310-48580B1	GGL25..B MOON STONE,TRIM2#,4#,REFER86-03:PNC86255A	09/2015 - 12/2018	1
63310-48571C0	GGL25,GYL25..A BLACK,TRIM25,26,3#,REFER86-03:PNC86255A	12/2018 - 08/2019	1
63310D - CLIP, ROOF HEADLINING
90467-09240	GGL25,GYL25	09/2015 - 08/2019	3
63341 - PAD, ROOF SILENCER, NO.1
62641-48010	GGL25,GYL25	09/2015 - 08/2019	2
63342 - PAD, ROOF SILENCER, NO.2
62642-48010	GGL25,GYL25	09/2015 - 08/2019	2
63381E - RETAINER, ROOF HEADLINING TRIM, FRONT
63381-30120	GGL25,GYL25	09/2015 - 08/2019	10
63381E - RETAINER, ROOF HEADLINING TRIM, FRONT
63381-30120	GGL25,GYL25	09/2015 - 08/2019	10
Linked diagrams
8121
8603

GGL25L-BWZGBA (2015)

(1509- )

(1509- )

(1509- )
