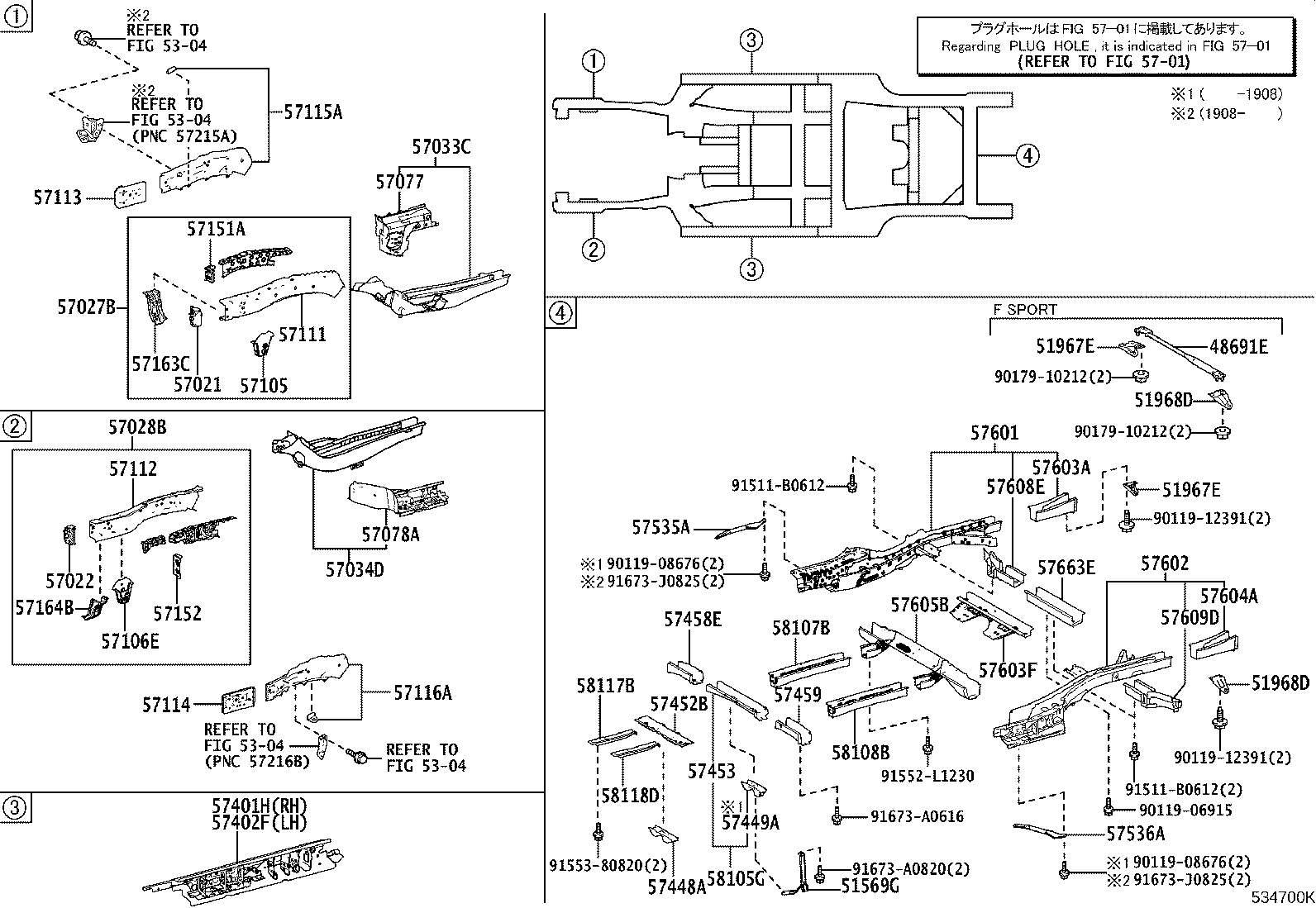

GGL25L-BWZGBA (2015)
Toyota Lexus Rx450h/350(Jpp
(1509- )GGL25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51569G - GUARD, PROPELLER SHAFT | ||||
| 51569-48021 |
GGL25 |
1 | ||
| 51569-48020 |
GGL25 |
1 | ||
| 51967E - HOOK, TRANSPORT, REAR RH | ||||
| 51967-48050 |
GGL25,GYL25 |
1 | ||
| 51967E - HOOK, TRANSPORT, REAR RH | ||||
| 51967-48050 |
GGL25,GYL25 |
1 | ||
| 51968D - HOOK, TRANSPORT, REAR LH | ||||
| 51968-48050 |
GGL25,GYL25 |
1 | ||
| 51968D - HOOK, TRANSPORT, REAR LH | ||||
| 51968-48050 |
GGL25,GYL25 |
1 | ||
| 57021 - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH | ||||
| 57021-48013 |
GGL25,GYL25 |
1 | ||
| 57022 - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH | ||||
| 57022-48013 |
GGL25,GYL25 |
1 | ||
| 57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH | ||||
| 57027-48030 |
GGL25,GYL25 |
1 | ||
| 57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH | ||||
| 57028-48060 |
GGL25,GYL25 |
1 | ||
| 57033C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH | ||||
| 57033-48041 |
GGL25,GYL25 |
1 | ||
| 57033-48040 |
GGL25,GYL25 |
1 | ||
| 57034D - REINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH | ||||
| 57034-48030 |
GGL25,GYL25 |
1 | ||
| 57034-48031 |
GGL25,GYL25 |
1 | ||
| 57077 - BOX SUB-ASSY, TORQUE, FRONT RH | ||||
| 57077-48050 |
GGL25,GYL25 |
1 | ||
| 57078A - BOX SUB-ASSY, TORQUE, FRONT LH | ||||
| 57078-48040 |
GGL25,GYL25 |
1 | ||
| 57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57105-28120 |
GGL25,GYL25 |
1 | ||
| 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57106-28120 |
GGL25,GYL25 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-48030 |
GGL25,GYL25 |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-48030 |
GGL25,GYL25 |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-48021 |
GGL25,GYL25 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-48021 |
GGL25,GYL25 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-48901 |
GGL25,GYL25 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-48905 |
GGL25,GYL25 |
1 | ||
| 57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH | ||||
| 57151-48020 |
GGL25,GYL25 |
1 | ||
| 57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH | ||||
| 57152-48020 |
GGL25,GYL25 |
1 | ||
| 57163C - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH | ||||
| 57163-48030 |
GGL25,GYL25 |
1 | ||
| 57164B - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH | ||||
| 57164-48030 |
GGL25,GYL25 |
1 | ||
| 57401H - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57401-0E071 |
GGL25..B |
1 | ||
| 57401-48062 |
GGL25,GYL25..A |
1 | ||
| 57401-48070 |
GGL25..B |
1 | ||
| 57402F - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57402-0E071 |
GGL25..B |
1 | ||
| 57402-48070 |
GGL25..B |
1 | ||
| 57402-48062 |
GGL25,GYL25..A |
1 | ||
| 57448A - BRACKET, DIFF LOCK LEVER MOUNT, NO.1 | ||||
| 57448-48030 |
GGL25 |
1 | ||
| 57449A - BRACKET, DIFF LOCK LEVER MOUNT, NO.2 | ||||
| 57449-48012 |
GGL25 |
1 | ||
| 57452B - MEMBER, FRONT FLOOR CROSS, NO.2 | ||||
| 57452-48032 |
GGL25,GYL25 |
1 | ||
| 57453 - MEMBER, FRONT FLOOR CROSS, NO.3 | ||||
| 57453-48011 |
GGL25 |
1 | ||
| 57458E - MEMBER, FRONT FLOOR CROSS, NO.1 | ||||
| 57458-48012 |
GGL25,GYL25 |
1 | ||
| 57459 - MEMBER, FRONT FLOOR CROSS, NO.2 | ||||
| 57459-48015 |
GGL25,GYL25 |
1 | ||
| 57535A - BRACE, FRONT FLOOR, RH | ||||
| 57535-48060 |
GGL25 |
1 | ||
| 57536A - BRACE, FRONT FLOOR, LH | ||||
| 57536-48040 |
GGL25 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-48130 |
GGL25..B |
1 | ||
| 57601-48131 |
GGL25..B |
1 | ||
| 57601-48120 |
GGL25,GYL25..A |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-48121 |
GGL25,GYL25..A |
1 | ||
| 57602-48130 |
GGL25..B |
1 | ||
| 57602-48131 |
GGL25..B |
1 | ||
| 57602-48120 |
GGL25,GYL25..A |
1 | ||
| 57602-48132 |
GGL25..B |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57606-48060 |
GGL25,GYL25 |
1 | ||
| 57603F - GUSSET SUB-ASSY, REAR FLOOR CROSSEMEMBER | ||||
| 57603-48092 |
GGL25 |
1 | ||
| 57603-48091 |
GGL25 |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| 57607-48021 |
GGL25,GYL25 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-48110 |
GGL25 |
1 | ||
| 57608E - REINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH | ||||
| 57608-48020 |
GGL25,GYL25 |
1 | ||
| 57609D - REINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, LH | ||||
| 57609-48020 |
GGL25,GYL25..A |
1 | ||
| 57609-48021 |
GGL25,GYL25..A |
1 | ||
| 57609-48020 |
GGL25..B |
1 | ||
| 57609-48021 |
GGL25..B |
1 | ||
| 57663E - MEMBER, REAR FLOOR CROSS, CENTER | ||||
| 57663-48040 |
GGL25,GYL25 |
1 | ||
| 58105G - RETAINER SUB-ASSY, FLOOR CLAMP | ||||
| 58105-48051 |
GGL25 |
1 | ||
| 58107B - REINFORCEMENT SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH | ||||
| 58107-48030 |
GGL25,GYL25 |
1 | ||
| 58108B - REINFORCEMENT SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH | ||||
| 58108-48040 |
GGL25,GYL25 |
1 | ||
| 58117B - REINFORCEMENT, FRONT FLOOR SIDE, RH | ||||
| 58117-48030 |
GGL25,GYL25 |
1 | ||
| 58118D - REINFORCEMENT, FRONT FLOOR SIDE, LH | ||||
| 58118-48030 |
GGL25,GYL25 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08676 | ||||
| 90119-12391 | ||||
| 90179-10212 | ||||
| 91511-B0612 | ||||
| 91552-L1230 | ||||
| 91553-80820 | ||||
| 91673-A0616 | ||||
| 91673-A0820 | ||||
| 91673-J0825 | ||||
| Linked diagrams | ||||
| 5304 | ||||
| 5701 | ||||
