GGL25L-BWZGBA (2015)
Toyota Lexus Rx450h/350(Jpp

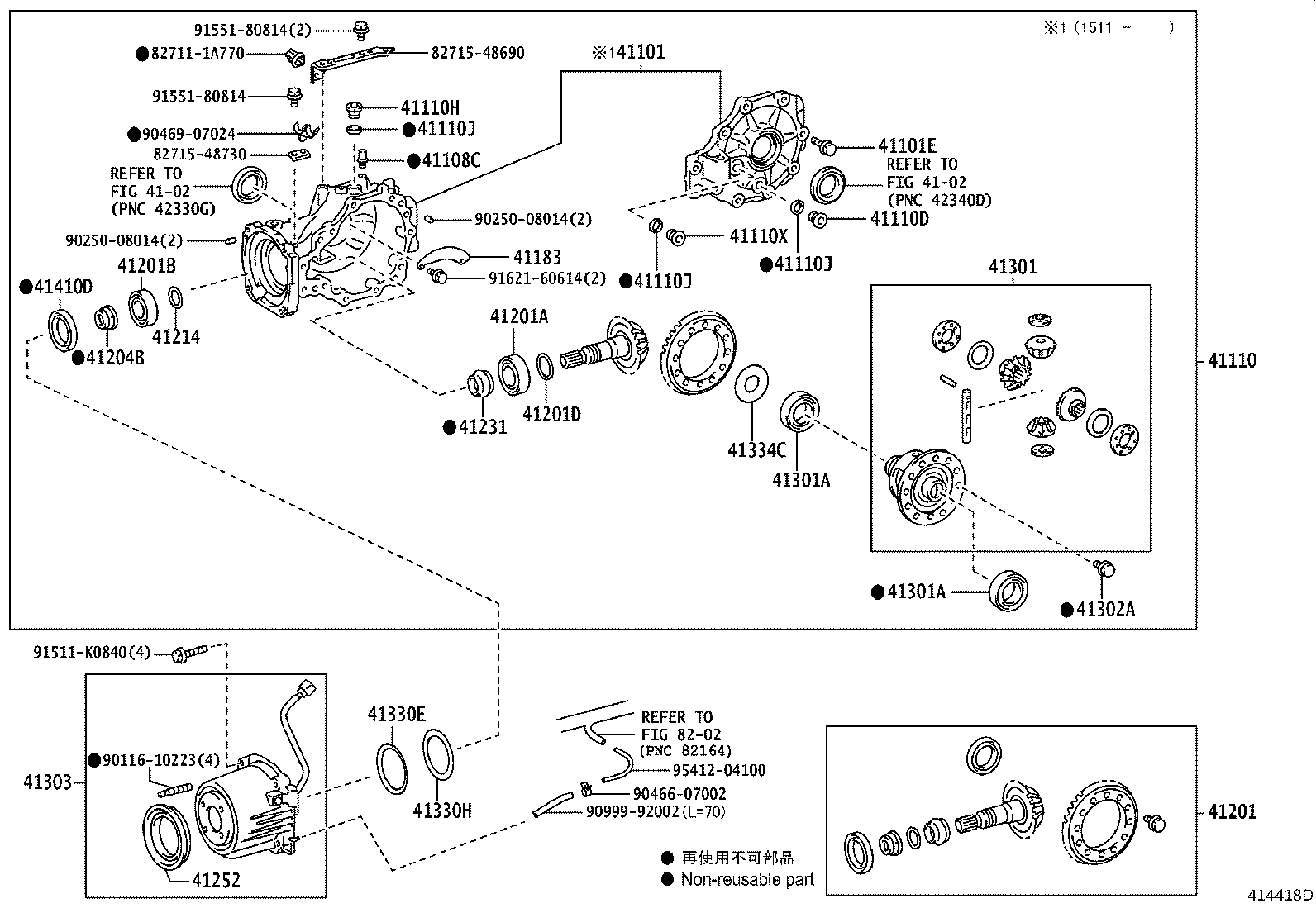

ILLUST NO. 1 OF 2(1509- )GGL25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-48013 |
GGL25 |
1 | ||
| 41101E - BOLT (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90105-10371 |
GGL25 |
10 | ||
| 41108C - PLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90930-03075 |
GGL25 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-48104 |
GGL25 *FGR=41:18=2.277 |
1 | ||
| 41110-48103 |
GGL25 *FGR=41:18=2.277 |
1 | ||
| 41110D - PLUG (FOR REAR DIFFERENTIAL DRAIN) | ||||
| 90341-18051 |
GGL25 |
1 | ||
| 41110H - PLUG (FOR REAR DIFFERENTIAL FILLER) | ||||
| 90341-18034 |
GGL25 |
1 | ||
| 90341-18006 |
GGL25 |
1 | ||
| 41110J - GASKET (FOR REAR DIFFERENTIAL FILLER PLUG) | ||||
| 12157-10010 |
GGL25 |
3 | ||
| 41110J - GASKET (FOR REAR DIFFERENTIAL FILLER PLUG) | ||||
| 12157-10010 |
GGL25 |
3 | ||
| 41110J - GASKET (FOR REAR DIFFERENTIAL FILLER PLUG) | ||||
| 12157-10010 |
GGL25 |
3 | ||
| 41110X - PLUG (FOR DIFFERENTIAL INSPECTION) | ||||
| 90341-18023 |
GGL25 |
1 | ||
| 41183 - DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL | ||||
| 41183-48010 |
GGL25 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-49165 |
GGL25 *FGR=41:18=2.277 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35154 |
GGL25 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30099 |
GGL25 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90564-35047 |
GGL25 T=1.76,MARK 47 |
1 | ||
| 90564-35045 |
GGL25 T=1.74,MARK 45 |
1 | ||
| 90564-35055 |
GGL25 T=1.84,MARK 55 |
1 | ||
| 90564-35049 |
GGL25 T=1.78,MARK 49 |
1 | ||
| 90564-35053 |
GGL25 T=1.82,MARK 53 |
1 | ||
| 90564-35061 |
GGL25 T=1.90,MARK 61 |
1 | ||
| 90564-35065 |
GGL25 T=1.94,MARK 65 |
1 | ||
| 90564-35041 |
GGL25 T=1.70,MARK 41 |
1 | ||
| 90564-35063 |
GGL25 T=1.92,MARK 63 |
1 | ||
| 90564-35043 |
GGL25 T=1.72,MARK 43 |
1 | ||
| 90564-35057 |
GGL25 T=1.86,MARK 57 |
1 | ||
| 90564-35059 |
GGL25 T=1.88,MARK 59 |
1 | ||
| 90564-35075 |
GGL25 T=2.00,MARK 75 |
1 | ||
| 90564-35081 |
GGL25 T=2.06,MARK 81 |
1 | ||
| 90564-35077 |
GGL25 T=2.02,MARK 77 |
1 | ||
| 90564-35051 |
GGL25 T=1.80,MARK 51 |
1 | ||
| 90564-35087 |
GGL25 T=2.12,MARK 87 |
1 | ||
| 90564-35073 |
GGL25 T=1.98,MARK 73 |
1 | ||
| 90564-35071 |
GGL25 T=1.96,MARK 71 |
1 | ||
| 90564-35079 |
GGL25 T=2.04,MARK 79 |
1 | ||
| 90564-35093 |
GGL25 T=2.18,MARK 93 |
1 | ||
| 90564-35167 |
GGL25 T=2.24,MARK 99 |
1 | ||
| 90564-35165 |
GGL25 T=2.22,MARK 97 |
1 | ||
| 90564-35091 |
GGL25 T=2.16,MARK 91 |
1 | ||
| 90564-35089 |
GGL25 T=2.14,MARK 89 |
1 | ||
| 90564-35095 |
GGL25 T=2.20,MARK 95 |
1 | ||
| 90564-35083 |
GGL25 T=2.08,MARK 83 |
1 | ||
| 90564-35085 |
GGL25 T=2.10,MARK 85 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90178-30001 |
GGL25 OD=41.6 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 90560-30012 |
GGL25 |
1 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-33030 |
GGL25 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-42013 |
GGL25 |
1 | ||
| 41252-42013 |
GGL25 |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-48060 |
GGL25 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-38048 |
GGL25 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-38048 |
GGL25 |
2 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-11060 |
GGL25 |
12 | ||
| 41303 - COUPLING SUB-ASSY, ELECTRO MAGNETIC CONTROL | ||||
| 41303-48013 |
GGL25 |
1 | ||
| 41303-48030 |
GGL25 |
1 | ||
| 41330E - WASHER, CONICAL SPRING (FOR TRANSMISSION COUPLING) | ||||
| 90208-74003 |
GGL25 |
1 | ||
| 90208-74003 |
GGL25 |
1 | ||
| 41330H - SPACER (FOR TRANSMISSION COUPLING) | ||||
| 90560-68002 |
GGL25 |
1 | ||
| 90560-68002 |
GGL25 |
1 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90564-30075 |
GGL25 T=1.75,MARK 75 |
1 | ||
| 90564-30078 |
GGL25 T=1.84,MARK 78 |
1 | ||
| 90564-30076 |
GGL25 T=1.78,MARK 76 |
1 | ||
| 90564-30079 |
GGL25 T=1.87,MARK 79 |
1 | ||
| 90564-30080 |
GGL25 T=1.90,MARK 80 |
1 | ||
| 90564-30081 |
GGL25 T=1.93,MARK 81 |
1 | ||
| 90564-30083 |
GGL25 T=1.99,MARK 83 |
1 | ||
| 90564-30077 |
GGL25 T=1.81,MARK 77 |
1 | ||
| 90564-30090 |
GGL25 T=2.17,MARK 90 |
1 | ||
| 90564-30082 |
GGL25 T=1.96,MARK 82 |
1 | ||
| 90564-30093 |
GGL25 T=2.26,MARK 93 |
1 | ||
| 90564-30091 |
GGL25 T=2.20,MARK 91 |
1 | ||
| 90564-30094 |
GGL25 T=2.29,MARK 94 |
1 | ||
| 90564-30088 |
GGL25 T=2.11,MARK 88 |
1 | ||
| 90564-30092 |
GGL25 T=2.23,MARK 92 |
1 | ||
| 90564-30099 |
GGL25 T=2.44,MARK 99 |
1 | ||
| 90564-30098 |
GGL25 T=2.41,MARK 98 |
1 | ||
| 90564-30103 |
GGL25 T=2.56,MARK 03 |
1 | ||
| 90564-30084 |
GGL25 T=2.02,MARK 84 |
1 | ||
| 90564-30086 |
GGL25 T=2.08,MARK 86 |
1 | ||
| 90564-30085 |
GGL25 T=2.05,MARK 85 |
1 | ||
| 90564-30096 |
GGL25 T=2.35,MARK 96 |
1 | ||
| 90564-30102 |
GGL25 T=2.53,MARK 02 |
1 | ||
| 90564-30101 |
GGL25 T=2.50,MARK 01 |
1 | ||
| 90564-30097 |
GGL25 T=2.38,MARK 97 |
1 | ||
| 90564-30108 |
GGL25 T=2.71,MARK 08 |
1 | ||
| 90564-30106 |
GGL25 T=2.65,MARK 06 |
1 | ||
| 90564-30105 |
GGL25 T=2.62,MARK 05 |
1 | ||
| 90564-30089 |
GGL25 T=2.14,MARK 89 |
1 | ||
| 90564-30107 |
GGL25 T=2.68,MARK 07 |
1 | ||
| 90564-30112 |
GGL25 T=2.83,MARK 12 |
1 | ||
| 90564-30095 |
GGL25 T=2.32,MARK 95 |
1 | ||
| 90564-30100 |
GGL25 T=2.47,MARK 00 |
1 | ||
| 90564-30109 |
GGL25 T=2.74,MARK 09 |
1 | ||
| 90564-30110 |
GGL25 T=2.77,MARK 10 |
1 | ||
| 90564-30114 |
GGL25 T=2.89,MARK 14 |
1 | ||
| 90564-30104 |
GGL25 T=2.59,MARK 04 |
1 | ||
| 90564-30113 |
GGL25 T=2.86,MARK 13 |
1 | ||
| 90564-30111 |
GGL25 T=2.80,MARK 11 |
1 | ||
| 41410D - SEAL, OIL DIAPHRAGM | ||||
| 90310-54003 |
GGL25 |
1 | ||
| Common parts | ||||
| 82711-1A770 | ||||
| 82715-48690 | ||||
| 82715-48730 | ||||
| 90116-10223 | ||||
| 90250-08014 | ||||
| 90466-07002 | ||||
| 90469-07024 | ||||
| 90999-92002 | ||||
| 91511-K0840 | ||||
| 91551-80814 | ||||
| 91621-60614 | ||||
| 95412-04100 | ||||
| Linked diagrams | ||||
| 4102 | ||||
| 8202 | ||||

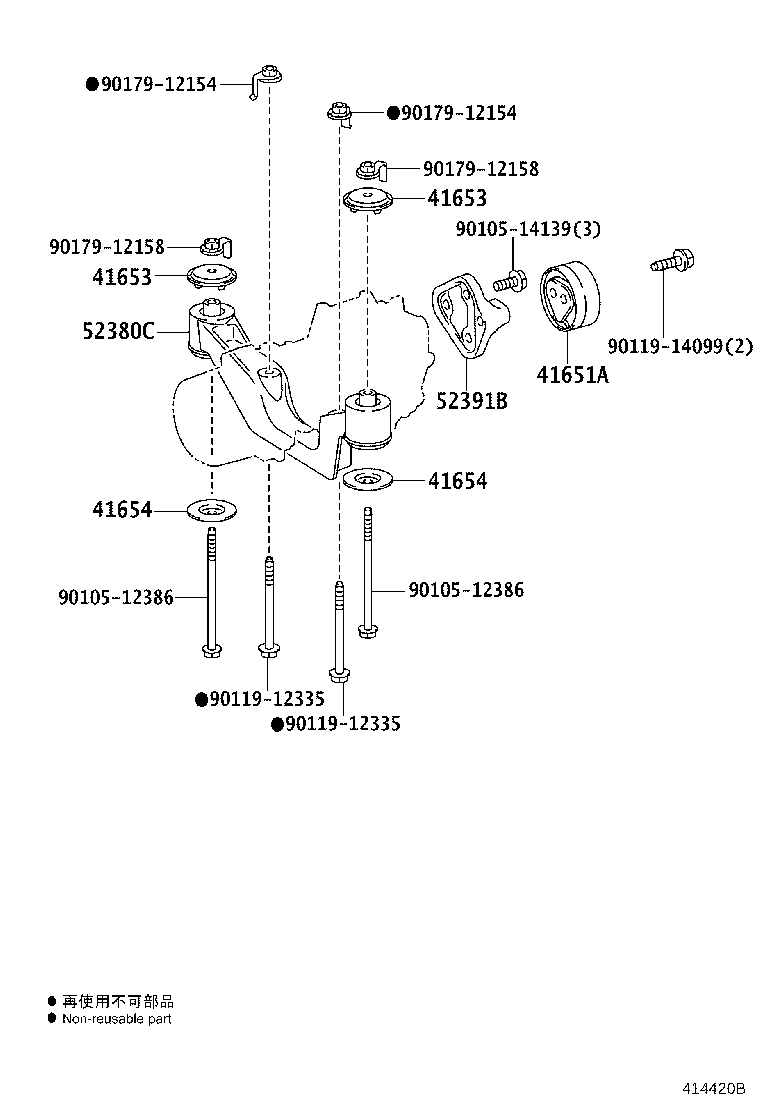

ILLUST NO. 2 OF 2(1509- )GGL25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41651A - CUSHION, REAR DIFFERENTIAL MOUNT, NO.2 | ||||
| 41651-48100 |
GGL25 |
1 | ||
| 41653 - STOPPER, REAR DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-48020 |
GGL25 H=18.7 |
2 | ||
| 41653 - STOPPER, REAR DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-48020 |
GGL25 H=18.7 |
2 | ||
| 41654 - STOPPER, REAR DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-48020 |
GGL25 |
2 | ||
| 41654 - STOPPER, REAR DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-48020 |
GGL25 |
2 | ||
| 52380C - SUPPORT, REAR DIFFERENTIAL, NO.2 | ||||
| 52380-48110 |
GGL25 |
1 | ||
| 52391B - SUPPORT, DIFFERENTIAL | ||||
| 52391-48090 |
GGL25 |
1 | ||
| Common parts | ||||
| 90105-12386 | ||||
| 90105-14139 | ||||
| 90119-12335 | ||||
| 90119-14099 | ||||
| 90179-12154 | ||||
| 90179-12158 | ||||
