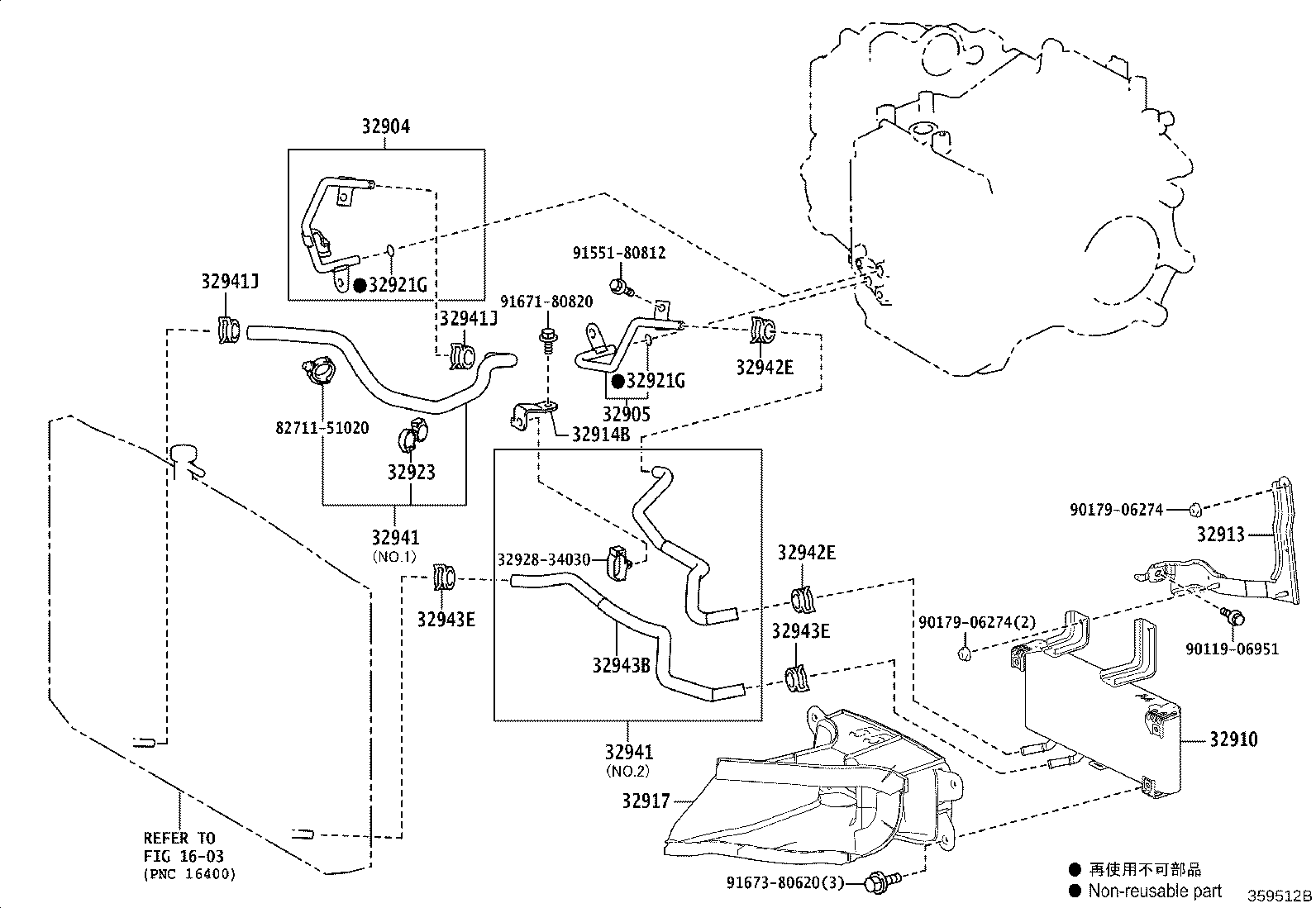

GGL25L-BWZGBA (2015)
Toyota Lexus Rx450h/350(Jpp
(1509-1908)B
TOWING PACKAGE-3500LBS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32904 - TUBE SUB-ASSY, OIL COOLER INLET, NO.1 | ||||
| 32904-48200 |
GGL25 |
1 | ||
| 32905 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1 | ||||
| 32905-48240 |
GGL25 |
1 | ||
| 32910 - COOLER ASSY, OIL | ||||
| 32910-48200 |
GGL25..B TOWING PACKAGE-3500LBS |
1 | ||
| 32913 - BRACKET, OIL COOLER | ||||
| 32913-48050 |
GGL25..B TOWING PACKAGE-3500LBS |
1 | ||
| 32914B - STAY, TRANSMISSION OIL COOLER | ||||
| 32914-48010 |
GGL25..B TOWING PACKAGE-3500LBS |
1 | ||
| 32917 - DUCT, TRANSMISSION OIL COOLER AIR | ||||
| 32917-48060 |
GGL25..B TOWING PACKAGE-3500LBS |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11033 |
GGL25 |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11033 |
GGL25 |
2 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-45010 |
GGL25..B TOWING PACKAGE-3500LBS |
1 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32930-48050 |
GGL25 |
1 | ||
| 32930-48070 |
GGL25..B TOWING PACKAGE-3500LBS,NO.2 |
1 | ||
| 32930-48050 |
GGL25..B TOWING PACKAGE-3500LBS,NO.1 |
1 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32930-48050 |
GGL25 |
1 | ||
| 32930-48070 |
GGL25..B TOWING PACKAGE-3500LBS,NO.2 |
1 | ||
| 32930-48050 |
GGL25..B TOWING PACKAGE-3500LBS,NO.1 |
1 | ||
| 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GGL25 |
2 | ||
| 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GGL25 |
2 | ||
| 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GGL25 |
2 | ||
| 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GGL25 |
2 | ||
| 32943B - HOSE, TRANSMISSION OIL COOLER | ||||
| 32943-48170 |
GGL25..B TOWING PACKAGE-3500LBS |
1 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GGL25..B TOWING PACKAGE-3500LBS |
2 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GGL25..B TOWING PACKAGE-3500LBS |
2 | ||
| Common parts | ||||
| 32928-34030 | ||||
| 82711-51020 | ||||
| 90119-06951 | ||||
| 90179-06274 | ||||
| 91551-80812 | ||||
| 91671-80820 | ||||
| 91673-80620 | ||||
| Linked diagrams | ||||
| 1603 | ||||

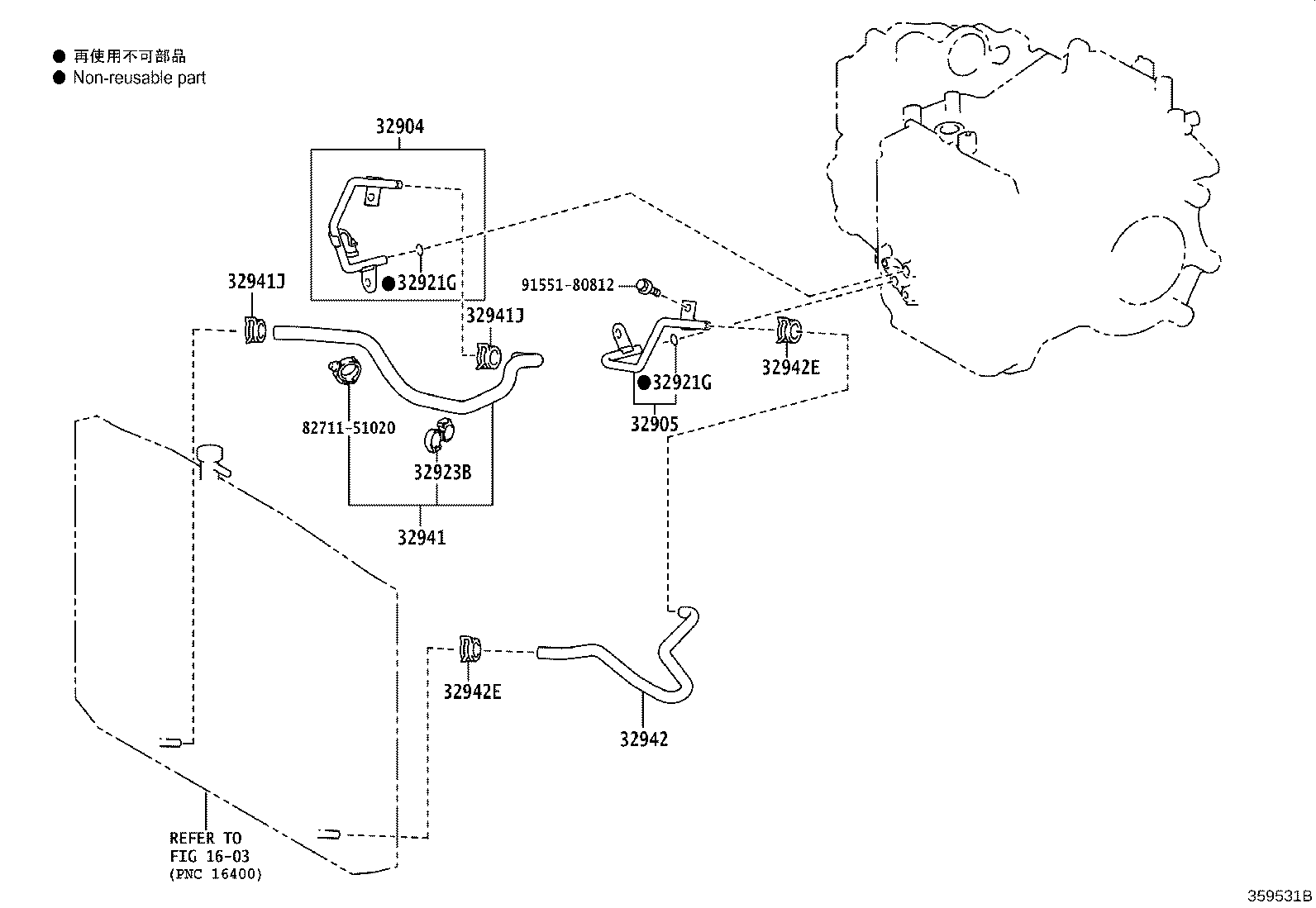

(1510-1908)GGL25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32904 - TUBE SUB-ASSY, OIL COOLER INLET, NO.1 | ||||
| 32904-48200 |
GGL25 |
1 | ||
| 32905 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1 | ||||
| 32905-48240 |
GGL25 |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11033 |
GGL25 |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11033 |
GGL25 |
2 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-45010 |
GGL25 |
1 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32930-48050 |
GGL25 |
1 | ||
| 32930-48070 |
GGL25..B TOWING PACKAGE-3500LBS,NO.2 |
1 | ||
| 32930-48050 |
GGL25..B TOWING PACKAGE-3500LBS,NO.1 |
1 | ||
| 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GGL25 |
2 | ||
| 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GGL25 |
2 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-48090 |
GGL25 |
1 | ||
| 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GGL25 |
2 | ||
| 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GGL25 |
2 | ||
| Common parts | ||||
| 82711-51020 | ||||
| 91551-80812 | ||||
| Linked diagrams | ||||
| 1603 | ||||
