GGL25L-BWZGBA (2015)

Toyota Lexus Rx450h/350(Jpp

Production Sep 2015 - Aug 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1509- )A

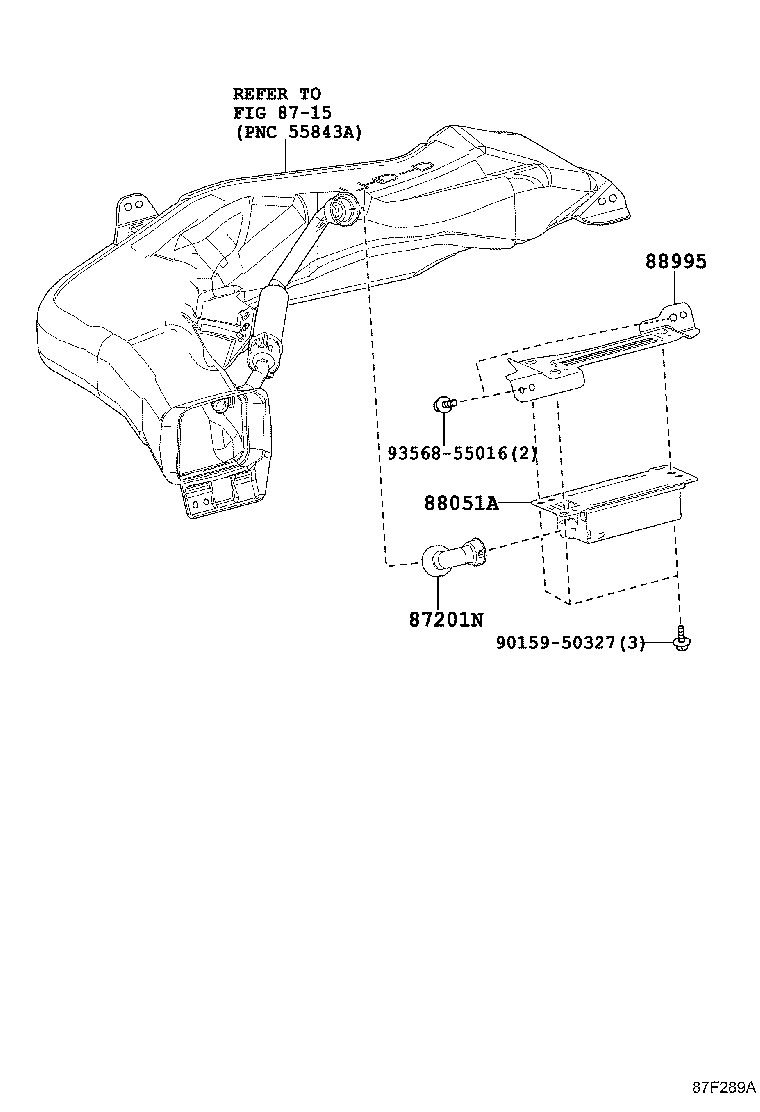

Click highlighted areas on diagram

diagram 8715 87201N 88051A 88995 9015950327 9356855016
Part # Description Qty Price
87201N - DUCT SUB-ASSY, AIR
55848-48050

GGL25,GYL25..A

MINUS ION GENERATOR-WITH

 1
88051A - GENERATOR SUB-ASSY,ION
88051-28060

GGL25,GYL25..A

MINUS ION GENERATOR-WITH

 1
88995 - BRACKET,ION GENERATOR, NO.1
88995-48020

GGL25,GYL25..A

MINUS ION GENERATOR-WITH

 1
Common parts
90159-50327
93568-55016
Linked diagrams
8715
