GGL25L-BWZGBA (2015)

Toyota Lexus Rx450h/350(Jpp

Production Sep 2015 - Aug 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1509- )A

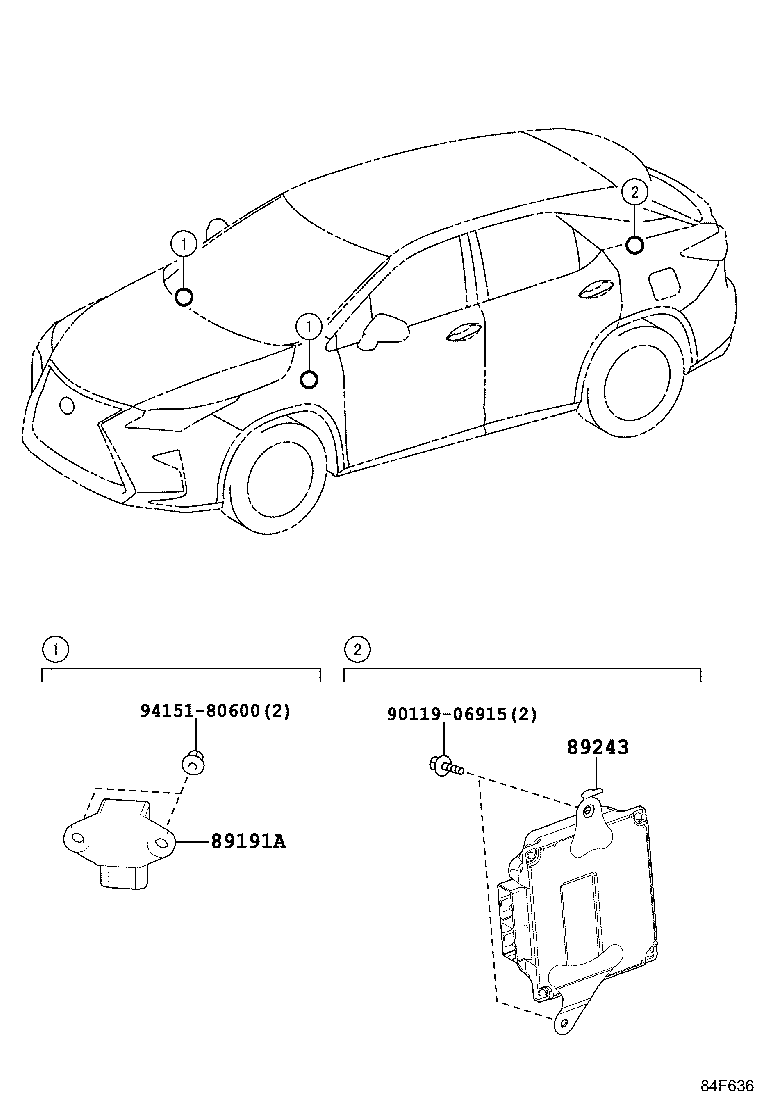

Click highlighted areas on diagram

diagram 89191A 89243 9011906915 9415180600
Part # Description Qty Price
89191A - SENSOR, ACCELERATION
89191-22020

GGL25,GYL25..A

"F-SPORT"*(F)&*AVS-WITH

 2
89191-22020

GGL25,GYL25..A

"VERSION L"*(L)&*AVS-WITH

 2
89243 - COMPUTER, ABSORBER CONTROL
89243-48010

GGL25,GYL25..A

"VERSION L"*(L)&*AVS-WITH

 1
89243-48020

GGL25,GYL25..A

"F-SPORT"*(F)&*AVS-WITH

 1
Common parts
90119-06915
94151-80600
