GGL25L-BWZGBA (2015)

Toyota Lexus Rx450h/350(Jpp

Production Sep 2015 - Aug 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1509- )

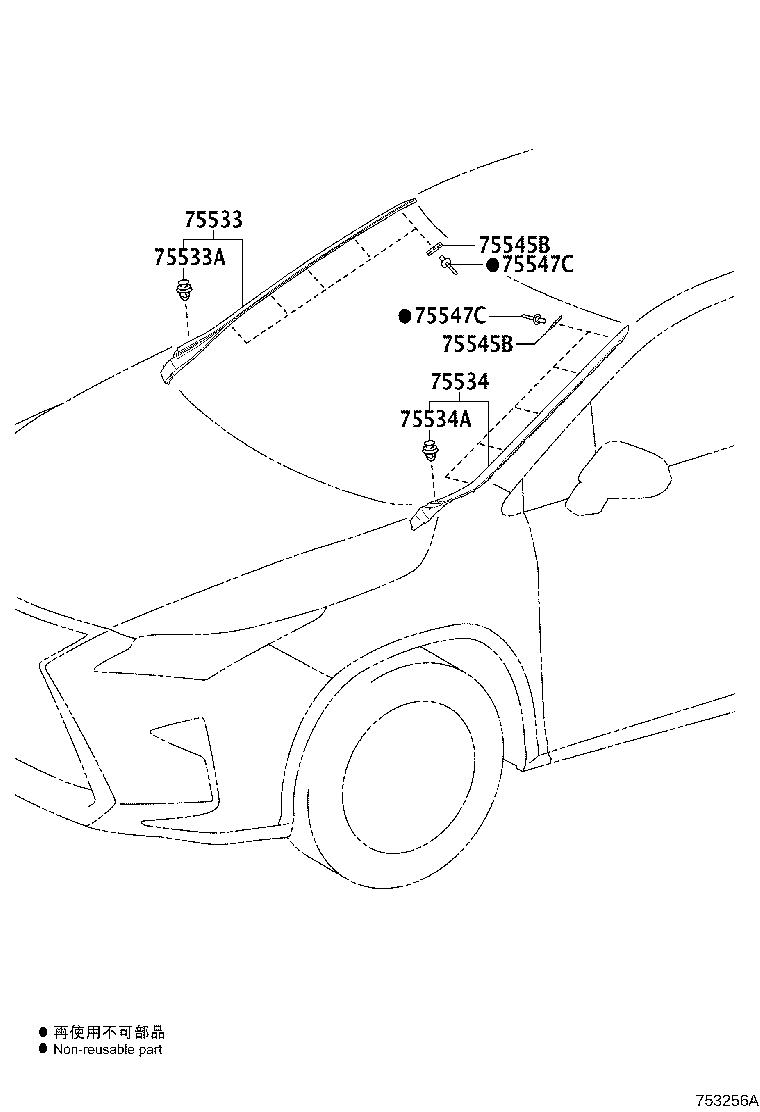

Click highlighted areas on diagram

diagram 75533 75533A 75534 75534A 75545B 75545B 75547C 75547C
Part # Description Qty Price
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75535-48010

GGL25,GYL25

 1
75533A - CLIP, WINDSHIELD SIDE MOULDING, RH
90467-10204

GGL25,GYL25

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75536-48010

GGL25,GYL25

 1
75534A - CLIP, WINDSHIELD SIDE MOULDING, LH
90467-10204

GGL25,GYL25

 1
75545B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75545-30170

GGL25,GYL25

 10
75545B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75545-30170

GGL25,GYL25

 10
75547C - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-51021

GGL25,GYL25

 10
75547C - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-51021

GGL25,GYL25

 10
