GGL25L-BWZGBA (2015)
Toyota Lexus Rx450h/350(Jpp

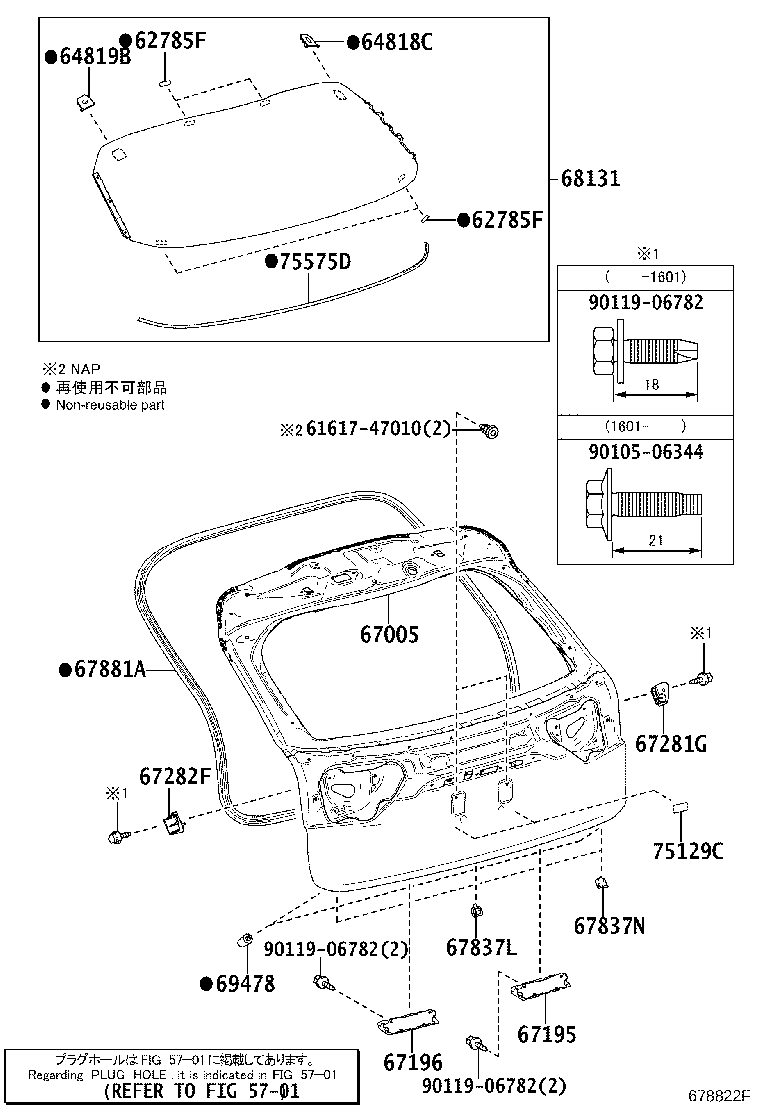

ILLUST NO. 1 OF 2(1509- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-60030 |
GGL25,GYL25 |
4 | ||
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-60030 |
GGL25,GYL25 |
4 | ||
| 64818C - SPACER, BACK WINDOW GLASS, NO.1 | ||||
| 64818-48060 |
GGL25,GYL25 |
1 | ||
| 64819B - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-48060 |
GGL25,GYL25 |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-48840 |
GGL25..B AUTO & EASY CLOSER DOOR-WITH(TOUCHLESS POWER BACK DOOR) |
1 | ||
| 67005-48720 |
GGL25,GYL25..A AUTO & EASY CLOSER DOOR-WITH(TOUCHLESS POWER BACK DOOR) |
1 | ||
| 67005-48820 |
GGL25..B AUTO & EASY CLOSER DOOR-WITH(TOUCHLESS POWER BACK DOOR) |
1 | ||
| 67005-48850 |
GGL25..B |
1 | ||
| 67005-48830 |
GGL25..B |
1 | ||
| 67005-48730 |
GGL25,GYL25..A |
1 | ||
| 67195 - REINFORCEMENT, BACK DOOR STAY, LOWER RH | ||||
| 67195-48010 |
GGL25,GYL25 |
1 | ||
| 67196 - REINFORCEMENT, BACK DOOR STAY, LOWER LH | ||||
| 67195-48010 |
GGL25,GYL25 |
1 | ||
| 67281G - STOPPER, BACK DOOR, LOWER RH | ||||
| 67281-48021 |
GGL25,GYL25 |
1 | ||
| 67281-48020 |
GGL25,GYL25 |
1 | ||
| 67282F - STOPPER, BACK DOOR, LWR LH | ||||
| 67282-48011 |
GGL25,GYL25 |
1 | ||
| 67282-48010 |
GGL25,GYL25 |
1 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-0E010 |
GGL25,GYL25 |
1 | ||
| 67837N - SEAL, BACK DOOR DUST PROOF | ||||
| 67837-48100 |
GGL25,GYL25 |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-48080 |
GGL25,GYL25 |
1 | ||
| 67881-48081 |
GGL25,GYL25 |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-48500 |
GGL25..B |
1 | ||
| 68105-48520 |
GGL25,GYL25..A |
1 | ||
| 69478 - CUSHION, BACK DOOR LOWER STOPPER | ||||
| 69478-48020 |
GGL25,GYL25 |
2 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-30010 |
GGL25..B |
2 | ||
| 75575D - MOULDING, BACK WINDOW, LOWER | ||||
| 75575-48050 |
GGL25,GYL25 |
1 | ||
| Common parts | ||||
| 61617-47010 | ||||
| 90105-06344 | ||||
| 90119-06782 | ||||
| Linked diagrams | ||||
| 5701 | ||||

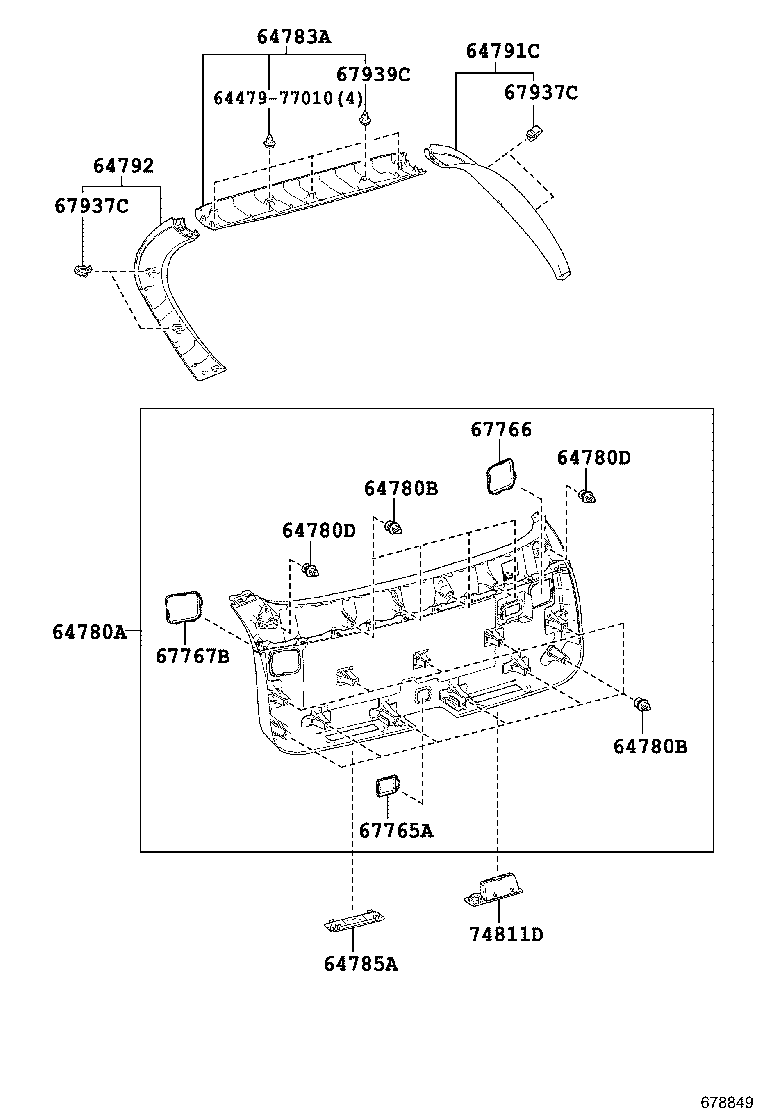

ILLUST NO. 2 OF 2(1509- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64780A - PANEL ASSY, BACK DOOR TRIM | ||||
| 64780-48090C1 |
GGL25,GYL25..A BLACK,TRIM2#,3#,4# |
1 | ||
| 64780-48090C1 |
GGL25..B BLACK,TRIM2#,4# |
1 | ||
| 64780-48090E1 |
GGL25,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 64780B - CLIP(FOR BACK DOOR TRIM PANEL) | ||||
| 90467-10161 |
GGL25,GYL25 |
15 | ||
| 64780B - CLIP(FOR BACK DOOR TRIM PANEL) | ||||
| 90467-10161 |
GGL25,GYL25 |
15 | ||
| 64780D - RETAINER(FOR BACK DOOR TRIM BOARD) | ||||
| 64479-77010 |
GGL25,GYL25 |
2 | ||
| 64780D - RETAINER(FOR BACK DOOR TRIM BOARD) | ||||
| 64479-77010 |
GGL25,GYL25 |
2 | ||
| 64783A - TRIM, BACK WINDOW PANEL, UPPER | ||||
| 64783-48090C0 |
GGL25..B BLACK,TRIM2#,4# |
1 | ||
| 64783-48090E0 |
GGL25,GYL25..A NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 64783-48090E0 |
GGL25..B NOBLE BROWN,TRIM0#,5# |
1 | ||
| 64783-48090C0 |
GGL25,GYL25..A BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 64785A - BASE, BACK DOOR TRIM | ||||
| 64785-48020C0 |
GGL25..B BLACK,TRIM2#,4# |
1 | ||
| 64785-48020E0 |
GGL25,GYL25..A NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 64785-48020E0 |
GGL25..B NOBLE BROWN,TRIM0#,5# |
1 | ||
| 64785-48020C0 |
GGL25,GYL25..A BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 64791C - COVER, BACK DOOR TRIM, RH | ||||
| 64791-48060C0 |
GGL25,GYL25..A BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 64791-48060E0 |
GGL25..B NOBLE BROWN,TRIM0#,5# |
1 | ||
| 64791-48060E0 |
GGL25,GYL25..A NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 64791-48060C0 |
GGL25..B BLACK,TRIM2#,4# |
1 | ||
| 64792 - COVER, BACK DOOR TRIM, LH | ||||
| 64792-48070E0 |
GGL25,GYL25..A NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 64792-48070E0 |
GGL25..B NOBLE BROWN,TRIM0#,5# |
1 | ||
| 64792-48070C0 |
GGL25,GYL25..A BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 64792-48070C0 |
GGL25..B BLACK,TRIM2#,4# |
1 | ||
| 67765A - COVER, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67765-48030C0 |
GGL25,GYL25..A BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 67765-48030E0 |
GGL25..B NOBLE BROWN,TRIM0#,5# |
1 | ||
| 67765-48030E0 |
GGL25,GYL25..A NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 67765-48030C0 |
GGL25..B BLACK,TRIM2#,4# |
1 | ||
| 67766 - COVER, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67766-48030C0 |
GGL25,GYL25..A BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 67766-48030C0 |
GGL25..B BLACK,TRIM2#,4# |
1 | ||
| 67766-48030E0 |
GGL25..B NOBLE BROWN,TRIM0#,5# |
1 | ||
| 67766-48030E0 |
GGL25,GYL25..A NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 67767B - COVER, BACK DOOR SERVICE HOLE, NO.3 | ||||
| 67767-48030E0 |
GGL25..B NOBLE BROWN,TRIM0#,5# |
1 | ||
| 67767-48030E0 |
GGL25,GYL25..A NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 67767-48030C0 |
GGL25,GYL25..A BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 67767-48030C0 |
GGL25..B BLACK,TRIM2#,4# |
1 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 90467-09241 |
GGL25,GYL25 |
4 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 90467-09241 |
GGL25,GYL25 |
4 | ||
| 67939C - CLIP(FOR BACK DOOR CENTER GARNISH) | ||||
| 67771-58020 |
GGL25,GYL25 |
1 | ||
| 74811D - HANDLE, DOOR PULL | ||||
| 69291-48030C0 |
GGL25..B BLACK,TRIM2#,4# |
1 | ||
| 69291-48030E0 |
GGL25,GYL25..A NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 69291-48030E0 |
GGL25..B NOBLE BROWN,TRIM0#,5# |
1 | ||
| 69291-48030C0 |
GGL25,GYL25..A BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| Common parts | ||||
| 64479-77010 | ||||
