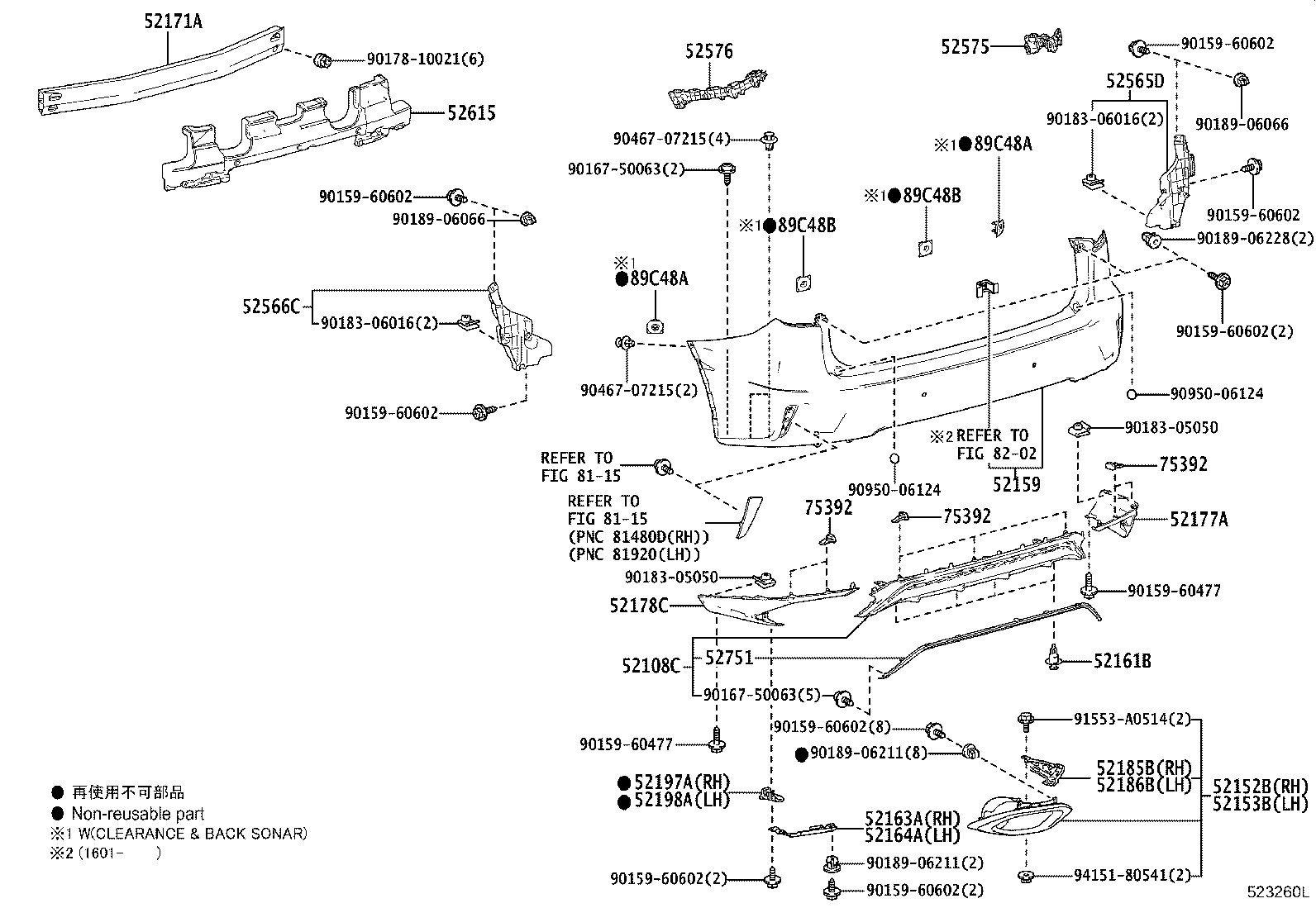

GGL25L-BWZGBA (2015)
Toyota Lexus Rx450h/350(Jpp
(1509-1908)GGL25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52108C - EXTENSION SUB-ASSY, REAR BUMPER, CENTER | ||||
| 52108-48020 |
GGL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52108-48020 |
GGL25..A "F-SPORT"*(F) |
1 | ||
| 52108-48010 |
GGL25 |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52106-48020 |
GGL25 |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52107-48020 |
GGL25 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-48931 |
GGL25,GYL25..A PAINT REQ.,CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52159-48921 |
GGL25..A PAINT REQ.,"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52159-48932 |
GGL25..B PAINT REQ. |
1 | ||
| 52159-48921 |
GGL25,GYL25..A PAINT REQ.,CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52159-48924 |
GGL25,GYL25..A PAINT REQ. |
1 | ||
| 52159-48931 |
GGL25..B PAINT REQ. |
1 | ||
| 52159-48925 |
GGL25..B PAINT REQ. |
1 | ||
| 52159-48931 |
GGL25..A PAINT REQ.,"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GGL25,GYL25 |
4 | ||
| 52163A - PLATE, REAR BUMPER, RH | ||||
| 52163-48020 |
GGL25 |
1 | ||
| 52164A - PLATE, REAR BUMPER, LH | ||||
| 52164-48020 |
GGL25 |
1 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52171-0E120 |
GGL25..B |
1 | ||
| 52171-48220 |
GGL25,GYL25..A |
1 | ||
| 52177A - RETAINER, REAR BUMPER EXTENSION, RH | ||||
| 52177-48010 |
GGL25 |
1 | ||
| 52178C - RETAINER, REAR BUMPER EXTENSION, LH | ||||
| 52178-48010 |
GGL25 |
1 | ||
| 52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH | ||||
| 52185-48050 |
GGL25 |
1 | ||
| 52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH | ||||
| 52186-48030 |
GGL25 |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-48020 |
GGL25 |
1 | ||
| 52198A - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52198-48010 |
GGL25 |
1 | ||
| 52565D - RETAINER, REAR BUMPER, LOWER RH | ||||
| 52565-48040 |
GGL25,GYL25 |
1 | ||
| 52566C - RETAINER, REAR BUMPER, LOWER LH | ||||
| 52566-48030 |
GGL25,GYL25 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-48050 |
GGL25,GYL25 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-48050 |
GGL25,GYL25 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-48181 |
GGL25,GYL25..A |
1 | ||
| 52615-48211 |
GGL25..B |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-48181 |
GGL25,GYL25..A |
1 | ||
| 52615-48211 |
GGL25..B |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GGL25,GYL25 |
7 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GGL25,GYL25 |
7 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GGL25,GYL25 |
7 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-48020E1 |
GGL25..B AMBER CS.,4X2 |
2 | ||
| 89348-48020A1 |
GGL25..B SONIC QUARTZ,085 |
2 | ||
| 89348-48020A0 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),WHITE NOVA GF.,083 |
2 | ||
| 89348-48020A1 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC QUARTZ,085 |
2 | ||
| 89348-48020C0 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),BLACK,212 |
2 | ||
| 89348-48020B3 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),PLATINUM SILVERME.,1J4 |
2 | ||
| 89348-48020B3 |
GGL25..B PLATINUM SILVER ME.,1J4 |
2 | ||
| 89348-48020B2 |
GGL25..B SONIC TITANIUM,1J7 |
2 | ||
| 89348-48020B0 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),MERCURY GRAY MC.,1H9 |
2 | ||
| 89348-48020C1 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),GRAPHITE BLACK GF.,223 |
2 | ||
| 89348-48020C1 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),GRAPHITE BLACK GF.,223 |
2 | ||
| 89348-48020C1 |
GGL25..B GRAPHITE BLACK GF.,223 |
2 | ||
| 89348-48020B2 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC TITANIUM,1J7 |
2 | ||
| 89348-48020C0 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),BLACK,212 |
2 | ||
| 89348-48020C0 |
GGL25..B BLACK,212 |
2 | ||
| 89348-48020B2 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC TITANIUM,1J7 |
2 | ||
| 89348-48020D0 |
GGL25..B RED MC.CS.,3R1 |
2 | ||
| 89348-48020E0 |
GGL25..B SLEEK ECRU ME.,4U7 |
2 | ||
| 89348-48020E0 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SLEEK ECRU ME.,4U7 |
2 | ||
| 89348-48020D0 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RED MC.CS.,3R1 |
2 | ||
| 89348-48020B3 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),PLATINUM SILVER ME.,1J4 |
2 | ||
| 89348-48020D0 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RED MC.CS.,3R1 |
2 | ||
| 89348-48020J0 |
GGL25..B DEEP BLUE MC.,8X5 |
2 | ||
| 89348-48020E1 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),AMBER CS.,4X2 |
2 | ||
| 89348-48020J0 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),DEEP BLUE MC.,8X5 |
2 | ||
| 89348-48020J1 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),HEAT BLUE CONTRAST LAYERI,8X1 |
2 | ||
| 89348-48020J0 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),DEEP BLUE MC.,8X5 |
2 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-48020E1 |
GGL25..B AMBER CS.,4X2 |
2 | ||
| 89348-48020A1 |
GGL25..B SONIC QUARTZ,085 |
2 | ||
| 89348-48020A0 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),WHITE NOVA GF.,083 |
2 | ||
| 89348-48020A1 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC QUARTZ,085 |
2 | ||
| 89348-48020C0 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),BLACK,212 |
2 | ||
| 89348-48020B3 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),PLATINUM SILVERME.,1J4 |
2 | ||
| 89348-48020B3 |
GGL25..B PLATINUM SILVER ME.,1J4 |
2 | ||
| 89348-48020B2 |
GGL25..B SONIC TITANIUM,1J7 |
2 | ||
| 89348-48020B0 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),MERCURY GRAY MC.,1H9 |
2 | ||
| 89348-48020C1 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),GRAPHITE BLACK GF.,223 |
2 | ||
| 89348-48020C1 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),GRAPHITE BLACK GF.,223 |
2 | ||
| 89348-48020C1 |
GGL25..B GRAPHITE BLACK GF.,223 |
2 | ||
| 89348-48020B2 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC TITANIUM,1J7 |
2 | ||
| 89348-48020C0 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),BLACK,212 |
2 | ||
| 89348-48020C0 |
GGL25..B BLACK,212 |
2 | ||
| 89348-48020B2 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC TITANIUM,1J7 |
2 | ||
| 89348-48020D0 |
GGL25..B RED MC.CS.,3R1 |
2 | ||
| 89348-48020E0 |
GGL25..B SLEEK ECRU ME.,4U7 |
2 | ||
| 89348-48020E0 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SLEEK ECRU ME.,4U7 |
2 | ||
| 89348-48020D0 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RED MC.CS.,3R1 |
2 | ||
| 89348-48020B3 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),PLATINUM SILVER ME.,1J4 |
2 | ||
| 89348-48020D0 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RED MC.CS.,3R1 |
2 | ||
| 89348-48020J0 |
GGL25..B DEEP BLUE MC.,8X5 |
2 | ||
| 89348-48020E1 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),AMBER CS.,4X2 |
2 | ||
| 89348-48020J0 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),DEEP BLUE MC.,8X5 |
2 | ||
| 89348-48020J1 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),HEAT BLUE CONTRAST LAYERI,8X1 |
2 | ||
| 89348-48020J0 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),DEEP BLUE MC.,8X5 |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-48010 |
GGL25..B |
2 | ||
| 89348-48010 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
2 | ||
| 89348-48010 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-48010 |
GGL25..B |
2 | ||
| 89348-48010 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
2 | ||
| 89348-48010 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
2 | ||
| Common parts | ||||
| 90159-60477 | ||||
| 90159-60602 | ||||
| 90167-50063 | ||||
| 90178-10021 | ||||
| 90183-05050 | ||||
| 90183-06016 | ||||
| 90189-06066 | ||||
| 90189-06211 | ||||
| 90189-06228 | ||||
| 90467-07215 | ||||
| 90950-06124 | ||||
| 91553-A0514 | ||||
| 94151-80541 | ||||
| Linked diagrams | ||||
| 8115 | ||||
| 8202 | ||||

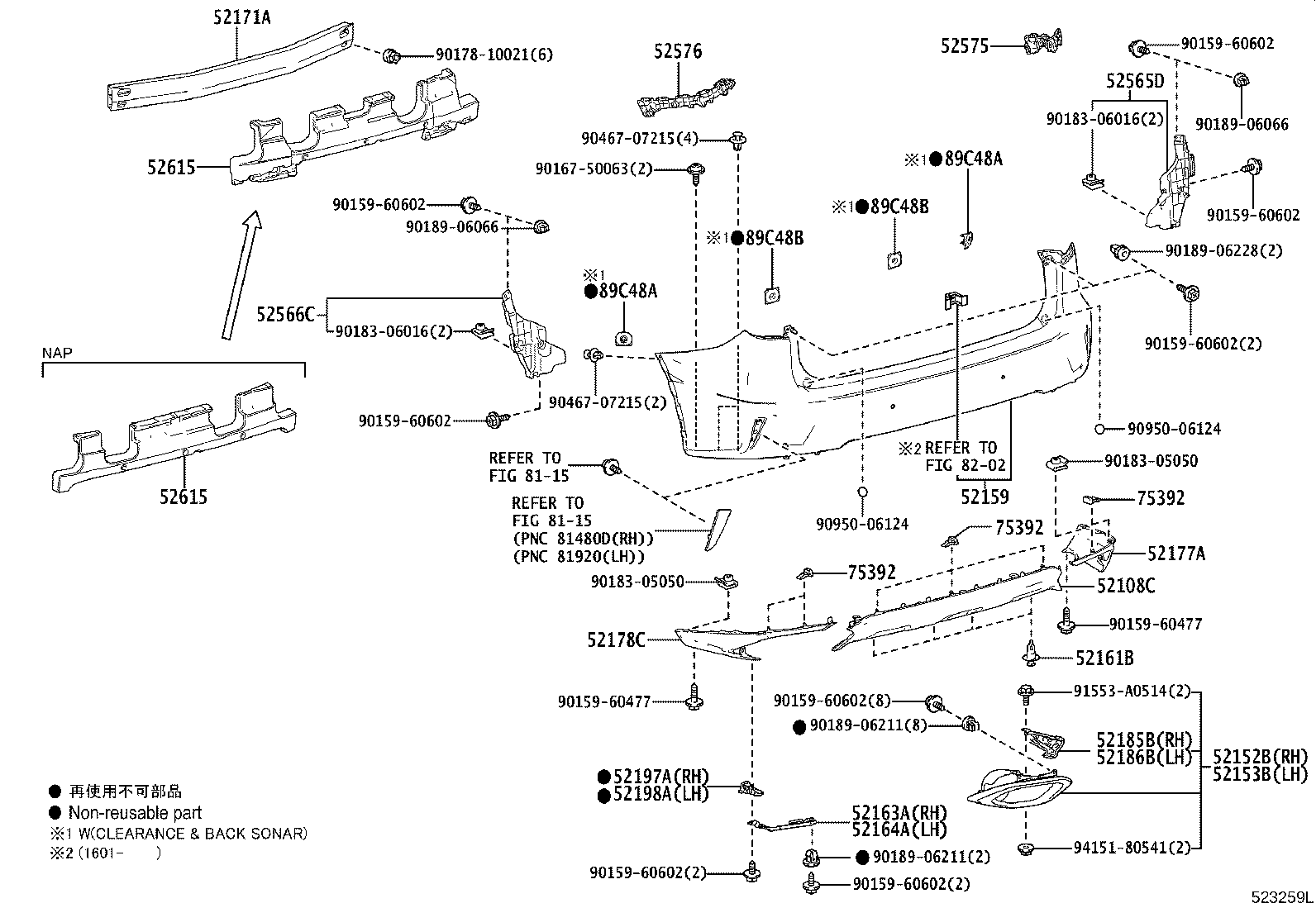

(1509-1908)GGL25
F SPORT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52108C - EXTENSION SUB-ASSY, REAR BUMPER, CENTER | ||||
| 52108-48020 |
GGL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52108-48020 |
GGL25..A "F-SPORT"*(F) |
1 | ||
| 52108-48010 |
GGL25 |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52106-48020 |
GGL25 |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52107-48020 |
GGL25 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-48931 |
GGL25,GYL25..A PAINT REQ.,CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52159-48921 |
GGL25..A PAINT REQ.,"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52159-48932 |
GGL25..B PAINT REQ. |
1 | ||
| 52159-48921 |
GGL25,GYL25..A PAINT REQ.,CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52159-48924 |
GGL25,GYL25..A PAINT REQ. |
1 | ||
| 52159-48931 |
GGL25..B PAINT REQ. |
1 | ||
| 52159-48925 |
GGL25..B PAINT REQ. |
1 | ||
| 52159-48931 |
GGL25..A PAINT REQ.,"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GGL25,GYL25 |
4 | ||
| 52163A - PLATE, REAR BUMPER, RH | ||||
| 52163-48020 |
GGL25 |
1 | ||
| 52164A - PLATE, REAR BUMPER, LH | ||||
| 52164-48020 |
GGL25 |
1 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52171-0E120 |
GGL25..B |
1 | ||
| 52171-48220 |
GGL25,GYL25..A |
1 | ||
| 52177A - RETAINER, REAR BUMPER EXTENSION, RH | ||||
| 52177-48010 |
GGL25 |
1 | ||
| 52178C - RETAINER, REAR BUMPER EXTENSION, LH | ||||
| 52178-48010 |
GGL25 |
1 | ||
| 52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH | ||||
| 52185-48050 |
GGL25 |
1 | ||
| 52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH | ||||
| 52186-48030 |
GGL25 |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-48020 |
GGL25 |
1 | ||
| 52198A - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52198-48010 |
GGL25 |
1 | ||
| 52565D - RETAINER, REAR BUMPER, LOWER RH | ||||
| 52565-48040 |
GGL25,GYL25 |
1 | ||
| 52566C - RETAINER, REAR BUMPER, LOWER LH | ||||
| 52566-48030 |
GGL25,GYL25 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-48050 |
GGL25,GYL25 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-48050 |
GGL25,GYL25 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-48181 |
GGL25,GYL25..A |
1 | ||
| 52615-48211 |
GGL25..B |
1 | ||
| 52751 - MOULDING, REAR BUMPER | ||||
| 52751-48030 |
GGL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52751-48030 |
GGL25..A "F-SPORT"*(F) |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GGL25,GYL25 |
7 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GGL25,GYL25 |
7 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GGL25,GYL25 |
7 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-48020E1 |
GGL25..B AMBER CS.,4X2 |
2 | ||
| 89348-48020A1 |
GGL25..B SONIC QUARTZ,085 |
2 | ||
| 89348-48020A0 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),WHITE NOVA GF.,083 |
2 | ||
| 89348-48020A1 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC QUARTZ,085 |
2 | ||
| 89348-48020C0 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),BLACK,212 |
2 | ||
| 89348-48020B3 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),PLATINUM SILVERME.,1J4 |
2 | ||
| 89348-48020B3 |
GGL25..B PLATINUM SILVER ME.,1J4 |
2 | ||
| 89348-48020B2 |
GGL25..B SONIC TITANIUM,1J7 |
2 | ||
| 89348-48020B0 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),MERCURY GRAY MC.,1H9 |
2 | ||
| 89348-48020C1 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),GRAPHITE BLACK GF.,223 |
2 | ||
| 89348-48020C1 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),GRAPHITE BLACK GF.,223 |
2 | ||
| 89348-48020C1 |
GGL25..B GRAPHITE BLACK GF.,223 |
2 | ||
| 89348-48020B2 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC TITANIUM,1J7 |
2 | ||
| 89348-48020C0 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),BLACK,212 |
2 | ||
| 89348-48020C0 |
GGL25..B BLACK,212 |
2 | ||
| 89348-48020B2 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC TITANIUM,1J7 |
2 | ||
| 89348-48020D0 |
GGL25..B RED MC.CS.,3R1 |
2 | ||
| 89348-48020E0 |
GGL25..B SLEEK ECRU ME.,4U7 |
2 | ||
| 89348-48020E0 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SLEEK ECRU ME.,4U7 |
2 | ||
| 89348-48020D0 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RED MC.CS.,3R1 |
2 | ||
| 89348-48020B3 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),PLATINUM SILVER ME.,1J4 |
2 | ||
| 89348-48020D0 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RED MC.CS.,3R1 |
2 | ||
| 89348-48020J0 |
GGL25..B DEEP BLUE MC.,8X5 |
2 | ||
| 89348-48020E1 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),AMBER CS.,4X2 |
2 | ||
| 89348-48020J0 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),DEEP BLUE MC.,8X5 |
2 | ||
| 89348-48020J1 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),HEAT BLUE CONTRAST LAYERI,8X1 |
2 | ||
| 89348-48020J0 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),DEEP BLUE MC.,8X5 |
2 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-48020E1 |
GGL25..B AMBER CS.,4X2 |
2 | ||
| 89348-48020A1 |
GGL25..B SONIC QUARTZ,085 |
2 | ||
| 89348-48020A0 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),WHITE NOVA GF.,083 |
2 | ||
| 89348-48020A1 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC QUARTZ,085 |
2 | ||
| 89348-48020C0 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),BLACK,212 |
2 | ||
| 89348-48020B3 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),PLATINUM SILVERME.,1J4 |
2 | ||
| 89348-48020B3 |
GGL25..B PLATINUM SILVER ME.,1J4 |
2 | ||
| 89348-48020B2 |
GGL25..B SONIC TITANIUM,1J7 |
2 | ||
| 89348-48020B0 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),MERCURY GRAY MC.,1H9 |
2 | ||
| 89348-48020C1 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),GRAPHITE BLACK GF.,223 |
2 | ||
| 89348-48020C1 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),GRAPHITE BLACK GF.,223 |
2 | ||
| 89348-48020C1 |
GGL25..B GRAPHITE BLACK GF.,223 |
2 | ||
| 89348-48020B2 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC TITANIUM,1J7 |
2 | ||
| 89348-48020C0 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),BLACK,212 |
2 | ||
| 89348-48020C0 |
GGL25..B BLACK,212 |
2 | ||
| 89348-48020B2 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC TITANIUM,1J7 |
2 | ||
| 89348-48020D0 |
GGL25..B RED MC.CS.,3R1 |
2 | ||
| 89348-48020E0 |
GGL25..B SLEEK ECRU ME.,4U7 |
2 | ||
| 89348-48020E0 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SLEEK ECRU ME.,4U7 |
2 | ||
| 89348-48020D0 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RED MC.CS.,3R1 |
2 | ||
| 89348-48020B3 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),PLATINUM SILVER ME.,1J4 |
2 | ||
| 89348-48020D0 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RED MC.CS.,3R1 |
2 | ||
| 89348-48020J0 |
GGL25..B DEEP BLUE MC.,8X5 |
2 | ||
| 89348-48020E1 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),AMBER CS.,4X2 |
2 | ||
| 89348-48020J0 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),DEEP BLUE MC.,8X5 |
2 | ||
| 89348-48020J1 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),HEAT BLUE CONTRAST LAYERI,8X1 |
2 | ||
| 89348-48020J0 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),DEEP BLUE MC.,8X5 |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-48010 |
GGL25..B |
2 | ||
| 89348-48010 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
2 | ||
| 89348-48010 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-48010 |
GGL25..B |
2 | ||
| 89348-48010 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
2 | ||
| 89348-48010 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
2 | ||
| Common parts | ||||
| 90159-60477 | ||||
| 90159-60602 | ||||
| 90167-50063 | ||||
| 90178-10021 | ||||
| 90183-05050 | ||||
| 90183-06016 | ||||
| 90189-06066 | ||||
| 90189-06211 | ||||
| 90189-06228 | ||||
| 90467-07215 | ||||
| 90950-06124 | ||||
| 91553-A0514 | ||||
| 94151-80541 | ||||
| Linked diagrams | ||||
| 8115 | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
