GGL25L-BWZGBA (2015)
Toyota Lexus Rx450h/350(Jpp

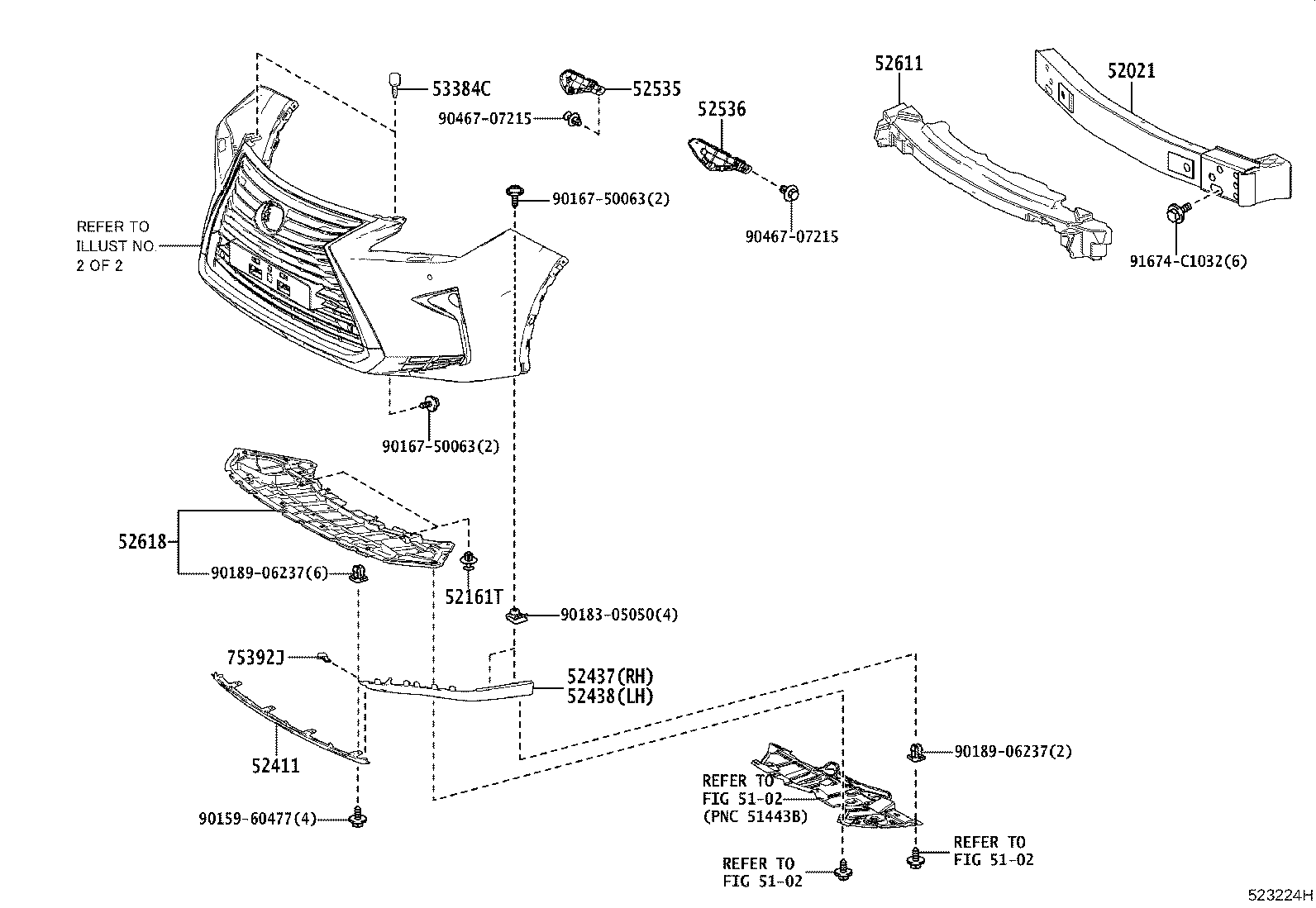

ILLUST NO. 1 OF 2(1509-1908)A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-48061 |
GGL25,GYL25 |
1 | ||
| 52021-48100 |
GGL25,GYL25 |
1 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 90467-07215 |
GGL25,GYL25..A |
2 | ||
| 52411 - GUARD, FRONT BUMPER | ||||
| 52411-48030 |
GGL25,GYL25 |
1 | ||
| 52437 - COVER, FRONT BUMPER GUARD, RH | ||||
| 52437-48020 |
GGL25,GYL25 |
1 | ||
| 52438 - COVER, FRONT BUMPER GUARD, LH | ||||
| 52438-48020 |
GGL25,GYL25 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-48050 |
GGL25,GYL25 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-48040 |
GGL25,GYL25 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-48191 |
GGL25,GYL25 |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-48020 |
GGL25,GYL25..A |
1 | ||
| 52618-48021 |
GGL25,GYL25..A |
1 | ||
| 53384C - CUSHION, HOOD, CENTER | ||||
| 53384-22070 |
GGL25,GYL25 |
2 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GGL25,GYL25 |
2 | ||
| Common parts | ||||
| 90159-60477 | ||||
| 90167-50063 | ||||
| 90183-05050 | ||||
| 90189-06237 | ||||
| 90467-07215 | ||||
| 91674-C1032 | ||||
| Linked diagrams | ||||
| 5102 | ||||

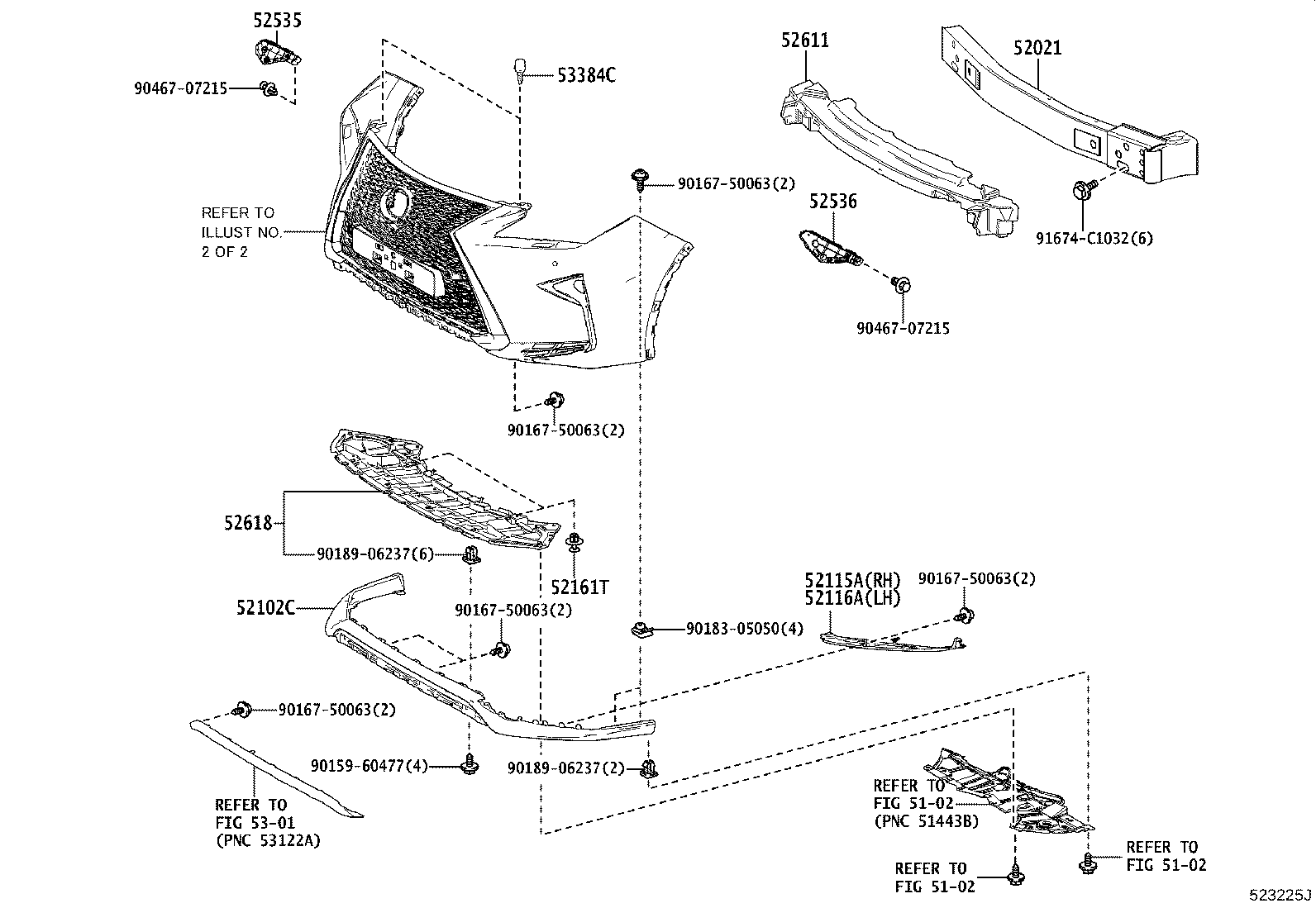

ILLUST NO. 1 OF 2(1509-1908)A
F SPORT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-48061 |
GGL25,GYL25 |
1 | ||
| 52021-48100 |
GGL25,GYL25 |
1 | ||
| 52102C - EXTENSION SUB-ASSY, FRONT BUMPER | ||||
| 52102-48010 |
GGL25,GYL25..A "F-SPORT"*(F) |
1 | ||
| 52102-48010 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 52102-48010 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52102-48010 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52102-48010 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52102-48010 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52102-48010 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52102-48010 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52102-48010 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52102-48010 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52102-48010 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE& BACK SONAR) |
1 | ||
| 52102-48010 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52115-48120 |
GGL25,GYL25..A "F-SPORT"*(F) |
1 | ||
| 52115-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 52115-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52115-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52115-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52115-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52115-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52115-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52115-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52115-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52115-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE& BACK SONAR) |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-48100 |
GGL25,GYL25..A "F-SPORT"*(F) |
1 | ||
| 52116-48100 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52116-48100 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52116-48100 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52116-48100 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE& BACK SONAR) |
1 | ||
| 52116-48100 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52116-48100 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52116-48100 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52116-48100 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52116-48100 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 52116-48100 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52116-48100 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 90467-07215 |
GGL25,GYL25..A |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-48050 |
GGL25,GYL25 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-48040 |
GGL25,GYL25 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-48191 |
GGL25,GYL25 |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-48020 |
GGL25,GYL25..A |
1 | ||
| 52618-48021 |
GGL25,GYL25..A |
1 | ||
| 53384C - CUSHION, HOOD, CENTER | ||||
| 53384-22070 |
GGL25,GYL25 |
2 | ||
| Common parts | ||||
| 90159-60477 | ||||
| 90167-50063 | ||||
| 90183-05050 | ||||
| 90189-06237 | ||||
| 90467-07215 | ||||
| 91674-C1032 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5301 | ||||

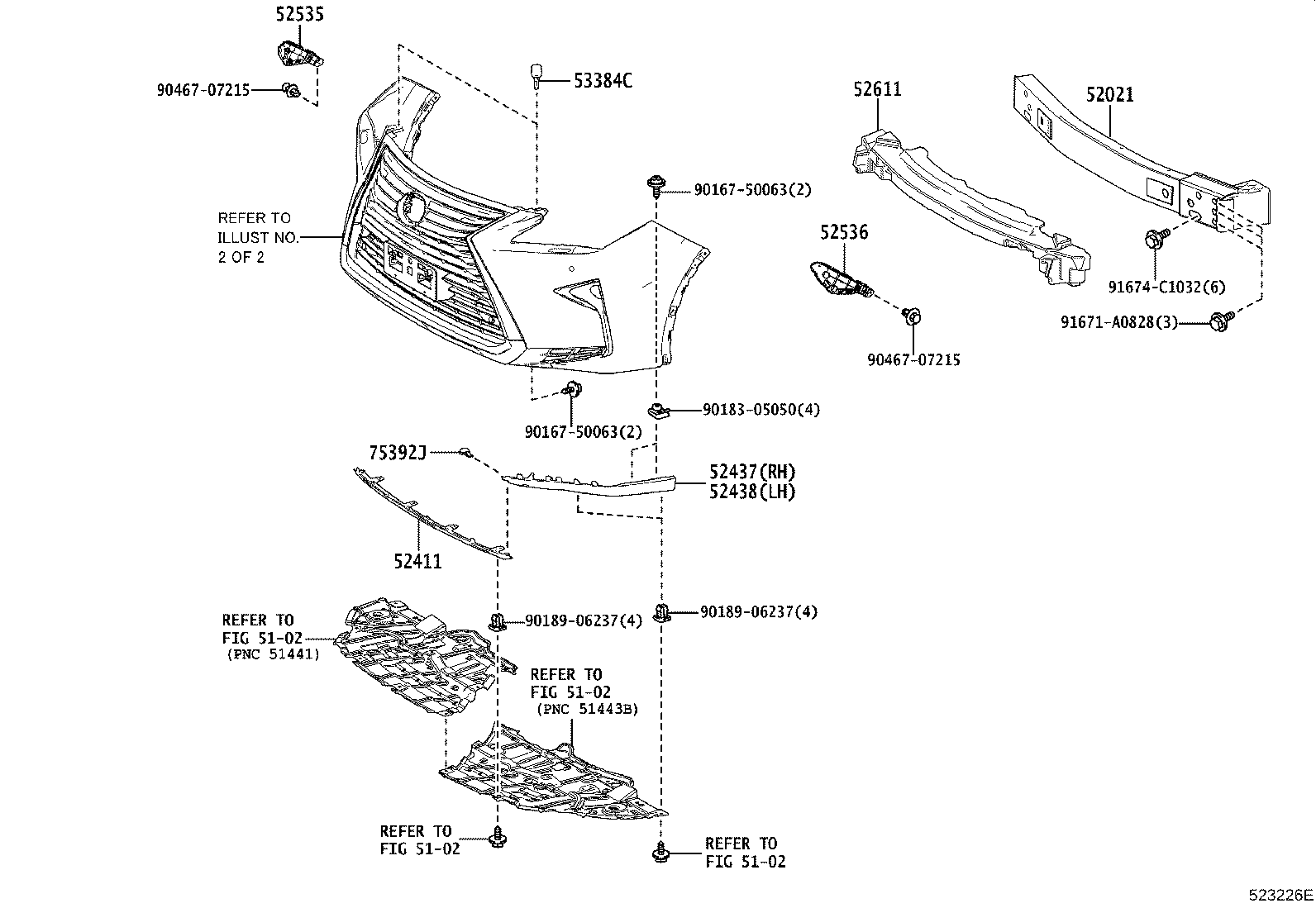

ILLUST NO. 1 OF 2(1509-1908)B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-48061 |
GGL25,GYL25 |
1 | ||
| 52021-48100 |
GGL25,GYL25 |
1 | ||
| 52411 - GUARD, FRONT BUMPER | ||||
| 52411-48030 |
GGL25,GYL25 |
1 | ||
| 52437 - COVER, FRONT BUMPER GUARD, RH | ||||
| 52437-48020 |
GGL25,GYL25 |
1 | ||
| 52438 - COVER, FRONT BUMPER GUARD, LH | ||||
| 52438-48020 |
GGL25,GYL25 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-48050 |
GGL25,GYL25 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-48040 |
GGL25,GYL25 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-48191 |
GGL25,GYL25 |
1 | ||
| 53384C - CUSHION, HOOD, CENTER | ||||
| 53384-22070 |
GGL25,GYL25 |
2 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GGL25,GYL25 |
2 | ||
| Common parts | ||||
| 90167-50063 | ||||
| 90183-05050 | ||||
| 90189-06237 | ||||
| 90467-07215 | ||||
| 91671-A0828 | ||||
| 91674-C1032 | ||||
| Linked diagrams | ||||
| 5102 | ||||

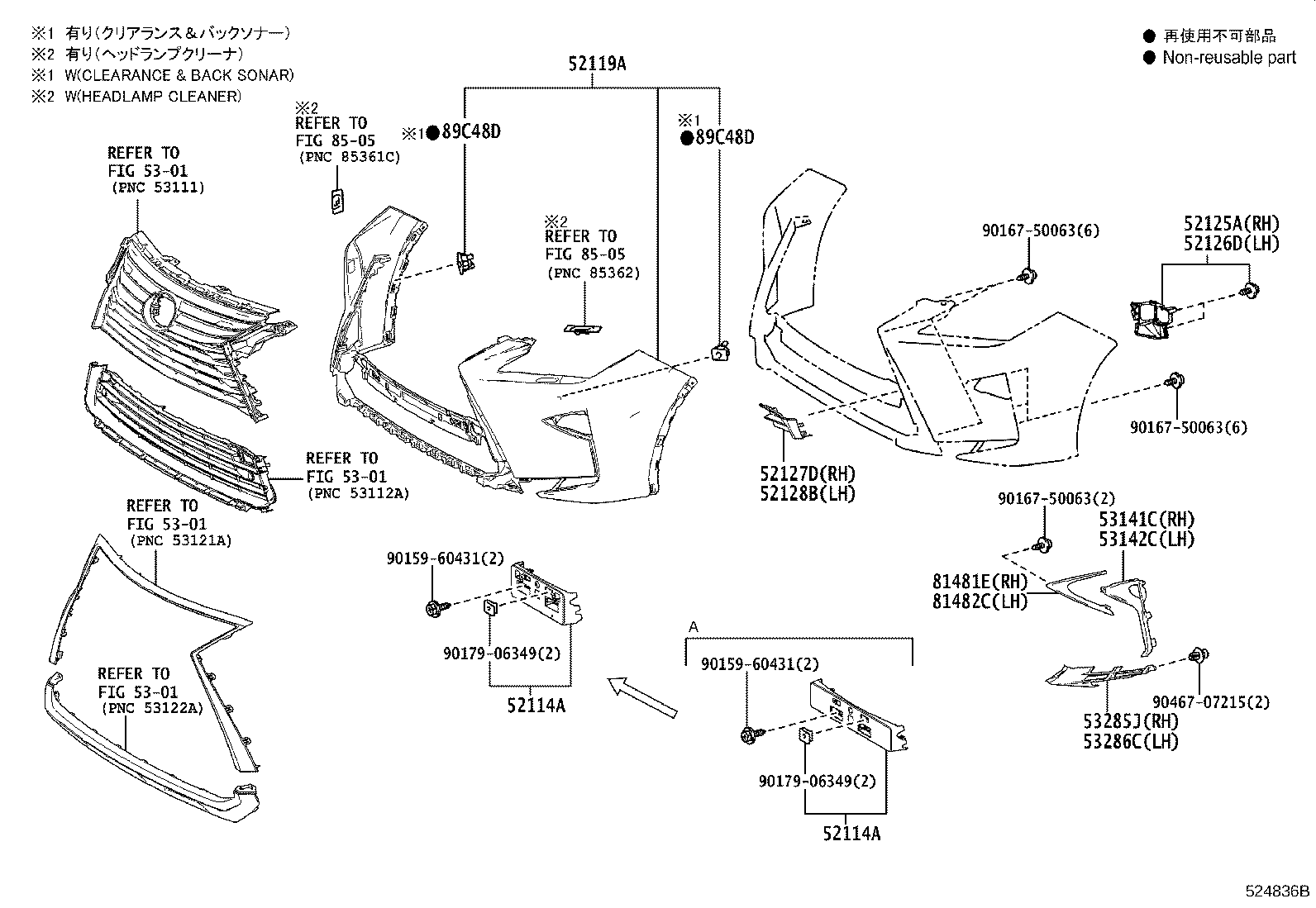

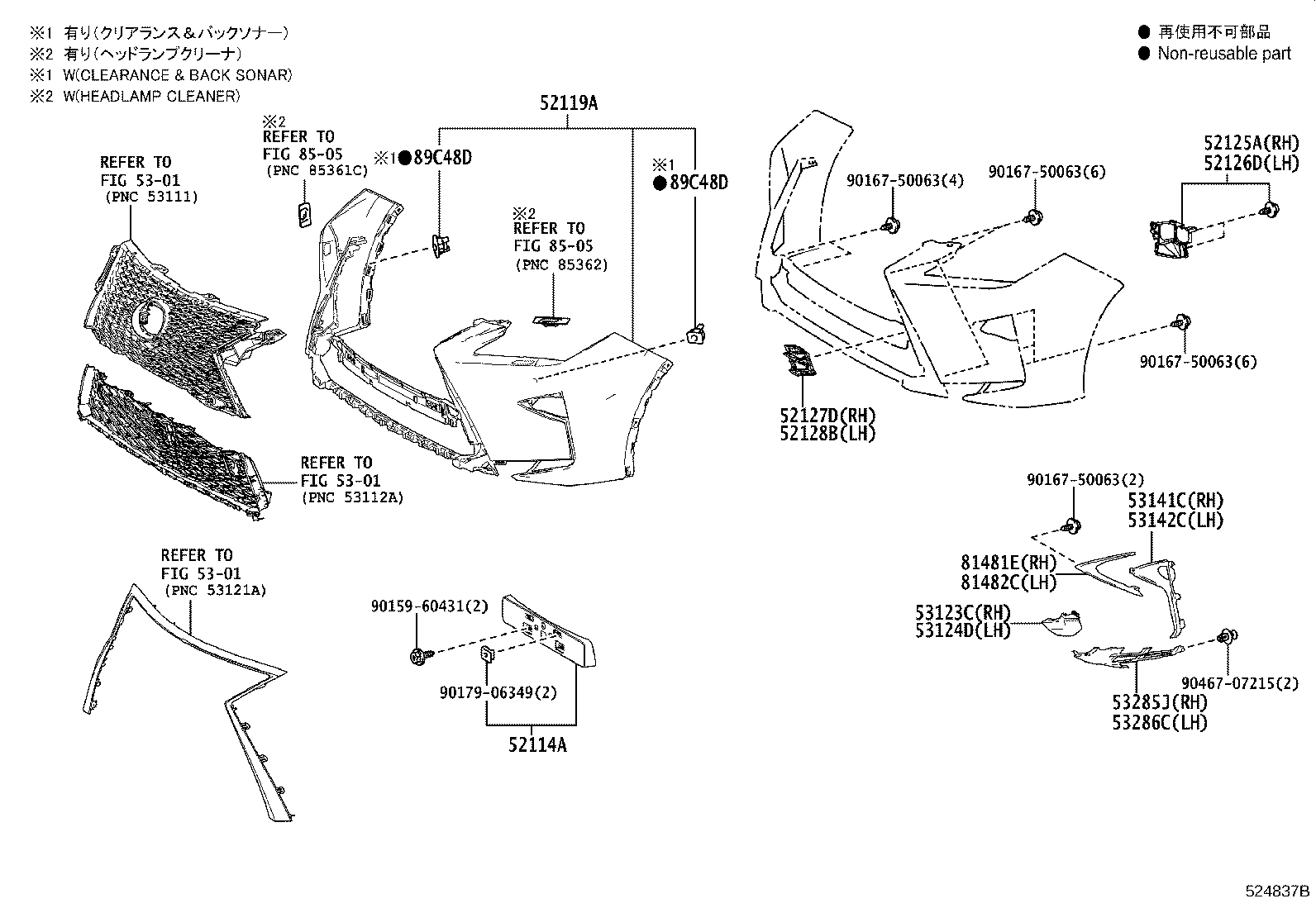

ILLUST NO. 2 OF 2(1509-1908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-48380 |
GGL25,GYL25..A "F-SPORT"*(F) |
1 | ||
| 52114-48400 |
GGL25..B |
1 | ||
| 52114-48350 |
GGL25,GYL25..A |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-48380 |
GGL25,GYL25..A "F-SPORT"*(F) |
1 | ||
| 52114-48400 |
GGL25..B |
1 | ||
| 52114-48350 |
GGL25,GYL25..A |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-4D936 |
GGL25..B |
1 | ||
| 52119-4D936 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52119-4D938 |
GGL25,GYL25..A PAINT REQ.,"F-SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52119-4D938 |
GGL25,GYL25..A PAINT REQ.,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52119-4D936 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52119-4D938 |
GGL25,GYL25..A PAINT REQ.,"F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE &BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52119-4D938 |
GGL25,GYL25..A PAINT REQ.,"F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52119-4D941 |
GGL25,GYL25..A |
1 | ||
| 52119-4D942 |
GGL25,GYL25..A PAINT REQ.,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52119-4D938 |
GGL25,GYL25..A PAINT REQ.,"F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52119-4D942 |
GGL25,GYL25..A PAINT REQ.,HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52119-4D938 |
GGL25..B PAINT REQ.,COLD AREA SPEC&TOWING PACKAGE-3500LBS |
1 | ||
| 52119-4D938 |
GGL25,GYL25..A PAINT REQ.,HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52119-4D942 |
GGL25,GYL25..A PAINT REQ.,"F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52119-4D938 |
GGL25..B PAINT REQ.,COLD AREA SPEC |
1 | ||
| 52119-4D942 |
GGL25,GYL25..A PAINT REQ.,"F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52119-4D942 |
GGL25,GYL25..A PAINT REQ.,COLD AREA SPEC |
1 | ||
| 52119-4D942 |
GGL25,GYL25..A PAINT REQ.,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52119-4D938 |
GGL25,GYL25..A PAINT REQ.,"F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52119-4D942 |
GGL25,GYL25..A PAINT REQ.,"F-SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 52119-4D942 |
GGL25,GYL25..A PAINT REQ.,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52119-4D942 |
GGL25,GYL25..A PAINT REQ.,"F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52119-4D938 |
GGL25,GYL25..A PAINT REQ.,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52119-4D942 |
GGL25,GYL25..A PAINT REQ.,"F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52119-4D938 |
GGL25,GYL25..A PAINT REQ.,COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52119-4D938 |
GGL25,GYL25..A PAINT REQ.,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-48091 |
GGL25,GYL25 |
1 | ||
| 52126D - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-48091 |
GGL25,GYL25 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-48150 |
GGL25,GYL25..A "F-SPORT"*(F) |
1 | ||
| 52127-48150 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52127-48150 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52127-48150 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52127-48150 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52127-48150 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52127-48150 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52127-48150 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 52127-48150 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE& BACK SONAR) |
1 | ||
| 52127-48150 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52127-48140 |
GGL25,GYL25 |
1 | ||
| 52127-48150 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52127-48150 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-48120 |
GGL25,GYL25..A "F-SPORT"*(F) |
1 | ||
| 52128-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52128-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52128-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52128-48110 |
GGL25,GYL25 |
1 | ||
| 52128-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52128-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52128-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52128-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 52128-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52128-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52128-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52128-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE& BACK SONAR) |
1 | ||
| 53141C - GARNISH, RADIATOR GRILLE | ||||
| 53141-48080 |
GGL25,GYL25 |
1 | ||
| 53142C - GARNISH, RADIATOR GRILLE, NO.2 | ||||
| 53142-48030 |
GGL25,GYL25 |
1 | ||
| 53285J - COVER, FRONT BUMPER ARM HOLE, RH | ||||
| 53285-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 53285-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53285-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53285-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53285-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53285-48040 |
GGL25,GYL25..A "F-SPORT"*(F) |
1 | ||
| 53285-48030 |
GGL25,GYL25 |
1 | ||
| 53285-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE& BACK SONAR) |
1 | ||
| 53285-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53285-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53285-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53285-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53285-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53286C - COVER, FRONT BUMPER ARM HOLE, LH | ||||
| 53286-0E030 |
GGL25 |
1 | ||
| 53286-0E040 |
GGL25..A "F-SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 53286-0E040 |
GGL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53286-0E040 |
GGL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE& BACK SONAR) |
1 | ||
| 53286-0E040 |
GGL25..A "F-SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53286-0E040 |
GGL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53286-0E040 |
GGL25..A "F-SPORT"*(F) |
1 | ||
| 53286-0E040 |
GGL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53286-48020 |
GGL25..B COLD AREA SPEC&TOWING PACKAGE-3500LBS |
1 | ||
| 53286-0E040 |
GGL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53286-0E040 |
GGL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53286-0E040 |
GGL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53286-0E040 |
GGL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53286-0E040 |
GGL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53286-48020 |
GGL25..B TOWING PACKAGE-3500LBS |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-48220 |
GGL25,GYL25 |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-48200 |
GGL25,GYL25 |
1 | ||
| 89C48D - RETAINER, ULTRASONIC SENSOR, FRONT CORNER | ||||
| 89348-48010 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
2 | ||
| 89348-48010 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
2 | ||
| 89348-48010 |
GGL25..B |
2 | ||
| 89C48D - RETAINER, ULTRASONIC SENSOR, FRONT CORNER | ||||
| 89348-48010 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
2 | ||
| 89348-48010 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
2 | ||
| 89348-48010 |
GGL25..B |
2 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 90467-07215 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 8505 | ||||
ILLUST NO. 2 OF 2(1509-1908)A
F SPORT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-48380 |
GGL25,GYL25..A "F-SPORT"*(F) |
1 | ||
| 52114-48400 |
GGL25..B |
1 | ||
| 52114-48350 |
GGL25,GYL25..A |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-4D936 |
GGL25..B |
1 | ||
| 52119-4D936 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52119-4D938 |
GGL25,GYL25..A PAINT REQ.,"F-SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52119-4D938 |
GGL25,GYL25..A PAINT REQ.,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52119-4D936 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52119-4D938 |
GGL25,GYL25..A PAINT REQ.,"F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE &BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52119-4D938 |
GGL25,GYL25..A PAINT REQ.,"F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52119-4D941 |
GGL25,GYL25..A |
1 | ||
| 52119-4D942 |
GGL25,GYL25..A PAINT REQ.,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52119-4D938 |
GGL25,GYL25..A PAINT REQ.,"F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52119-4D942 |
GGL25,GYL25..A PAINT REQ.,HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52119-4D938 |
GGL25..B PAINT REQ.,COLD AREA SPEC&TOWING PACKAGE-3500LBS |
1 | ||
| 52119-4D938 |
GGL25,GYL25..A PAINT REQ.,HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52119-4D942 |
GGL25,GYL25..A PAINT REQ.,"F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52119-4D938 |
GGL25..B PAINT REQ.,COLD AREA SPEC |
1 | ||
| 52119-4D942 |
GGL25,GYL25..A PAINT REQ.,"F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52119-4D942 |
GGL25,GYL25..A PAINT REQ.,COLD AREA SPEC |
1 | ||
| 52119-4D942 |
GGL25,GYL25..A PAINT REQ.,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52119-4D938 |
GGL25,GYL25..A PAINT REQ.,"F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52119-4D942 |
GGL25,GYL25..A PAINT REQ.,"F-SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 52119-4D942 |
GGL25,GYL25..A PAINT REQ.,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52119-4D942 |
GGL25,GYL25..A PAINT REQ.,"F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52119-4D938 |
GGL25,GYL25..A PAINT REQ.,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52119-4D942 |
GGL25,GYL25..A PAINT REQ.,"F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52119-4D938 |
GGL25,GYL25..A PAINT REQ.,COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52119-4D938 |
GGL25,GYL25..A PAINT REQ.,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-48091 |
GGL25,GYL25 |
1 | ||
| 52126D - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-48091 |
GGL25,GYL25 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-48150 |
GGL25,GYL25..A "F-SPORT"*(F) |
1 | ||
| 52127-48150 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52127-48150 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52127-48150 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52127-48150 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52127-48150 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52127-48150 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52127-48150 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 52127-48150 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE& BACK SONAR) |
1 | ||
| 52127-48150 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52127-48140 |
GGL25,GYL25 |
1 | ||
| 52127-48150 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52127-48150 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-48120 |
GGL25,GYL25..A "F-SPORT"*(F) |
1 | ||
| 52128-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52128-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52128-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52128-48110 |
GGL25,GYL25 |
1 | ||
| 52128-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52128-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52128-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52128-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 52128-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52128-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52128-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 52128-48120 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE& BACK SONAR) |
1 | ||
| 53123C - MOULDING, RADIATOR GRILLE, LOWER RH | ||||
| 53123-48030 |
GGL25,GYL25..A "F-SPORT"*(F) |
1 | ||
| 53123-48030 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53123-48030 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 53123-48030 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53123-48030 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53123-48030 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53123-48030 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE& BACK SONAR) |
1 | ||
| 53123-48030 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53123-48030 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53123-48030 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53123-48030 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53123-48030 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53124D - MOULDING, RADIATOR GRILLE, LOWER LH | ||||
| 53124-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53124-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53124-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53124-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE& BACK SONAR) |
1 | ||
| 53124-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 53124-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53124-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53124-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53124-48040 |
GGL25,GYL25..A "F-SPORT"*(F) |
1 | ||
| 53124-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53124-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53124-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53141C - GARNISH, RADIATOR GRILLE | ||||
| 53141-48080 |
GGL25,GYL25 |
1 | ||
| 53142C - GARNISH, RADIATOR GRILLE, NO.2 | ||||
| 53142-48030 |
GGL25,GYL25 |
1 | ||
| 53285J - COVER, FRONT BUMPER ARM HOLE, RH | ||||
| 53285-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 53285-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53285-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53285-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53285-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53285-48040 |
GGL25,GYL25..A "F-SPORT"*(F) |
1 | ||
| 53285-48030 |
GGL25,GYL25 |
1 | ||
| 53285-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE& BACK SONAR) |
1 | ||
| 53285-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53285-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53285-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53285-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53285-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53286C - COVER, FRONT BUMPER ARM HOLE, LH | ||||
| 53286-0E030 |
GGL25 |
1 | ||
| 53286-0E040 |
GGL25..A "F-SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 53286-0E040 |
GGL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53286-0E040 |
GGL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE& BACK SONAR) |
1 | ||
| 53286-0E040 |
GGL25..A "F-SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53286-0E040 |
GGL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53286-0E040 |
GGL25..A "F-SPORT"*(F) |
1 | ||
| 53286-0E040 |
GGL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53286-48020 |
GGL25..B COLD AREA SPEC&TOWING PACKAGE-3500LBS |
1 | ||
| 53286-0E040 |
GGL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53286-0E040 |
GGL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53286-0E040 |
GGL25..A "F-SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53286-0E040 |
GGL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53286-0E040 |
GGL25..A "F-SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53286-48020 |
GGL25..B TOWING PACKAGE-3500LBS |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-48220 |
GGL25,GYL25 |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-48200 |
GGL25,GYL25 |
1 | ||
| 89C48D - RETAINER, ULTRASONIC SENSOR, FRONT CORNER | ||||
| 89348-48010 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
2 | ||
| 89348-48010 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
2 | ||
| 89348-48010 |
GGL25..B |
2 | ||
| 89C48D - RETAINER, ULTRASONIC SENSOR, FRONT CORNER | ||||
| 89348-48010 |
GGL25,GYL25..A CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
2 | ||
| 89348-48010 |
GGL25,GYL25..A "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
2 | ||
| 89348-48010 |
GGL25..B |
2 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 90467-07215 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 8505 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
