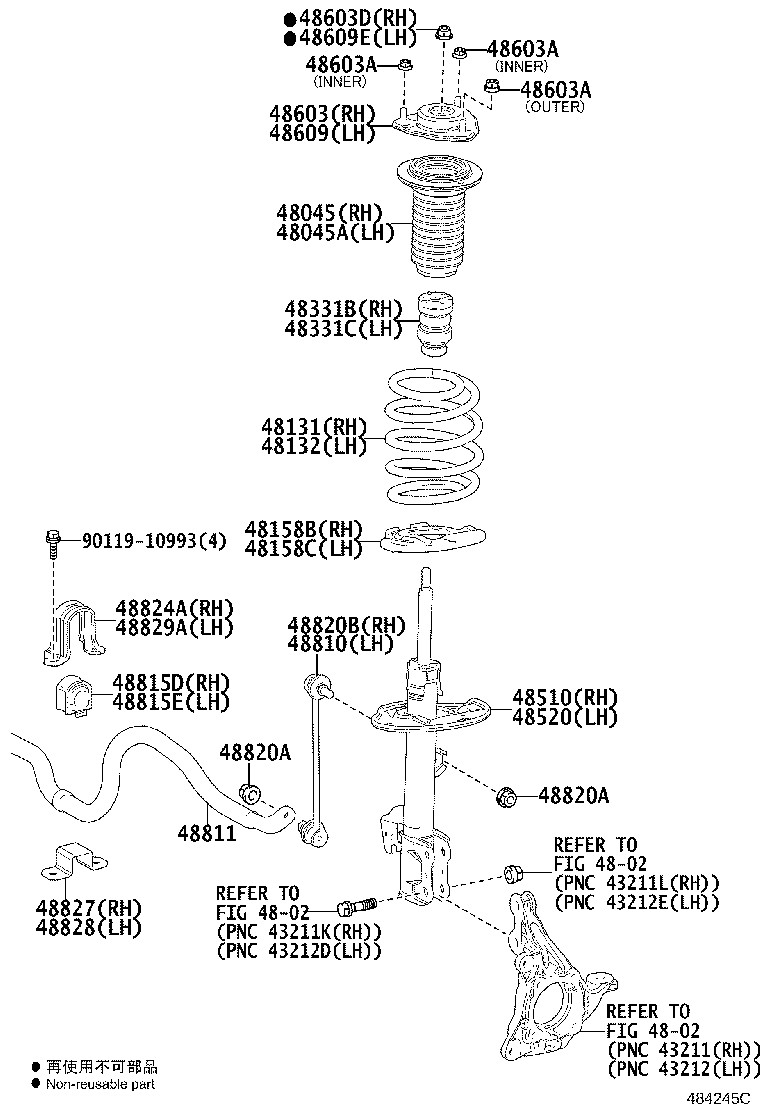

GGL25L-BWZGBA (2015)
Toyota Lexus Rx450h/350(Jpp
(1509- )A
W(AVS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48045 - SEAT SUB-ASSY, FRONT SPRING RH, W/INSULATOR | ||||
| 48045-48010 |
GGL25,GYL25 |
1 | ||
| 48045A - SEAT SUB-ASSY, FRONT SPRING LH, W/INSULATOR | ||||
| 48045-48010 |
GGL25,GYL25 |
1 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-48800 |
GGL25 |
1 | ||
| 48131-48801 |
GGL25 |
1 | ||
| 48131-48802 |
GGL25 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48132-48141 |
GGL25 |
1 | ||
| 48132-48140 |
GGL25 |
1 | ||
| 48132-48142 |
GGL25 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-48080 |
GGL25,GYL25 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-48090 |
GGL25,GYL25 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-48070 |
GGL25,GYL25 |
1 | ||
| 48331-48071 |
GGL25,GYL25 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-48070 |
GGL25,GYL25 |
1 | ||
| 48331-48071 |
GGL25,GYL25 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80803 |
GGL25..B MARK 48510-48520 |
1 | ||
| 48510-80786 |
GGL25,GYL25..A MARK 48510-48440,*AVS-WITH |
1 | ||
| 48510-80784 |
GGL25,GYL25..A MARK 48510-48410 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-80462 |
GGL25,GYL25..A MARK 48520-48440,*AVS-WITH |
1 | ||
| 48520-80479 |
GGL25..B MARK 48520-48520 |
1 | ||
| 48520-80460 |
GGL25,GYL25..A MARK 48520-48410 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-48080 |
GGL25,GYL25 |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10005 |
GGL25,GYL25 INNER |
4 | ||
| 90178-10015 |
GGL25,GYL25 OUTER |
2 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10005 |
GGL25,GYL25 INNER |
4 | ||
| 90178-10015 |
GGL25,GYL25 OUTER |
2 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10005 |
GGL25,GYL25 INNER |
4 | ||
| 90178-10015 |
GGL25,GYL25 OUTER |
2 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-14015 |
GGL25,GYL25 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-48080 |
GGL25,GYL25 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-14015 |
GGL25,GYL25 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-28050 |
GGL25,GYL25 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-48190 |
GGL25,GYL25 |
1 | ||
| 48815D - BUSH, FRONT STABILIZER BAR, RH | ||||
| 48815-48110 |
GGL25,GYL25 |
1 | ||
| 48815E - BUSH, FRONT STABILIZER BAR, LH | ||||
| 48815-48110 |
GGL25,GYL25 |
1 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12151 |
GGL25,GYL25 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12151 |
GGL25,GYL25 |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-28050 |
GGL25,GYL25 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-48030 |
GGL25,GYL25 |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48827-48040 |
GGL25,GYL25 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48827-48040 |
GGL25,GYL25 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-48030 |
GGL25,GYL25 |
1 | ||
| Common parts | ||||
| 90119-10993 | ||||
| Linked diagrams | ||||
| 4802 | ||||

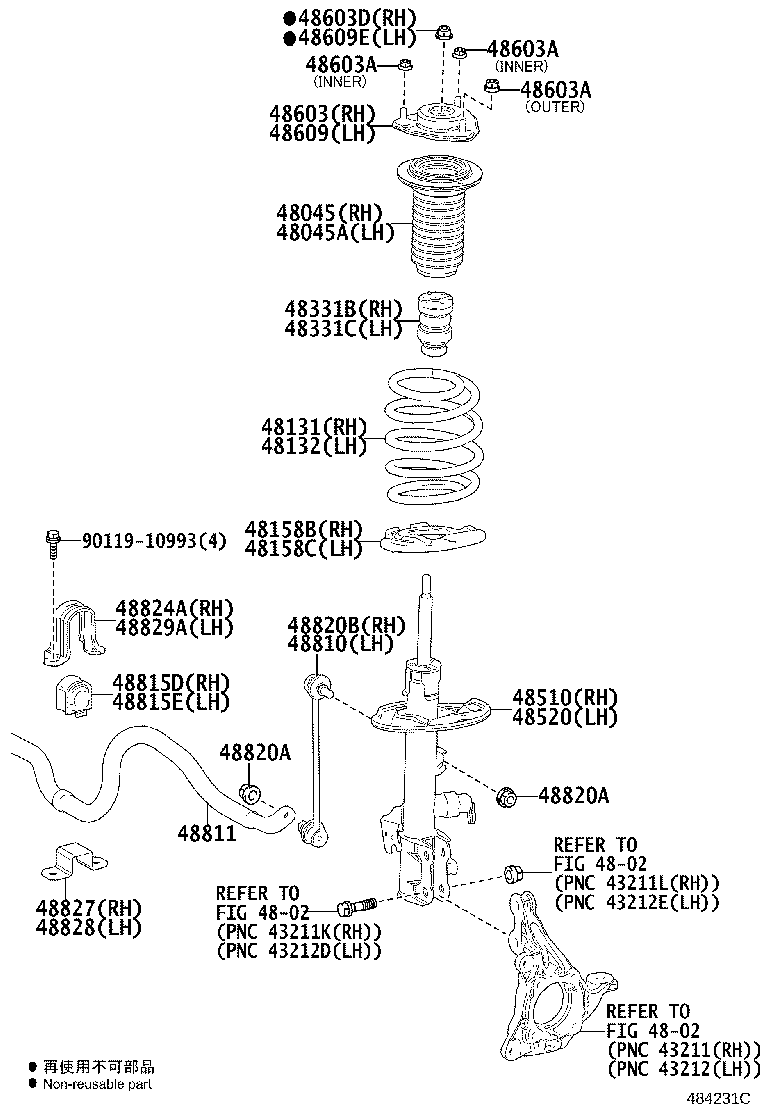

(1509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48045 - SEAT SUB-ASSY, FRONT SPRING RH, W/INSULATOR | ||||
| 48045-48010 |
GGL25,GYL25 |
1 | ||
| 48045A - SEAT SUB-ASSY, FRONT SPRING LH, W/INSULATOR | ||||
| 48045-48010 |
GGL25,GYL25 |
1 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-48800 |
GGL25 |
1 | ||
| 48131-48801 |
GGL25 |
1 | ||
| 48131-48802 |
GGL25 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48132-48141 |
GGL25 |
1 | ||
| 48132-48140 |
GGL25 |
1 | ||
| 48132-48142 |
GGL25 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-48080 |
GGL25,GYL25 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-48090 |
GGL25,GYL25 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-48070 |
GGL25,GYL25 |
1 | ||
| 48331-48071 |
GGL25,GYL25 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-48070 |
GGL25,GYL25 |
1 | ||
| 48331-48071 |
GGL25,GYL25 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80803 |
GGL25..B MARK 48510-48520 |
1 | ||
| 48510-80786 |
GGL25,GYL25..A MARK 48510-48440,*AVS-WITH |
1 | ||
| 48510-80784 |
GGL25,GYL25..A MARK 48510-48410 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-80462 |
GGL25,GYL25..A MARK 48520-48440,*AVS-WITH |
1 | ||
| 48520-80479 |
GGL25..B MARK 48520-48520 |
1 | ||
| 48520-80460 |
GGL25,GYL25..A MARK 48520-48410 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-48080 |
GGL25,GYL25 |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10005 |
GGL25,GYL25 INNER |
4 | ||
| 90178-10015 |
GGL25,GYL25 OUTER |
2 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10005 |
GGL25,GYL25 INNER |
4 | ||
| 90178-10015 |
GGL25,GYL25 OUTER |
2 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10005 |
GGL25,GYL25 INNER |
4 | ||
| 90178-10015 |
GGL25,GYL25 OUTER |
2 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-14015 |
GGL25,GYL25 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-48080 |
GGL25,GYL25 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-14015 |
GGL25,GYL25 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-28050 |
GGL25,GYL25 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-48190 |
GGL25,GYL25 |
1 | ||
| 48815D - BUSH, FRONT STABILIZER BAR, RH | ||||
| 48815-48110 |
GGL25,GYL25 |
1 | ||
| 48815E - BUSH, FRONT STABILIZER BAR, LH | ||||
| 48815-48110 |
GGL25,GYL25 |
1 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12151 |
GGL25,GYL25 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12151 |
GGL25,GYL25 |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-28050 |
GGL25,GYL25 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-48030 |
GGL25,GYL25 |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48827-48040 |
GGL25,GYL25 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48827-48040 |
GGL25,GYL25 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-48030 |
GGL25,GYL25 |
1 | ||
| Common parts | ||||
| 90119-10993 | ||||
| Linked diagrams | ||||
| 4802 | ||||
