GGL25L-BWZGBA (2015)
Toyota Lexus Rx450h/350(Jpp
Production
Sep 2015
-
Aug 2019
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1509- )

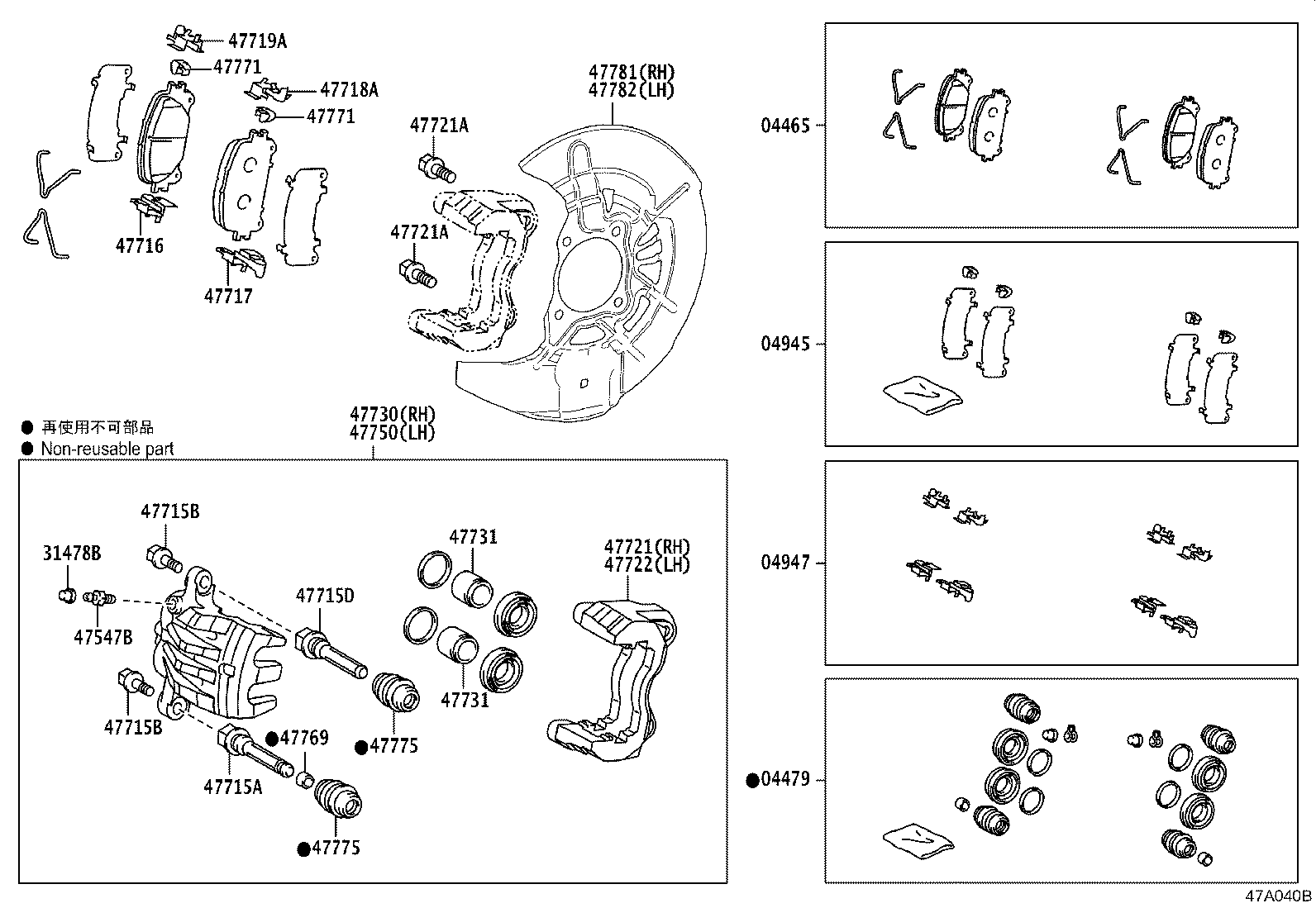

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-48210 |
GGL25,GYL25 MARK ADVICS PV565H |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04478-48150 |
GGL25,GYL25 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-48150 |
GGL25,GYL25 |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-48080 |
GGL25,GYL25 |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
GGL25,GYL25 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12130 |
GGL25,GYL25 |
2 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47714-48150 |
GGL25,GYL25 |
2 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90015-AA602 |
GGL25,GYL25 |
4 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90015-AA602 |
GGL25,GYL25 |
4 | ||
| 47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2 | ||||
| 47715-48150 |
GGL25,GYL25 |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-48150 |
GGL25,GYL25 |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-48150 |
GGL25,GYL25 |
2 | ||
| 47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47718-48150 |
GGL25,GYL25 |
2 | ||
| 47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE) | ||||
| 47719-48150 |
GGL25,GYL25 |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-48170 |
GGL25,GYL25 |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-14196 |
GGL25,GYL25 *14-1.5PX29.5-23 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-14196 |
GGL25,GYL25 *14-1.5PX29.5-23 |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-48090 |
GGL25,GYL25 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-48170 |
GGL25,GYL25 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-48150 |
GGL25,GYL25 |
4 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-48150 |
GGL25,GYL25 |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-48090 |
GGL25,GYL25 |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-48150 |
GGL25,GYL25 |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-48150 |
GGL25,GYL25 |
4 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-48150 |
GGL25,GYL25 |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-48150 |
GGL25,GYL25 |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-48150 |
GGL25,GYL25 |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-48050 |
GGL25,GYL25 |
1 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-48050 |
GGL25,GYL25 |
1 | ||
