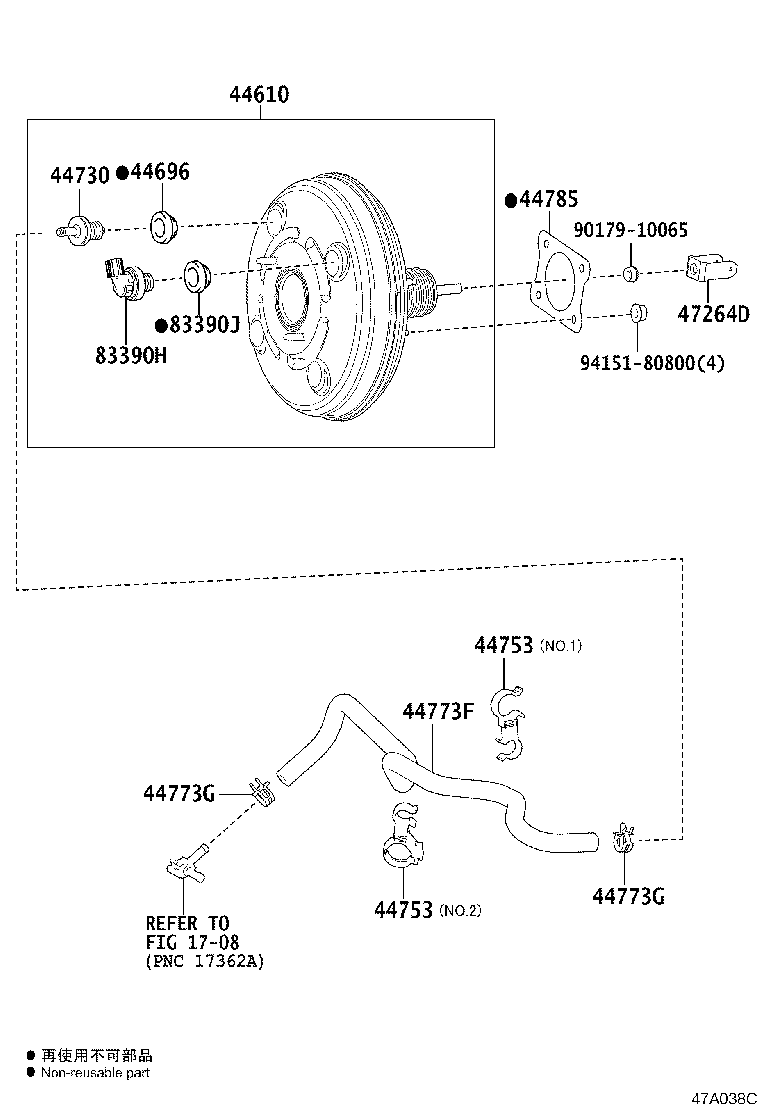

Toyota Lexus rx450h/350(jpp GGL25 BRAKE BOOSTER & VACUUM TUBE

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-48440	GGL25	09/2015 - 08/2019	1
44696 - GROMMET, CHECK VALVE
90480-24439	GGL25	09/2015 - 08/2019	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60070	GGL25	09/2015 - 08/2019	1
44753 - CLAMP, VACUUM RESERVOIR, NO.2
44753-48330	GGL25 NO.1	09/2015 - 08/2019	1
44753-48350	GGL25 NO.2	09/2015 - 08/2019	1
44753 - CLAMP, VACUUM RESERVOIR, NO.2
44753-48330	GGL25 NO.1	09/2015 - 08/2019	1
44753-48350	GGL25 NO.2	09/2015 - 08/2019	1
44773F - HOSE, UNION TO CHECK VALVE
44773-48210	GGL25	09/2015 - 08/2019	1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16014	GGL25	09/2015 - 08/2019	2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16014	GGL25	09/2015 - 08/2019	2
44785 - GASKET, BRAKE BOOSTER
44785-12040	GGL25	09/2015 - 08/2019	1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-22040	GGL25	09/2015 - 08/2019	1
83390H - SWITCH ASSY, VACUUM WARNING
83390-28120	GGL25	09/2015 - 08/2019	1
83390J - GROMMET, VACUUM WARNING SWITCH
90480-24439	GGL25	09/2015 - 08/2019	1
Common parts
90179-10065
94151-80800
Linked diagrams
1708

GGL25L-BWZGBA (2015)
