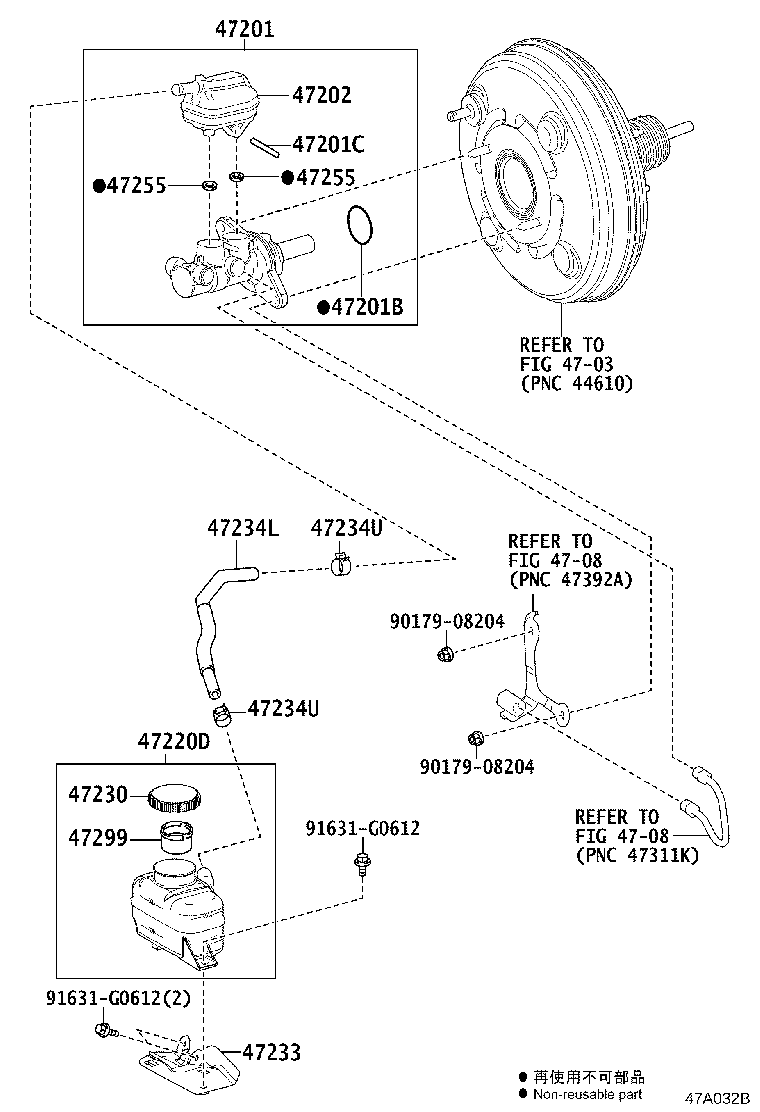

Toyota Lexus rx450h/350(jpp GGL25 BRAKE MASTER CYLINDER

Part #	Description	Period	Qty
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-48202	GGL25	09/2015 - 08/2019	1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90015-AH002	GGL25	09/2015 - 08/2019	1
47201C - RING PIN, BRAKE MASTER CYLINDER
90029-15803	GGL25	09/2015 - 08/2019	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-48200	GGL25	09/2015 - 08/2019	1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-48260	GGL25	09/2015 - 08/2019	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-58010	GGL25,GYL25	09/2015 - 12/2016	1
47230-47090	GGL25	12/2016 - 08/2019	1
47233 - BRACKET, RESERVOIR
47233-48170	GGL25	09/2015 - 08/2019	1
47234L - HOSE, RESERVOIR, NO.1
47234-48250	GGL25	09/2015 - 08/2019	1
47234U - CLIP(FOR RESERVOIR HOSE NO.1)
96137-41501	GGL25	09/2015 - 08/2019	2
47234U - CLIP(FOR RESERVOIR HOSE NO.1)
96137-41501	GGL25	09/2015 - 08/2019	2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90029-48001	GGL25	09/2015 - 08/2019	2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90029-48001	GGL25	09/2015 - 08/2019	2
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-20060	GGL25	09/2015 - 08/2019	1
Common parts
90179-08204
91631-G0612
Linked diagrams
4703
4708

GGL25L-BWZGBA (2015)
