GGL25L-BWZGBA (2015)

Toyota Lexus Rx450h/350(Jpp

Production Sep 2015 - Aug 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1509- )

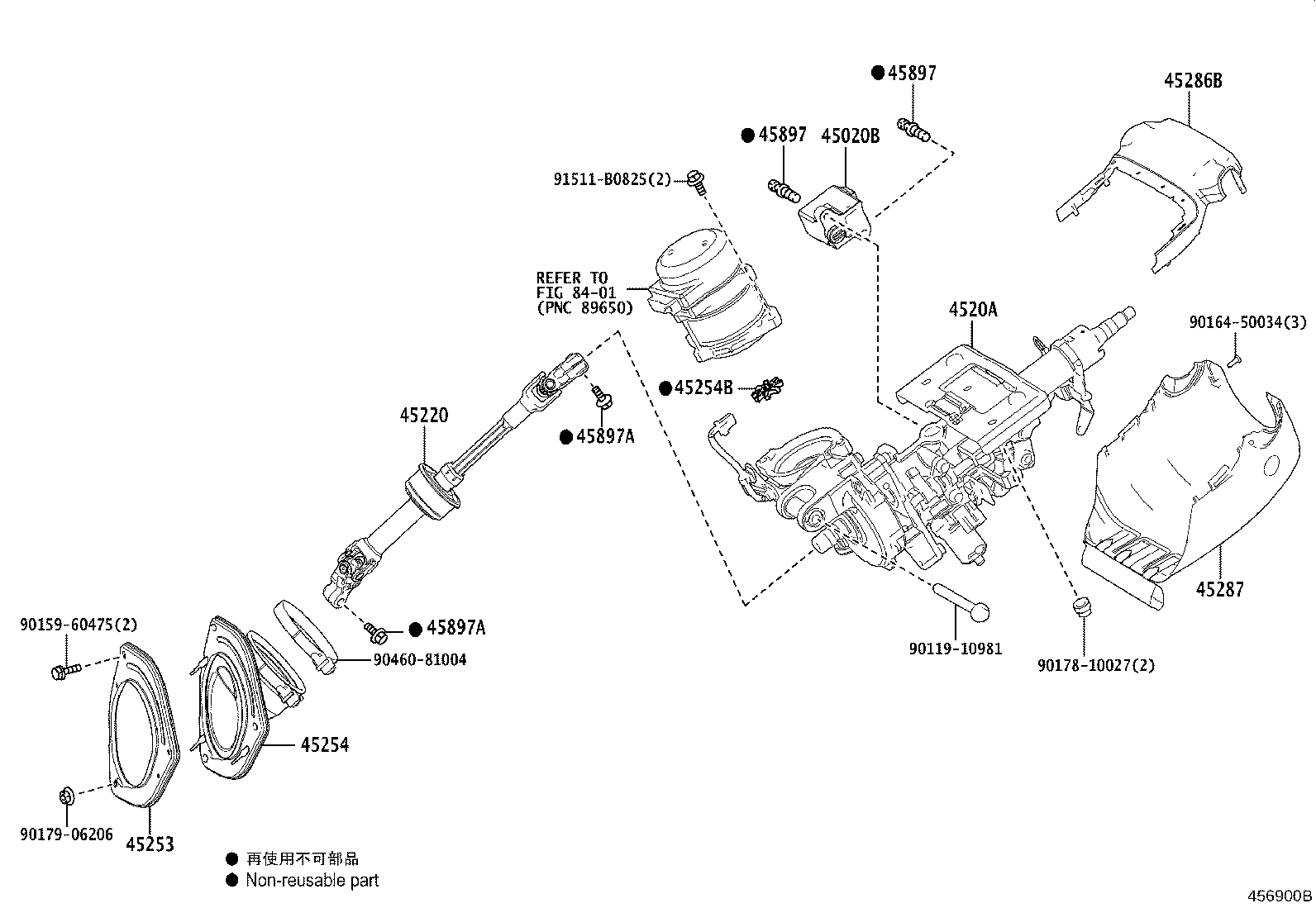

Click highlighted areas on diagram

diagram 45020B 4520A 45220 45253 45254 45254B 45286B 45287 45897 45897 45897A 45897A 8401 9011910981 9015960475 9016450034 9017810027 9017906206 9046081004 91511B0825
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-48090

GGL25,GYL25

 1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-48080

GGL25,GYL25

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-48250

GGL25,GYL25

 1
45253 - COVER, STEERING COLUMN HOLE
45253-48050

GGL25,GYL25

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-48090

GGL25,GYL25

 1
45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45254-28040

GGL25,GYL25

 1
45286B - COVER, STEERING COLUMN, UPR
45286-33270E1

GGL25..B

NOBLE BROWN,TRIM0#,5#

 1
45286-33270C0

GGL25..B

BLACK,TRIM2#,4#

 1
45286-33270E1

GGL25,GYL25..A

NOBLE BROWN,TRIM00,01,02,03,04,5#,6#

 1
45286-33270C0

GGL25,GYL25..A

BLACK,TRIM05,06,2#,3#,4#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-33360E1

GGL25,GYL25..A

NOBLE BROWN,TRIM00,01,02,03,04,5#,6#

 1
45287-33360C0

GGL25,GYL25..A

BLACK,TRIM05,06,2#,3#,4#

 1
45287-33360C0

GGL25..B

BLACK,TRIM2#,4#

 1
45287-33360E1

GGL25..B

NOBLE BROWN,TRIM0#,5#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

GGL25,GYL25

 2
45897 - BOLT, STEERING LOCK SET
45897-12020

GGL25,GYL25

 2
45897A - BOLT, TILT STEERING PAWL SET
90119-10985

GGL25,GYL25

 2
45897A - BOLT, TILT STEERING PAWL SET
90119-10985

GGL25,GYL25

 2
Common parts
90119-10981
90159-60475
90164-50034
90178-10027
90179-06206
90460-81004
91511-B0825
Linked diagrams
8401
