GGL25L-BWZGBA (2015)
Toyota Lexus Rx450h/350(Jpp

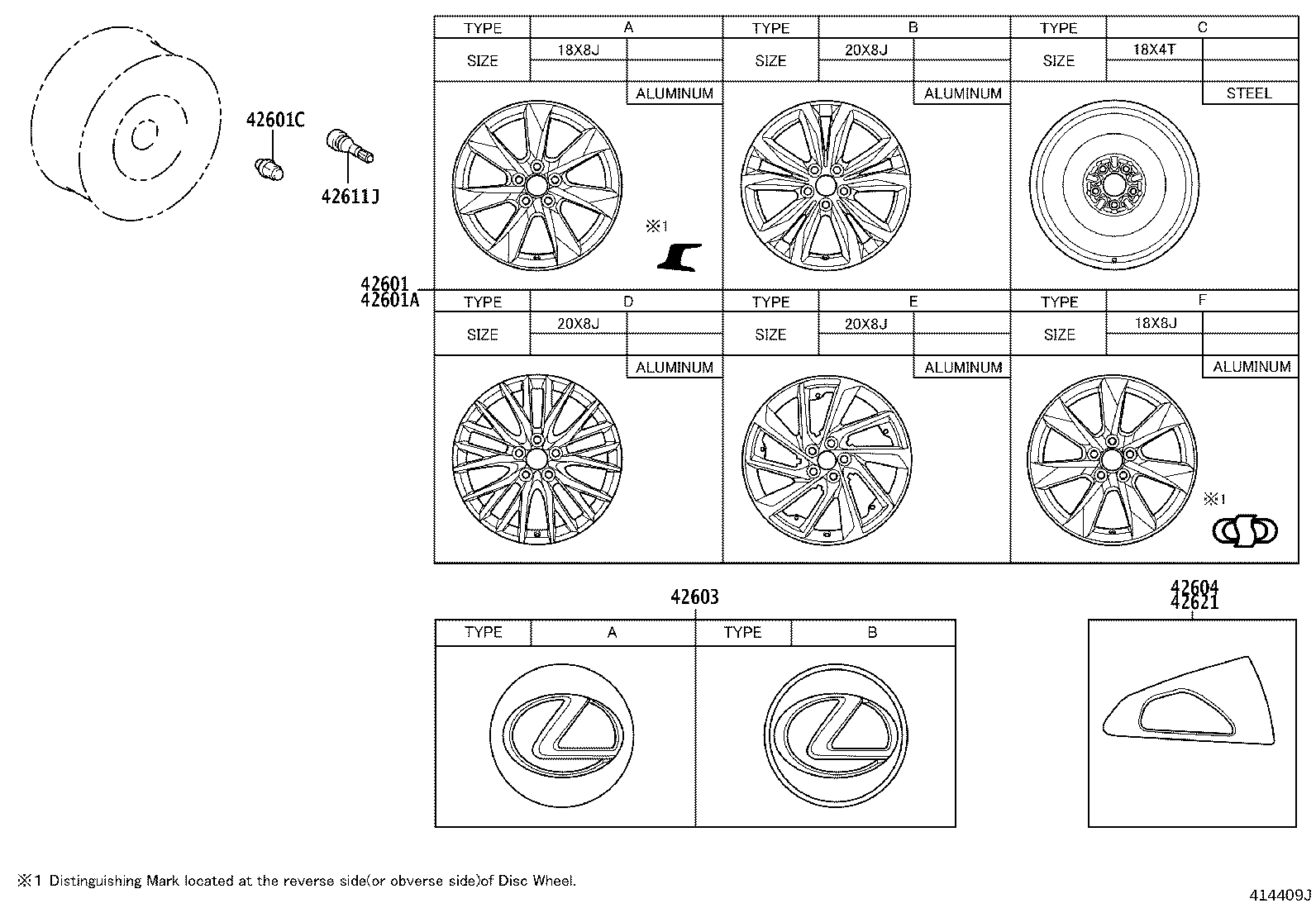

ILLUST NO. 1 OF 2(1509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-48810 |
GGL25,GYL25 18X8J,#,TYPE A:REFER ILLUST. |
4 | ||
| 4261A-48160 |
GGL25,GYL25..A 20X8J,*DPMP,TIRE & DISC WHEEL-235/55R20 MUD&SNOW TIRE(F SPORT),TYPE D:REFER ILLUST. |
4 | ||
| 4261A-48180 |
GGL25,GYL25 18X8J,#,TYPE A:REFER ILLUST. |
4 | ||
| 42611-48830 |
GGL25,GYL25..A 20X8J,#,TIRE & DISC WHEEL-235/55R20 MUD&SNOW TIRE NOISE REDUCTION,TYPE B:REFER ILLUST. |
4 | ||
| 4261A-48201 |
GGL25,GYL25 18X8J,#,TYPE F:REFER ILLUST. |
4 | ||
| 42611-48A30 |
GGL25,GYL25 18X8J,#,TYPE F:REFER ILLUST. |
4 | ||
| 4261A-48200 |
GGL25,GYL25 18X8J,#,TYPE F:REFER ILLUST. |
4 | ||
| 42611-48890 |
GGL25,GYL25..A 20X8J,#,TIRE & DISC WHEEL-235/55R20 M&S TIRE SELECTOR BULL,TYPE E:REFER ILLUST. |
4 | ||
| 42611-48850 |
GGL25,GYL25 20X8J,#,TIRE & DISC WHEEL-235/55R20 MUD&SNOW TIRE MACHINING,TYPE G:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-48750 |
GGL25,GYL25 18X4T,TYPE C:REFER ILLUST. |
1 | ||
| 42611-48751 |
GGL25,GYL25 18X4T,TYPE C:REFER ILLUST. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01033 |
GGL25,GYL25 |
20 | ||
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-30550 |
GGL25,GYL25..A *CHR,TIRE & DISC WHEEL-235/55R20 MUD&SNOW TIRE NOISE REDUCTION,TYPE B:REFER ILLUST. |
4 | ||
| 42603-30550 |
GGL25,GYL25..A *CHR,TIRE & DISC WHEEL-235/55R20 M&S TIRE SELECTOR BULL,TYPE B:REFER ILLUST. |
4 | ||
| 42603-53110 |
GGL25,GYL25..A *ALU,"F-SPORT"*(F)&TIRE & DISC WHEEL-235/55R20 MUD&SNOW TIRE MACHINING,TYPE B:REFER ILLUST. |
4 | ||
| 42603-50370 |
GGL25,GYL25 *ALU,TYPE A:REFER ILLUST. |
4 | ||
| 42603-30550 |
GGL25,GYL25 *CHR,TIRE & DISC WHEEL-235/55R20 MUD&SNOW TIRE MACHINING,TYPE B:REFER ILLUST. |
4 | ||
| 42603-53110 |
GGL25,GYL25..A *ALU,"F-SPORT"*(F)&TIRE & DISC WHEEL-235/55R20 MUD&SNOW TIRE NOISE REDUCTION,TYPEB:REFER ILLUST. |
4 | ||
| 42603-53110 |
GGL25,GYL25..A *ALU,"F-SPORT"*(F)&TIRE & DISC WHEEL-235/55R20 M&S TIRE SELECTOR BULL,TYPE B:REFER ILLUST. |
4 | ||
| 42603-50380 |
GGL25,GYL25 *ALU,TYPE B:REFER ILLUST. |
4 | ||
| 42603-53110 |
GGL25,GYL25..A *ALU,"F-SPORT"*(F)&TIRE & DISC WHEEL-235/55R20 MUD&SNOW TIRE(F SPORT),TYPE B:REFER ILLUST. |
4 | ||
| 42604 - WHEEL CAP SET | ||||
| 42604-48050 |
GGL25,GYL25..A TIRE & DISC WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTER ORNAMENT&COLOR TRIM(BKACK) |
1 | ||
| 42604-48050 |
GGL25,GYL25..A "F-SPORT"*(F)&TIRE & DISC WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTERORNAMENT&TRIM(BKACK)(F SPORT) |
1 | ||
| 42604-48060 |
GGL25,GYL25..A "F-SPORT"*(F)&TIRE & DISC WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTERORNAMENT&TRIM(AMBER)(F SPORT) |
1 | ||
| 42604-48060 |
GGL25,GYL25..A TIRE & DISC WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTER ORNAMENT&COLOR TRIM(AMBER) |
1 | ||
| 42604-48070 |
GGL25,GYL25..A TIRE & DISC WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTER ORNAMENT&COLOR TRIM(WHITE) |
1 | ||
| 42604-48070 |
GGL25,GYL25..A "F-SPORT"*(F)&TIRE & DISC WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTERORNAMENT&TRIM(WHITE)(F SPORT) |
1 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
GGL25,GYL25 TYPE A:REFER ILLUST. |
1 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-48040 |
GGL25,GYL25..A TIRE & DISC WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTER ORNAMENT&COLOR TRIM(BKACK) |
20 | ||
| 42602-48050 |
GGL25,GYL25..A "F-SPORT"*(F)&TIRE & DISC WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTERORNAMENT&TRIM(AMBER)(F SPORT) |
20 | ||
| 42602-48040 |
GGL25,GYL25..A "F-SPORT"*(F)&TIRE & DISC WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTERORNAMENT&TRIM(BKACK)(F SPORT) |
20 | ||
| 42602-48060 |
GGL25,GYL25..A TIRE & DISC WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTER ORNAMENT&COLOR TRIM(WHITE) |
20 | ||
| 42602-48050 |
GGL25,GYL25..A TIRE & DISC WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTER ORNAMENT&COLOR TRIM(AMBER) |
20 | ||
| 42602-48060 |
GGL25,GYL25..A "F-SPORT"*(F)&TIRE & DISC WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTERORNAMENT&TRIM(WHITE)(F SPORT) |
20 | ||
| 42602-48030 |
GGL25,GYL25..A TIRE & DISC WHEEL-235/55R20 M&S TIRE SELECTOR BULL |
20 | ||

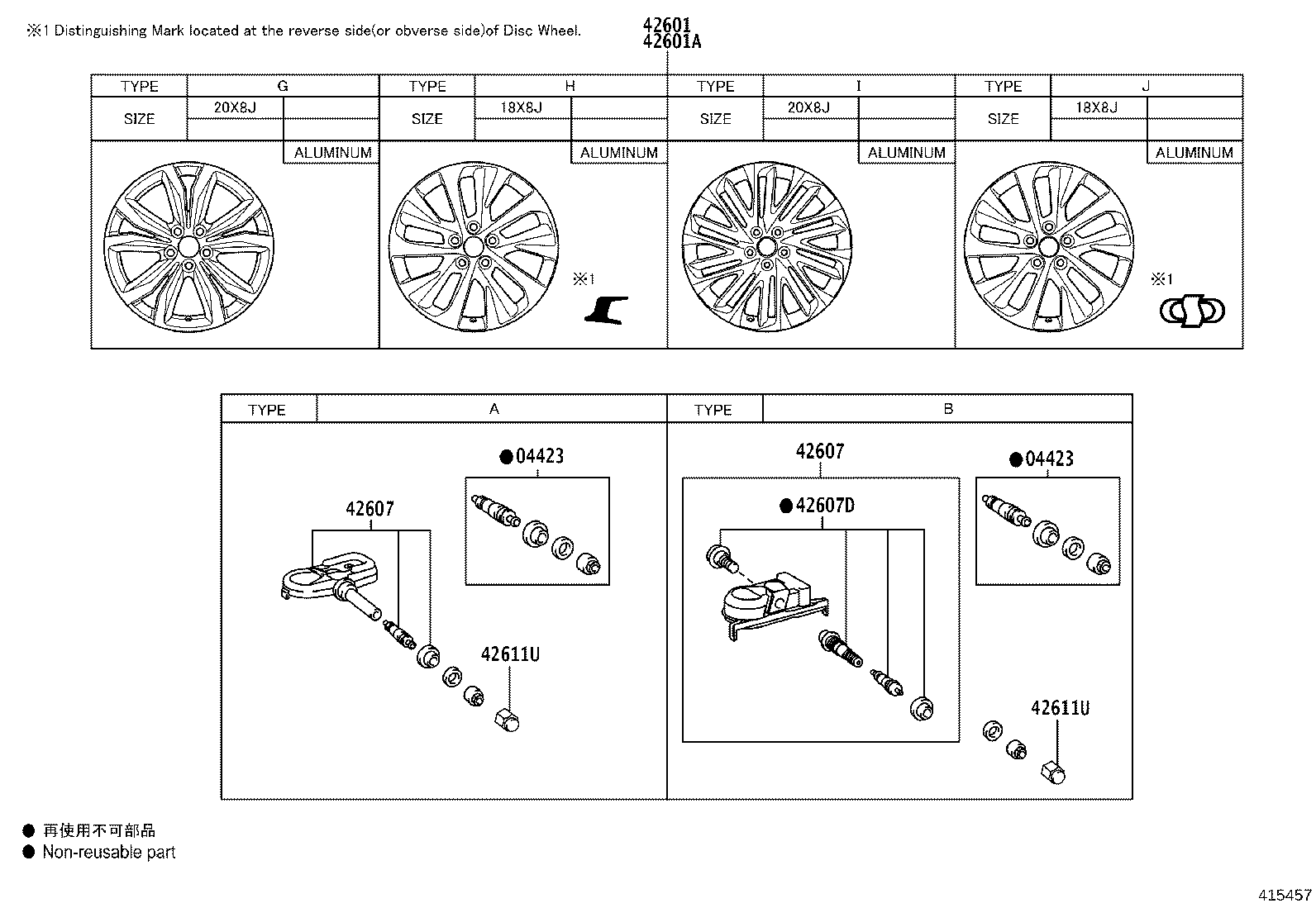

ILLUST NO. 2 OF 2(1509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE | ||||
| 04423-33060 |
GGL25,GYL25 |
4 | ||
| 04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE | ||||
| 04423-33060 |
GGL25,GYL25 |
4 | ||
| 42601 - WHEEL, DISC | ||||
| 42611-48810 |
GGL25,GYL25 18X8J,#,TYPE A:REFER ILLUST. |
4 | ||
| 4261A-48160 |
GGL25,GYL25..A 20X8J,*DPMP,TIRE & DISC WHEEL-235/55R20 MUD&SNOW TIRE(F SPORT),TYPE D:REFER ILLUST. |
4 | ||
| 4261A-48180 |
GGL25,GYL25 18X8J,#,TYPE A:REFER ILLUST. |
4 | ||
| 42611-48830 |
GGL25,GYL25..A 20X8J,#,TIRE & DISC WHEEL-235/55R20 MUD&SNOW TIRE NOISE REDUCTION,TYPE B:REFER ILLUST. |
4 | ||
| 4261A-48201 |
GGL25,GYL25 18X8J,#,TYPE F:REFER ILLUST. |
4 | ||
| 42611-48A30 |
GGL25,GYL25 18X8J,#,TYPE F:REFER ILLUST. |
4 | ||
| 4261A-48200 |
GGL25,GYL25 18X8J,#,TYPE F:REFER ILLUST. |
4 | ||
| 42611-48890 |
GGL25,GYL25..A 20X8J,#,TIRE & DISC WHEEL-235/55R20 M&S TIRE SELECTOR BULL,TYPE E:REFER ILLUST. |
4 | ||
| 42611-48850 |
GGL25,GYL25 20X8J,#,TIRE & DISC WHEEL-235/55R20 MUD&SNOW TIRE MACHINING,TYPE G:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-48750 |
GGL25,GYL25 18X4T,TYPE C:REFER ILLUST. |
1 | ||
| 42611-48751 |
GGL25,GYL25 18X4T,TYPE C:REFER ILLUST. |
1 | ||
| 42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR | ||||
| 42607-48010 |
GGL25..B TYPE A:REFER ILLUST. |
4 | ||
| 42607-48020 |
GGL25,GYL25..A TYPE A:REFER ILLUST. |
4 | ||
| 42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR | ||||
| 42607-48010 |
GGL25..B TYPE A:REFER ILLUST. |
4 | ||
| 42607-48020 |
GGL25,GYL25..A TYPE A:REFER ILLUST. |
4 | ||
| 42611U - CAP, TIRE VALVE | ||||
| 90942-05042 |
GGL25,GYL25 |
4 | ||
| 42611U - CAP, TIRE VALVE | ||||
| 90942-05042 |
GGL25,GYL25 |
4 | ||
