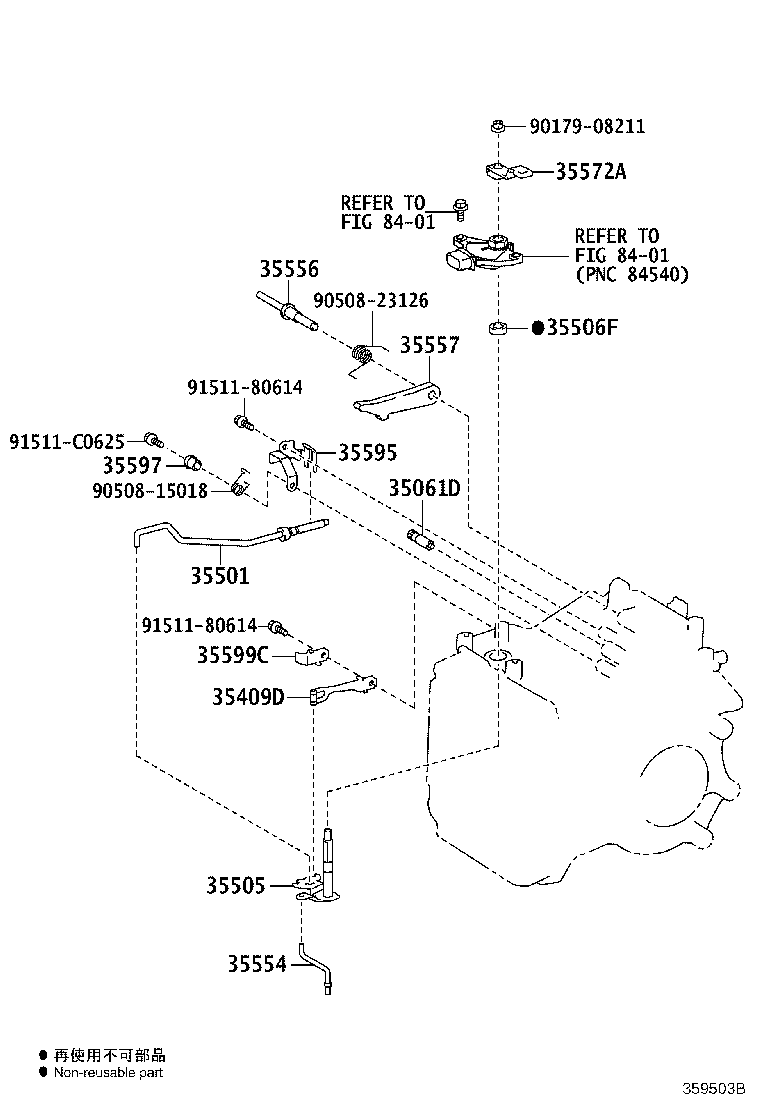

Toyota Lexus rx450h/350(jpp GGL25 THROTTLE LINK & VALVE LEVER (ATM)

Part #	Description	Period	Qty
35061D - PIN SUB-ASSY, PARKING LOCK
35061-48010	GGL25	09/2015 - 08/2019	1
35409D - SPRING SUB-ASSY, MANUAL DETENT
35409-48050	GGL25	09/2015 - 08/2019	1
35501 - ROD SUB-ASSY, PARKING LOCK
35501-48020	GGL25	09/2015 - 08/2019	1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-48040	GGL25	09/2015 - 08/2019	1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002	GGL25	09/2015 - 08/2019	1
35554 - ROD, MANUAL VALVE CONNECTING
35554-48010	GGL25	09/2015 - 08/2019	1
35556 - SHAFT, PARKING LOCK PAWL
35556-48020	GGL25	09/2015 - 08/2019	1
35557 - PAWL, PARKING LOCK
35557-48030	GGL25	09/2015 - 08/2019	1
35572A - LEVER, TRANSMISSION CONTROL SHAFT
35572-48040	GGL25	09/2015 - 08/2019	1
35595 - BRACKET, PARKING LOCK PAWL
35595-48010	GGL25	09/2015 - 08/2019	1
35597 - SLEEVE, SPRING GUIDE
35597-48010	GGL25	09/2015 - 08/2019	1
35599C - COVER, MANUAL DETENT SPRING
35599-48050	GGL25	09/2015 - 08/2019	1
Common parts
90179-08211
90508-15018
90508-23126
91511-80614
91511-C0625
Linked diagrams
8401

GGL25L-BWZGBA (2015)
