GGL25L-BWZGBA (2015)

Toyota Lexus Rx450h/350(Jpp

Production Sep 2015 - Aug 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1509- )GGL25

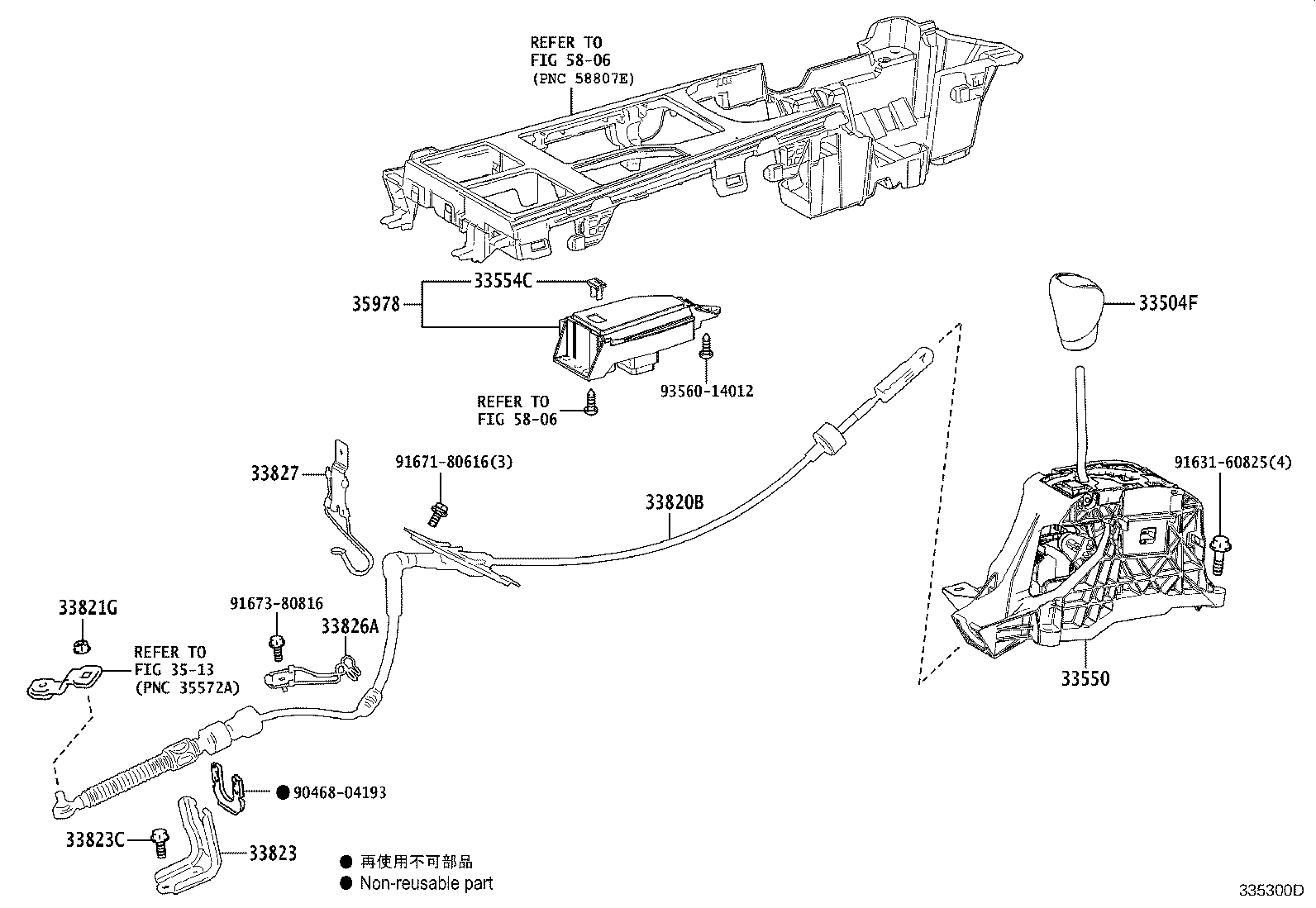

Click highlighted areas on diagram

diagram 33504F 33550 33554C 33820B 33821G 33823 33823C 33826A 33827 3513 35978 5806 5806 9046804193 9163160825 9167180616 9167380816 9356014012
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-48110E0

GGL25,GYL25

NOBLE BROWN,TRIM0#,5#

 1
33504-48120C0

GGL25,GYL25..A

"F-SPORT"*(F),BLACK,TRIM2#,3#

 1
33504-48110C0

GGL25,GYL25

BLACK,TRIM2#,4#

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-48531

GGL25,GYL25

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-48090

GGL25,GYL25

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-48310

GGL25

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
94151-80800

GGL25,GYL25

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-48120

GGL25

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91671-80816

GGL25,GYL25

 2
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-48110

GGL25

 1
33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33827-48020

GGL25,GYL25

 1
35978 - INDICATOR, SHIFT POSITION
35978-48010

GGL25..A

 1
35978-48050

GGL25..B

 1
Common parts
90468-04193
91631-60825
91671-80616
91673-80816
93560-14012
Linked diagrams
3513
5806
