GGL25L-BWZGBA (2015)

Toyota Lexus Rx450h/350(Jpp

Production Sep 2015 - Aug 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1509- )2GRFKS

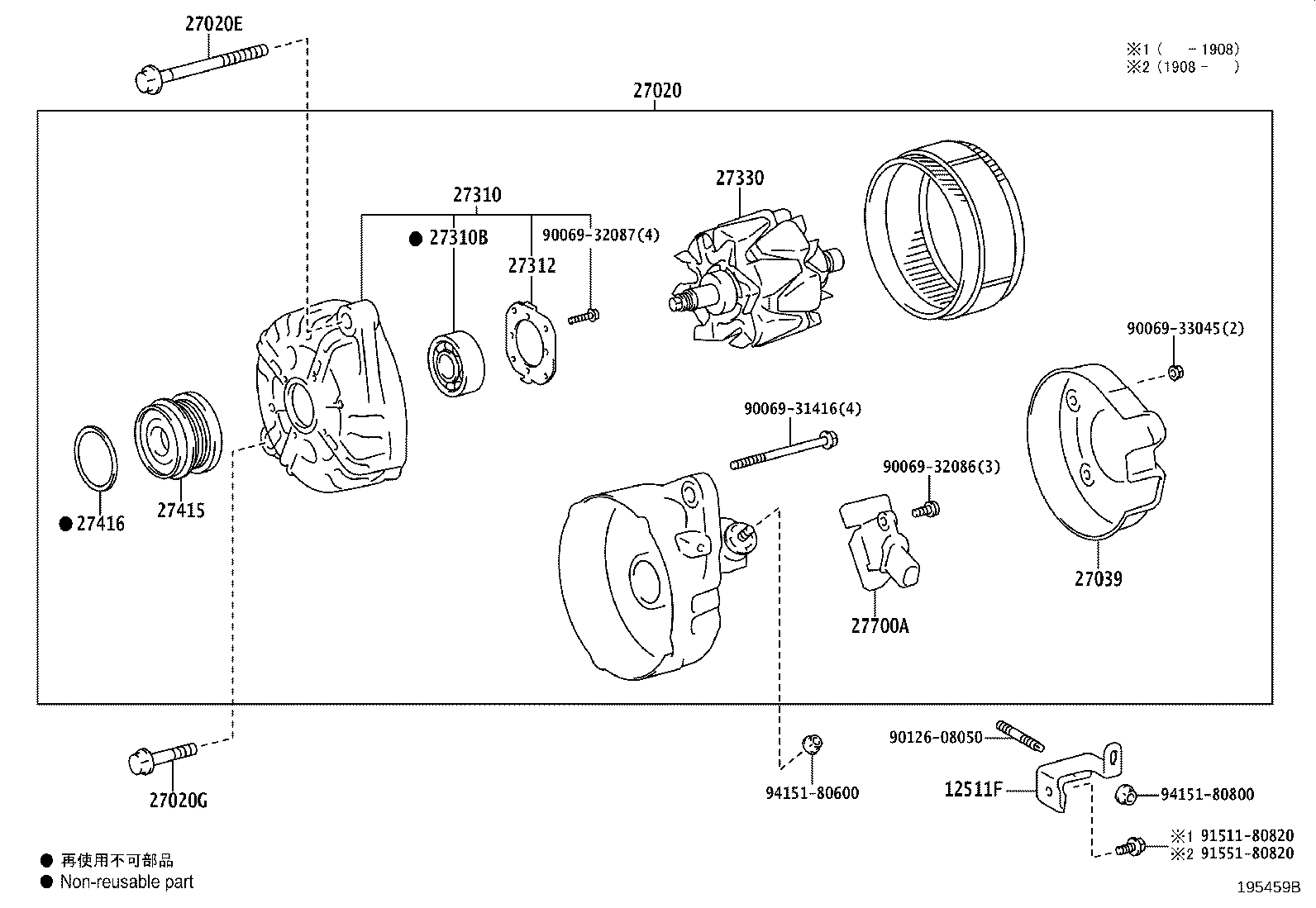

Click highlighted areas on diagram

12V 150A

diagram 12511F 27020 27020E 27020G 27039 27310 27310B 27312 27330 27415 27416 27700A 9006931416 9006932086 9006932087 9006933045 9012608050 9151180820 9155180820 9415180600 9415180800
Part # Description Qty Price
12511F - BRACKET, ALTERNATOR, NO.1
12511-31050

2GRFKS..GGL25

 1
27020 - ALTERNATOR ASSY
27060-0P370

2GRFKS..GGL25

12V 150A

 1
27020E - BOLT(FOR ALTERNATOR)
91552-81095

2GRFKS..GGL25

 1
27020G - BOLT, NO.2(FOR ALTERNATOR)
91552-81040

2GRFKS..GGL25

 1
27039 - COVER, ALTERNATOR REAR END
27039-0P420

2GRFKS..GGL25

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0P420

2GRFKS..GGL25

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90069-40012

2GRFKS..GGL25

 1
27312 - PLATE, RETAINER
27312-0P420

2GRFKS..GGL25

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0P420

2GRFKS..GGL25

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0P010

2GRFKS..GGL25

 1
27416 - CAP, ALTERNATOR PULLEY
27416-0W050

2GRFKS..GGL25

 1
27700A - REGULATOR ASSY, GENERATOR
27700-0P150

2GRFKS..GGL25

 1
Common parts
90069-31416
90069-32086
90069-32087
90069-33045
90126-08050
91511-80820
91551-80820
94151-80600
94151-80800
