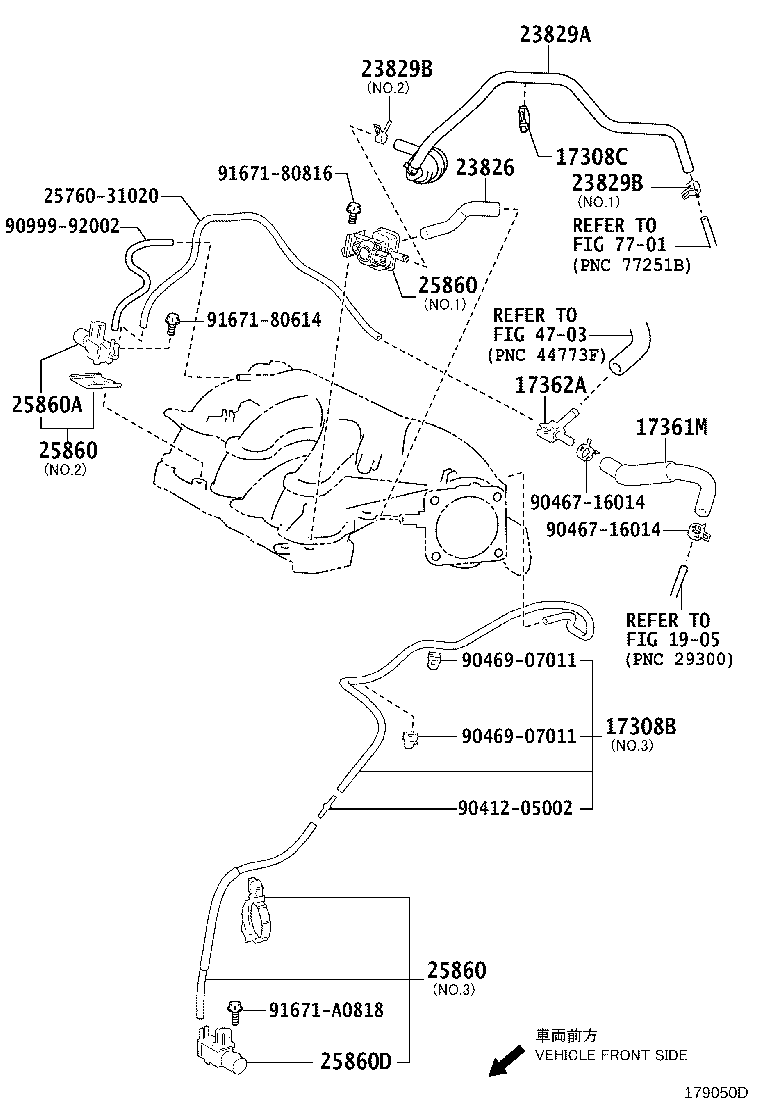

Toyota Lexus rx450h/350(jpp GGL25 VACUUM PIPING

GGL25L-BWZGBA (2015)

Toyota Lexus Rx450h/350(Jpp

Production Sep 2015 - Aug 2019

Engine 2GRFKS

Transmission 8FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1509-1712)2GRFKS

Click highlighted areas on diagram

Part #	Description	Period	Qty
17308B - HOSE SUB-ASSY, VACUUM
17308-31090	2GRFKS..GGL25	09/2015 - 08/2019	1
17308C - CLAMP(FOR VACUUM HOSE)
44753-48360	2GRFKS..GGL25	09/2015 - 08/2019	1
17361M - TUBE, AIR
17361-31040	2GRFKS..GGL25	09/2015 - 08/2019	1
17362A - TUBE, AIR, NO.2
17362-31040	2GRFKS..GGL25	09/2015 - 08/2019	1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-31280	2GRFKS..GGL25	09/2015 - 12/2017	1
23826-31480	2GRFKS..GGL25 NO.2	12/2017 - 08/2019	1
23826-31470	2GRFKS..GGL25 NO.1	12/2017 - 08/2019	1
23829A - HOSE, FUEL VAPOR FEED
23829-31150	2GRFKS..GGL25	09/2015 - 12/2017	1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
90467-19021	2GRFKS..GGL25 NO.1	09/2015 - 12/2017	1
96136-41901	2GRFKS..GGL25 NO.2	09/2015 - 08/2019	1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
90467-19021	2GRFKS..GGL25 NO.1	09/2015 - 12/2017	1
96136-41901	2GRFKS..GGL25 NO.2	09/2015 - 08/2019	1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-31110	2GRFKS..GGL25 NO.1	09/2015 - 12/2017	1
25860-31120	2GRFKS..GGL25 NO.2	09/2015 - 08/2019	1
25860-31190	2GRFKS..GGL25 NO.1	12/2017 - 08/2019	1
25860-31130	2GRFKS..GGL25 NO.3	09/2015 - 08/2019	1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-31110	2GRFKS..GGL25 NO.1	09/2015 - 12/2017	1
25860-31120	2GRFKS..GGL25 NO.2	09/2015 - 08/2019	1
25860-31190	2GRFKS..GGL25 NO.1	12/2017 - 08/2019	1
25860-31130	2GRFKS..GGL25 NO.3	09/2015 - 08/2019	1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-31110	2GRFKS..GGL25 NO.1	09/2015 - 12/2017	1
25860-31120	2GRFKS..GGL25 NO.2	09/2015 - 08/2019	1
25860-31190	2GRFKS..GGL25 NO.1	12/2017 - 08/2019	1
25860-31130	2GRFKS..GGL25 NO.3	09/2015 - 08/2019	1
25860A - VALVE, VACUUM SWITCHING, NO.1
25860-46010	2GRFKS..GGL25	09/2015 - 08/2019	1
25860D - VALVE ASSY, VACUUM SWITCHING, NO.2
90910-12132	2GRFKS..GGL25	09/2015 - 08/2019	1
Common parts
25760-31020
90412-05002
90467-16014
90469-07011
90999-92002
91671-80614
91671-80816
91671-A0818
Linked diagrams
1905
4703
7701

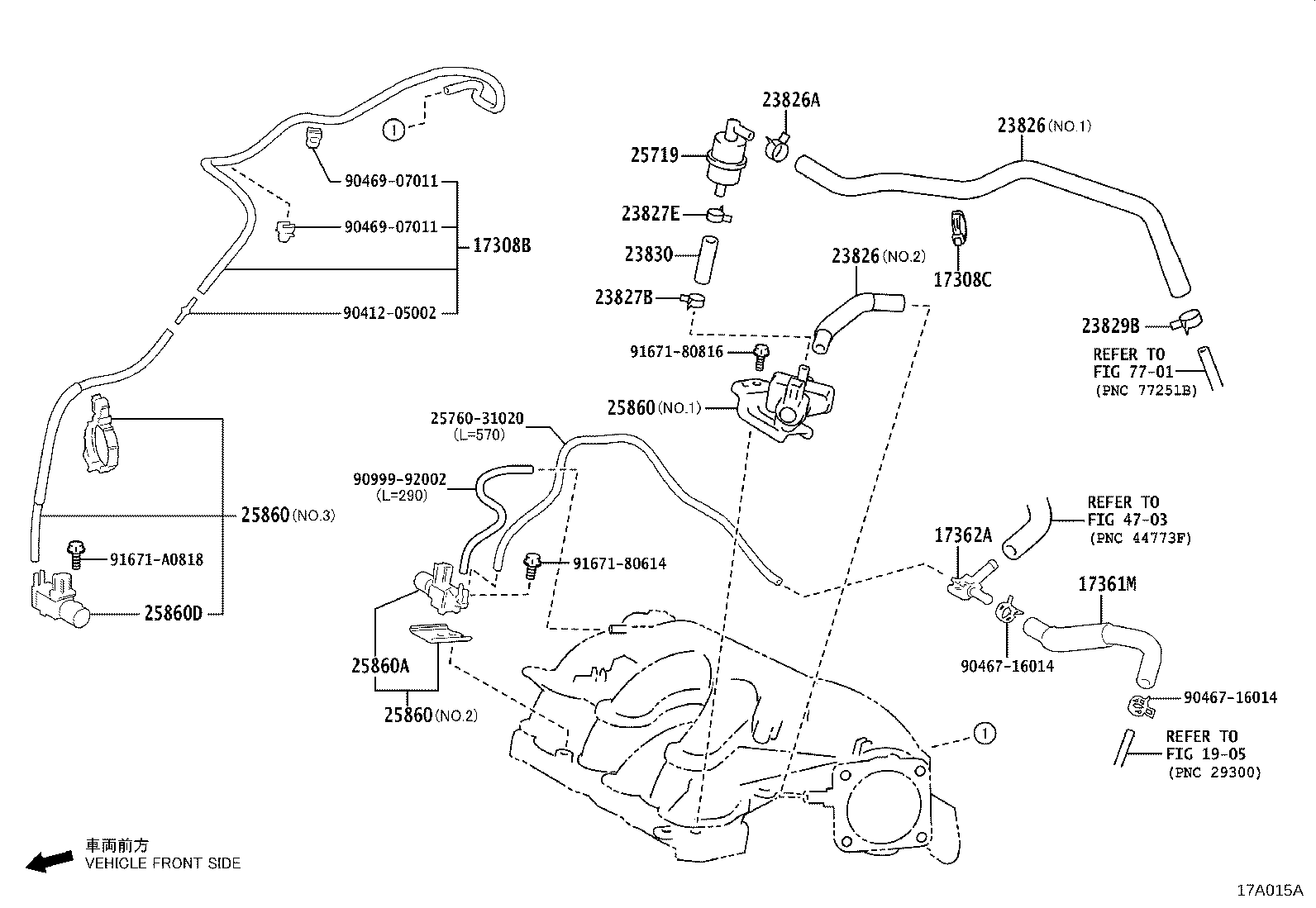

(1712- )2GRFKS

Click highlighted areas on diagram

Part #	Description	Period	Qty
17308B - HOSE SUB-ASSY, VACUUM
17308-31090	2GRFKS..GGL25	09/2015 - 08/2019	1
17308C - CLAMP(FOR VACUUM HOSE)
44753-48360	2GRFKS..GGL25	09/2015 - 08/2019	1
17361M - TUBE, AIR
17361-31040	2GRFKS..GGL25	09/2015 - 08/2019	1
17362A - TUBE, AIR, NO.2
17362-31040	2GRFKS..GGL25	09/2015 - 08/2019	1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-31280	2GRFKS..GGL25	09/2015 - 12/2017	1
23826-31480	2GRFKS..GGL25 NO.2	12/2017 - 08/2019	1
23826-31470	2GRFKS..GGL25 NO.1	12/2017 - 08/2019	1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-31280	2GRFKS..GGL25	09/2015 - 12/2017	1
23826-31480	2GRFKS..GGL25 NO.2	12/2017 - 08/2019	1
23826-31470	2GRFKS..GGL25 NO.1	12/2017 - 08/2019	1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90467-16014	2GRFKS..GGL25	12/2017 - 08/2019	1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96133-41501	2GRFKS..GGL25	12/2017 - 08/2019	1
23827E - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
90467-16014	2GRFKS..GGL25	12/2017 - 08/2019	1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
90467-19021	2GRFKS..GGL25 NO.1	09/2015 - 12/2017	1
96136-41901	2GRFKS..GGL25 NO.2	09/2015 - 08/2019	1
23830 - HOSE ASSY, FUEL VAPOR FEED, NO.2
23827-31180	2GRFKS..GGL25	12/2017 - 08/2019	1
25719 - TANK, VACUUM SURGE
25719-31070	2GRFKS..GGL25	12/2017 - 08/2019	1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-31110	2GRFKS..GGL25 NO.1	09/2015 - 12/2017	1
25860-31120	2GRFKS..GGL25 NO.2	09/2015 - 08/2019	1
25860-31190	2GRFKS..GGL25 NO.1	12/2017 - 08/2019	1
25860-31130	2GRFKS..GGL25 NO.3	09/2015 - 08/2019	1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-31110	2GRFKS..GGL25 NO.1	09/2015 - 12/2017	1
25860-31120	2GRFKS..GGL25 NO.2	09/2015 - 08/2019	1
25860-31190	2GRFKS..GGL25 NO.1	12/2017 - 08/2019	1
25860-31130	2GRFKS..GGL25 NO.3	09/2015 - 08/2019	1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-31110	2GRFKS..GGL25 NO.1	09/2015 - 12/2017	1
25860-31120	2GRFKS..GGL25 NO.2	09/2015 - 08/2019	1
25860-31190	2GRFKS..GGL25 NO.1	12/2017 - 08/2019	1
25860-31130	2GRFKS..GGL25 NO.3	09/2015 - 08/2019	1
25860A - VALVE, VACUUM SWITCHING, NO.1
25860-46010	2GRFKS..GGL25	09/2015 - 08/2019	1
25860D - VALVE ASSY, VACUUM SWITCHING, NO.2
90910-12132	2GRFKS..GGL25	09/2015 - 08/2019	1
Common parts
25760-31020
90412-05002
90467-16014
90469-07011
90999-92002
91671-80614
91671-80816
91671-A0818
Linked diagrams
1905
4703
7701
