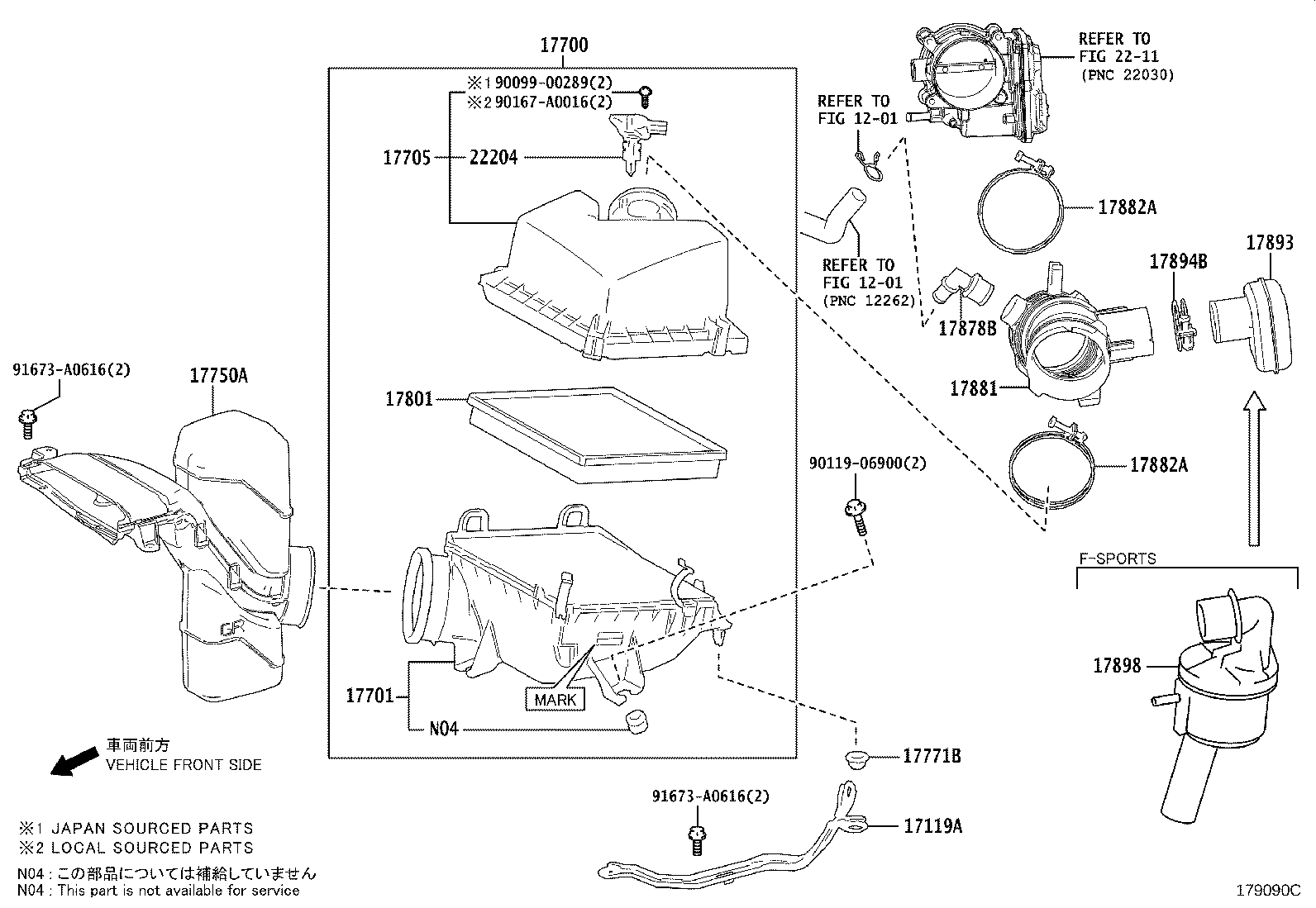

Toyota Lexus rx450h/350(jpp GGL25 AIR CLEANER

Part #	Description	Period	Qty
17119A - BRACKET, AIR CLEANER
17119-31120	2GRFKS..GGL25	09/2015 - 08/2019	1
17700 - CLEANER ASSY, AIR
17700-0P240	2GRFKS..GGL25 REFER TO PNC 17701	09/2015 - 07/2018	1
17700-31C00	2GRFKS..GGL25 REFER TO PNC 17701	07/2018 - 08/2019	1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-31740	2GRFKS..GGL25 MARK 17701-31740	07/2018 - 08/2019	1
17701-0P150	2GRFKS..GGL25 MARK 17701-0P150	09/2015 - 07/2018	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0P230	2GRFKS..GGL25 REFER TO PNC 17701	09/2015 - 07/2018	1
17705-31550	2GRFKS..GGL25 REFER TO PNC 17701	07/2018 - 08/2019	1
17750A - INLET ASSY, AIR CLEANER
17750-31030	2GRFKS..GGL25	09/2015 - 08/2019	1
17771B - GROMMET(FOR AIR CLEANER BRACKET)
90480-18006	2GR#..GGL25,GYL25	09/2015 - 08/2019	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-31131	2GRFKS..GGL25 (J)	09/2015 - 08/2019	1
17801-0P051	2GRFKS..GGL25 (L)	09/2015 - 07/2018	1
17878B - TUBE, VENTILATION
17878-31020	2GR#..GGL25,GYL25	09/2015 - 08/2019	1
17881 - HOSE, AIR CLEANER, NO.1
17881-31400	2GRFKS..GGL25	09/2015 - 08/2019	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10900	2GR#..GGL25,GYL25	09/2015 - 08/2019	2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10900	2GR#..GGL25,GYL25	09/2015 - 08/2019	2
17893 - RESONATOR, INTAKE AIR
17893-31170	2GRFKS..GGL25	09/2015 - 08/2019	1
17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
96111-10550	2GRFKS..GGL25	09/2015 - 08/2019	1
17898 - CREATOR, INTAKE AIR SOUND
17898-31020	2GRFKS..GGL25..A "F-SPORT"*(F)	09/2015 - 08/2019	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75040	2GRFKS..GGL25	07/2018 - 08/2019	1
22204-75040	2GRFKS..GGL25 REFER TO PNC 17701	09/2015 - 07/2018	1
Common parts
90099-00289
90119-06900
90167-A0016
91673-A0616
Linked diagrams
1201
2211

GGL25L-BWZGBA (2015)

(1509- )2GRFKS
