GGL25L-BWZGBA (2015)

Toyota Lexus Rx450h/350(Jpp

Production Sep 2015 - Aug 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1509- )2GRFKS

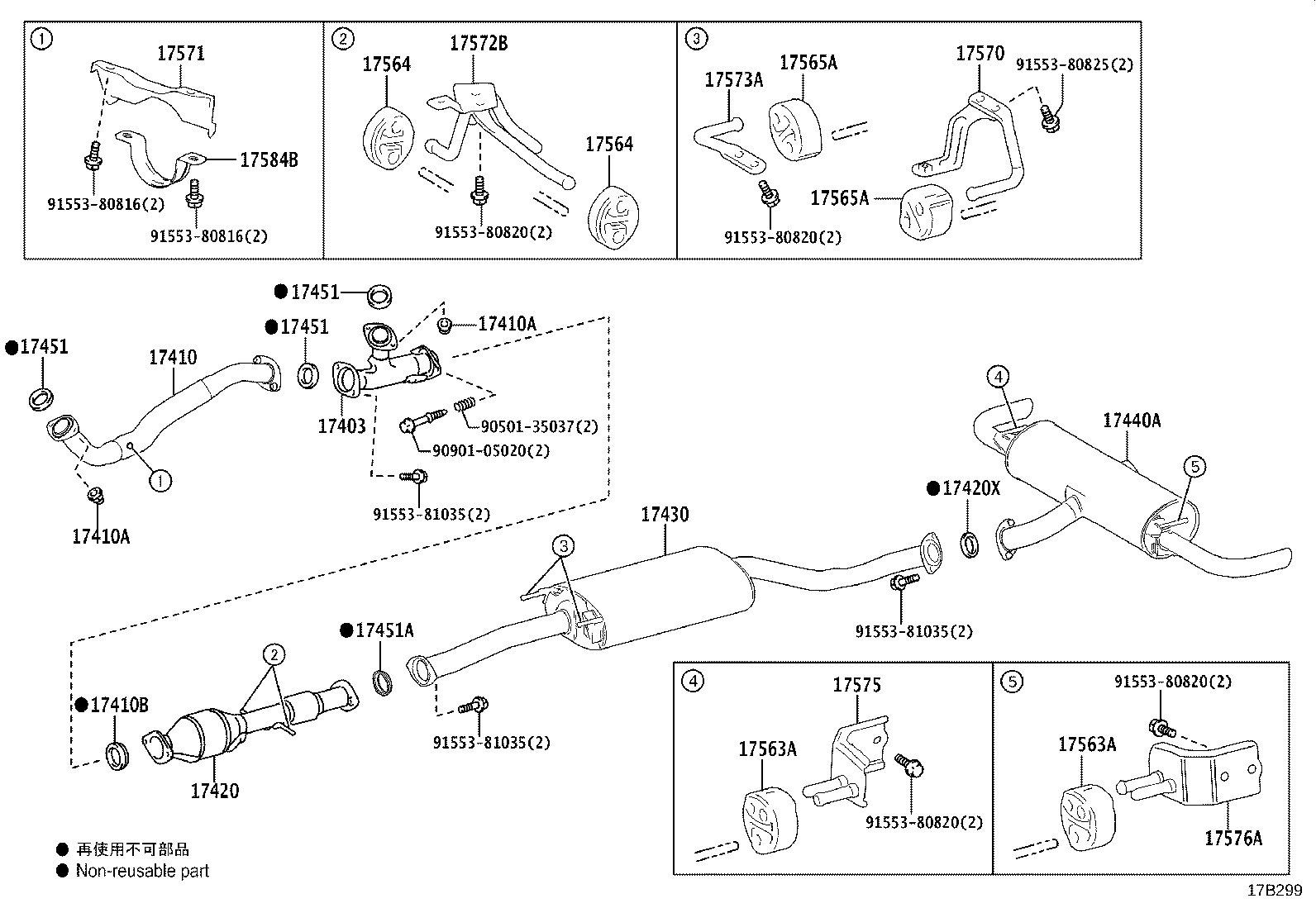

Click highlighted areas on diagram

diagram 17403 17410 17410A 17410A 17410B 17420 17420X 17430 17440A 17451 17451 17451 17451A 17563A 17563A 17564 17564 17565A 17565A 17570 17571 17572B 17573A 17575 17576A 17584B 9050135037 9090105020 9155380816 9155380816 9155380820 9155380820 9155380820 9155380820 9155380825 9155381035 9155381035 9155381035
Part # Description Qty Price
17403 - PIPE SUB-ASSY, EXHAUST, FRONT NO.3
17403-31190

2GRFKS..GGL25..B

 1
17403-31170

2GRFKS..GGL25..A

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-31K50

2GRFKS..GGL25

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2GR#..GGL25,GYL25

 4
90179-10070

2GR#..GGL25,GYL25

 4
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2GR#..GGL25,GYL25

 4
90179-10070

2GR#..GGL25,GYL25

 4
17410B - GASKET, EXHAUST PIPE
17451-28040

2GRFKS..GGL25

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-31570

2GRFKS..GGL25..A

*114=TOYOTA/X82/Y

 1
17420-31571

2GRFKS..GGL25..A

*114=TOYOTA/X82/Y

 1
17420-31590

2GRFKS..GGL25..B

 1
17420-31591

2GRFKS..GGL25..B

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06072

2GRFKS..GGL25

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31C01

2GRFKS..GGL25

 1
17430-31C00

2GRFKS..GGL25

 1
17440A - PIPE ASSY, EXHAUST TAIL, NO.2
17440-31220

2GRFKS..GGL25

 1
17451 - GASKET, EXHAUST PIPE
90917-06089

2GR#..GGL25,GYL25

 3
17451 - GASKET, EXHAUST PIPE
90917-06089

2GR#..GGL25,GYL25

 3
17451 - GASKET, EXHAUST PIPE
90917-06089

2GR#..GGL25,GYL25

 3
17451A - GASKET, EXHAUST PIPE, NO.2
90917-06072

2GRFKS..GGL25

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-31050

2GRFKS..GGL25

 2
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-31050

2GRFKS..GGL25

 2
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-22030

2GR#..GGL25,GYL25

 2
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-22030

2GR#..GGL25,GYL25

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2GRFKS..GGL25

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2GRFKS..GGL25

 2
17570 - BRACKET ASSY, EXHAUST PIPE SUPPORT
17570-31030

2GRFKS..GGL25

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-31300

2GRFKS..GGL25

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-31140

2GRFKS..GGL25

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-31080

2GRFKS..GGL25

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-31150

2GRFKS..GGL25

 1
17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6
17576-31100

2GRFKS..GGL25

 1
17584B - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17584-31040

2GRFKS..GGL25

 1
Common parts
90501-35037
90901-05020
91553-80816
91553-80820
91553-80825
91553-81035
