GGL25L-BWZGBA (2015)

Toyota Lexus Rx450h/350(Jpp

Production Sep 2015 - Aug 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1509- )

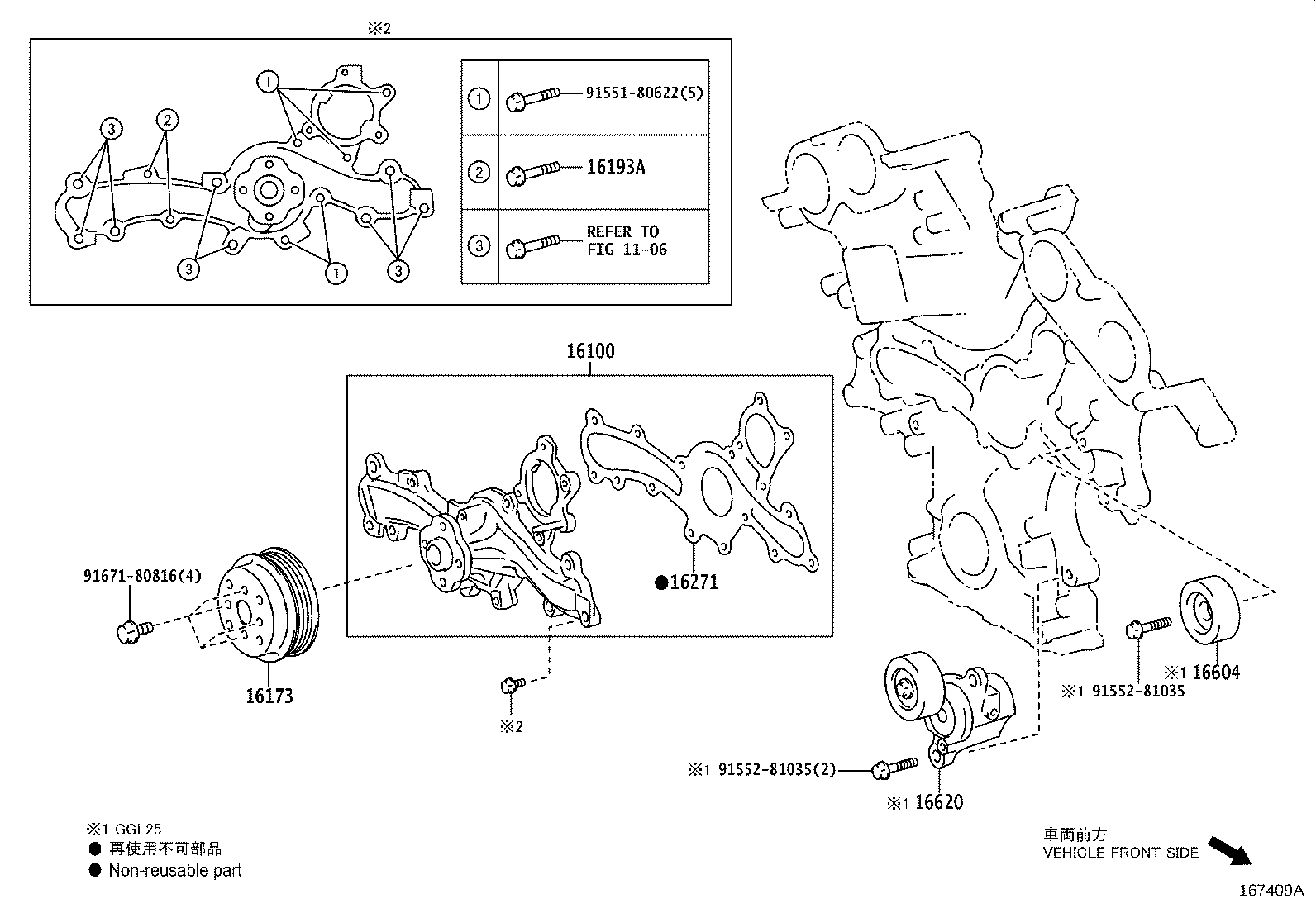

Click highlighted areas on diagram

diagram 1106 16100 16173 16193A 16271 16604 16620 9155180622 9155281035 9155281035 9167180816
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39615

2GR#..GGL25,GYL25

 1
16173 - PULLEY, WATER PUMP
16173-31030

2GRFKS..GGL25

 1
16193A - BOLT(FOR WATER PUMP COVER)
16193-31080

2GR#..GGL25,GYL25

 2
16271 - GASKET, WATER PUMP
16271-31050

2GR#..GGL25,GYL25

 1
16604 - PULLEY SUB-ASSY, IDLER, NO.2
16604-31030

2GRFKS..GGL25

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-31090

2GRFKS..GGL25

 1
Common parts
91551-80622
91552-81035
91671-80816
Linked diagrams
1106
