GGL25L-BWZGBA (2015)
Toyota Lexus Rx450h/350(Jpp
Production
Sep 2015
-
Aug 2019
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1509- )2GRFKS

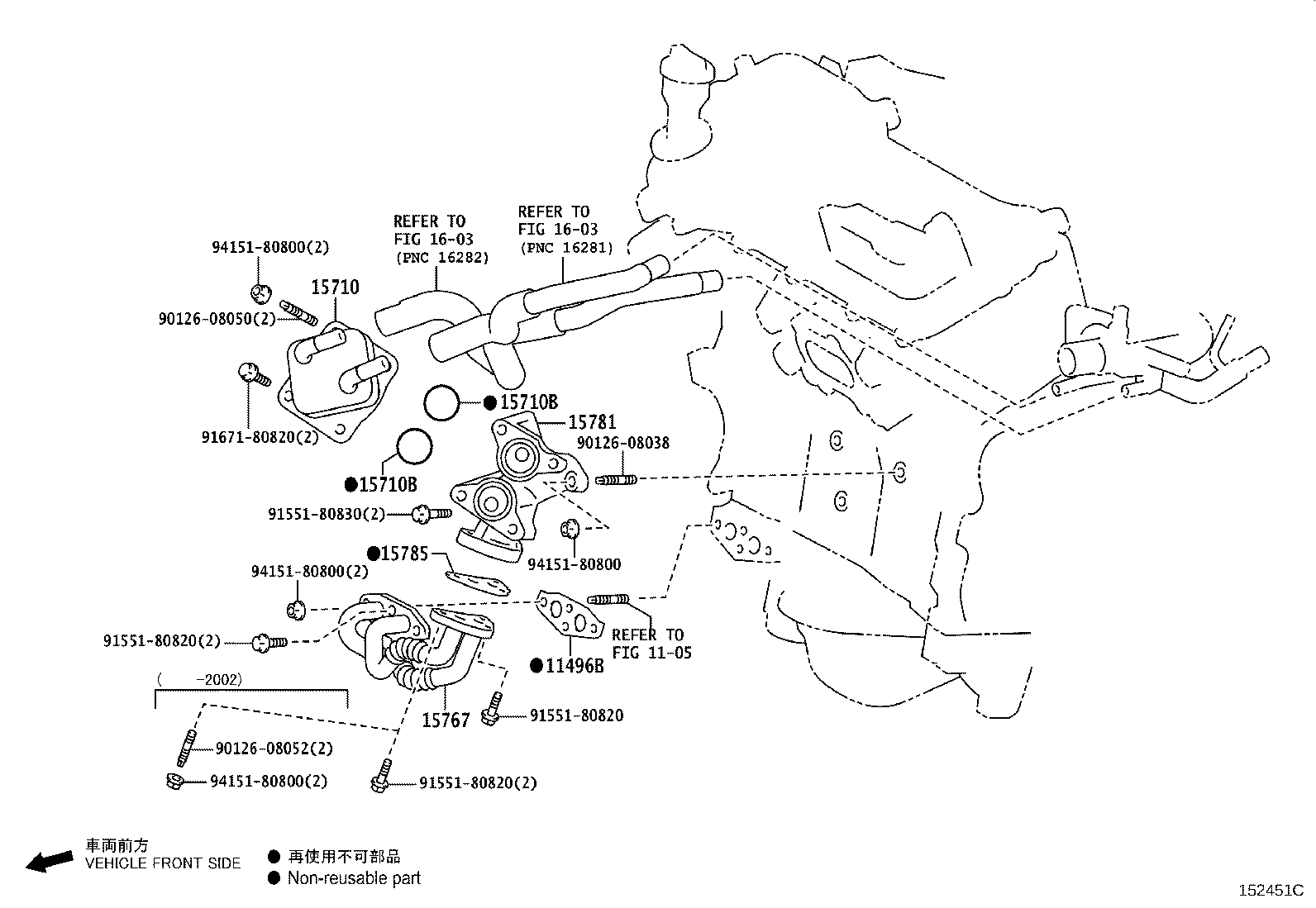

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11496B - GASKET, OIL HOLE COVER | ||||
| 11496-31020 |
2GRFKS..GGL25..B TOWING PACKAGE-3500LBS |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| 15710-31060 |
2GRFKS..GGL25..B TOWING PACKAGE-3500LBS |
1 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| 15785-31050 |
2GRFKS..GGL25..B TOWING PACKAGE-3500LBS |
2 | ||
| 96723-35035 |
2GRFKS..GGL25..B TOWING PACKAGE-3500LBS |
2 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| 15785-31050 |
2GRFKS..GGL25..B TOWING PACKAGE-3500LBS |
2 | ||
| 96723-35035 |
2GRFKS..GGL25..B TOWING PACKAGE-3500LBS |
2 | ||
| 15767 - PIPE, OIL COOLER | ||||
| 15767-31031 |
2GRFKS..GGL25..B TOWING PACKAGE-3500LBS |
1 | ||
| 15767-31030 |
2GRFKS..GGL25..B TOWING PACKAGE-3500LBS |
1 | ||
| 15781 - BRACKET, OIL COOLER, NO.1 | ||||
| 15781-31020 |
2GRFKS..GGL25..B TOWING PACKAGE-3500LBS |
1 | ||
| 15785 - GASKET, OIL COOLER | ||||
| 15785-31040 |
2GRFKS..GGL25..B TOWING PACKAGE-3500LBS |
1 | ||
| Common parts | ||||
| 90126-08038 | ||||
| 90126-08050 | ||||
| 90126-08052 | ||||
| 91551-80820 | ||||
| 91551-80830 | ||||
| 91671-80820 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1603 | ||||
