GGL25L-BWZGBA (2015)
Toyota Lexus Rx450h/350(Jpp
Production
Sep 2015
-
Aug 2019
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1509- )2GRFKS

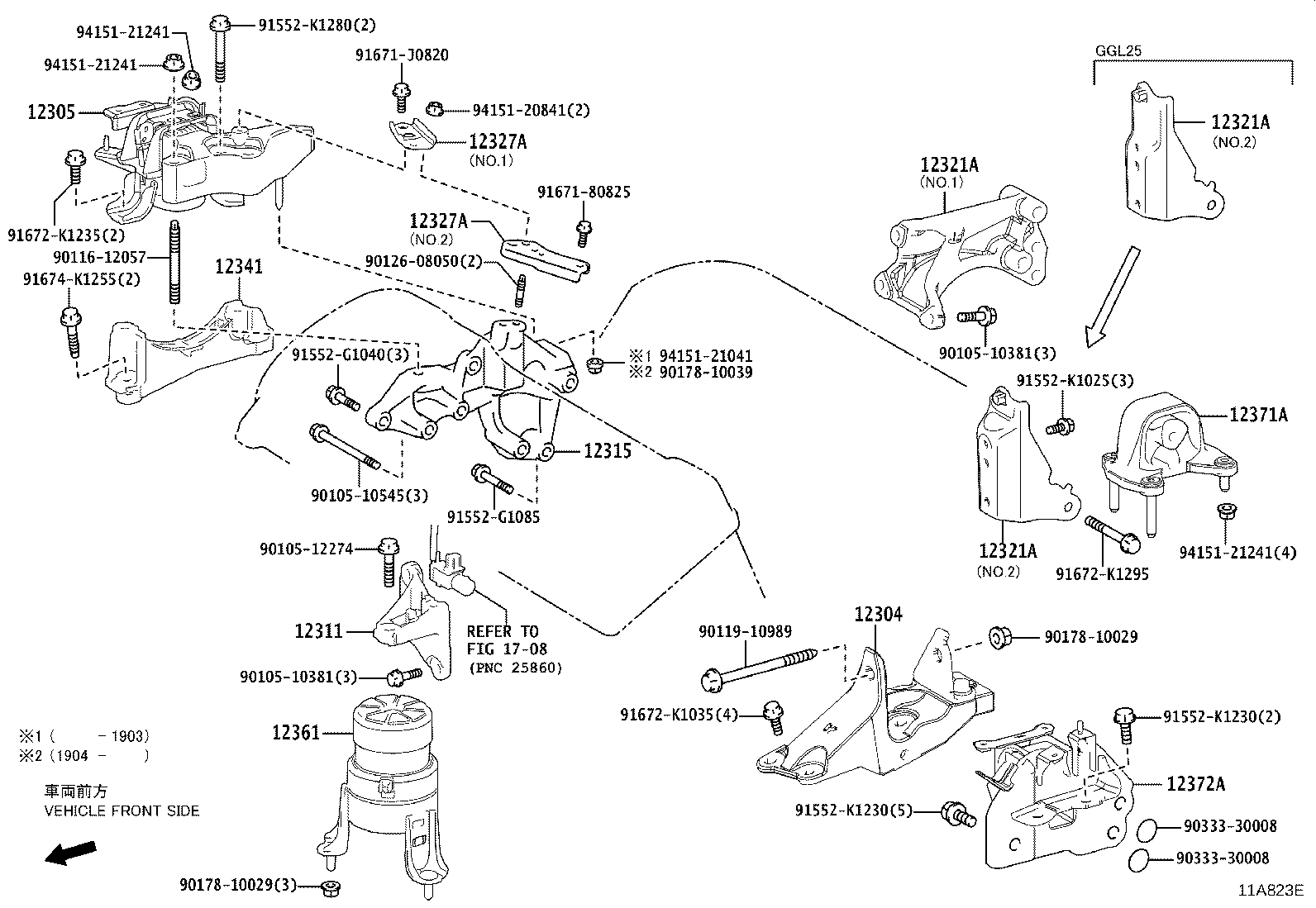

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12304 - BRACKET SUB-ASSY, ENGINE MOUNTING, LH | ||||
| 12304-31040 |
2GRFKS..GGL25 |
1 | ||
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-31070 |
2GRFKS..GGL25 |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-31190 |
2GRFKS..GGL25 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-31160 |
2GR#..GGL25,GYL25 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-31130 |
2GRFKS..GGL25 NO.1 |
1 | ||
| 12321-31200 |
2GRFKS..GGL25 NO.2 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-31130 |
2GRFKS..GGL25 NO.1 |
1 | ||
| 12321-31200 |
2GRFKS..GGL25 NO.2 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-31130 |
2GRFKS..GGL25 NO.1 |
1 | ||
| 12321-31200 |
2GRFKS..GGL25 NO.2 |
1 | ||
| 12327A - STAY, ENGINE MOUNTING, NO.2 RH | ||||
| 12327-31120 |
2GR#..GGL25,GYL25 NO.2 |
1 | ||
| 12327-31110 |
2GR#..GGL25,GYL25 NO.1 |
1 | ||
| 12327A - STAY, ENGINE MOUNTING, NO.2 RH | ||||
| 12327-31120 |
2GR#..GGL25,GYL25 NO.2 |
1 | ||
| 12327-31110 |
2GR#..GGL25,GYL25 NO.1 |
1 | ||
| 12341 - SPACER, ENGINE MOUNTING | ||||
| 12341-31040 |
2GR#..GGL25,GYL25 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-31470 |
2GRFKS..GGL25 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-31360 |
2GRFKS..GGL25 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-31100 |
2GRFKS..GGL25 |
1 | ||
| Common parts | ||||
| 90105-10381 | ||||
| 90105-10545 | ||||
| 90105-12274 | ||||
| 90116-12057 | ||||
| 90119-10989 | ||||
| 90126-08050 | ||||
| 90178-10029 | ||||
| 90178-10039 | ||||
| 90333-30008 | ||||
| 91552-G1040 | ||||
| 91552-G1085 | ||||
| 91552-K1025 | ||||
| 91552-K1230 | ||||
| 91552-K1280 | ||||
| 91671-80825 | ||||
| 91671-J0820 | ||||
| 91672-K1035 | ||||
| 91672-K1235 | ||||
| 91672-K1295 | ||||
| 91674-K1255 | ||||
| 94151-20841 | ||||
| 94151-21041 | ||||
| 94151-21241 | ||||
| Linked diagrams | ||||
| 1708 | ||||
