GGL25L-BWZGBA (2015)
Toyota Lexus Rx450h/350(Jpp

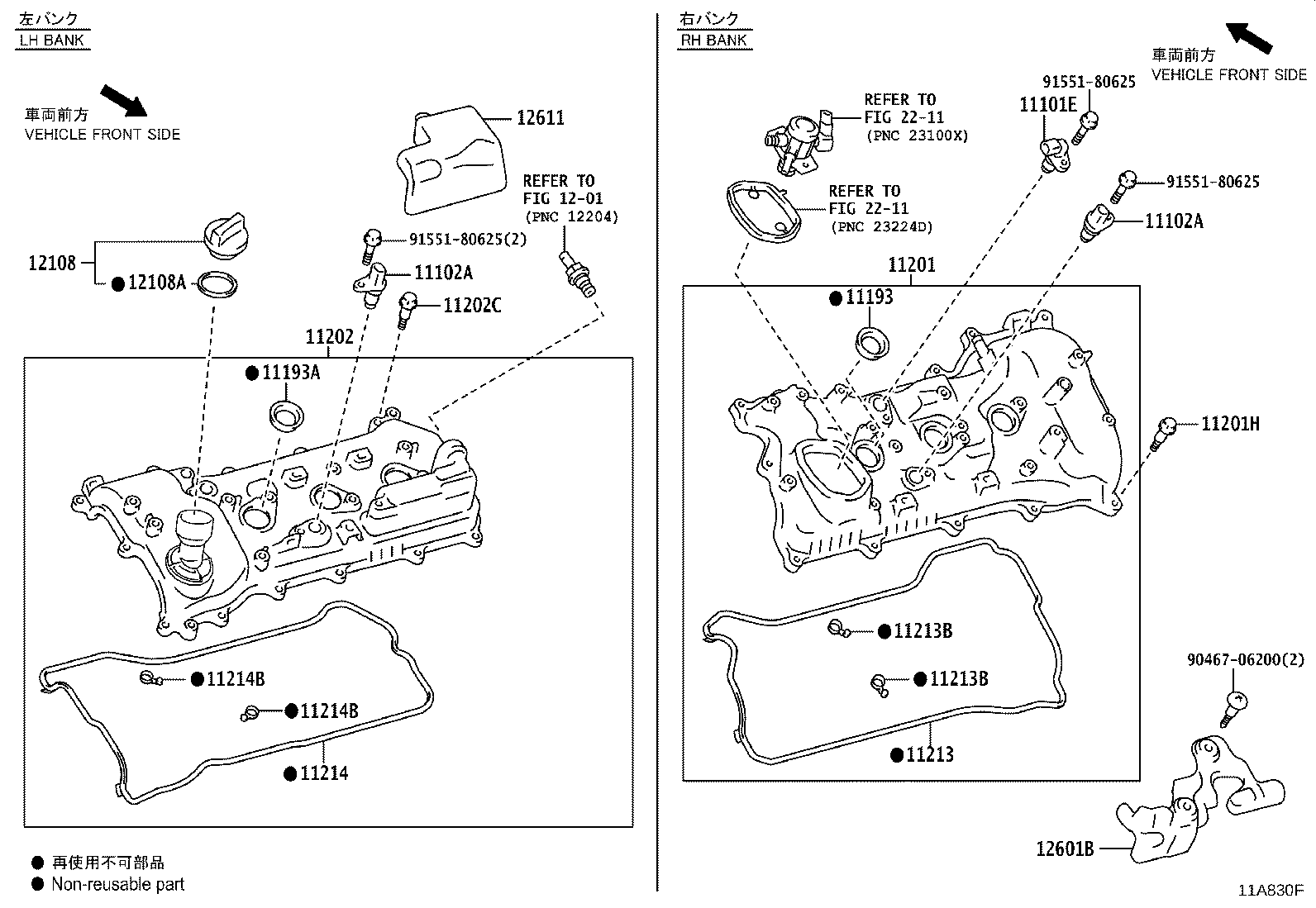

ILLUST NO. 3 OF 4(1509- )
CYLINDER HEAD COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05061 |
2GR#..GGL25,GYL25 |
1 | ||
| 11102A - SENSOR, CAMSHAFT POSITION | ||||
| 90919-05060 |
2GR#..GGL25,GYL25 |
3 | ||
| 11102A - SENSOR, CAMSHAFT POSITION | ||||
| 90919-05060 |
2GR#..GGL25,GYL25 |
3 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-31010 |
2GR#..GGL25,GYL25 |
3 | ||
| 11193A - GASKET, SPARK PLUG TUBE, LH | ||||
| 11193-31010 |
2GR#..GGL25,GYL25 |
3 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-31301 |
2GR#..GGL25,GYL25 |
1 | ||
| 11201-31300 |
2GR#..GGL25,GYL25 |
1 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 90109-06384 |
2GR#..GGL25,GYL25 |
13 | ||
| 11202 - COVER SUB-ASSY, CYLINDER HEAD, LH | ||||
| 11202-31080 |
2GR#..GGL25,GYL25 |
1 | ||
| 11202-31081 |
2GR#..GGL25,GYL25 |
1 | ||
| 11202C - BOLT(FOR CYLINDER HEAD COVER LH) | ||||
| 90109-06384 |
2GR#..GGL25,GYL25 |
14 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-31070 |
2GR#..GGL25,GYL25 |
1 | ||
| 11213B - GASKET, CYLINDER HEAD COVER, RH NO.2 | ||||
| 11213-31080 |
2GR#..GGL25,GYL25 |
2 | ||
| 11213B - GASKET, CYLINDER HEAD COVER, RH NO.2 | ||||
| 11213-31080 |
2GR#..GGL25,GYL25 |
2 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-31050 |
2GR#..GGL25,GYL25 |
1 | ||
| 11214B - GASKET, CYLINDER HEAD COVER, LH NO.2 | ||||
| 11213-31080 |
2GR#..GGL25,GYL25 |
2 | ||
| 11214B - GASKET, CYLINDER HEAD COVER, LH NO.2 | ||||
| 11213-31080 |
2GR#..GGL25,GYL25 |
2 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-38010 |
2GR#..GGL25,GYL25 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
2GR#..GGL25,GYL25 |
1 | ||
| 12601B - COVER SUB-ASSY, ENGINE, NO.1 | ||||
| 12601-31050 |
2GR#..GGL25,GYL25 |
1 | ||
| Common parts | ||||
| 90467-06200 | ||||
| 91551-80625 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 2211 | ||||

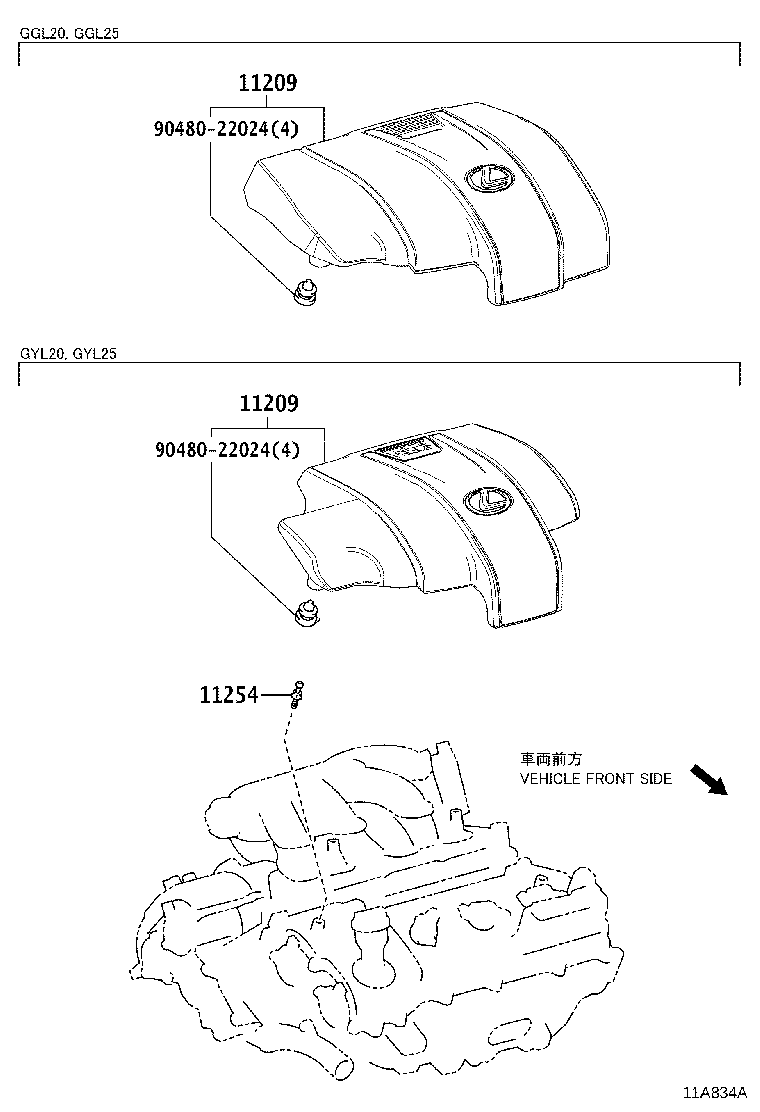

ILLUST NO. 4 OF 4(1509- )
ENGINE COVER & V BANK COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11209 - COVER SUB-ASSY, V-BANK | ||||
| 11209-31380 |
2GRFKS..GGL25 |
1 | ||
| 11209 - COVER SUB-ASSY, V-BANK | ||||
| 11209-31380 |
2GRFKS..GGL25 |
1 | ||
| 11254 - BRACKET, V-BANK COVER, NO.1 | ||||
| 11254-31020 |
2GR#..GGL25,GYL25 |
2 | ||
| Common parts | ||||
| 90480-22024 | ||||

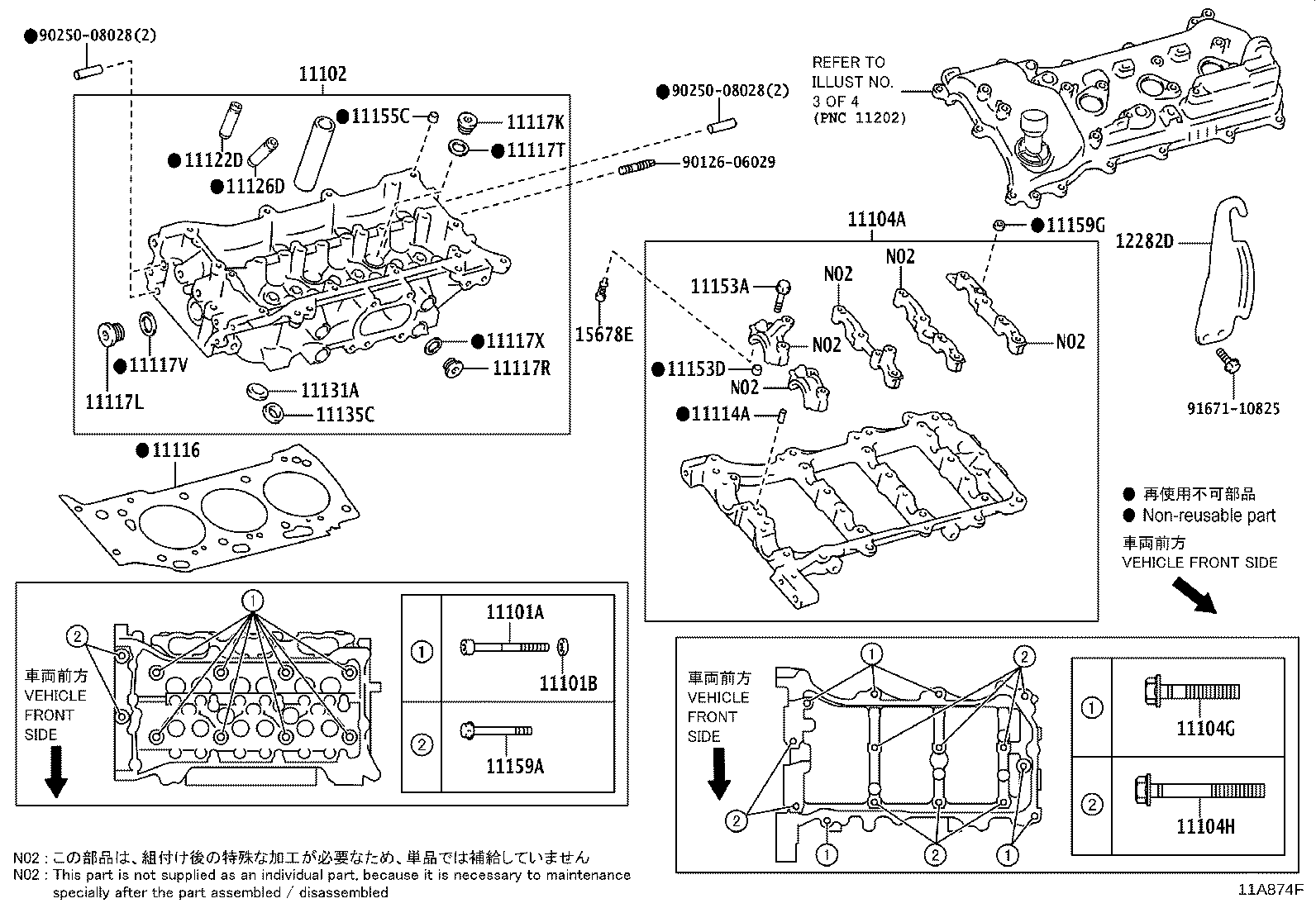

ILLUST NO. 1 OF 4(1509- )2GRFKS
CYLINDER HEAD(LH BANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02164 |
2GR#..GGL25,GYL25 |
16 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11034 |
2GR#..GGL25,GYL25 |
16 | ||
| 11102 - HEAD, CYLINDER, LH | ||||
| 11102-39325 |
2GRFKS..GGL25 |
1 | ||
| 11104A - HOUSING SUB-ASSY, CAMSHAFT, LH | ||||
| 11104-31060 |
2GR#..GGL25,GYL25 |
1 | ||
| 11104G - BOLT(FOR CAMSHAFT HOUSING SET, LH NO.1) | ||||
| 90105-08465 |
2GR#..GGL25,GYL25 |
6 | ||
| 11104H - BOLT(FOR CAMSHAFT HOUSING SET, LH NO.2) | ||||
| 90105-08464 |
2GR#..GGL25,GYL25 |
9 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-05021 |
2GR#..GGL25,GYL25 L=13.8,OD=5.0 |
1 | ||
| 11116 - GASKET, CYLINDER HEAD, NO.2 | ||||
| 11116-31100 |
2GR#..GGL25,GYL25 |
1 | ||
| 11117K - PLUG, W/HEAD STRAIGHT SCREW, LH NO.1 | ||||
| 90341-20012 |
2GR#..GGL25,GYL25 |
2 | ||
| 11117L - PLUG, W/HEAD STRAIGHT SCREW, LH NO.2 | ||||
| 90341-27006 |
2GR#..GGL25,GYL25 |
1 | ||
| 11117R - PLUG, W/HEAD STRAIGHT SCREW, LH NO.3 | ||||
| 90341-20002 |
2GR#..GGL25,GYL25 |
4 | ||
| 11117T - GASKET(FOR WATER HOLE LH) | ||||
| 90430-20004 |
2GR#..GGL25,GYL25 |
2 | ||
| 11117V - GASKET(FOR CYLINDER HEAD SCREW PLUG, LH NO.1) | ||||
| 90430-27005 |
2GR#..GGL25,GYL25 |
1 | ||
| 11117X - GASKET(FOR CYLINDER HEAD SCREW PLUG, LH NO.2) | ||||
| 16258-31020 |
2GR#..GGL25,GYL25 |
4 | ||
| 11122D - BUSH, INTAKE VALVE GUIDE, LH | ||||
| 11123-31070 |
2GR#..GGL25,GYL25 O/S 0.05 |
6 | ||
| 11122-31070 |
2GR#..GGL25,GYL25 STD |
6 | ||
| 11126D - BUSH, EXHAUST VALVE GUIDE, LH | ||||
| 11127-31030 |
2GR#..GGL25,GYL25 O/S 0.05 |
6 | ||
| 11126-31030 |
2GR#..GGL25,GYL25 STD |
6 | ||
| 11131A - SEAT, INTAKE VALVE, NO.2 | ||||
| 11132-31050 |
2GR#..GGL25,GYL25 O/S 0.03 |
6 | ||
| 11131-31050 |
2GR#..GGL25,GYL25 STD |
6 | ||
| 11135C - SEAT, EXHAUST VALVE, LH | ||||
| 11135-31110 |
2GR#..GGL25,GYL25 STD |
6 | ||
| 11135-31100 |
2GR#..GGL25,GYL25 STD |
6 | ||
| 11136-31100 |
2GR#..GGL25,GYL25 O/S 0.03 |
6 | ||
| 11136-31110 |
2GR#..GGL25,GYL25 O/S 0.03 |
6 | ||
| 11153A - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1) | ||||
| 90119-07009 |
2GR#..GGL25,GYL25 |
8 | ||
| 11153D - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING LH) | ||||
| 90253-11021 |
2GR#..GGL25,GYL25 |
10 | ||
| 11155C - PIN, RING NO.2 | ||||
| 90253-11021 |
2GR#..GGL25,GYL25 |
4 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-10521 |
2GR#..GGL25,GYL25 |
2 | ||
| 11159G - GASKET, CAMSHAFT BEARING CAP OIL HOLE, LH | ||||
| 11159-31040 |
2GR#..GGL25,GYL25 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-31100 |
2GR#..GGL25,GYL25 |
1 | ||
| 15678E - FILTER, OIL CONTROL VALVE, LH | ||||
| 15678-31020 |
2GR#..GGL25,GYL25 |
2 | ||
| Common parts | ||||
| 90126-06029 | ||||
| 90250-08028 | ||||
| 91671-10825 | ||||

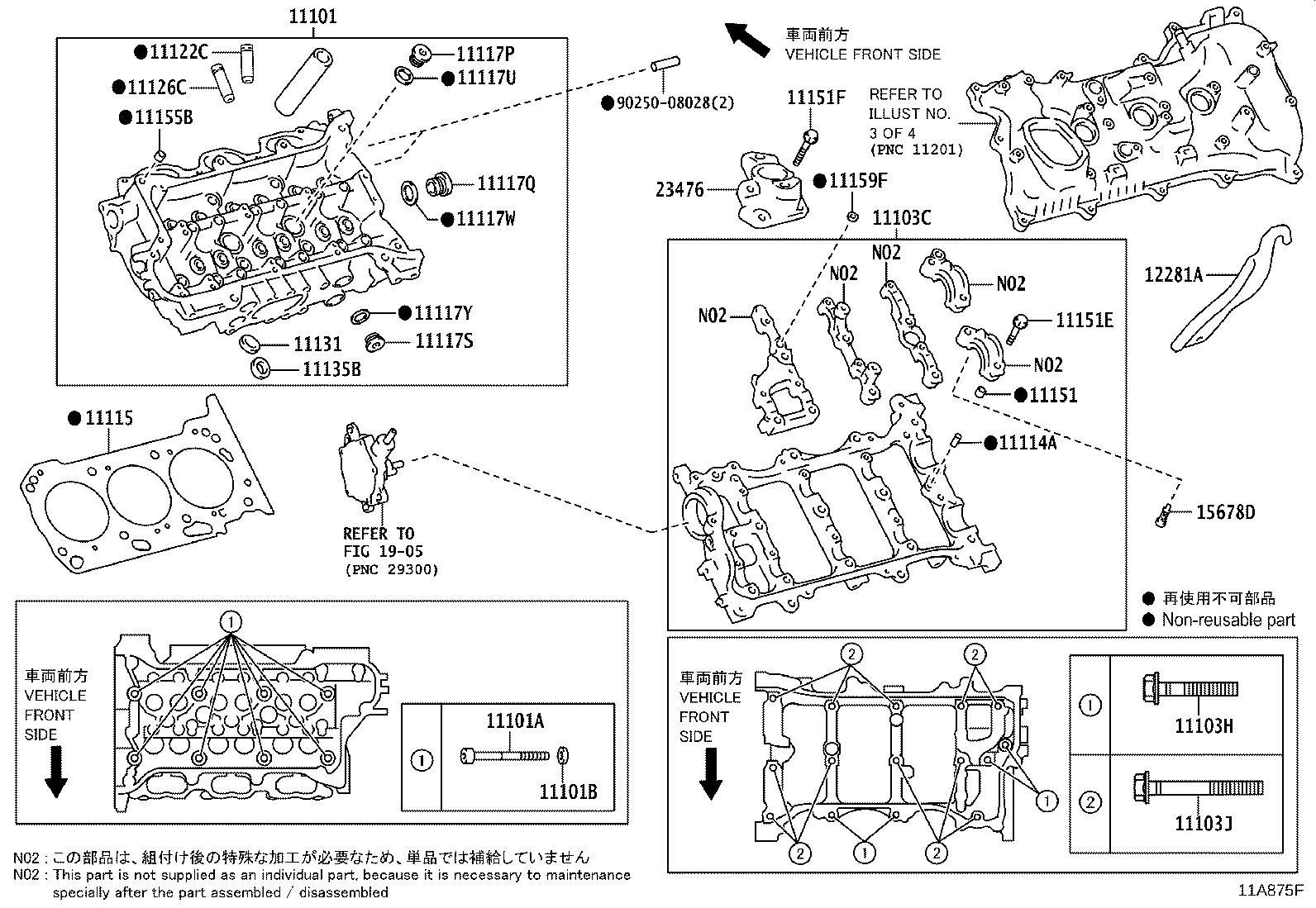

ILLUST NO. 2 OF 4(1510- )2GRFKS
CYLINDER HEAD(RH BANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-80002 |
2GRFKS..GGL25 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02164 |
2GR#..GGL25,GYL25 |
16 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11034 |
2GR#..GGL25,GYL25 |
16 | ||
| 11103C - HOUSING SUB-ASSY, CAMSHAFT, RH | ||||
| 11103-31050 |
2GRFKS..GGL25 |
1 | ||
| 11103-31051 |
2GRFKS..GGL25 |
1 | ||
| 11103H - BOLT(FOR CAMSHAFT HOUSING SET, RH NO.1) | ||||
| 90105-08465 |
2GR#..GGL25,GYL25 |
4 | ||
| 11103J - BOLT(FOR CAMSHAFT HOUSING SET, RH NO.2) | ||||
| 90105-08464 |
2GR#..GGL25,GYL25 |
11 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-05021 |
2GR#..GGL25,GYL25 L=13.8,OD=5.0 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-31120 |
2GR#..GGL25,GYL25 |
1 | ||
| 11117P - PLUG, W/HEAD STRAIGHT SCREW, RH NO.1 | ||||
| 90341-20012 |
2GR#..GGL25,GYL25 |
2 | ||
| 11117Q - PLUG, W/HEAD STRAIGHT SCREW, RH NO.2 | ||||
| 90341-27006 |
2GR#..GGL25,GYL25 |
1 | ||
| 11117S - PLUG, W/HEAD STRAIGHT SCREW, RH NO.3 | ||||
| 90341-20002 |
2GR#..GGL25,GYL25 |
4 | ||
| 11117U - GASKET(FOR WATER HOLE RH) | ||||
| 90430-20004 |
2GR#..GGL25,GYL25 |
2 | ||
| 11117W - GASKET(FOR CYLINDER HEAD SCREW PLUG, RH NO.1) | ||||
| 90430-27005 |
2GR#..GGL25,GYL25 |
1 | ||
| 11117Y - GASKET(FOR CYLINDER HEAD SCREW PLUG, RH NO.2) | ||||
| 16258-31020 |
2GR#..GGL25,GYL25 |
4 | ||
| 11122C - BUSH, INTAKE VALVE GUIDE, RH | ||||
| 11123-31070 |
2GR#..GGL25,GYL25 O/S 0.05 |
6 | ||
| 11122-31070 |
2GR#..GGL25,GYL25 STD |
6 | ||
| 11126C - BUSH, EXHAUST VALVE GUIDE, RH | ||||
| 11126-31030 |
2GR#..GGL25,GYL25 STD |
6 | ||
| 11127-31030 |
2GR#..GGL25,GYL25 O/S 0.05 |
6 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-31050 |
2GR#..GGL25,GYL25 STD |
6 | ||
| 11132-31050 |
2GR#..GGL25,GYL25 O/S 0.03 |
6 | ||
| 11135B - SEAT, EXHAUST VALVE, RH | ||||
| 11136-31110 |
2GR#..GGL25,GYL25 O/S 0.03 |
6 | ||
| 11136-31100 |
2GR#..GGL25,GYL25 O/S 0.03 |
6 | ||
| 11135-31100 |
2GR#..GGL25,GYL25 STD |
6 | ||
| 11135-31110 |
2GR#..GGL25,GYL25 STD |
6 | ||
| 11151 - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING RH) | ||||
| 90253-11021 |
2GR#..GGL25,GYL25 |
10 | ||
| 11151E - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1) | ||||
| 90119-07009 |
2GR#..GGL25,GYL25 |
7 | ||
| 11151F - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2) | ||||
| 90119-07008 |
2GR#..GGL25,GYL25 |
2 | ||
| 11155B - PIN, RING | ||||
| 90253-11021 |
2GR#..GGL25,GYL25 |
4 | ||
| 11159F - GASKET, CAMSHAFT BEARING CAP OIL HOLE, RH | ||||
| 11159-31040 |
2GR#..GGL25,GYL25 |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-31121 |
2GR#..GGL25,GYL25 |
1 | ||
| 15678D - FILTER, OIL CONTROL VALVE, RH | ||||
| 15678-31020 |
2GR#..GGL25,GYL25 |
2 | ||
| 23476 - HOUSING, FUEL PUMP LIFTER | ||||
| 23476-31020 |
2GR#..GGL25,GYL25 |
1 | ||
| Common parts | ||||
| 90250-08028 | ||||
| Linked diagrams | ||||
| 1905 | ||||
