GGL25L-AWZGBA (2019)

Toyota Lexus Rx450h/350(Jpp

Production Aug 2019 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

Click highlighted areas on diagram

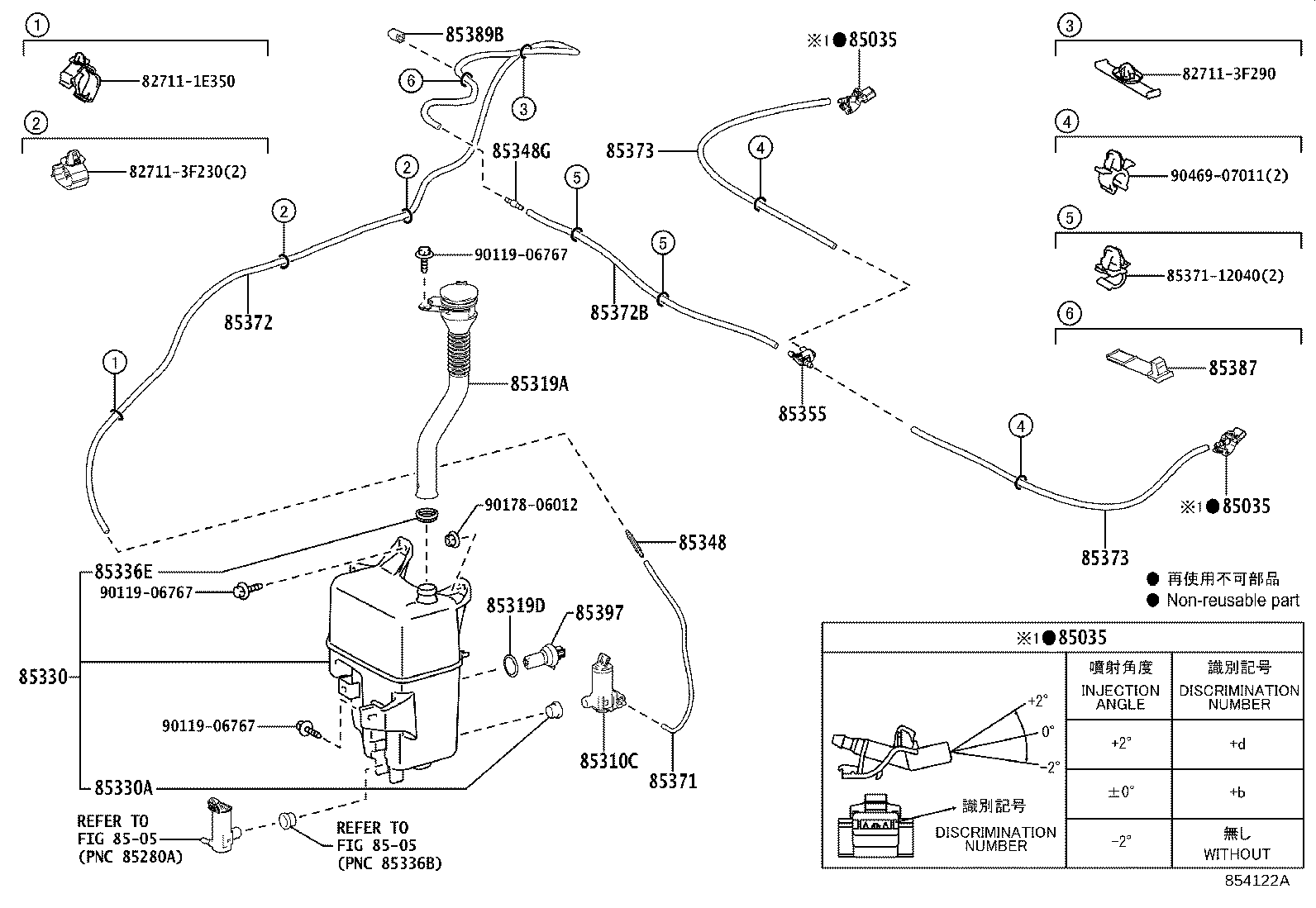

W/O(HEADLAMP CLEANER)

diagram 827111E350 827113F230 827113F290 85035 85035 85035 85310C 85319A 85319D 85330 85330A 85336E 85348 85348G 85355 85371 8537112040 85372 85372B 85373 85373 85387 85389B 85397 9011906767 9011906767 9011906767 9017806012 9046907011
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-30230

GGL25,GYL25

ANGLE -2

 2
85381-30220

GGL25,GYL25

ANGLE 0

 2
85381-30240

GGL25,GYL25

ANGLE +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30230

GGL25,GYL25

ANGLE -2

 2
85381-30220

GGL25,GYL25

ANGLE 0

 2
85381-30240

GGL25,GYL25

ANGLE +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30230

GGL25,GYL25

ANGLE -2

 2
85381-30220

GGL25,GYL25

ANGLE 0

 2
85381-30240

GGL25,GYL25

ANGLE +2

 2
85310C - MOTOR & PUMP ASSY, WASHER
85330-47100

GGL25,GYL25

 1
85319A - HOSE, INLET
85316-48260

GGL25,GYL25

 1
85319D - PACKING, FRONT WASHER
85319-33230

GGL25,GYL25

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-48260

GGL25,GYL25

 1
85355-48080

GGL25,GYL25

COLD AREA SPEC

 1
85355-48080

GGL25,GYL25..A

COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

 1
85355-48080

GGL25,GYL25..A

COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE

 1
85355-48080

GGL25,GYL25..A

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

 1
85355-48080

GGL25,GYL25..A

HEADLAMP-LED TRIPLE BEAM TYPE

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

GGL25,GYL25

 1
85336E - PACKING, WINDSHIELD WASHER INLET HOSE
85336-42320

GGL25,GYL25

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85385-48320

GGL25,GYL25

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-10260

GGL25,GYL25

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

GGL25,GYL25

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

GGL25,GYL25

*H,L=330

 1
90099-33080

GGL25,GYL25..A

*H,L=330,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

 1
90099-33080

GGL25,GYL25..A

*H,L=330,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

 1
90099-33080

GGL25,GYL25..A

*H,L=330,HEADLAMP-LED TRIPLE BEAM TYPE

 1
90099-33080

GGL25,GYL25

*H,L=330,COLD AREA SPEC

 1
90099-33080

GGL25,GYL25..A

*H,L=330,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33803

GGL25,GYL25

*H,L=1920

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

GGL25,GYL25

*H,L=540

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GGL25,GYL25

*H,L=330

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GGL25,GYL25

*H,L=330

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387-48470

GGL25,GYL25

 1
85389B - PROTECTOR, WINDSHIELD WASHER
85389-78020

GGL25,GYL25

 1
85397 - SWITCH ASSY,LEVEL WARNING
85397-52100

GGL25,GYL25

 1
Common parts
82711-1E350
82711-3F230
82711-3F290
85371-12040
90119-06767
90178-06012
90469-07011

(1908- )

Click highlighted areas on diagram

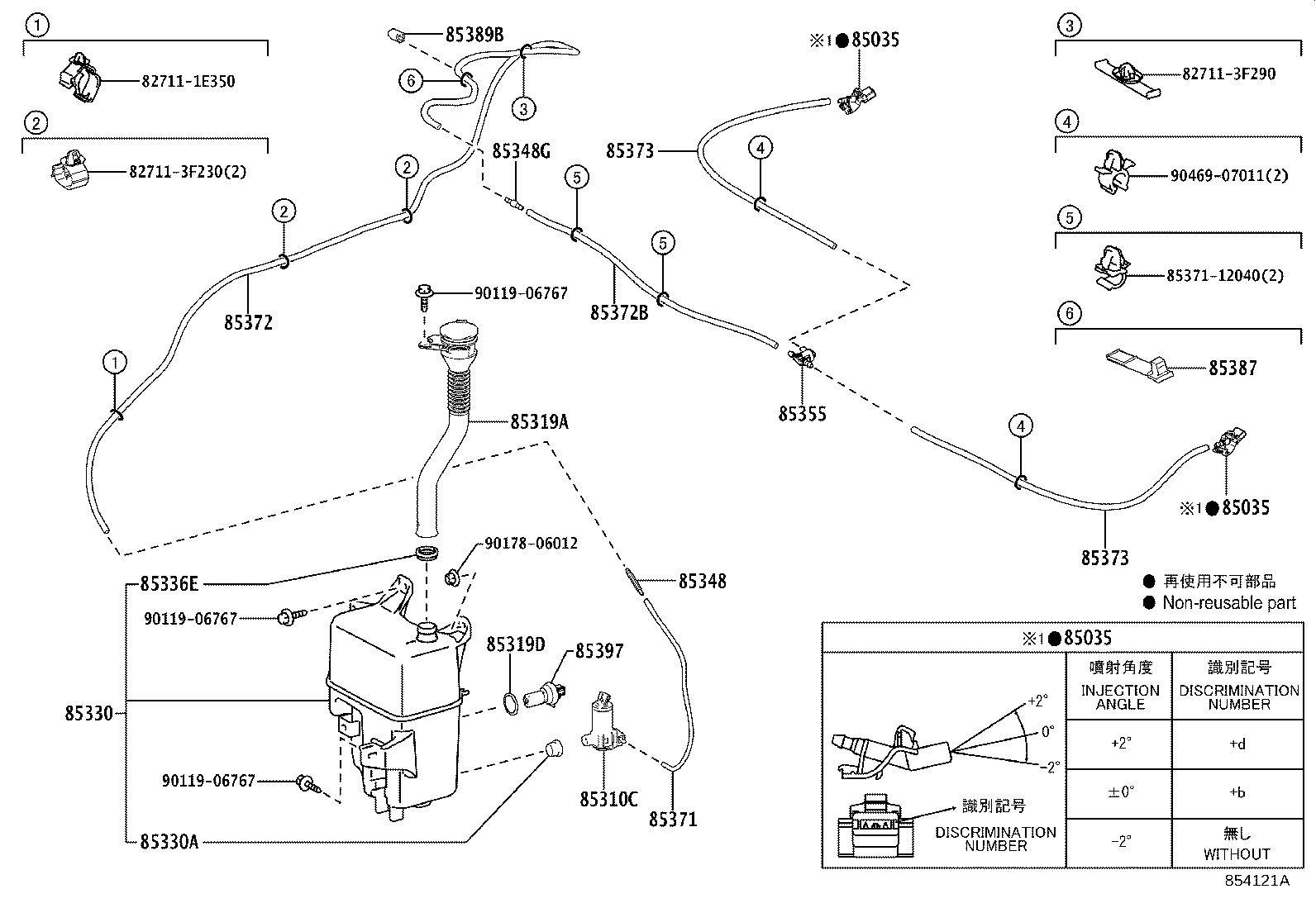

W(HEADLAMP CLEANER)

diagram 827111E350 827113F230 827113F290 85035 85035 85035 8505 8505 85310C 85319A 85319D 85330 85330A 85336E 85348 85348G 85355 85371 8537112040 85372 85372B 85373 85373 85387 85389B 85397 9011906767 9011906767 9011906767 9017806012 9046907011
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-30230

GGL25,GYL25

ANGLE -2

 2
85381-30220

GGL25,GYL25

ANGLE 0

 2
85381-30240

GGL25,GYL25

ANGLE +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30230

GGL25,GYL25

ANGLE -2

 2
85381-30220

GGL25,GYL25

ANGLE 0

 2
85381-30240

GGL25,GYL25

ANGLE +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30230

GGL25,GYL25

ANGLE -2

 2
85381-30220

GGL25,GYL25

ANGLE 0

 2
85381-30240

GGL25,GYL25

ANGLE +2

 2
85310C - MOTOR & PUMP ASSY, WASHER
85330-47100

GGL25,GYL25

 1
85319A - HOSE, INLET
85316-48260

GGL25,GYL25

 1
85319D - PACKING, FRONT WASHER
85319-33230

GGL25,GYL25

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-48260

GGL25,GYL25

 1
85355-48080

GGL25,GYL25

COLD AREA SPEC

 1
85355-48080

GGL25,GYL25..A

COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

 1
85355-48080

GGL25,GYL25..A

COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE

 1
85355-48080

GGL25,GYL25..A

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

 1
85355-48080

GGL25,GYL25..A

HEADLAMP-LED TRIPLE BEAM TYPE

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

GGL25,GYL25

 1
85336E - PACKING, WINDSHIELD WASHER INLET HOSE
85336-42320

GGL25,GYL25

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85385-48320

GGL25,GYL25

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-10260

GGL25,GYL25

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

GGL25,GYL25

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

GGL25,GYL25

*H,L=330

 1
90099-33080

GGL25,GYL25..A

*H,L=330,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

 1
90099-33080

GGL25,GYL25..A

*H,L=330,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

 1
90099-33080

GGL25,GYL25..A

*H,L=330,HEADLAMP-LED TRIPLE BEAM TYPE

 1
90099-33080

GGL25,GYL25

*H,L=330,COLD AREA SPEC

 1
90099-33080

GGL25,GYL25..A

*H,L=330,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33803

GGL25,GYL25

*H,L=1920

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

GGL25,GYL25

*H,L=540

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GGL25,GYL25

*H,L=330

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GGL25,GYL25

*H,L=330

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387-48470

GGL25,GYL25

 1
85389B - PROTECTOR, WINDSHIELD WASHER
85389-78020

GGL25,GYL25

 1
85397 - SWITCH ASSY,LEVEL WARNING
85397-52100

GGL25,GYL25

 1
Common parts
82711-1E350
82711-3F230
82711-3F290
85371-12040
90119-06767
90178-06012
90469-07011
Linked diagrams
8505
