GGL25L-AWZGBA (2015)
Toyota Lexus Rx450h/350(Jpp
Production
Sep 2015
-
Aug 2019
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

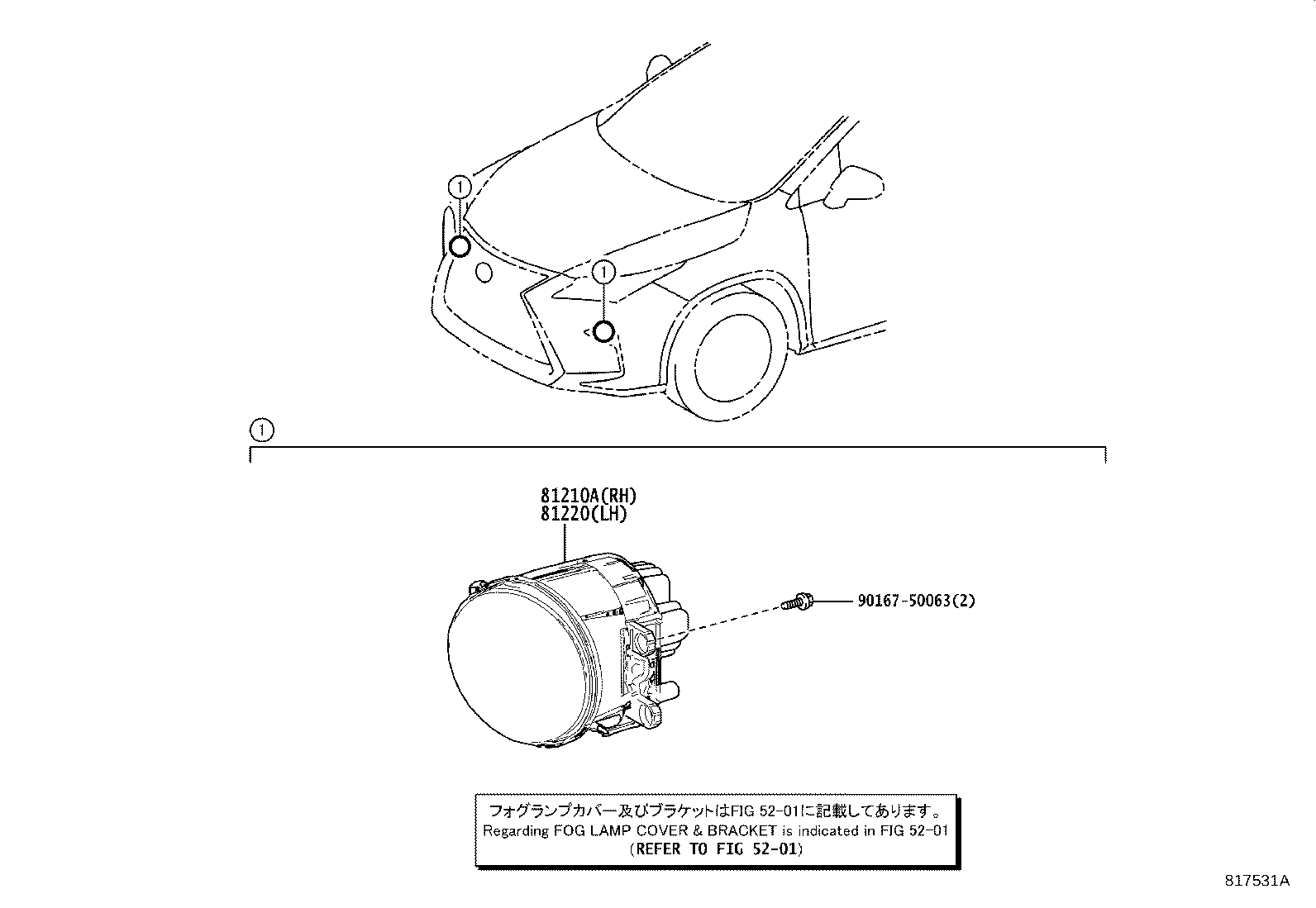

(1509-1609)GGL25 ; (1510-1609)GYL25
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210A - LAMP ASSY, FOG, RH | ||||
| 81210-48051 |
GGL25,GYL25 |
1 | ||
| 81210-48050 |
GGL25,GYL25 |
1 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-48051 |
GGL25,GYL25 |
1 | ||
| 81220-48050 |
GGL25,GYL25 |
1 | ||
| Common parts | ||||
| 90167-50063 | ||||
| Linked diagrams | ||||
| 5201 | ||||

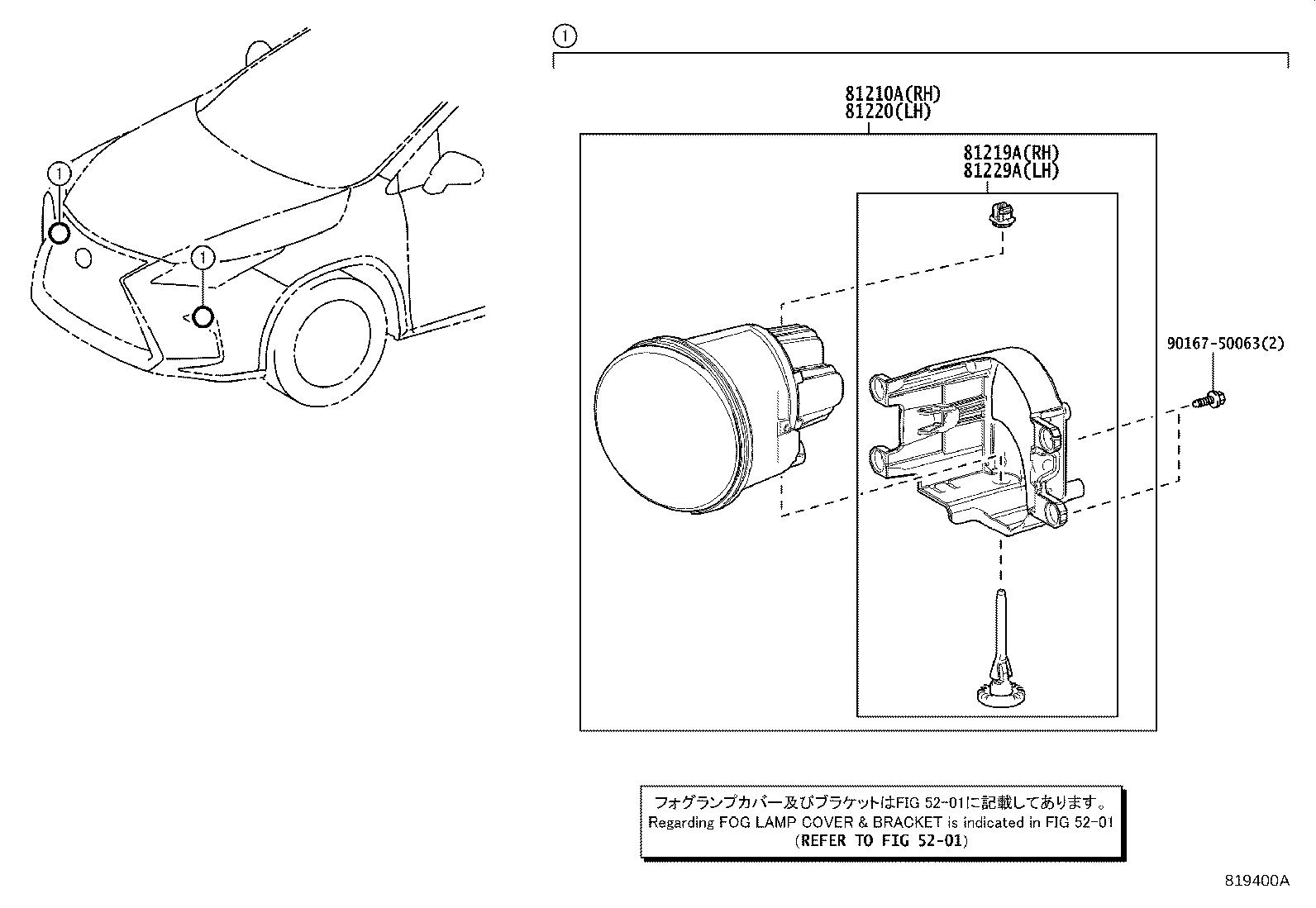

(1609-1908)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210A - LAMP ASSY, FOG, RH | ||||
| 81210-48051 |
GGL25,GYL25 |
1 | ||
| 81210-48050 |
GGL25,GYL25 |
1 | ||
| 81219A - BRACKET, FOG LAMP, RH | ||||
| 81219-48051 |
GGL25,GYL25 |
1 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-48051 |
GGL25,GYL25 |
1 | ||
| 81220-48050 |
GGL25,GYL25 |
1 | ||
| 81229A - BRACKET, FOG LAMP, LH | ||||
| 81229-48051 |
GGL25,GYL25 |
1 | ||
| Common parts | ||||
| 90167-50063 | ||||
| Linked diagrams | ||||
| 5201 | ||||
