MHU38L-AWXGKA (2005)
Toyota Lexus Rx400h
Production
Mar 2005
-
Dec 2008
Engine
3MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0503-0703)

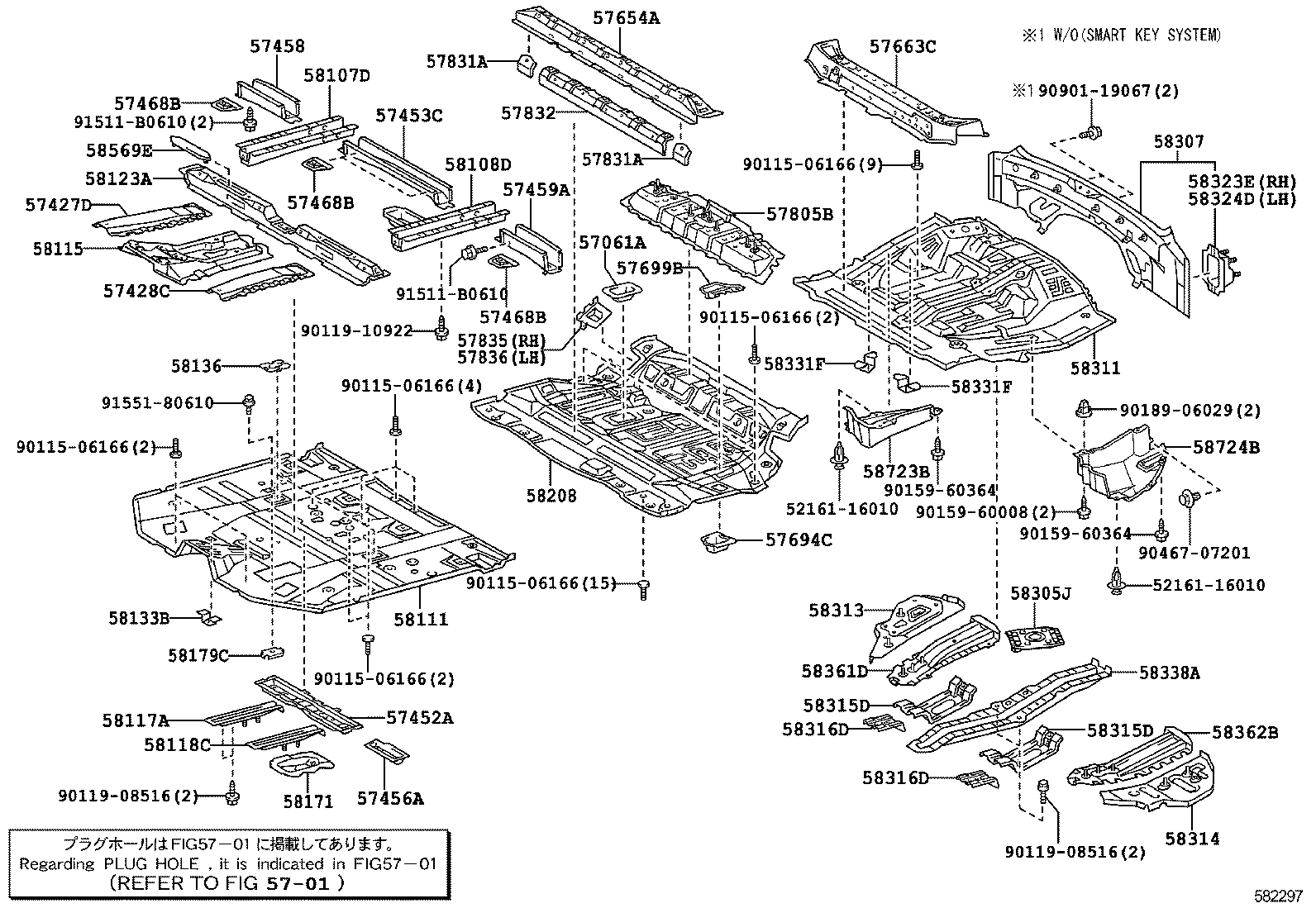

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57061A - BRACKET SUB-ASSY, FUEL TANK MOUNTING, FRONT | ||||
| 57063-48010 |
MHU3# |
1 | ||
| 57427D - REINFORCEMENT, FRONT FLOOR, NO.3 RH | ||||
| 57427-48020 |
MHU3# |
1 | ||
| 57428C - REINFORCEMENT, FRONT FLOOR, NO.3 LH | ||||
| 57428-48020 |
MHU3# |
1 | ||
| 57452A - MEMBER, FRONT FLOOR CROSS, NO.2 | ||||
| 57452-48040 |
MHU3# |
1 | ||
| 57452-48041 |
MHU3# |
1 | ||
| 57453C - MEMBER, FRONT FLOOR CROSS SIDE, RH | ||||
| 57453-48020 |
MHU3# |
1 | ||
| 57456A - GUSSET, FRONT FLOOR CROSSMEMBER, LH | ||||
| 57456-48010 |
MHU3# |
1 | ||
| 57458 - MEMBER, FRONT FLOOR CROSS, NO.1 | ||||
| 57458-48012 |
MHU3# |
1 | ||
| 57459A - MEMBER, FRONT FLOOR CROSS, NO.2 | ||||
| 57459-48015 |
MHU3# |
1 | ||
| 57468B - BRACKET, FRONT SEAT, REAR | ||||
| 57468-48010 |
MHU3# |
4 | ||
| 57468B - BRACKET, FRONT SEAT, REAR | ||||
| 57468-48010 |
MHU3# |
4 | ||
| 57468B - BRACKET, FRONT SEAT, REAR | ||||
| 57468-48010 |
MHU3# |
4 | ||
| 57654A - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-48020 |
MHU3# |
1 | ||
| 57663C - MEMBER, REAR FLOOR CROSS, CENTER | ||||
| 57663-48030 |
MHU3# |
1 | ||
| 57694C - REINFORCEMENT, FUEL TANK MOUNTING BRACKET, LH | ||||
| 57693-48020 |
MHU3# |
1 | ||
| 57699B - REINFORCE, FUEL TANK MOUNTING BRACKET, NO.3 | ||||
| 57699-48020 |
MHU3# |
1 | ||
| 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH | ||||
| 57805-48050 |
MHU3# |
1 | ||
| 57805-48040 |
MHU3# |
1 | ||
| 57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1 | ||||
| 57831-48010 |
MHU3# |
2 | ||
| 57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1 | ||||
| 57831-48010 |
MHU3# |
2 | ||
| 57832 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2 | ||||
| 57832-48030 |
MHU3# |
1 | ||
| 57835 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1 | ||||
| 57835-48020 |
MHU3# |
1 | ||
| 57836 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2 | ||||
| 57836-48020 |
MHU3# |
1 | ||
| 58107D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH | ||||
| 58107-48020 |
MHU3# |
1 | ||
| 58108D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH | ||||
| 58108-48020 |
MHU3# |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-48916 |
MHU3# |
1 | ||
| 58115 - REINFORCEMENT, FRONT FLOOR PANEL, FRONT | ||||
| 57501-48010 |
MHU3# |
1 | ||
| 58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH | ||||
| 58117-48030 |
MHU3# |
1 | ||
| 58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH | ||||
| 58118-48030 |
MHU3# |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58013-48010 |
MHU3# |
1 | ||
| 58133B - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3 | ||||
| 58133-22040 |
MHU3# |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-48030 |
MHU3# |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-48030 |
MHU3# |
1 | ||
| 58179C - BRACKET, CLAMP FLOOR | ||||
| 58179-48010 |
MHU3# |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-48906 |
MHU3# |
1 | ||
| 58211-48910 |
MHU3# |
1 | ||
| 58305J - BRACKET, SPARE WHEEL CARRIER | ||||
| 58305-48010 |
MHU3# |
1 | ||
| 58305-48011 |
MHU3# |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-48060 |
MHU3# |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-48905 |
MHU3# |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-48030 |
MHU3# |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-48020 |
MHU3# |
1 | ||
| 58315D - EXTENSION, REAR FLOOR PAN, RH | ||||
| 58315-48011 |
MHU3# |
1 | ||
| 58315-48020 |
MHU3# |
1 | ||
| 58315D - EXTENSION, REAR FLOOR PAN, RH | ||||
| 58315-48011 |
MHU3# |
1 | ||
| 58315-48020 |
MHU3# |
1 | ||
| 58316D - EXTENSION, REAR FLOOR PAN, LH | ||||
| 58316-48010 |
MHU3# |
1 | ||
| 58316-48020 |
MHU3# |
1 | ||
| 58316D - EXTENSION, REAR FLOOR PAN, LH | ||||
| 58316-48010 |
MHU3# |
1 | ||
| 58316-48020 |
MHU3# |
1 | ||
| 58323E - REINFORCEMENT, REAR BUMPER ARM SUPPORT, RH | ||||
| 58323-48040 |
MHU3# |
1 | ||
| 58324D - REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH | ||||
| 58324-48030 |
MHU3# |
1 | ||
| 58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 | ||||
| 58331-10010 |
MHU3# |
2 | ||
| 58331-10011 |
MHU3# |
2 | ||
| 58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 | ||||
| 58331-10010 |
MHU3# |
2 | ||
| 58331-10011 |
MHU3# |
2 | ||
| 58338A - REINFORCEMENT, REAR FLOOR PAN, NO.2 | ||||
| 58339-48010 |
MHU3# |
1 | ||
| 58309-48010 |
MHU3# |
1 | ||
| 58361D - REINFORCEMENT, REAR FLOOR PANEL, NO.1 RH | ||||
| 58361-48010 |
MHU3# |
1 | ||
| 58362B - REINFORCEMENT, REAR FLOOR PANEL, NO.1 LH | ||||
| 58362-48010 |
MHU3# |
1 | ||
| 58569E - COVER, FRONT FLOOR CAUTION PLATE | ||||
| 58569-48010A0 |
MHU3# IVORY,TRIM0# |
1 | ||
| 58569-48010B1 |
MHU3# LT.GRAY,TRIM1# |
1 | ||
| 58569-48010C0 |
MHU3# BLACK,TRIM2# |
1 | ||
| 58723B - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1 | ||||
| 58723-48010 |
MHU3# |
1 | ||
| 58724B - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2 | ||||
| 58724-48010 |
MHU3# |
1 | ||
| Common parts | ||||
| 52161-16010 | ||||
| 90115-06166 | ||||
| 90119-08516 | ||||
| 90119-10922 | ||||
| 90159-60008 | ||||
| 90159-60364 | ||||
| 90189-06029 | ||||
| 90467-07201 | ||||
| 90901-19067 | ||||
| 91511-B0610 | ||||
| 91551-80610 | ||||
| Linked diagrams | ||||
| 5701 | ||||
(0703-0812)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57061A - BRACKET SUB-ASSY, FUEL TANK MOUNTING, FRONT | ||||
| 57063-48010 |
MHU3# |
1 | ||
| 57427D - REINFORCEMENT, FRONT FLOOR, NO.3 RH | ||||
| 57427-48020 |
MHU3# |
1 | ||
| 57428C - REINFORCEMENT, FRONT FLOOR, NO.3 LH | ||||
| 57428-48020 |
MHU3# |
1 | ||
| 57452A - MEMBER, FRONT FLOOR CROSS, NO.2 | ||||
| 57452-48040 |
MHU3# |
1 | ||
| 57452-48041 |
MHU3# |
1 | ||
| 57453C - MEMBER, FRONT FLOOR CROSS SIDE, RH | ||||
| 57453-48020 |
MHU3# |
1 | ||
| 57456A - GUSSET, FRONT FLOOR CROSSMEMBER, LH | ||||
| 57456-48010 |
MHU3# |
1 | ||
| 57458 - MEMBER, FRONT FLOOR CROSS, NO.1 | ||||
| 57458-48012 |
MHU3# |
1 | ||
| 57459A - MEMBER, FRONT FLOOR CROSS, NO.2 | ||||
| 57459-48015 |
MHU3# |
1 | ||
| 57468B - BRACKET, FRONT SEAT, REAR | ||||
| 57468-48010 |
MHU3# |
4 | ||
| 57468B - BRACKET, FRONT SEAT, REAR | ||||
| 57468-48010 |
MHU3# |
4 | ||
| 57468B - BRACKET, FRONT SEAT, REAR | ||||
| 57468-48010 |
MHU3# |
4 | ||
| 57654A - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-48020 |
MHU3# |
1 | ||
| 57663C - MEMBER, REAR FLOOR CROSS, CENTER | ||||
| 57663-48030 |
MHU3# |
1 | ||
| 57694C - REINFORCEMENT, FUEL TANK MOUNTING BRACKET, LH | ||||
| 57693-48020 |
MHU3# |
1 | ||
| 57699B - REINFORCE, FUEL TANK MOUNTING BRACKET, NO.3 | ||||
| 57699-48020 |
MHU3# |
1 | ||
| 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH | ||||
| 57805-48050 |
MHU3# |
1 | ||
| 57805-48040 |
MHU3# |
1 | ||
| 57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1 | ||||
| 57831-48010 |
MHU3# |
2 | ||
| 57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1 | ||||
| 57831-48010 |
MHU3# |
2 | ||
| 57832 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2 | ||||
| 57832-48030 |
MHU3# |
1 | ||
| 57835 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1 | ||||
| 57835-48020 |
MHU3# |
1 | ||
| 57836 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2 | ||||
| 57836-48020 |
MHU3# |
1 | ||
| 58107D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH | ||||
| 58107-48020 |
MHU3# |
1 | ||
| 58108D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH | ||||
| 58108-48020 |
MHU3# |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-48916 |
MHU3# |
1 | ||
| 58115 - REINFORCEMENT, FRONT FLOOR PANEL, FRONT | ||||
| 57501-48010 |
MHU3# |
1 | ||
| 58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH | ||||
| 58117-48030 |
MHU3# |
1 | ||
| 58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH | ||||
| 58118-48030 |
MHU3# |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58013-48010 |
MHU3# |
1 | ||
| 58133B - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3 | ||||
| 58133-22040 |
MHU3# |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-48030 |
MHU3# |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-48030 |
MHU3# |
1 | ||
| 58179C - BRACKET, CLAMP FLOOR | ||||
| 58179-48010 |
MHU3# |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-48906 |
MHU3# |
1 | ||
| 58211-48910 |
MHU3# |
1 | ||
| 58305J - BRACKET, SPARE WHEEL CARRIER | ||||
| 58305-48010 |
MHU3# |
1 | ||
| 58305-48011 |
MHU3# |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-48060 |
MHU3# |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-48905 |
MHU3# |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-48030 |
MHU3# |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-48020 |
MHU3# |
1 | ||
| 58315D - EXTENSION, REAR FLOOR PAN, RH | ||||
| 58315-48011 |
MHU3# |
1 | ||
| 58315-48020 |
MHU3# |
1 | ||
| 58315D - EXTENSION, REAR FLOOR PAN, RH | ||||
| 58315-48011 |
MHU3# |
1 | ||
| 58315-48020 |
MHU3# |
1 | ||
| 58316D - EXTENSION, REAR FLOOR PAN, LH | ||||
| 58316-48010 |
MHU3# |
1 | ||
| 58316-48020 |
MHU3# |
1 | ||
| 58316D - EXTENSION, REAR FLOOR PAN, LH | ||||
| 58316-48010 |
MHU3# |
1 | ||
| 58316-48020 |
MHU3# |
1 | ||
| 58323E - REINFORCEMENT, REAR BUMPER ARM SUPPORT, RH | ||||
| 58323-48040 |
MHU3# |
1 | ||
| 58324D - REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH | ||||
| 58324-48030 |
MHU3# |
1 | ||
| 58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 | ||||
| 58331-10010 |
MHU3# |
2 | ||
| 58331-10011 |
MHU3# |
2 | ||
| 58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 | ||||
| 58331-10010 |
MHU3# |
2 | ||
| 58331-10011 |
MHU3# |
2 | ||
| 58338A - REINFORCEMENT, REAR FLOOR PAN, NO.2 | ||||
| 58339-48010 |
MHU3# |
1 | ||
| 58309-48010 |
MHU3# |
1 | ||
| 58361D - REINFORCEMENT, REAR FLOOR PANEL, NO.1 RH | ||||
| 58361-48010 |
MHU3# |
1 | ||
| 58362B - REINFORCEMENT, REAR FLOOR PANEL, NO.1 LH | ||||
| 58362-48010 |
MHU3# |
1 | ||
| 58569E - COVER, FRONT FLOOR CAUTION PLATE | ||||
| 58569-48010A0 |
MHU3# IVORY,TRIM0# |
1 | ||
| 58569-48010B1 |
MHU3# LT.GRAY,TRIM1# |
1 | ||
| 58569-48010C0 |
MHU3# BLACK,TRIM2# |
1 | ||
| 58723B - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1 | ||||
| 58723-48010 |
MHU3# |
1 | ||
| 58724B - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2 | ||||
| 58724-48010 |
MHU3# |
1 | ||
| Common parts | ||||
| 52161-16010 | ||||
| 90115-06166 | ||||
| 90119-08516 | ||||
| 90119-10922 | ||||
| 90159-60008 | ||||
| 90159-60364 | ||||
| 90189-06029 | ||||
| 90467-07201 | ||||
| 90901-19067 | ||||
| 91511-B0610 | ||||
| 91551-80610 | ||||
| Linked diagrams | ||||
| 5701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
