MHU38L-AWXGKA (2005)

Toyota Lexus Rx400h

Production Mar 2005 - Dec 2008
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0503- )

Click highlighted areas on diagram

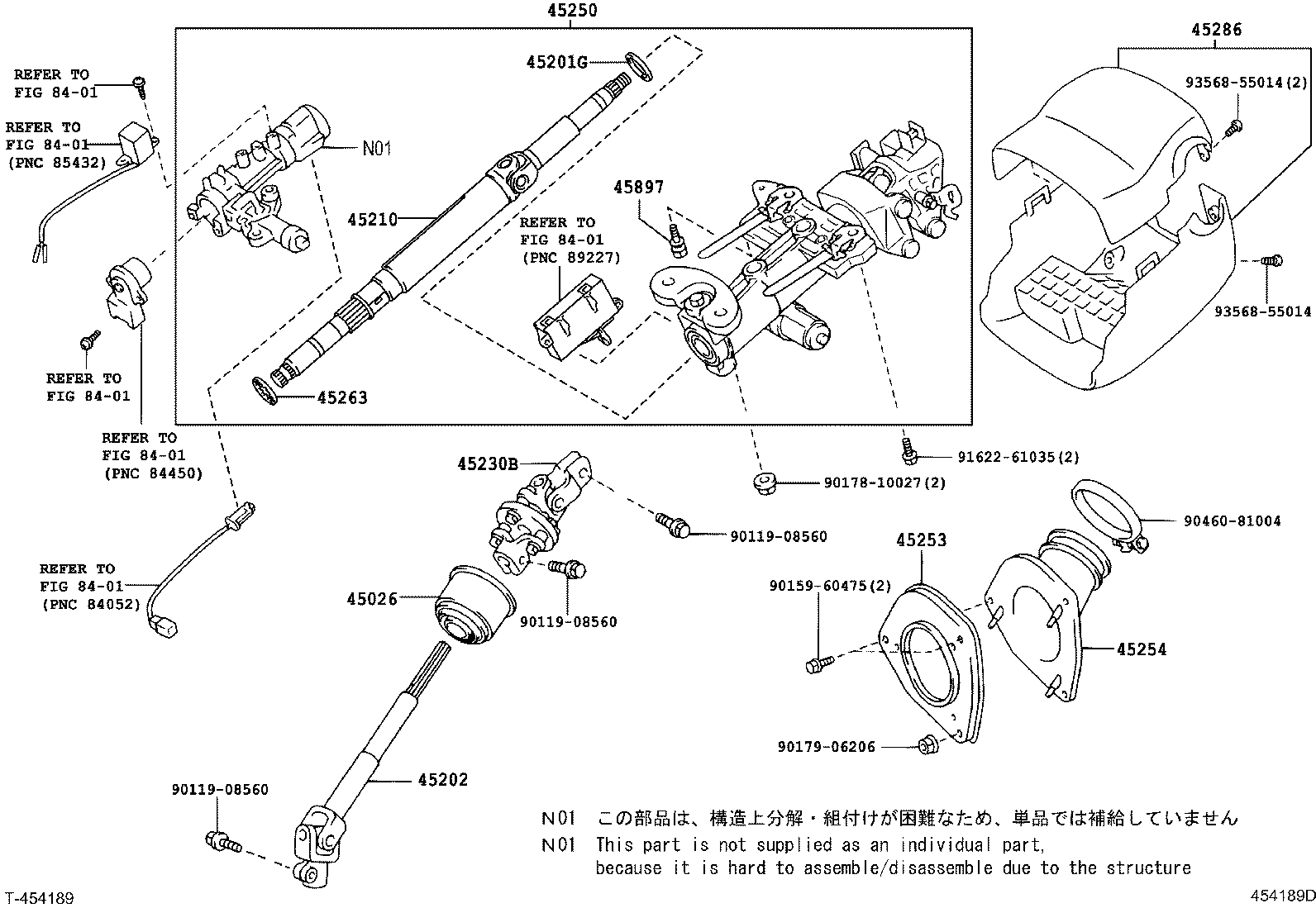

TILT & TELESCOPIC STEERING

diagram 45026 45201G 45202 45210 45230B 45250 45253 45254 45263 45286 45897 8401 8401 8401 8401 8401 8401 9011908560 9011908560 9011908560 9015960475 9017810027 9017906206 9046081004 9162261035 9356855014 9356855014
Part # Description Qty Price
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-48050

MHU3#

 1
45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45820-50010

MHU3#

PREMIUM PACKAGE(USA)

 1
45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE
45202-48080

MHU3#

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-48020

MHU3#

 1
45210-48040

MHU3#

PREMIUM PACKAGE(USA)

 1
45230B - JOINT ASSY, STEERING SHAFT UNIVERSAL
45230-48050

MHU3#

 1
45250 - COLUMN ASSY, STEERING
45250-48100

MHU3#

PREMIUM PACKAGE(USA)

 1
45250-48060

MHU3#

 1
45253 - COVER, STEERING COLUMN HOLE
45253-48040

MHU3#

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-48040

MHU3#

 1
45263 - RING, STEERING COLUMN, NO.1
45263-30010

MHU3#

PREMIUM PACKAGE(USA)

 1
45286 - COVER, STEERING COLUMN
45286-48902C0

MHU3#

PREMIUM PACKAGE(USA),BLACK,TRIM1#,2#

 1
45286-48902B0

MHU3#

PREMIUM PACKAGE(USA),SADDLE GRAY,TRIM0#

 1
45286-48900C0

MHU3#

BLACK,TRIM1#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

MHU3#

 2
Common parts
90119-08560
90159-60475
90178-10027
90179-06206
90460-81004
91622-61035
93568-55014
Linked diagrams
8401

(0503- )

Click highlighted areas on diagram

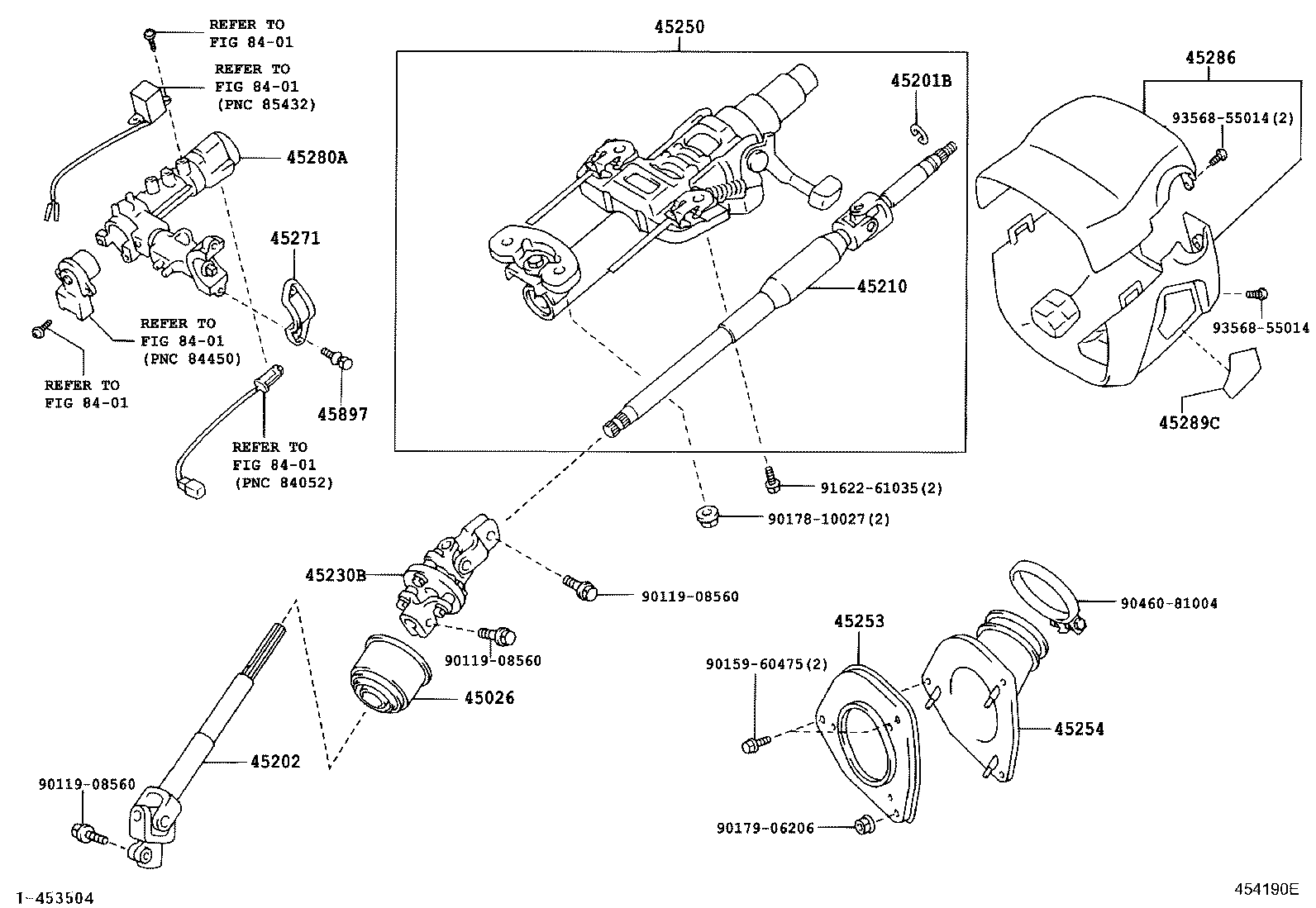

TILT STEERING

diagram 45026 45201B 45202 45210 45230B 45250 45253 45254 45271 45280A 45286 45289C 45897 8401 8401 8401 8401 8401 9011908560 9011908560 9011908560 9015960475 9017810027 9017906206 9046081004 9162261035 9356855014 9356855014
Part # Description Qty Price
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-48050

MHU3#

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17004

MHU3#

T=1.20

 1
45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE
45202-48080

MHU3#

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-48020

MHU3#

 1
45210-48040

MHU3#

PREMIUM PACKAGE(USA)

 1
45230B - JOINT ASSY, STEERING SHAFT UNIVERSAL
45230-48050

MHU3#

 1
45250 - COLUMN ASSY, STEERING
45250-48100

MHU3#

PREMIUM PACKAGE(USA)

 1
45250-48060

MHU3#

 1
45253 - COVER, STEERING COLUMN HOLE
45253-48040

MHU3#

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-48040

MHU3#

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-12060

MHU3#

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-48030

MHU3#

 1
45286 - COVER, STEERING COLUMN
45286-48902C0

MHU3#

PREMIUM PACKAGE(USA),BLACK,TRIM1#,2#

 1
45286-48902B0

MHU3#

PREMIUM PACKAGE(USA),SADDLE GRAY,TRIM0#

 1
45286-48900C0

MHU3#

BLACK,TRIM1#

 1
45289C - COVER, STEERING COLUMN, LWR NO.2
45289-48010C0

MHU3#

BLACK,TRIM1#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

MHU3#

 2
Common parts
90119-08560
90159-60475
90178-10027
90179-06206
90460-81004
91622-61035
93568-55014
Linked diagrams
8401
